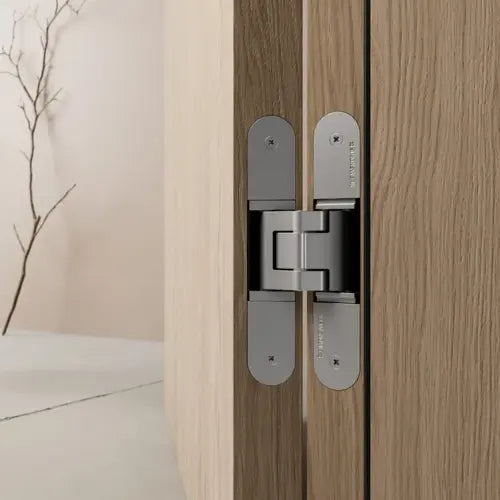

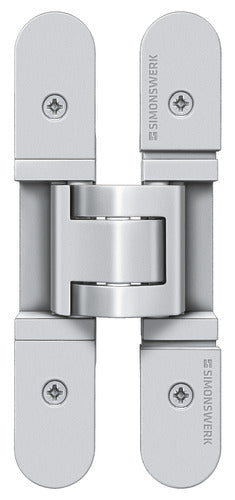

Tectus - Simonswerk - TE 526 3D Concealed Stainless Steel Hinge (Each)

Tectus by SimonswerkSKU: TE-526-3D-124

Price:
Sale price$470.00

Description

About Tectus by Simonswerk

TECTUS reaches the pinnacle in both design and technology, adhering to the architectural design principle of minimalism to perfection. Thanks to its flush and linear design, the completely concealed hinge system seamlessly integrates with almost any material, making for a uniform appearance within the architecture. The clearer and more reduced the design principle, the greater the requirements are in terms of precision and perfection. Hinge systems from the TECTUS brand create a perfect, detailed starting point for this purpose.

Description

Application

  • Single Acting Invisible Hinge
  • Interior or Exterior Doors
  • For residential and commercial doors
  • Manufactured from solid stainless steel

Handing

  • Non-Handed

Features

  • Completely concealed hinge system
  • Maintenance-free slide bearings
  • For wood, steel or aluminum door panels and frames
  • Finger protection due to a small gap between door and frame
  • Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
  • For flush commercial doors
  • Solid non magnetic stainless steel (304 series) (marine grade 316 series upon request)
  • UL listed for 180 minute fire door

Note

  • Priced by the EACH, standard application requires two (2) hinges per door
  • Router templates for installation are sold separately
  • Other finishes available upon request

Specification

Technical Data

Load Capacity: 120.0 kg (264.0 lbs.)
Overall Length: 155.0 mm (6.102")
Width (Door Part): 26.0 mm (1.024")
Width (Frame Part): 26.0 mm (1.024")
Cutter Diameter: 24.0 mm (0.945")
Collar Ring Diameter: 30.0 mm (1.181")
Door Thickness: For a minimum door panel thickness of 40 mm (1-5/8")
Opening Angle: 180°

Note

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf with a height/width ratio of 2:1.
  • For fire rated doors: Check with door manufacturer regarding the usage of additional required intumescent material.
  • Square-corner cover plates are available upon request.
  • For a minimum door panel thickness of 34 mm (1-3/8").
  • The load capacity shall be reduced by 20% when installed in combination with a door closer.
  • Alternatively, the routing can be carried out with a cutter diameter of 3/4" and a collar ring diameter of 1" for imperial templates.

Suitable For

  • Type of door leaf: wood, hollow metal
  • Rebate: flush
  • Type of frame: hollow metal frames, casing wood frames, commercial wood frames, aluminum frames

Finish

Finishes

  • Satin Stainless Steel (040)
  • Polished Stainless Steel (042)

Other finishes available upon request
