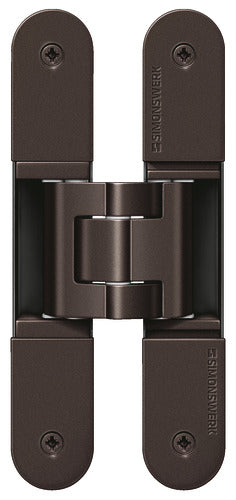

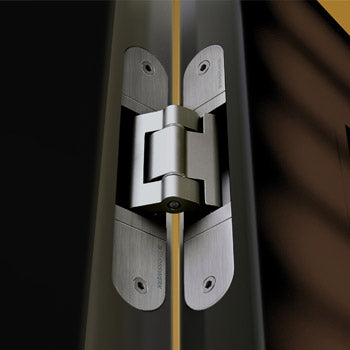

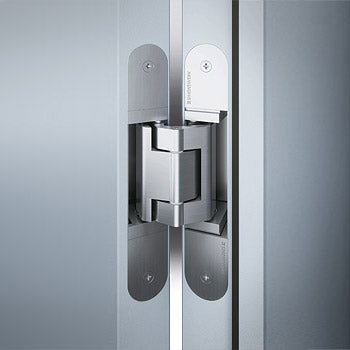

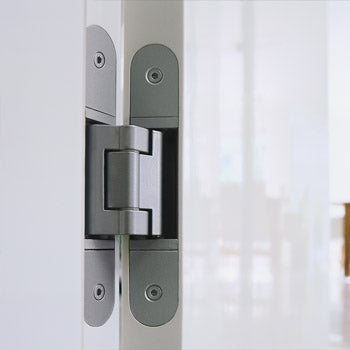

TECTUS reaches the pinnacle in both design and technology, adhering to the architectural design principle of minimalism to perfection. Thanks to its flush and linear design, the completely concealed hinge system seamlessly integrates with almost any material, making for a uniform appearance within the architecture. The clearer and more reduced the design principle, the greater the requirements are in terms of precision and perfection. Hinge systems from the TECTUS brand create a perfect, detailed starting point for this purpose.
Description
Application
- Single Acting Invisible Hinge
- Interior or Exterior Doors
- For residential and commercial doors
Handing
- Non-Handed
Features
- Completely concealed hinge system
- Maintenance-free slide bearings
- For wood, steel or aluminum door panels and frames
- Finger protection due to a small gap between door and frame
- For flush residential and commercial doors
- Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
- UL listed for 20 minute fire door
Note
-
Priced by the EACH, standard application requires two (2) hinges per door
- Router templates for installation are sold separately
-
Other finishes available upon request
Specification
Technical Data
Overall Length: 160.0 mm (6.299 inches)
Width (Door Part): 28.0 mm (1.102 inches)
Width (Frame Part): 28.0 mm (1.102 inches)
Cutter Diameter: 24.0 mm (0.945 inches)
Collar Ring Diameter: 30.0 mm (1.181 inches)
Opening Angle: 180°
Note
- The load capacity mentioned above refers to the use of 2 hinges per door leaf with a height/width ratio of 2:1.
- For a minimum door panel thickness of 38 mm (1-1/2").
- For fire rated doors: Check with door manufacturer regarding the usage of additional required intumescent material.
- Square-corner cover plates are available upon request.
- Alternatively, the routing can be carried out with a cutter diameter of 3/4" and a collar ring diameter of 1" for imperial templates.
Suitable For
- Type of door leaf: wood, hollow metal
- Rebate: flush
-
Type of frame: hollow metal frames, casing wood frames, commercial wood frames, aluminum frames
Finish

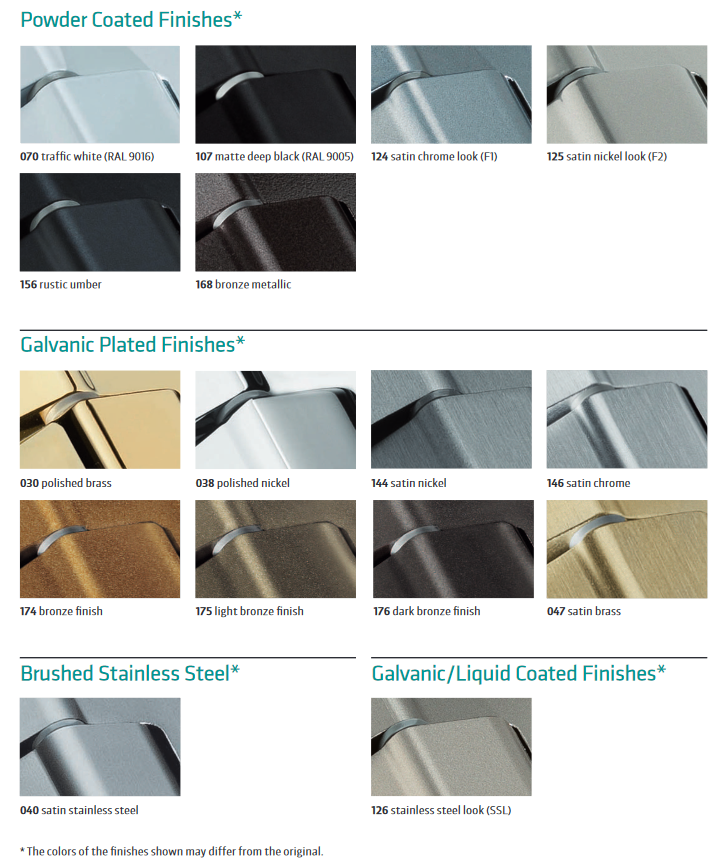

Finishes

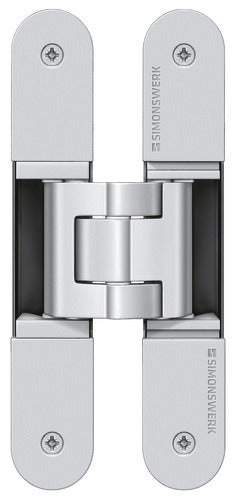

- Satin Chrome Look (F1) (124)

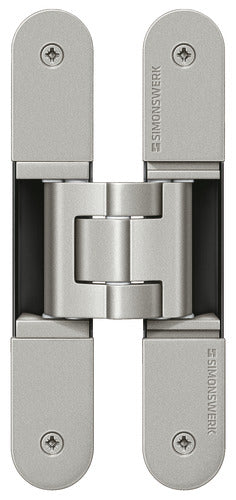

- Satin Nickel Look (F2) (125)
- Stainless Steel Look (SSL) (126)

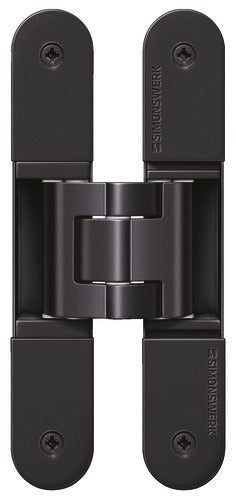

- Rustic Umber (156)

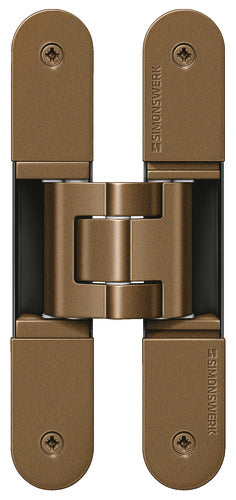

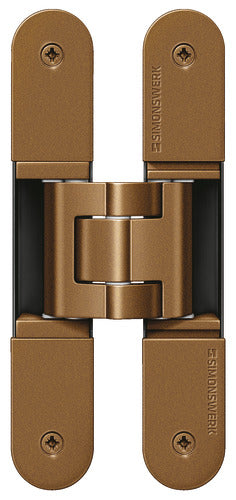

- Bronze Metallic (168)
- Traffic White (RAL 9016) (070)

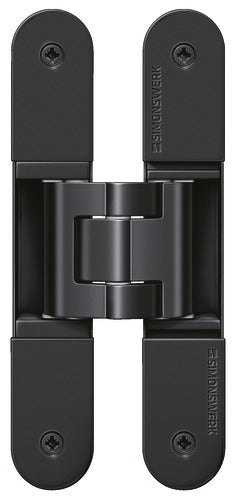

- Matte Deep Black (RAL 9005) (107)
- Polished Brass (030)

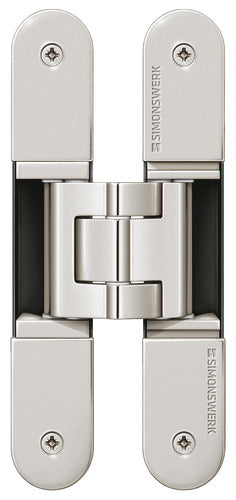

- Polished Nickel (038)

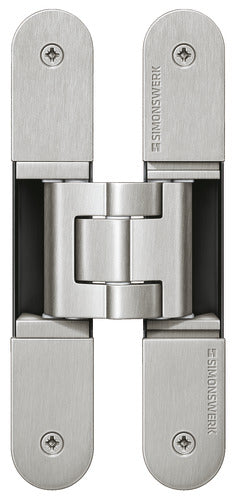

- Satin Nickel (144)
- Satin Chrome (146)
- Bronze Finish Light (175)

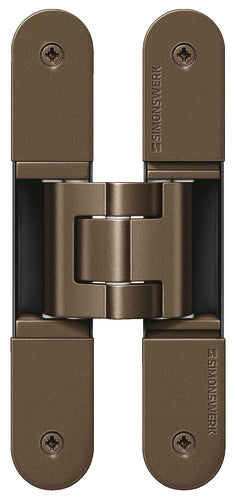

- Bronze Finish (174)
- Bronze Finish Dark (176)

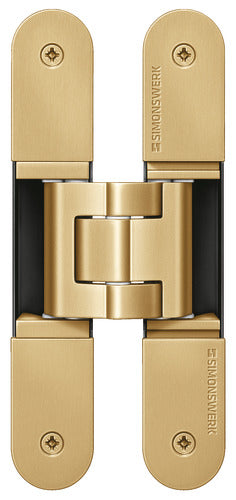

- Satin Brass (047)
Other finishes available upon request

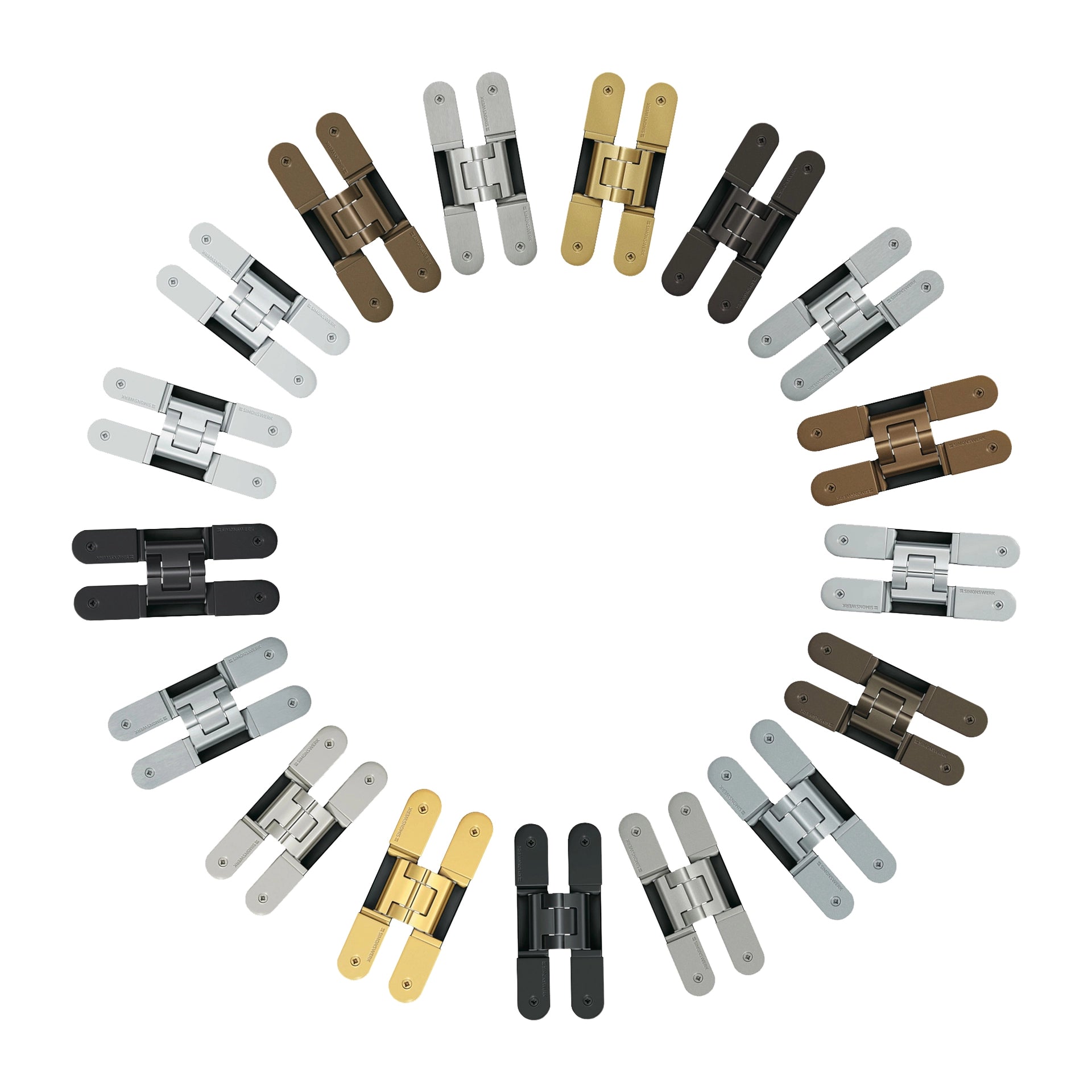

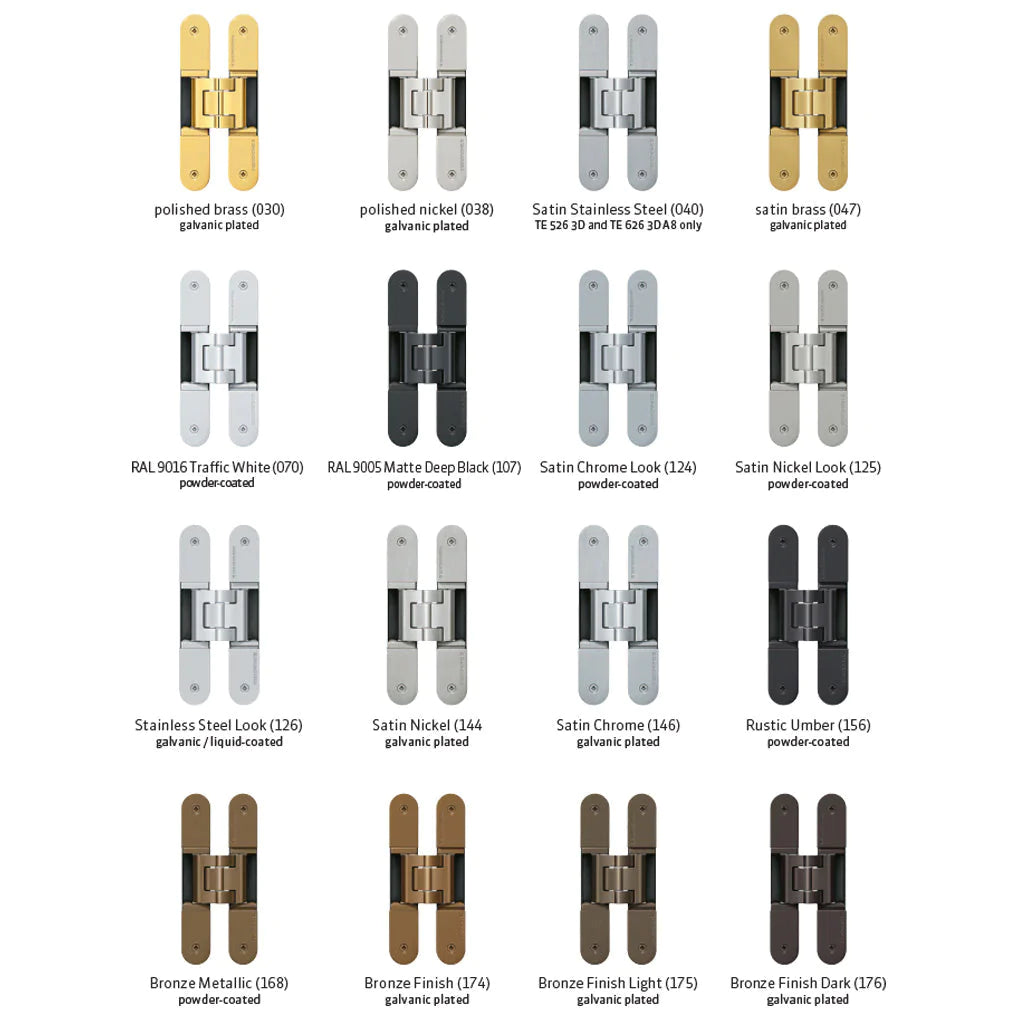

*Image does not display all available finishes

Resource
Product Info
Data sheet
Fitting instruction
Adjustment instructions
Note - load capacity
Finish chart
Brochures
Brochure TECTUS
Routing Data
commercial wood frame
commercial wood frames - square-cornered
casing wood frame
casing wood frame - square-cornered
hollow metal frame
hollow metal frame - square-cornered
Certificate CE
