Tectus - Simonswerk - TE 240 3D Concealed Hinge (Each)

Tectus by SimonswerkSKU: TE-240-3D-124

Price:
Sale price$117.00

Description

About Tectus by Simonswerk

TECTUS reaches the pinnacle in both design and technology, adhering to the architectural design principle of minimalism to perfection. Thanks to its flush and linear design, the completely concealed hinge system seamlessly integrates with almost any material, making for a uniform appearance within the architecture. The clearer and more reduced the design principle, the greater the requirements are in terms of precision and perfection. Hinge systems from the TECTUS brand create a perfect, detailed starting point for this purpose.

Description

Application

  • Single Acting Invisible Hinge
  • Interior or Exterior Doors
  • For residential and commercial doors

Handing

  • Non-Handed

Features

  • Completely concealed hinge system
  • For flush residential doors
  • Maintenance-free slide bearings
  • For wood, steel or aluminum door panels and frames
  • Finger protection due to a small gap between door and frame
  • Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))

Note

  • Priced by the EACH, standard application requires two (2) hinges per door
  • Router templates for installation are sold separately
  • Other finishes available upon request

Specification

Technical Data

Load Capacity: 60.0 kg (132.0 lbs.)
Overall Length: 155.0 mm (6.102 inches)
Width (Door Part): 18.0 mm (0.709 inches)
Width (Frame Part): 21.0 mm (0.827 inches)
Cutter Diameter: 16.0 mm (0.630 inches)
Collar Ring Diameter: 30.0 mm (1.181 inches)
Door Thickness: For a minimum door panel thickness of 26 mm (1.024")
Opening Angle: 180°

Note
  • The load capacity mentioned above refers to the use of 2 hinges per door leaf with a height/width ratio of 2:1
  • For a minimum door panel thickness of 26 mm (1.024")
  • Alternatively, the routing can be carried out with a cutter diameter of 1/2" and a collar ring diameter of 1" for imperial templates
Suitable For
  • Type of door leaf: wood, hollow metal
  • Rebate: flush
  • Type of frame: hollow metal frames, casing wood frames, commercial wood frames, aluminum frames

Finish

Finishes

  • Satin Chrome Look (F1) (124)
  • Satin Nickel Look (F2) (125)

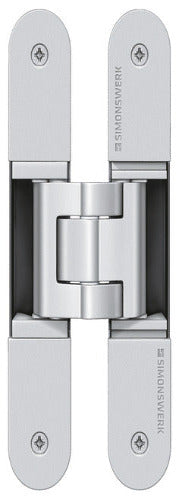

  • Stainless Steel Look (SSL) (126)

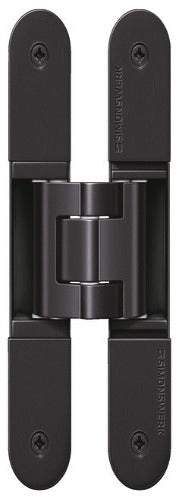

  • Rustic Umber (156)

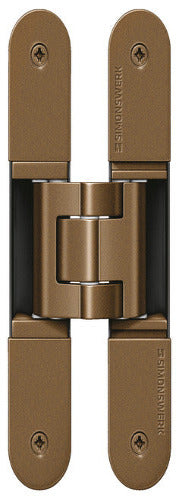

  • Bronze Metallic (168)

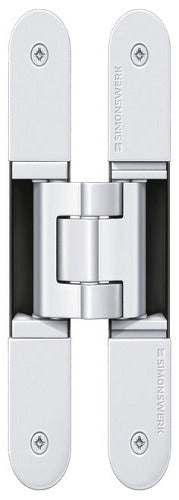

  • Traffic White (RAL 9016) (070)

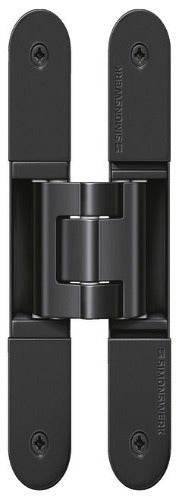

  • Matte Deep Black (RAL 9005) (107)
  • Polished Brass (030)

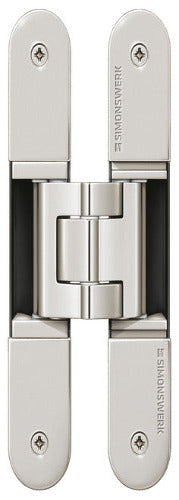

  • Polished Nickel (038)

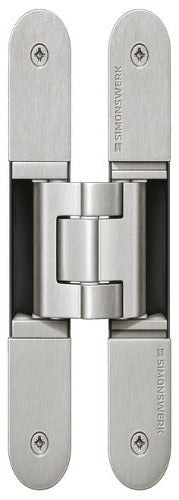

  • Satin Nickel (144)
  • Satin Chrome (146)
  • Bronze Finish Light (175)

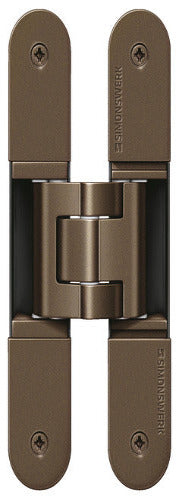

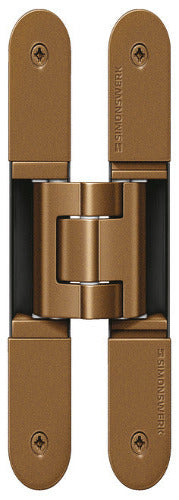

  • Bronze Finish (174)

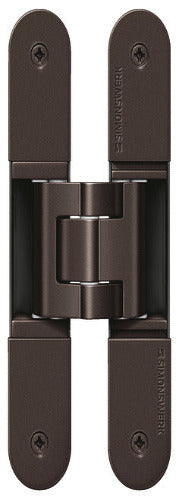

  • Bronze Finish Dark (176)

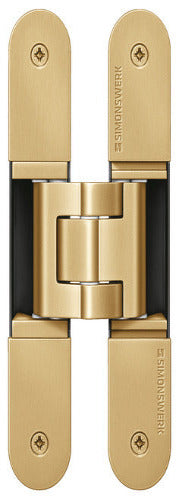

  • Satin Brass (047)

Other finishes available upon request

*Image does not display all available finishes
