Sugatsune LIN-X450 Lateral Opening Door System

Save 20%
SugatsuneSKU: SUG-LIN-X450

Price:
Sale price$166.40 Regular price$208.00

Description

About Sugatsune

Since 1930, Sugatsune has been a trusted source worldwide for helping people find the right hardware to complete their projects. A manufacturer of high-quality and durable hardware systems, Sugatsune offers a vast line-up of hardware and provides the support you need to successfully complete your projects.

From residential and commercial architectural hardware to industrial hardware components for industries including food, medical equipment, transportation, and aerospace, you can find the right solution to help connect and show off your creations. Sugatsune America is AS9120 B and ISO9001: 2015 certified and provides unique component hardware products in our effort to create convenience and satisfaction for people

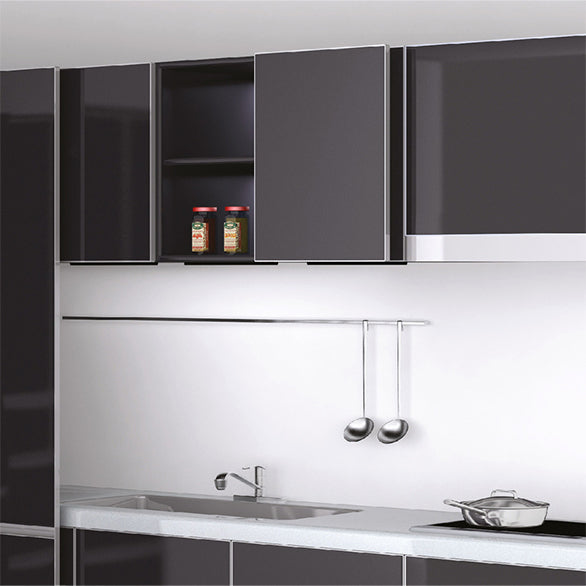

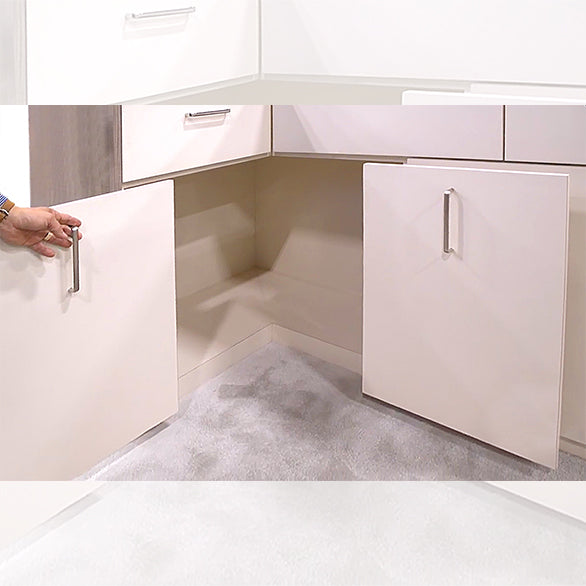

The Sugatsune LIN-X450 Lateral Door Opening System is designed to provide smooth movement with a soft-close feature for smooth, quiet operation.  Allows door to swing out laterally in a small radius, ideal for tight front space application. Designed to function with minimal effort while providing full access into cabinets in places where space may be a challenge.

Specification

Sugatsune LIN-X450 Lateral Opening Door System

Material: Steel/Aluminum
Style: Modern/Contemporary
Installation/Mounting Hardware: Included

  • LIN-X450 Set Includes: All components and installation instructions to install 1 lateral opening door.

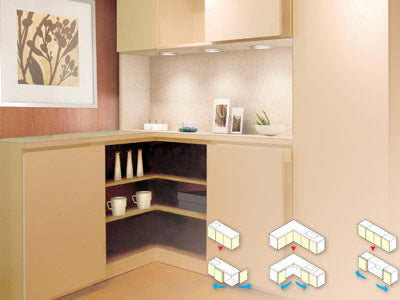

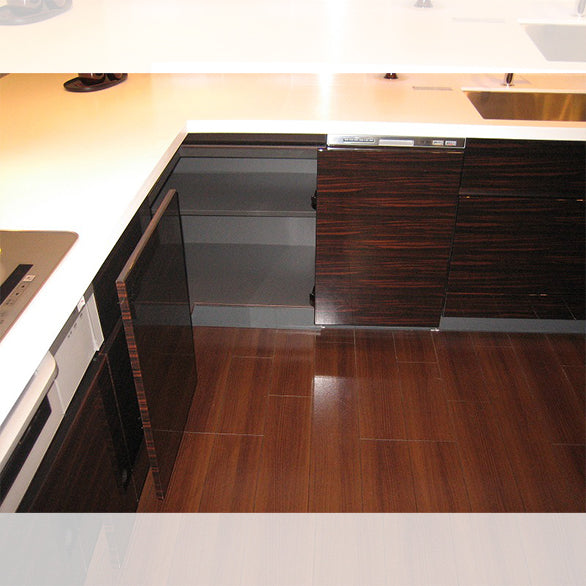

  • Eliminate dead space and increase access to blind corners or islands.
  • Lateral Swing Mechanism allows doors to open parallel to the face of the cabinet/wall - door swings clear of opening, providing full access to cabinet.
  • 4-Way Adjustable: Vertical, horizontal, depth and parallel adjustment.
  • Hinge allows door to freely stop in any opened position.
  • Damper function produces soft, self-closing movement.
  • Hardware does not require tracks/rails on floor or ceiling of cabinetry.
  • Designed for standard 32mm system mounting for easy installation; use LIN-X on new or existing cabinets.
  • Non-handed: can be used for left- or right-opening doors.
  • Easy Installation and adjustment.
  • Designed for overlay door application.
  • Door Width: 15-3/4" ~ 19-11/16"  (400 ~ 500mm)
  • Door Height: 23-5/8" ~ 35-7/16" (600 ~ 900mm)
  • Door Thickness: 5/8" ~ 15/16" (15 ~ 24 mm)
  • Door Weight: Max. 15.4- lbs (7kg)  / Door (NOTE: Can be used on heavier / taller doors by adding additional hinge arms. Please see specifications for details, call to order individual parts.)

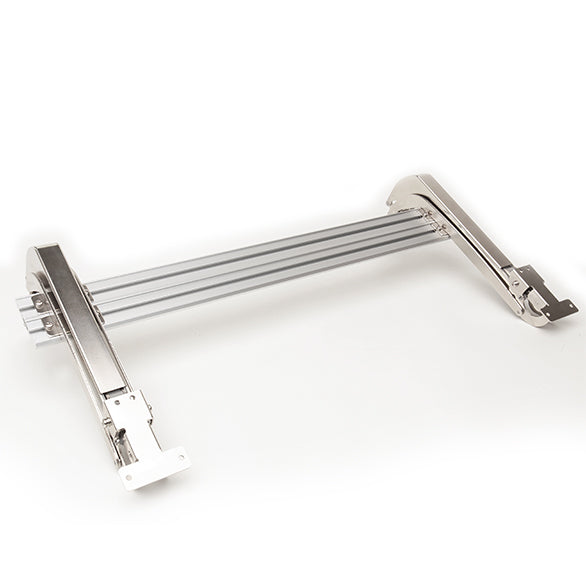

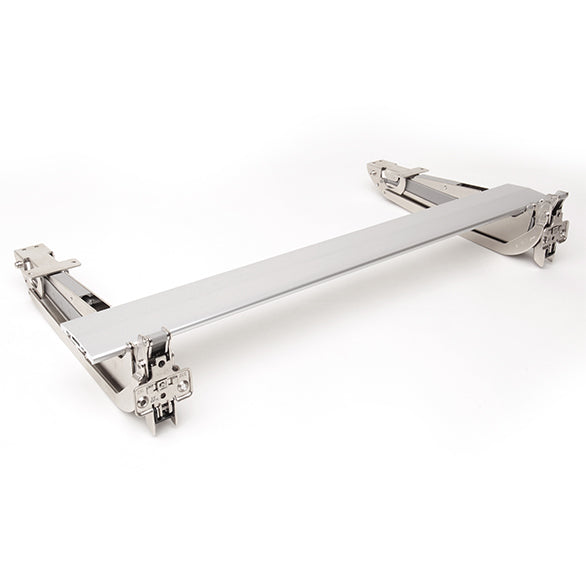

Included Parts:

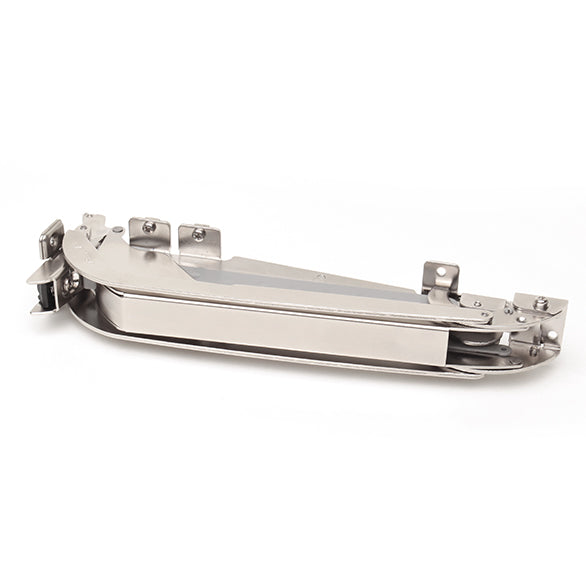

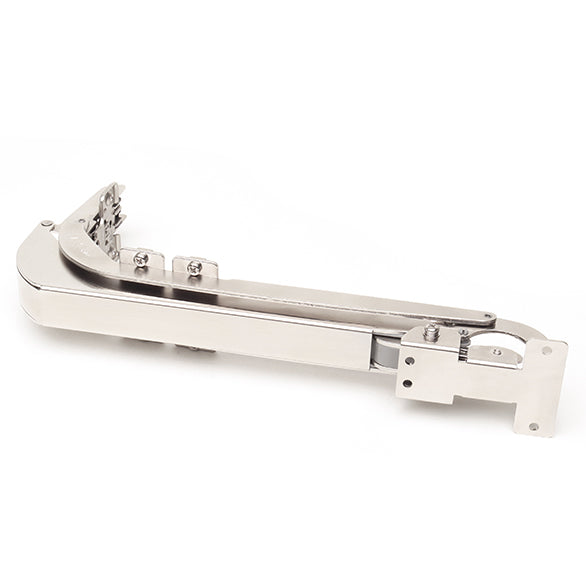

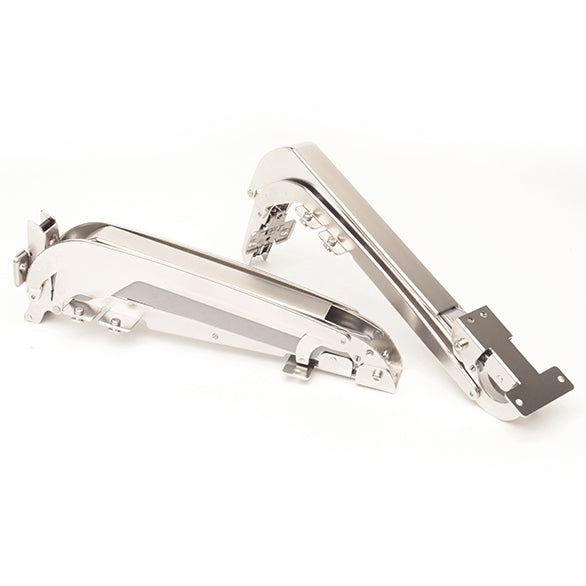

Hinge Body: 2 pcs
Connecting Bar: 1 pc
Mounting Plate: 2 pcs
Cover Cap: 2 pcs

Dimensions


Resource

Spec Sheet

Installation

Door Weight Calculator

Torque Calculator

Warranty
