Sugatsune - 304 Stainless Steel - HGS3D-S160SH 3-Way Adjustable Concealed Hinge (Each)

About Sugatsune

Since 1930, Sugatsune has been a trusted source worldwide for helping people find the right hardware to complete their projects. A manufacturer of high-quality and durable hardware systems, Sugatsune offers a vast line-up of hardware and provides the support you need to successfully complete your projects.

From residential and commercial architectural hardware to industrial hardware components for industries including food, medical equipment, transportation, and aerospace, you can find the right solution to help connect and show off your creations. Sugatsune America is AS9120 B and ISO9001: 2015 certified and provides unique component hardware products in our effort to create convenience and satisfaction for people

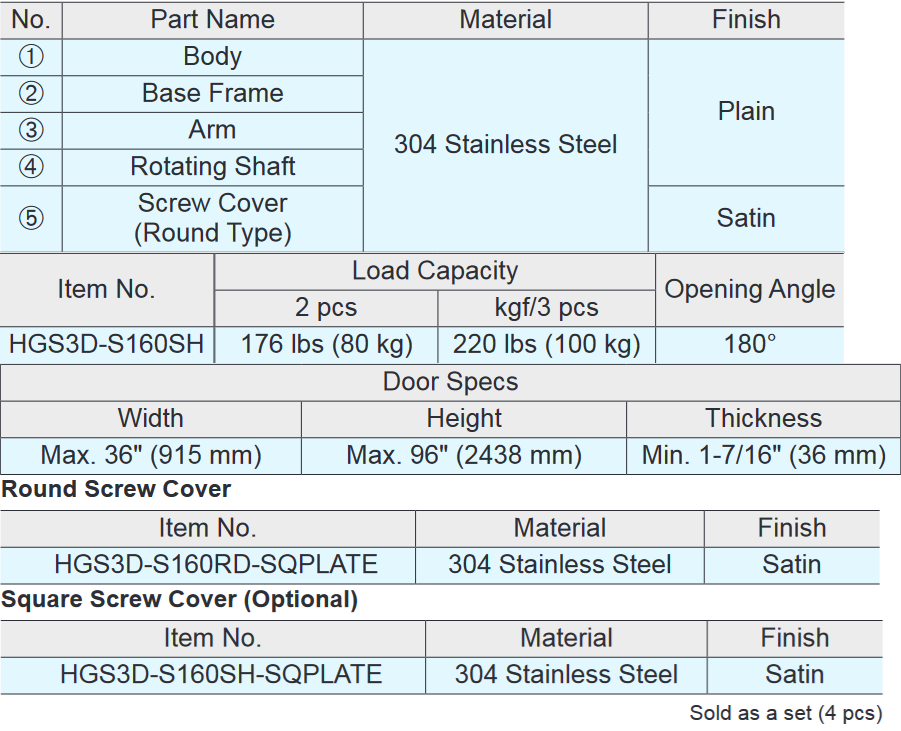

Specification

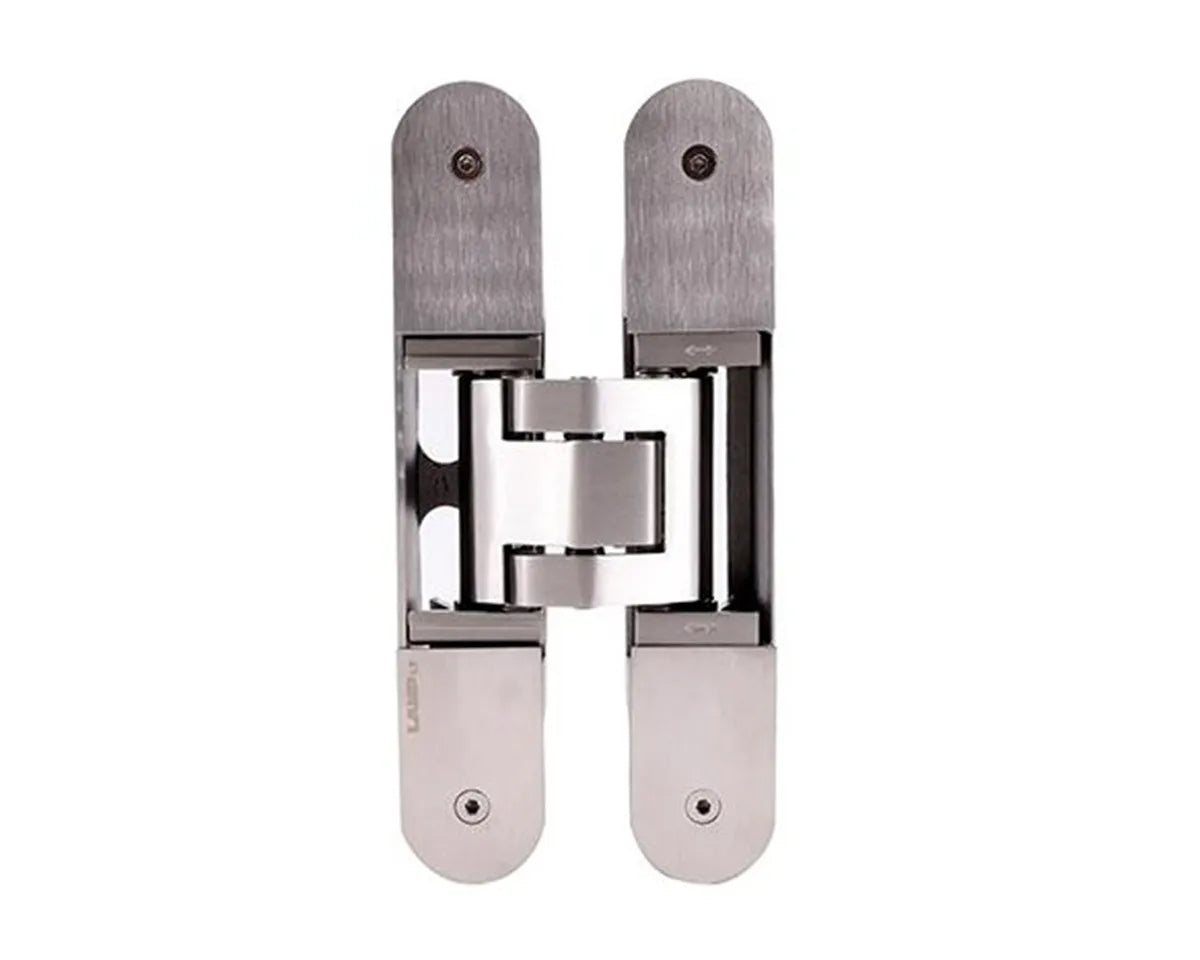

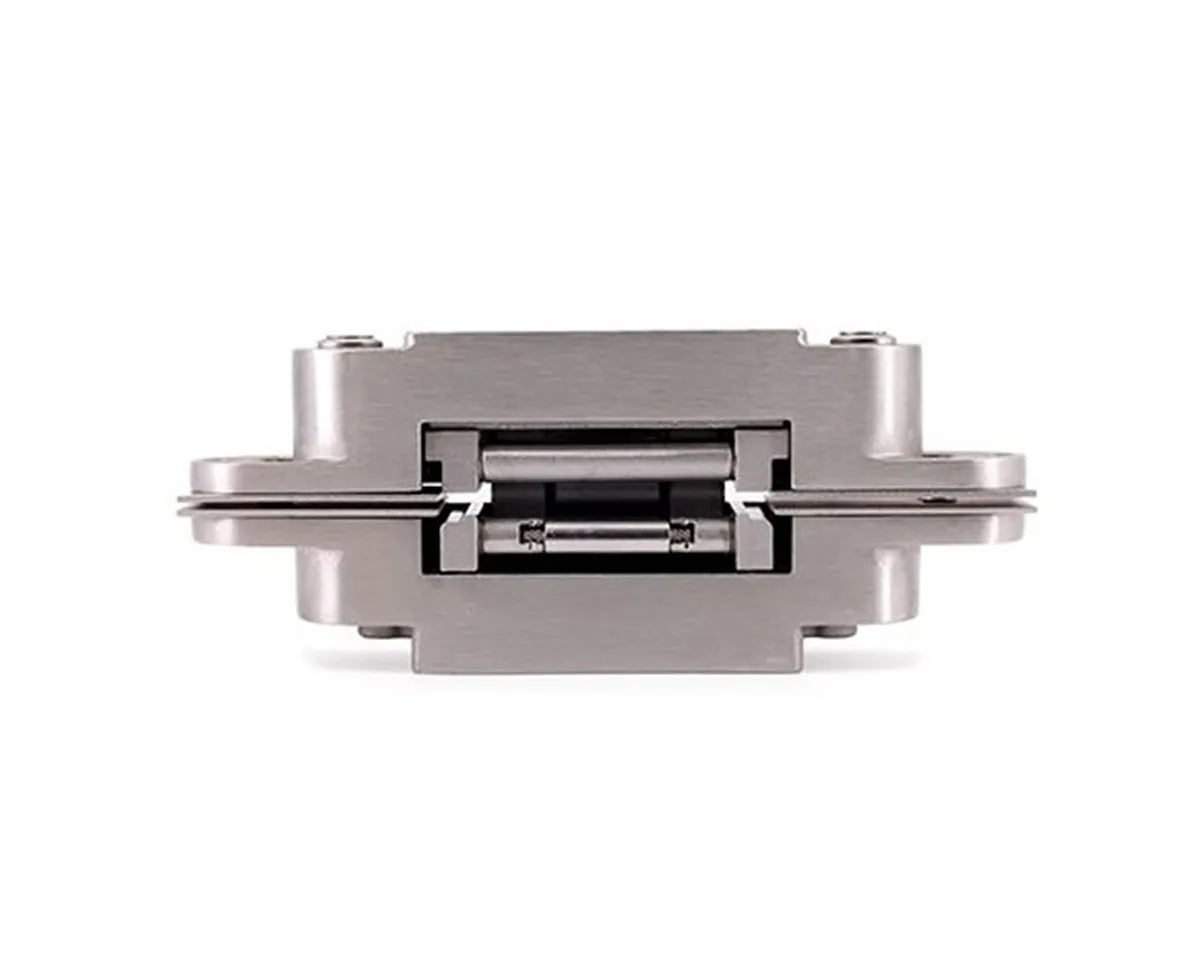

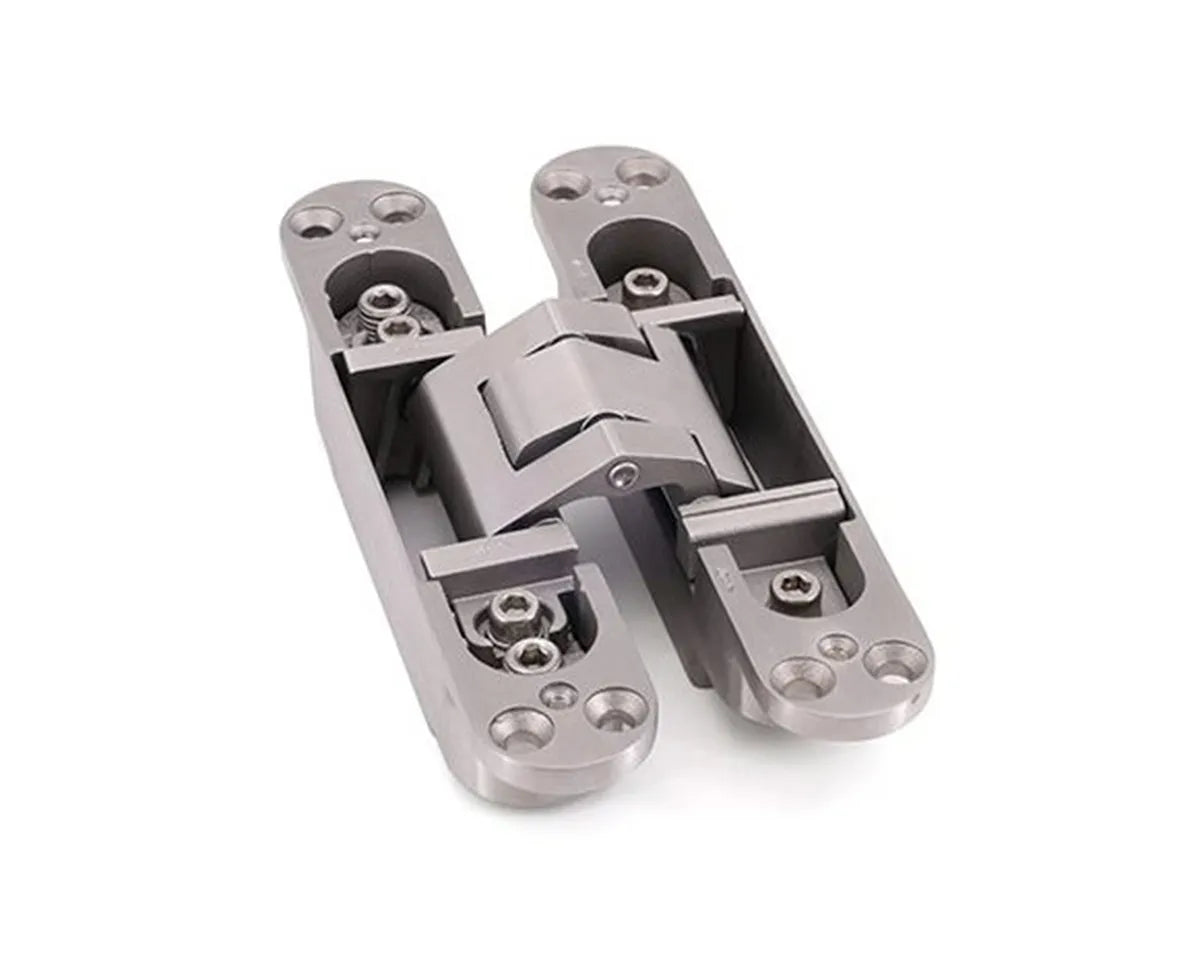

HGS3D-S160SH 3-Way Adjustable Concealed Hinge

Material: 304 Stainless Steel
Style: Modern/Contemporary
Installation/Mounting Hardware: Included

• Made from all 304 stainless steel (excellent corrosion resistance).
• 3-WAY adjustability function allows vertical, horizontal, and depth adjustment after hinge is installed.
• Easy installation with LIFT-OFF FEATURE: hinge can be split into two parts (one for the frame and one for the flap), can temporarily hang the door and hold position without being affixed with screws.

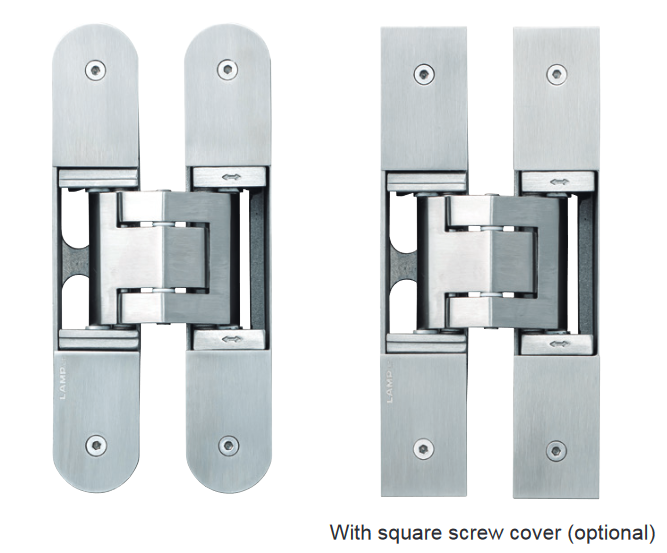

• Includes covers for a clean finish. Optional square shaped covers are available (HGS3D-S16SH-SQPLATE).
• Durability: successfully passed 3, open/close cycle test (private).
• 3 hinges can support doors up to 35-7/16" x 94-1/2" weighing up to 220 lbs.

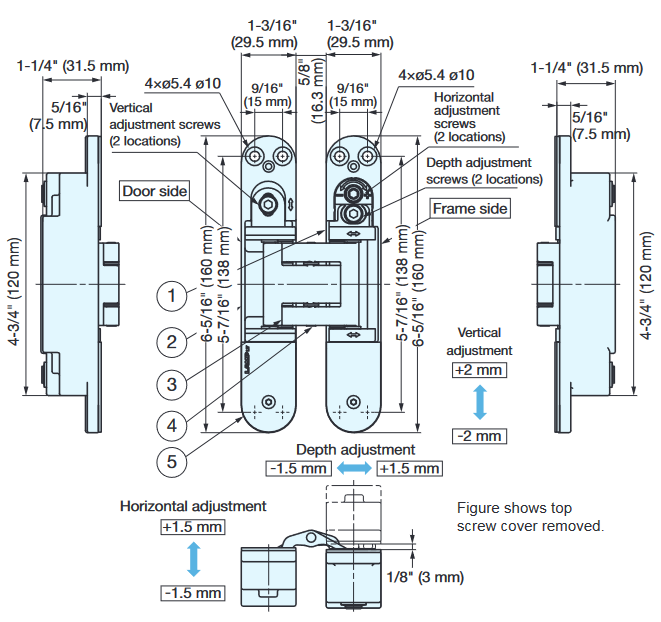

Dimensions

Resource

Spec Sheet

Warranty
