At SOSS®, we opened the door of innovation with our original invisible hinge, and continue to be pioneers in concealed door hardware. Don’t settle for the conventional, let SOSS® hinge your greatest doors! For more than 100 years, SOSS has been bringing fame to your door frame. By stumbling upon this idea in 1903, SOSS has been the pioneer of invisible hinges. Since then, it has been the choice hinge for businesses and homes all over the world. Soon after the come up of the SOSS Invisible Hinge, other hardware companies started creating imitation invisible hinges, but none compare to the authentic SOSS Invisible Hinge.

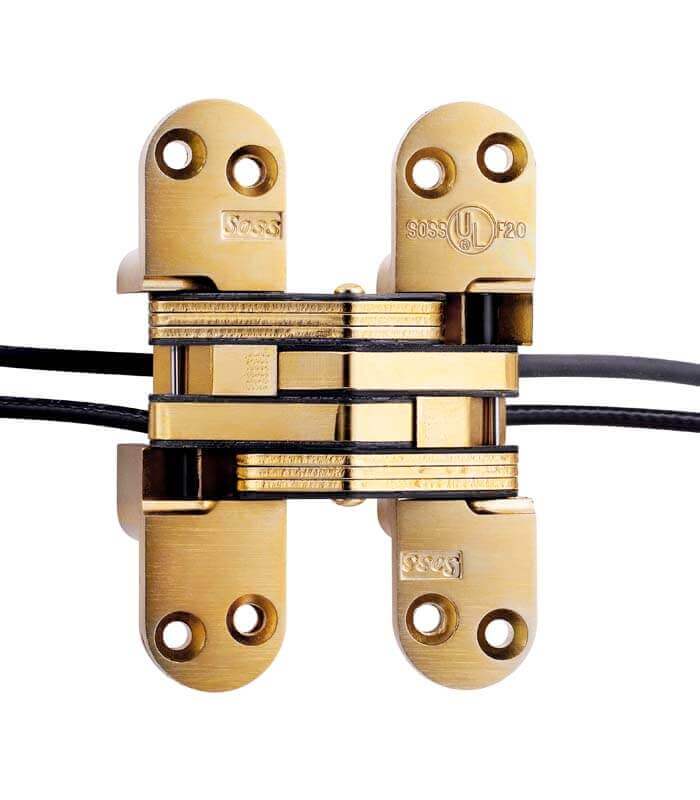

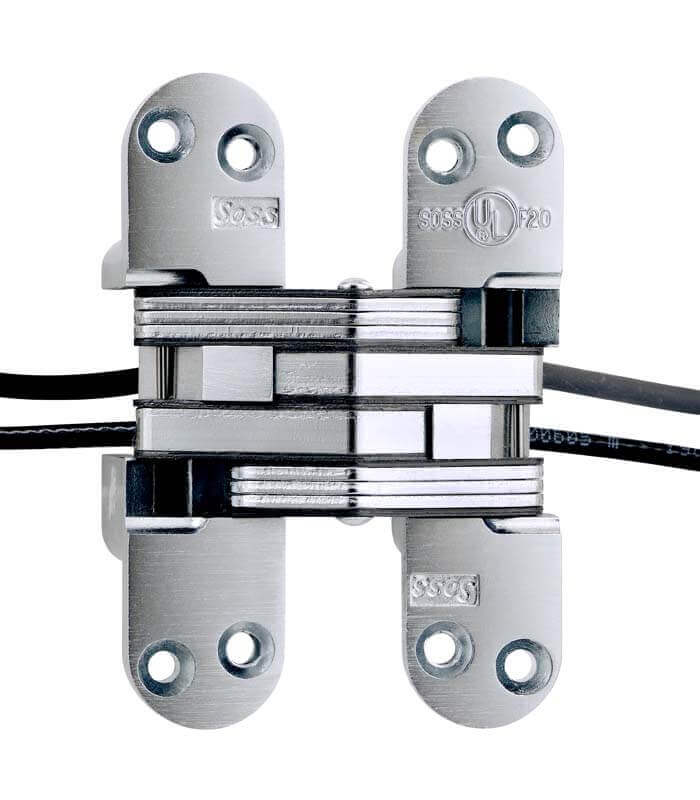

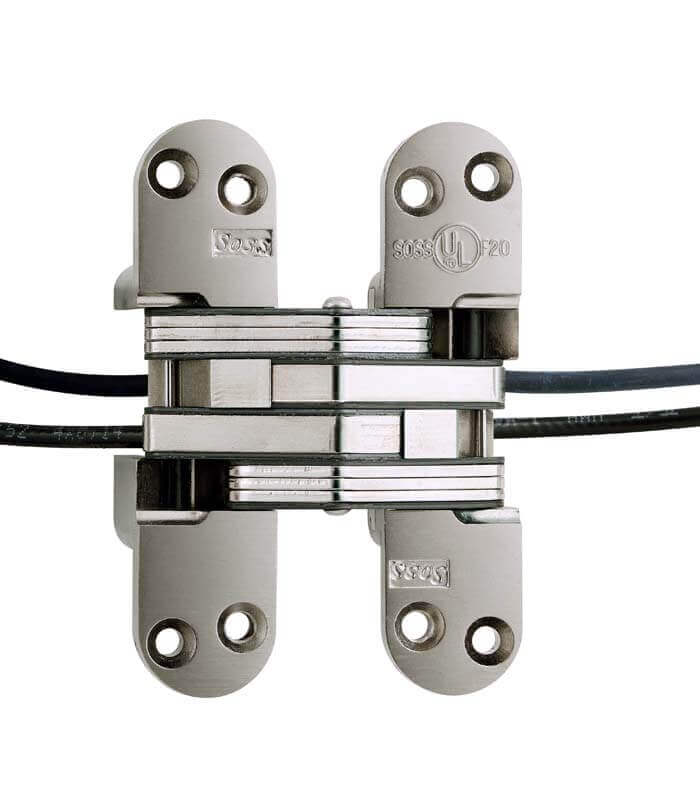

The SOSS Power Transfer Hinge gives you the ability to send power through our hinges. SOSS® Invisible Hinge model #418PT is for use in wood or metal applications that are 1-3/4″ thick. The model #418PT is made of alloy steel materials. This full size door style hinge will provide superior appearance and durability. Our hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.
The Underwriters Laboratories labeled the model #418 SOSS® Invisible Hinge can be used on hollow metal, sheet metal, tin clad, and steel composite swinging type fire doors and frames rated up to and including 3 hours. They can also be used on wood core doors and frames rated up to 20 minutes. Additionally, they can be used on wood/plastic composite doors and frames constructed with Georgia Pacific FS 1 or FS 2 banding for a rating up to and including 90/180 minutes.
Wood and Machine screws are included.
Additional Information
| Application | Full Sized Entry, Metal, Wood |
|---|---|
| Min. Material Thickness | 1-3/4″ |
| Fire Rating | 90/180 Minutes |
| Power Transfer | 2.5A |
| Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | Wood and Machine |
| Packaging | 1 / Box = 1 Each |
| Price Per | Each |
| A | 1-1/8″ (28.58mm) |
| B | 7/8″ (22.23mm) |
| C | 4-5/8″ (117.48mm) |
| D | 3/8″ (9.53mm) |
| E | 1/4″ (6.35mm) |
| F | 2-15/32″ (11.91mm) |
| G | 1/16″ (1.59mm) |
| H | 1-41/64″ (41.67mm) |
| I | 13/32″ (10.32mm) |
| Min. Matl. Thickness | 1-3/4″ (44.45mm) |
| Wood Screw Sizes | #10×1-1/2″ (4.8x38mm) |
| Soft Wood Pilot Hole | No. 43 |
| Hard Wood Pilot Hole | No. 31 |
| Machine Screw Sizes | #10-24×1″ |
| Hinge Weight | 1.95 lb. |
