At SOSS®, we opened the door of innovation with our original invisible hinge, and continue to be pioneers in concealed door hardware. Don’t settle for the conventional, let SOSS® hinge your greatest doors! For more than 100 years, SOSS has been bringing fame to your door frame. By stumbling upon this idea in 1903, SOSS has been the pioneer of invisible hinges. Since then, it has been the choice hinge for businesses and homes all over the world. Soon after the come up of the SOSS Invisible Hinge, other hardware companies started creating imitation invisible hinges, but none compare to the authentic SOSS Invisible Hinge.

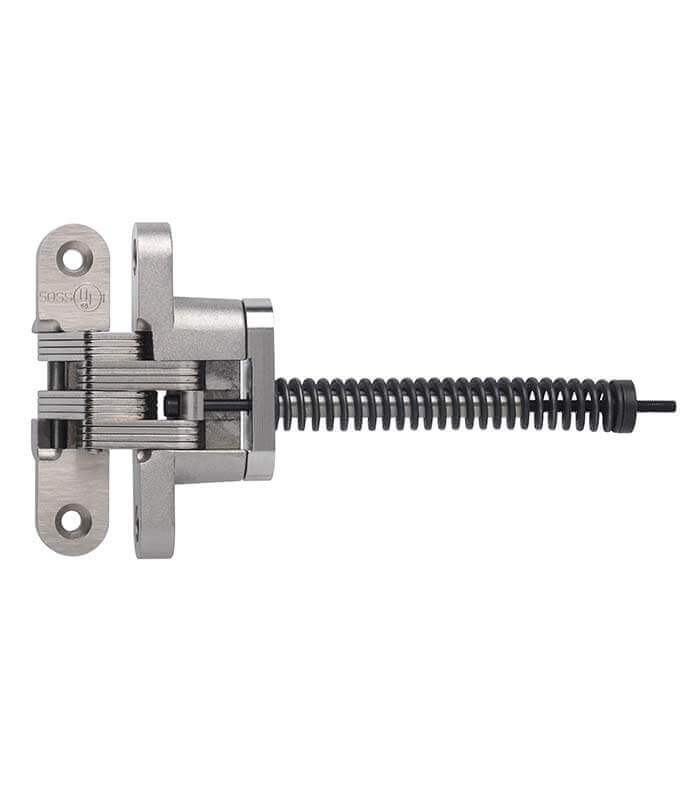

SOSS® Invisible Hinge model #416IC is ideally suited for most types of doors that are 1-3/8″ thick. The model #416IC is made of alloy steel materials. The SOSS Invisible Closer gives you a door closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable with an allen wrench after installation, and does not require removal of the closer. Installation can be either inside the door itself or inside the door jamb. SOSS® Invisible Hinges open a full 180° and are a single action hinge.
The Underwriters Laboratories labeled the model #416IC SOSS Invisible Hinge can be used on hollow metal, sheet metal, tin clad, and steel composite swinging type fire doors and frames rated up to and including three hours. They can also be used on wood core doors and frames rated up to 20 minutes. Additionally , they can be used on wood/plastic composite doors constructed with Georgia Pacific FSI or FSII banding for a rating up to and including 90 minutes.
Allow one closer for every 55 lbs of door weight or portion thereof. Fire rated doors also require one fire rated hinge for every 20″ of door height or fraction thereof. The calculation that requires more hinges is the total number of hinges required.
Recommended spacing for use of one closer is half the distance from the center line of the door to the center line of the top hinge. Please reference the hinge spacing drawing.
Wood and Machine screws are included.
Additional Information
| Application | Full Sized Entry, Metal, Wood |
|---|---|
| Min. Material Thickness | 1-3/8″ |
| Fire Rating | 20/90/180 Minute |
| Power Transfer | No |
| Closer | Yes |
| Counter Bored Screw Holes | No |
| Screws Included | Wood and Machine |
| Packaging | 1 / Box = 1 Each |
| Price Per | Each |
| Door Thickness | 1-3/8″ |
| Spring Closer # | 416IC |
| A | 1-15/32″ |
| B | 3/8″ |
| C | 6-17/64″ |
| D | 3/4″ |
