QM Drain Delmar MIST Tile-in Standard Linear Shower Drain

Save 30%
QM DrainSKU: QM-33.500.24.ST

Price:
Sale price$325.50 Regular price$465.00

Description

Linear Drain Standard Length

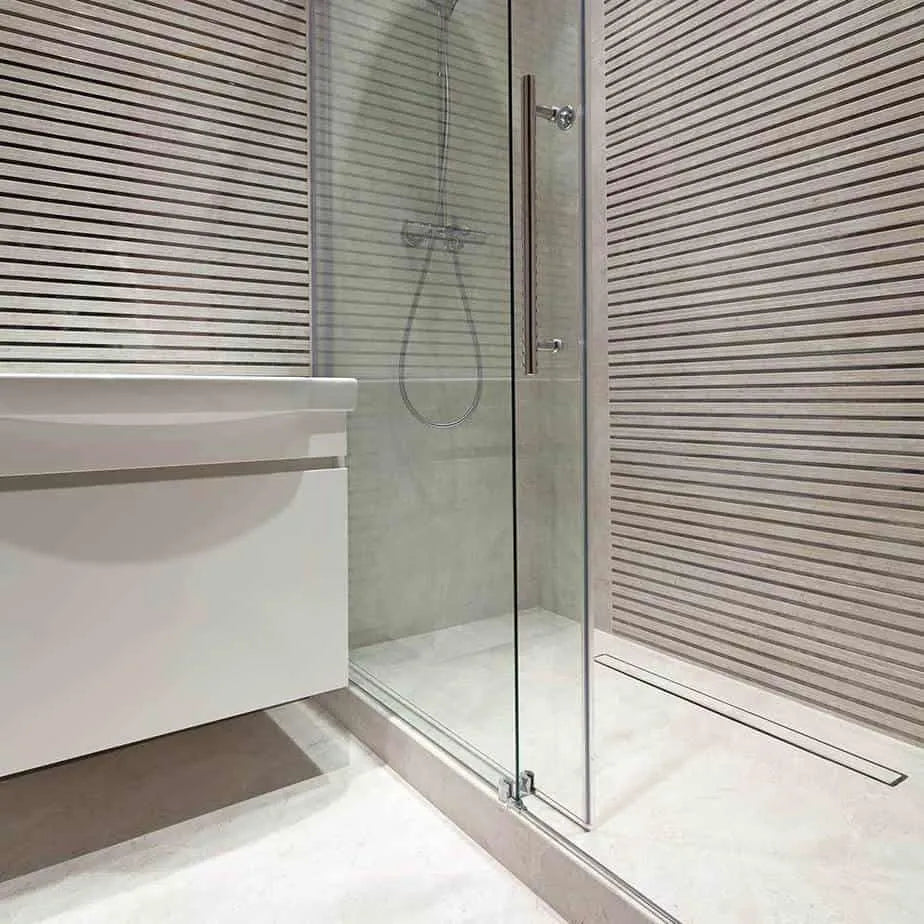

Variable positioning: Versatile, linear drains can be installed anywhere in the shower and can be combined with all standard tile formats.

Features

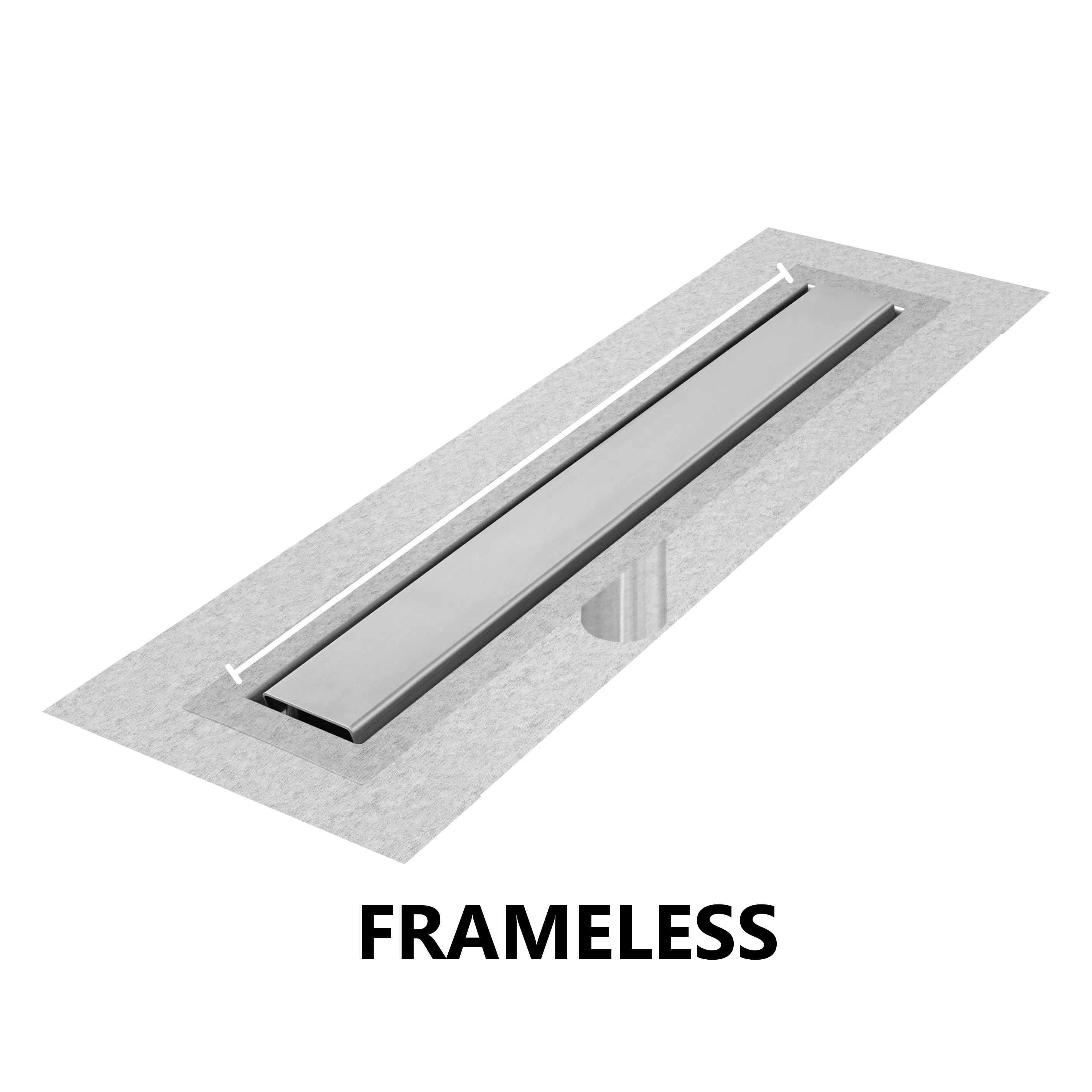

  • Base: Pre-sloped low profile standard plain edge channel. Pre-sloped standard plain edge , flange edge or side outlet Ideal for new and renovation projects and generally for all bathrooms where space is tight.
  • Outlet: 2” center located outlet
  • Material: Made with stainless steel marine grade 316 from top to bottom. It makes it the perfect linear drain for your indoor or outdoor shower
  • Application: Indoor and Outdoor Shower
  • Easy cleaning: Completely removable grate and a hair strainer* (not included with Flange Edge bases) that fits inside the drain to collect hair and other debris, preventing clogged pipes

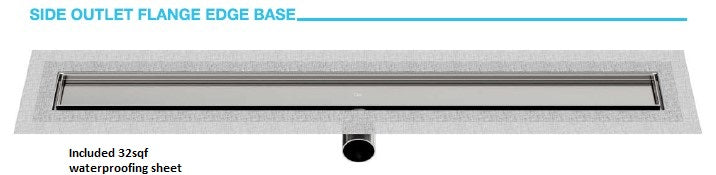

  • Easy installation: Plain Edge is intended for use with standard waterproofing methods. Waterproofing is installed before the drain base is connected. Threaded adapter with rubber O-ring aids adjusting the height of linear drain and securing the linear drain to the flange, equipped with adjustable feet on both sides, to help keep the drain channel in the correct position and level during installation. Flange Edge and Side Outlet Flange Edge are intended for use with modern waterproofing methods (liquid or fabric type). Waterproofing is installed over the edge of the drain base. Outlet is connected to the pipe using a coupling. Read installation instructions for more details
  • Sizes available: 24″, 28″, 32″, 36″, 48", 58"
  • The drain flange is not included in the kit, if needed add QM-83.FLG.2.CI , QM-83.FLG.2.PVC , QM-83.SQFLG.2.CI

Resources


QM Drain Standard Length Plain Edge Technical Specifications
QM Drain Standard Length Flange Edge Technical Specifications
QM Drain Standard Length Side Outlet Technical Specifications
