Omnia URBAN Stainless Tubular Deadbolt Handleset

Save 20%
Omnia IndustriesSKU: OMN-URBAN.F.12-US32D

Price:
Sale price$482.40 Regular price$603.00

Description

About Omnia Industries

OMNIA Industries, Inc. was founded over 55 years ago with the intent of bringing to the market a new concept of upgraded decorative hardware at moderate prices. Since 1964, OMNIA Industries has supplied the industry with architectural hardware that is stylishly designed yet exceptionally functional. Backed by product innovation and a promise to provide personalized customer service, OMNIA has become a name recognized for excellence among architects and project designers. A commitment to “being our best” is what guides and motivates all of the staff. We are proud of the attention given to every detail, from innovation to quality, from service to marketing.

Specification

Omnia URBAN Stainless Tubular Deadbolt Handleset

  • Material: Stainless Steel
  • Finish: US32D
  • Bore Spacing: 5-1/2" Center to Center
  • Exterior Overall Height: 16-3/4"
  • Exterior Top Plate Height: 10-1/2"
  • Exterior Top Plate Width: 2-1/2"
  • Exterior Bottom Mount Length: 2" square
  • Interior Plate Height: 10-1/2"
  • Interior Plate Width: 2-9/16"
  • Deadbolt: 1" Stainless Steel
  • Door Thickness: 1-3/4" to 2-1/4"
  • Backset: 2-3/8" or 2-3/4"

Function Info

F – Panic-Proof Entry

Latchbolt operates by knob or lever inside, thumbpiece outside, except when outside trim is locked by rocker switch. Deadbolt activated by key outside and turnpiece inside. Turning of inside knob or lever will retract both deadbolt and latchbolt at the same time.

PD – Pair Dummy

Does not latch or lock. This non-functional handle set is stationary on both sides of the door. For use as a pull or to match trim , Shipped pre-assembled.

SDE – Single Dummy Exterior: Dummy

Trim is non-operating and is mounted on the outside of the door. Thumb piece is also non-operating. Shipped pre-assembled.

SDI – Single Dummy Interior: Dummy

Trim is non-operating and is mounted on the inside of the door. Shipped pre-assembled

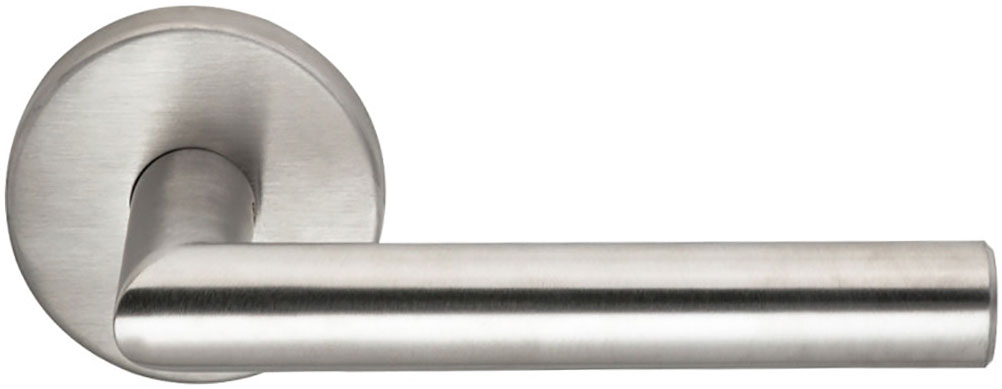

Interior Lever

#12

Item No.12 (US32D Satin Stainless Steel)

 #43

Item No.43 (US32D Satin Stainless Steel)

 Resource

Installation Template

Product Data Sheets

Full Catalog Download

Warranty
