Omnia - 7039 Mortise Pocket Door Locks

Save 20%
Omnia IndustriesSKU: OMN-7039/A-US3

Price:
Sale price$477.60 Regular price$597.00

Description

About Omnia Industries

OMNIA Industries, Inc. was founded over 55 years ago with the intent of bringing to the market a new concept of upgraded decorative hardware at moderate prices. Since 1964, OMNIA Industries has supplied the industry with architectural hardware that is stylishly designed yet exceptionally functional. Backed by product innovation and a promise to provide personalized customer service, OMNIA has become a name recognized for excellence among architects and project designers. A commitment to “being our best” is what guides and motivates all of the staff. We are proud of the attention given to every detail, from innovation to quality, from service to marketing.

Specification

Omnia 7039 Mortise Pocket Door Locks

  • Material: Brass
  • Finishes: US3, US3A, US4, US5, US10B, US14, US15, US26, US26D
  • Plate Height: 7"
  • Plate Width: 2-9/32"
  • Plate Cut-Out Height: 5-3/16"
  • Plate Cut-Out Width: 1-1/2"
  • Plate Projection: 1/8"
  • Overall Depth: 3/8"
  • Case: Stamped from heavy wrought steel with zinc dichromate finish for corrosion resistance.
  • Front: Armored steel front adjustable for beveled doors.
  • Mortise Finger Pull: is thrown by pressing the button on the mortises faceplate. It can be retracted simply by pressing it flush with the faceplate.
#7039 Pocket Door Line Art

Lockbody Specs

1130/L  (Privacy/Entry with Faceplate and Strike)

·  Lock Body Height: 6-3/4"

·  Lock Body Depth: 3-9/16"

·  Lock Body Width: 3/4"

·  Lock Body Face Plate Height: 8"

·  Lock Body Face Plate Width: 1"

·  Latch: 1/2" thick x 1-1/4" high x 1" throw

·  Finger Pull: 1/2" thick x 2" high x 1-1/4" throw

·  Backset: 2-1/2"



1230/N (Passage with Faceplate and Strike)

·  Lock Body Box Length: 3-7/8"

·  Lock Body Box Depth: 3-7/16"

·  Lock Body Faceplate Length: 5-1/2"

·  Lock Body Faceplate Width: 1"

·  Latch: 1/2" thick x 1-1/4" high x 1" throw

·  Finger Pull: 1/2" thick x 2" high x 1-1/4" throw

·  Backset: 2-1/2"



1330/PD (Pair Dummy with Faceplate)

·  Lock Body Height: 6-3/4"

·  Lock Body Depth: 3-9/16"

·  Lock Body Width: 3/4"

·  Lock Body Face Plate Height: 8"

·  Lock Body Face Plate Width: 1"

·  Latch: 1/2" thick x 1-1/4" high x 1" throw

·  Finger Pull: 1/2" thick x 2" high x 1-1/4" throw

·  Backset: 2-1/2"




Function Info

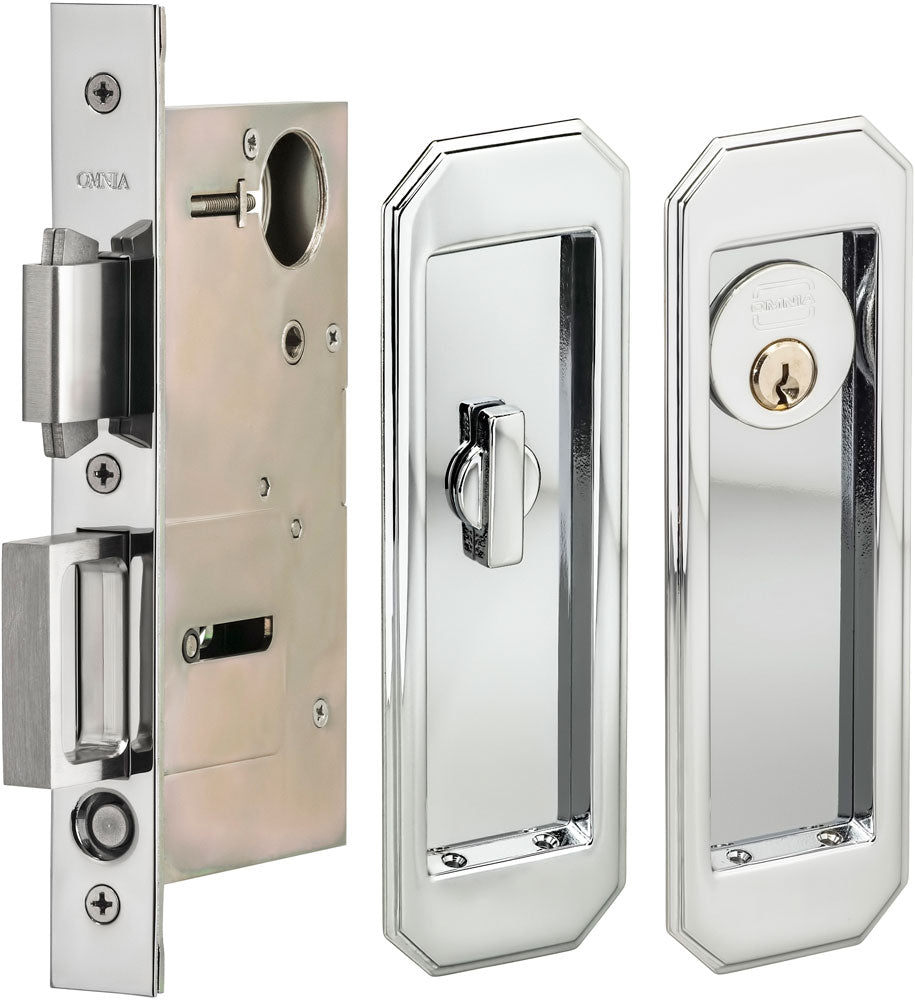

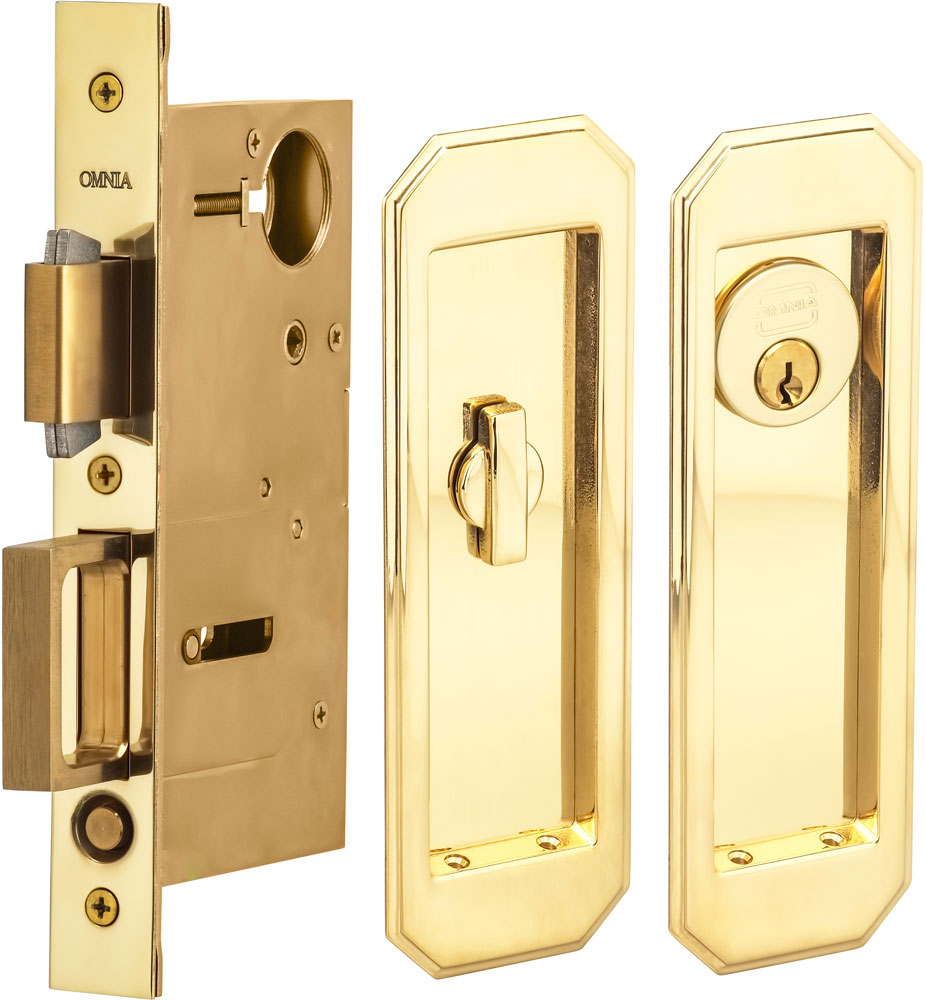

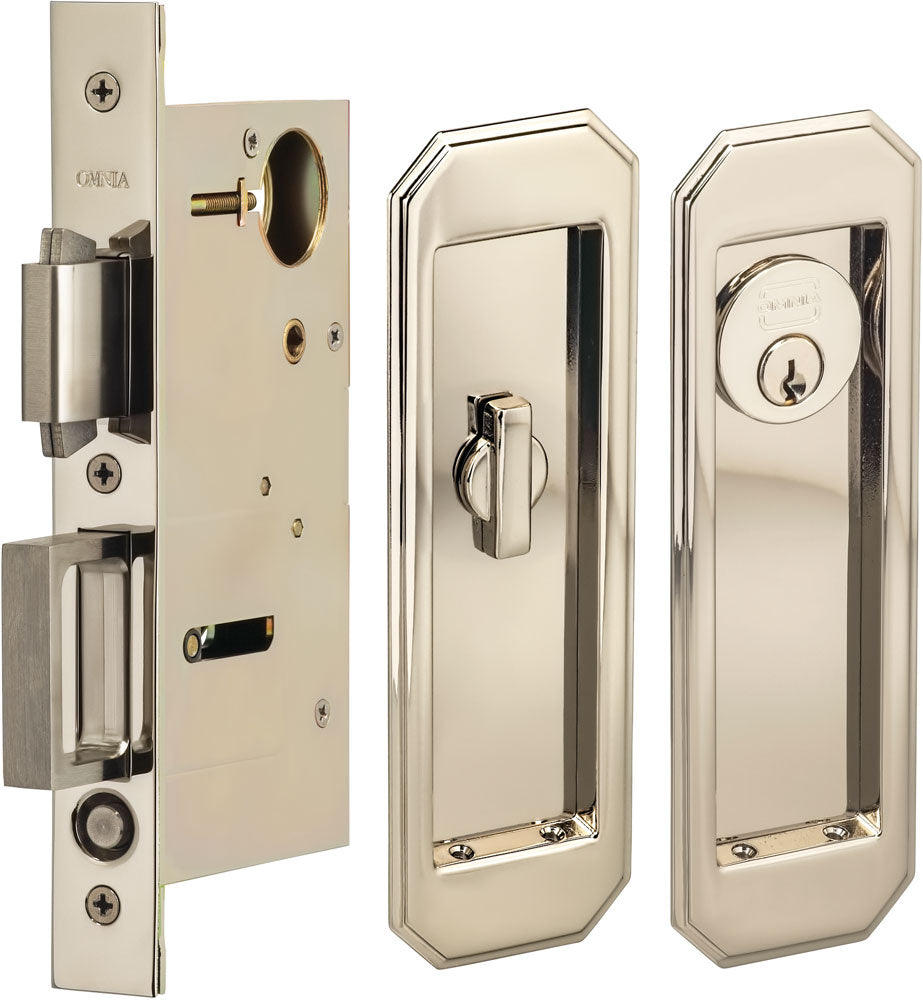

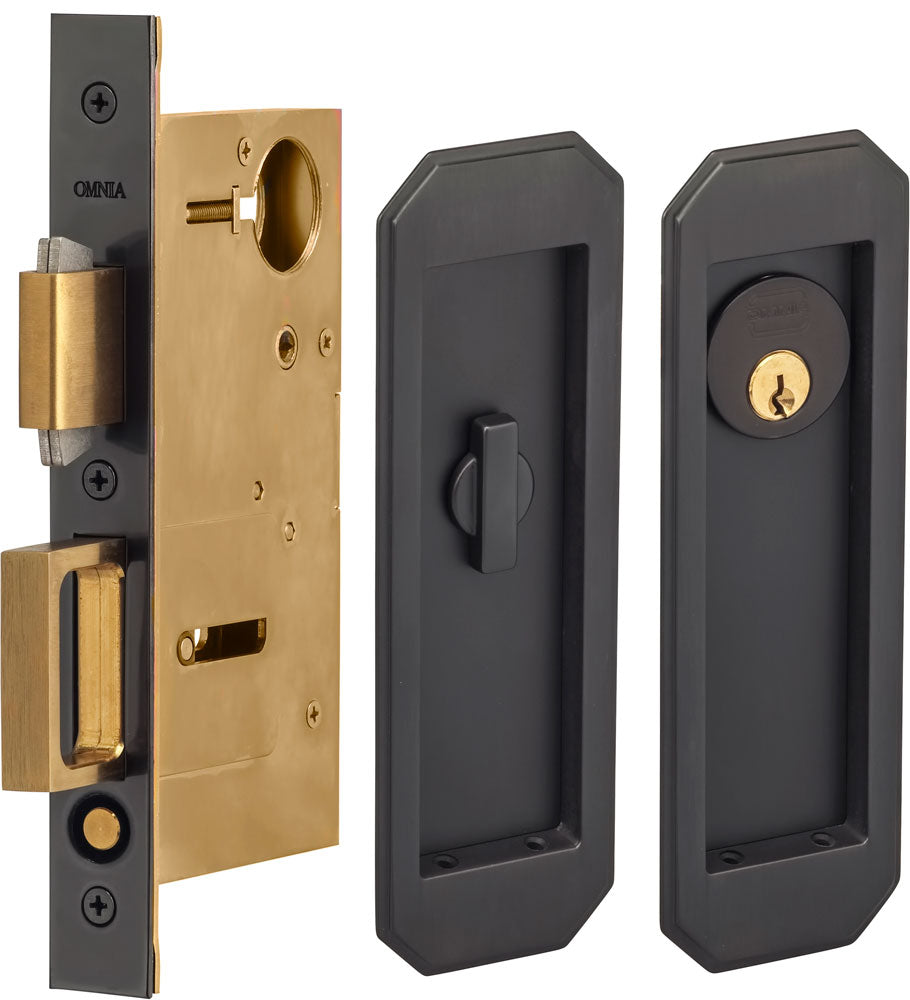

A – Entry: Flushcups (2) with cylinder outside x thumbturn inside, and includes lockbody. (1-3⁄ 4" minimum door thickness)

Item No.7039/A (US15 Satin Nickel Plated, Lacquered)

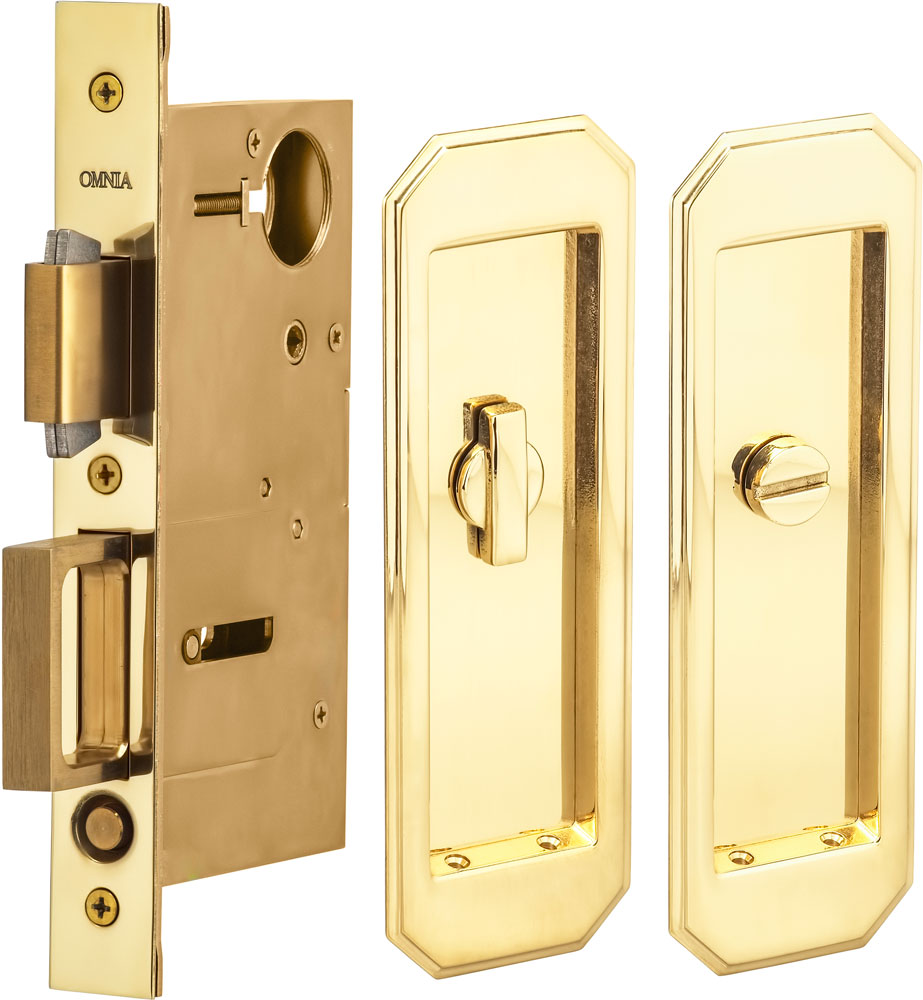

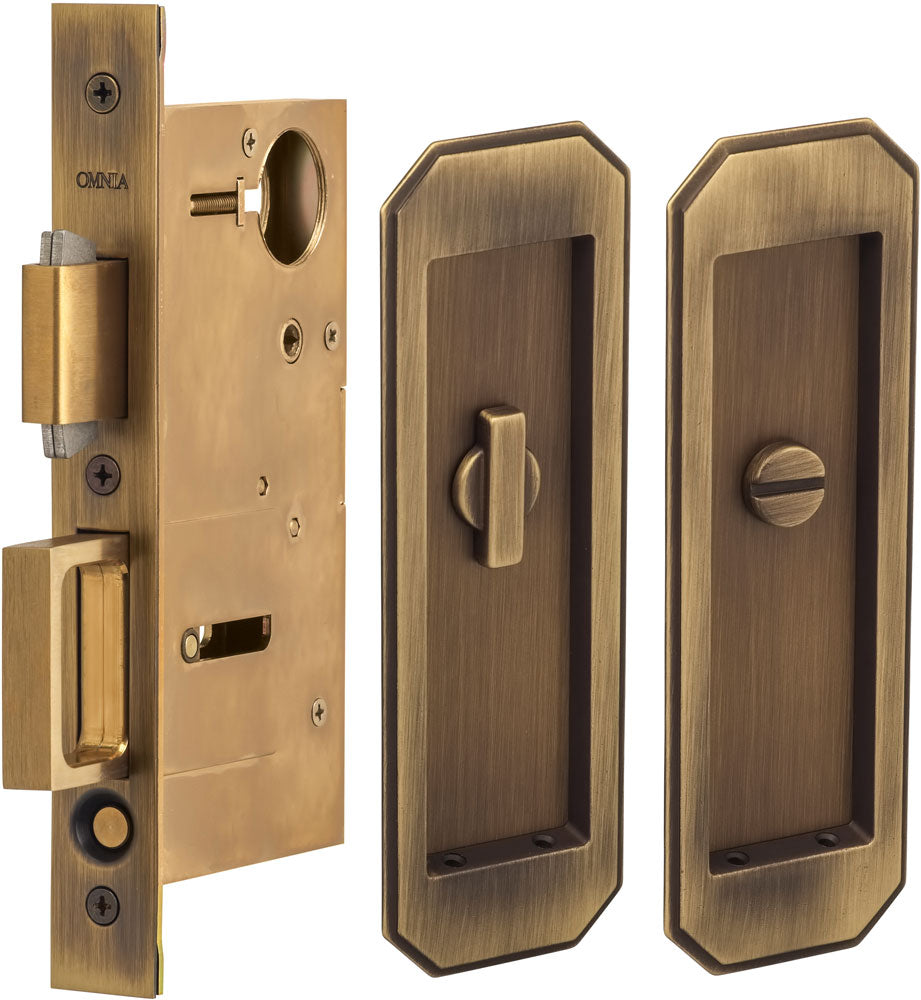

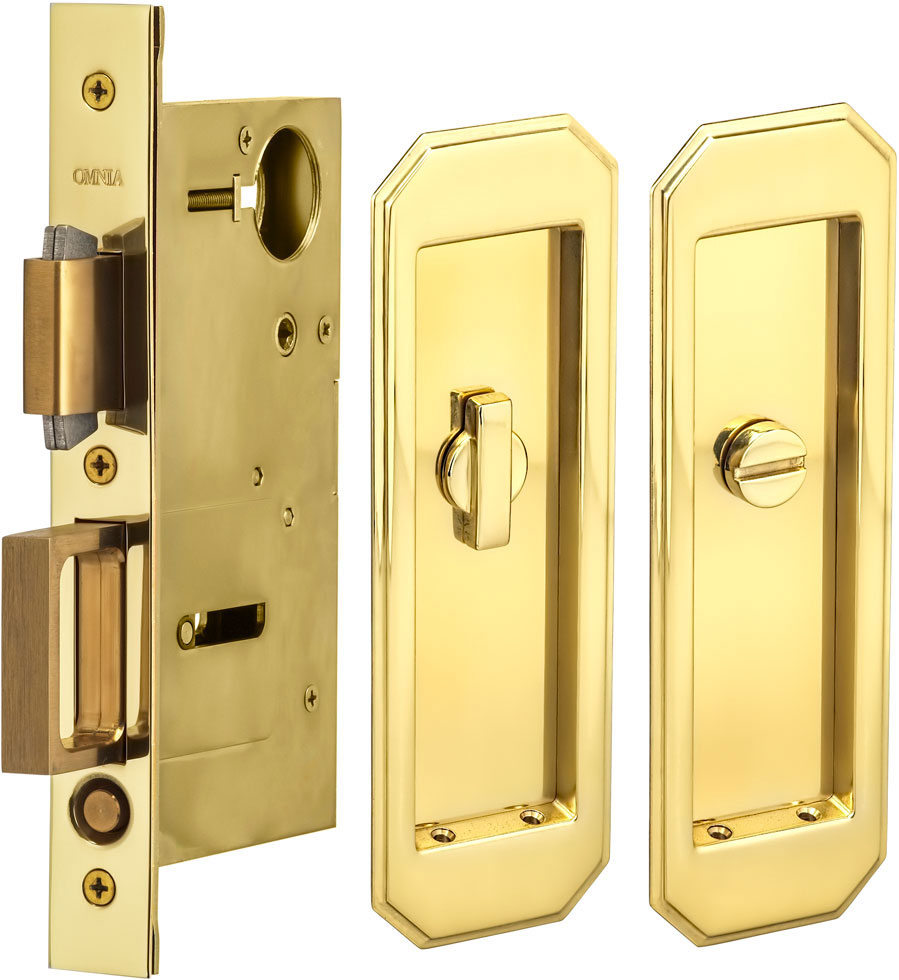

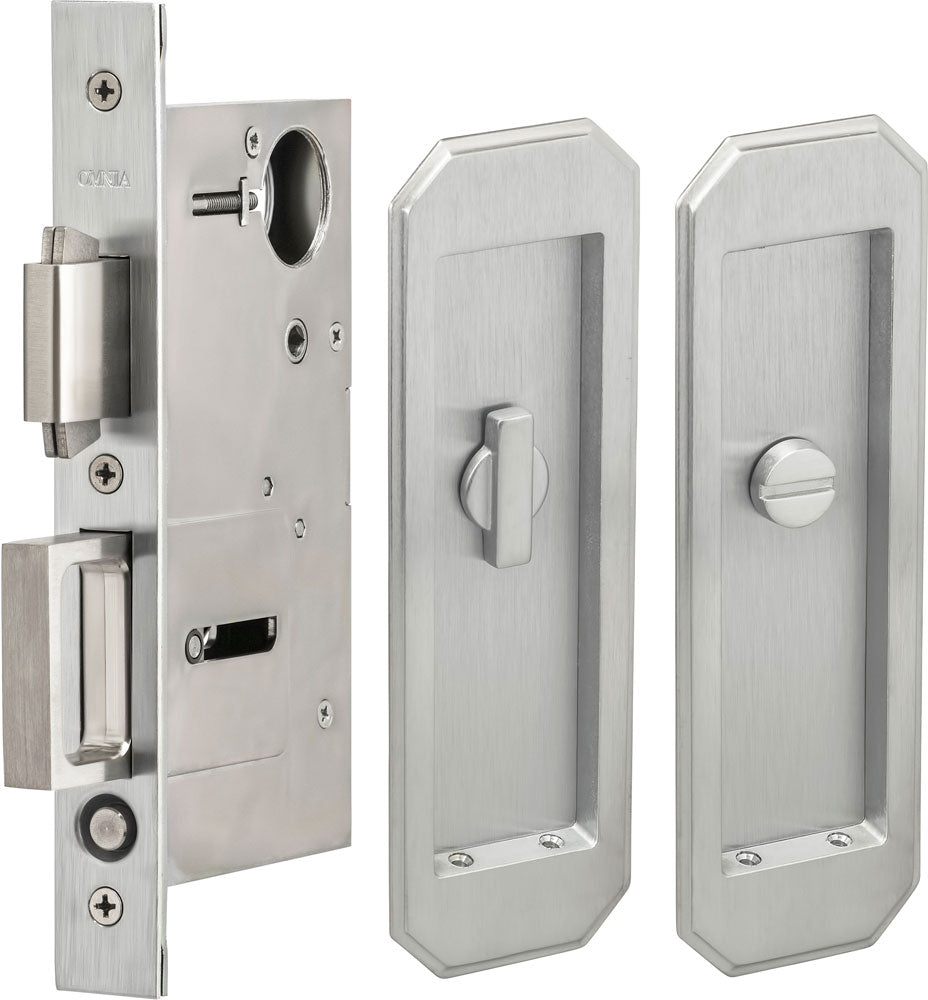

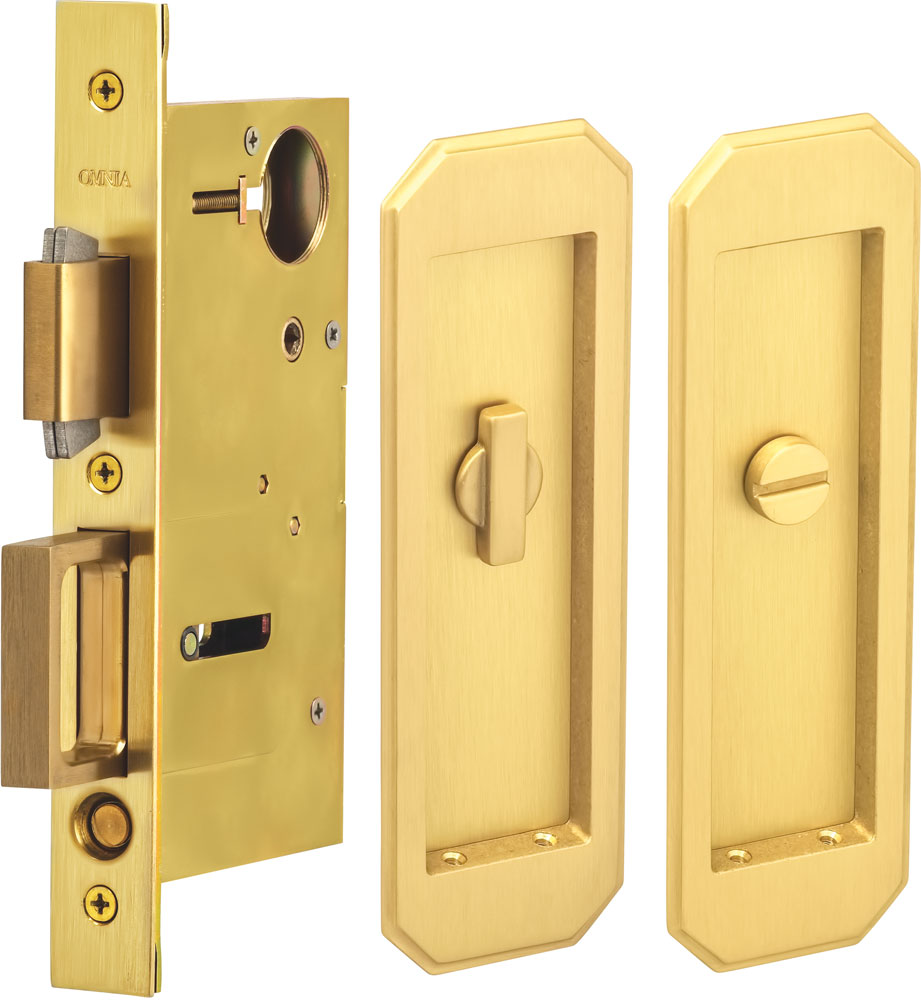

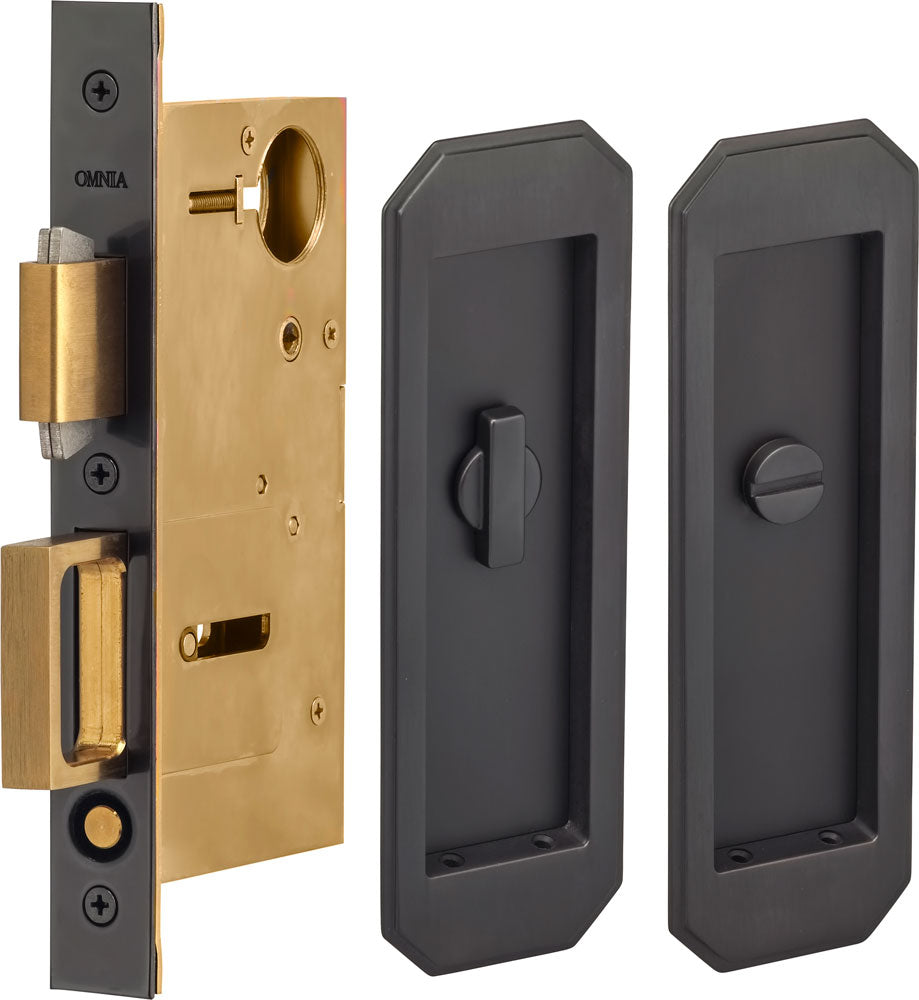

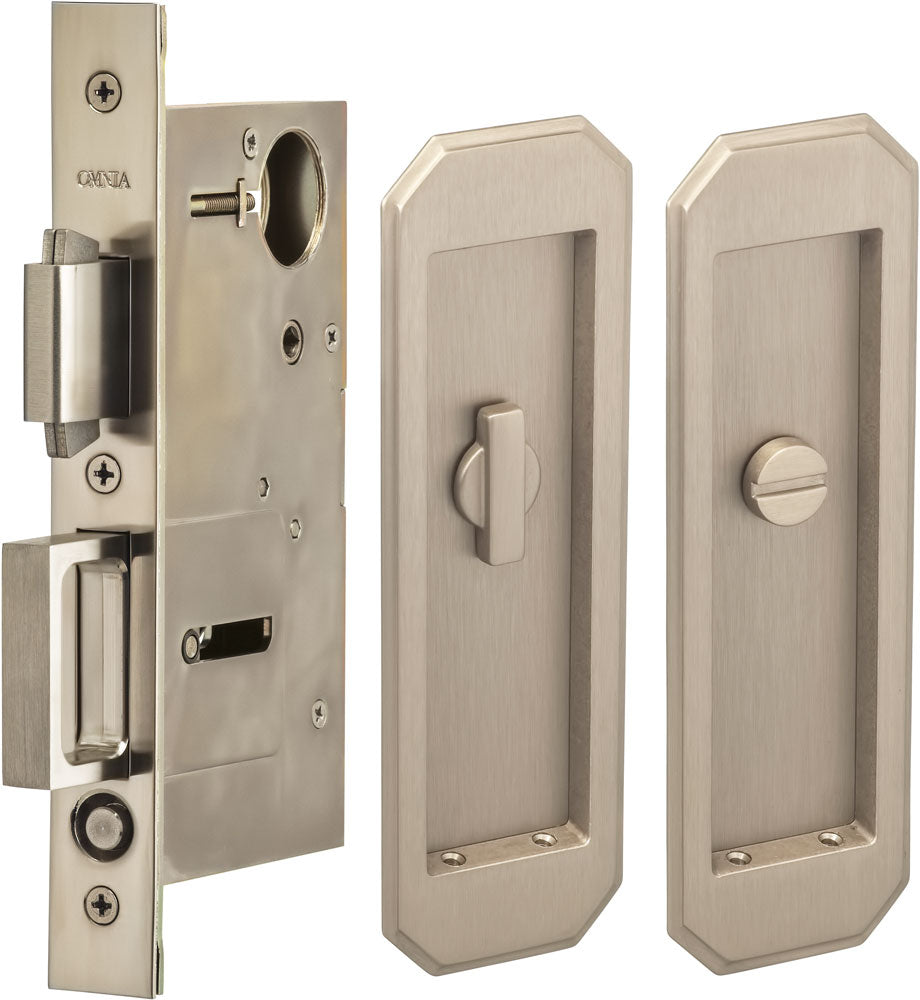

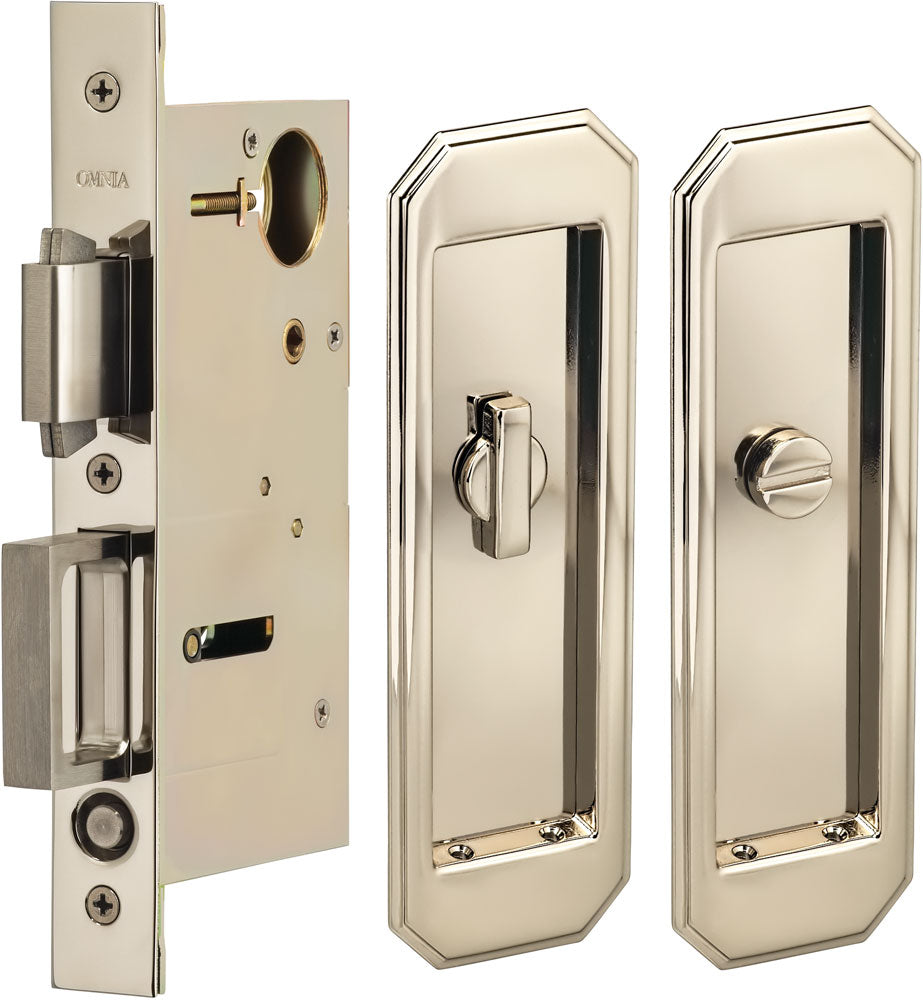

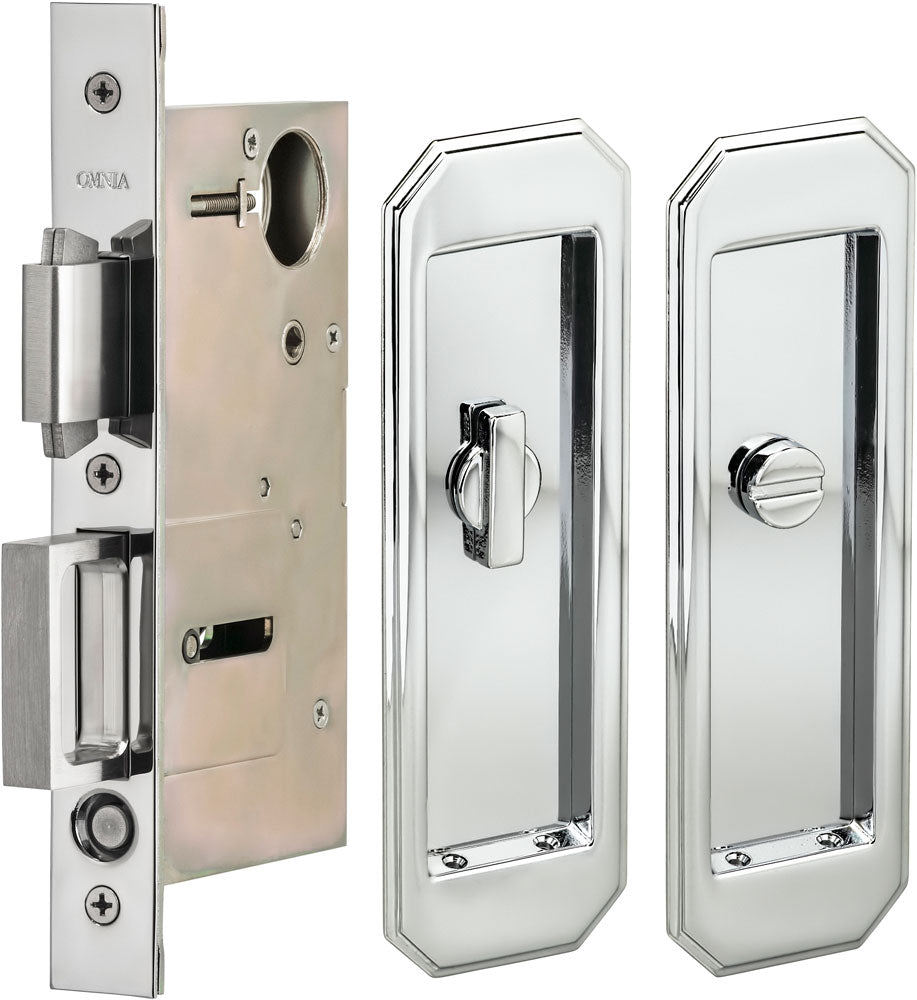

L – Privacy: Flushcups (2) with emergency release outside x thumbturn inside, and includes lockbody

Item No.7039/L (US15 Satin Nickel Plated, Lacquered)

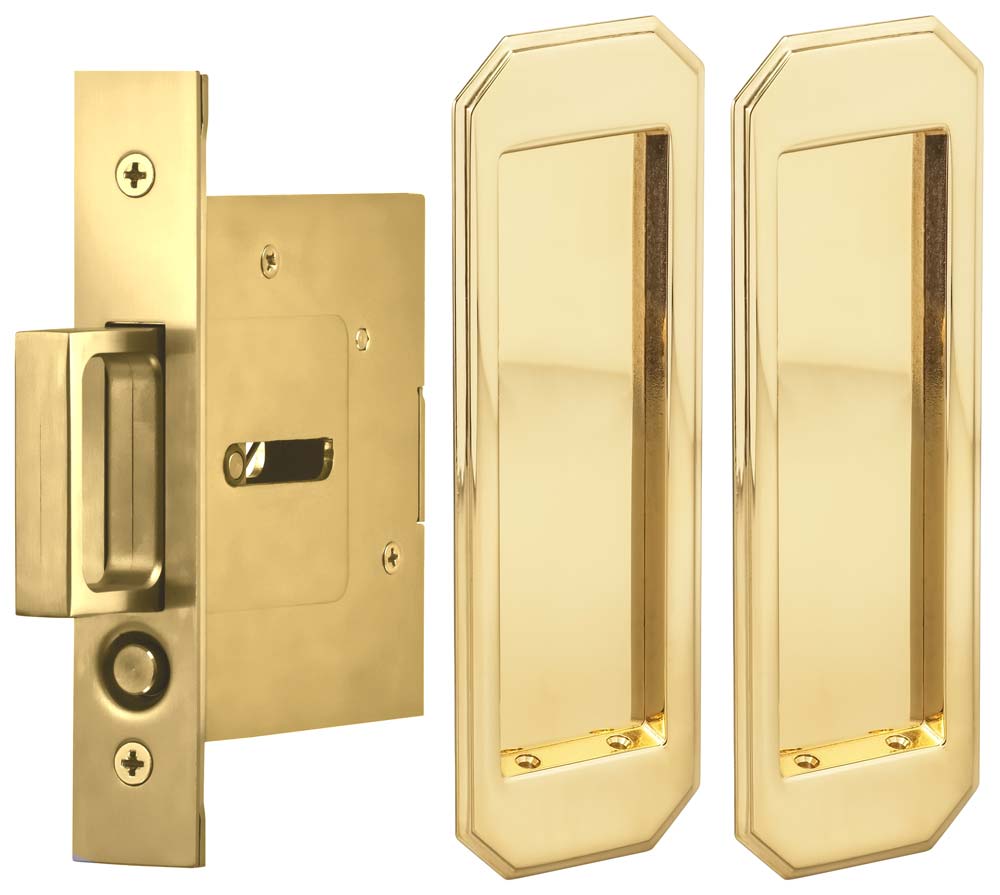

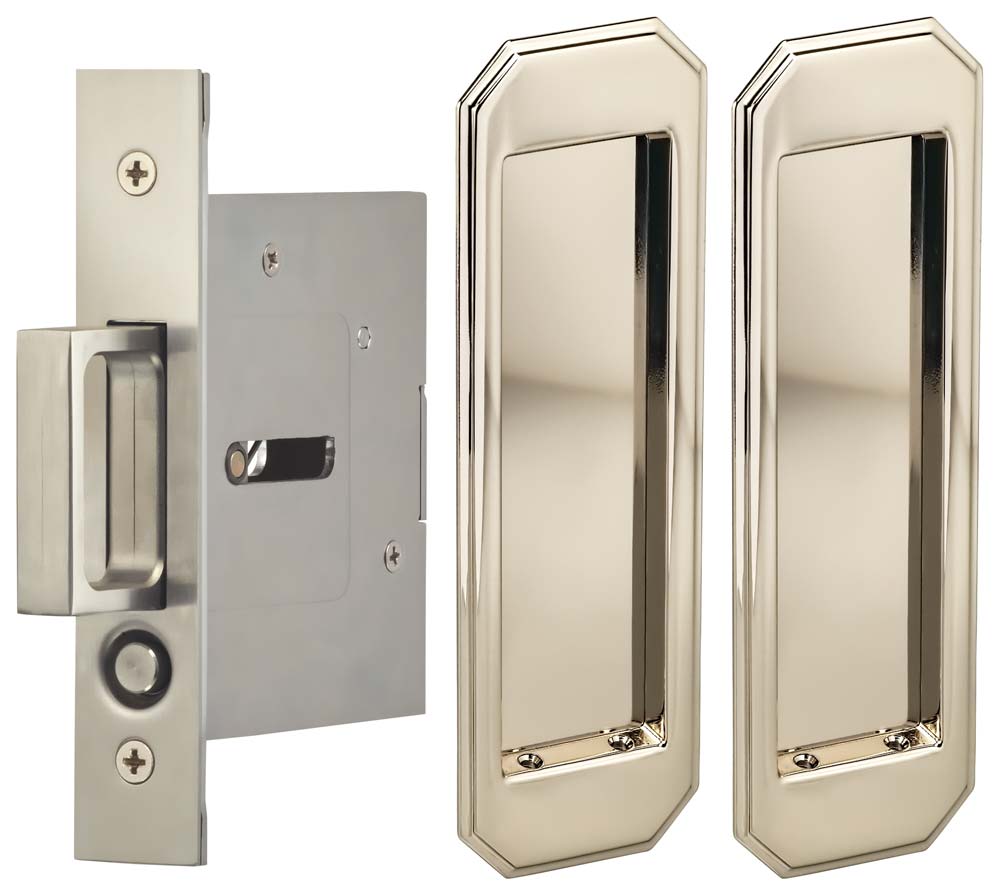

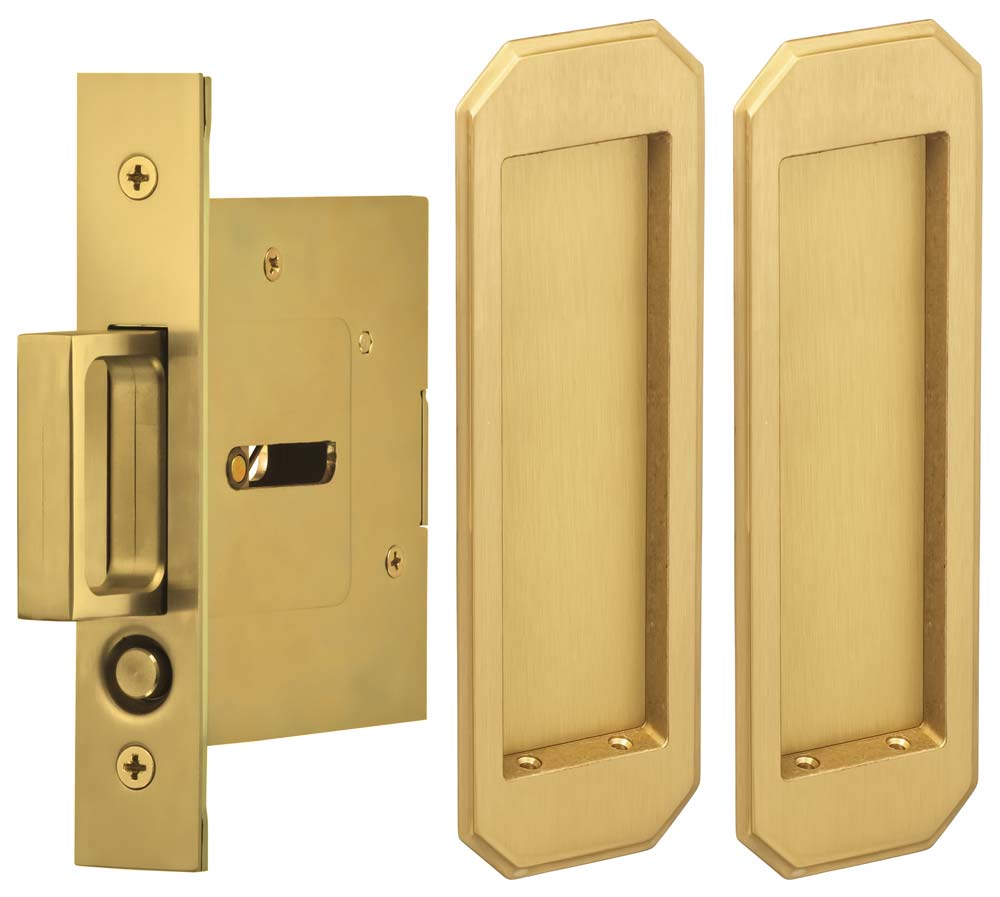

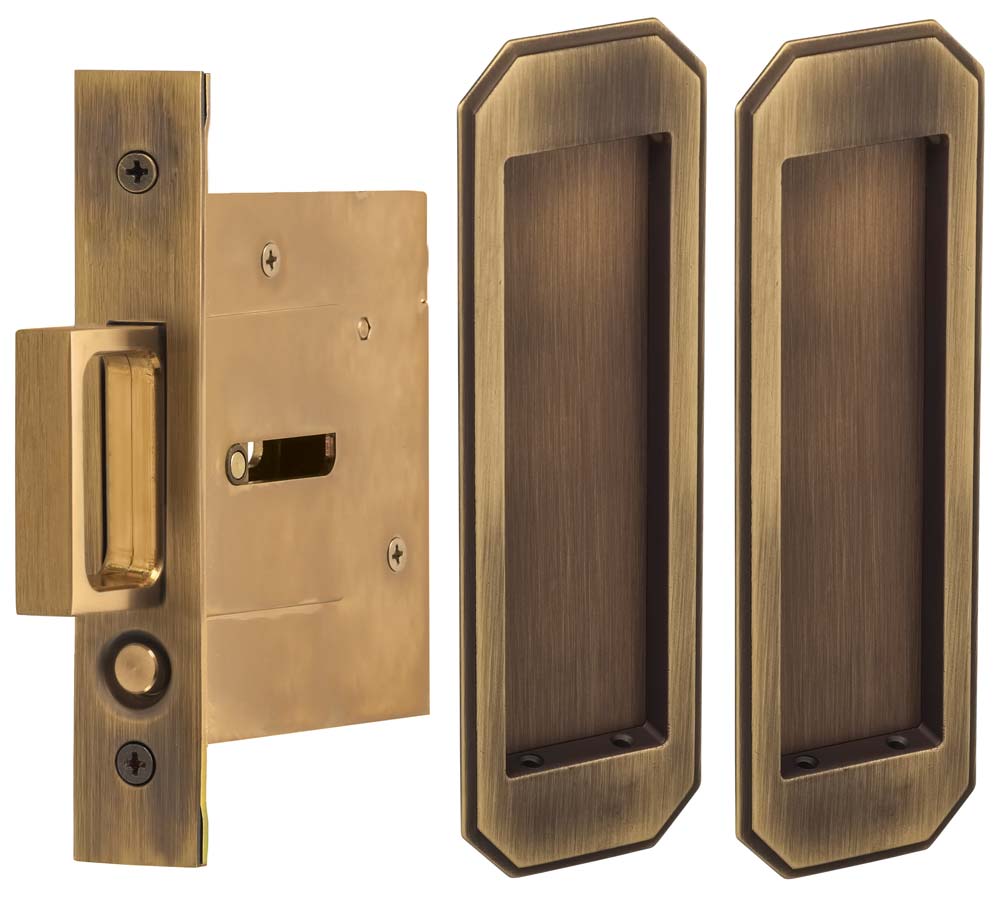

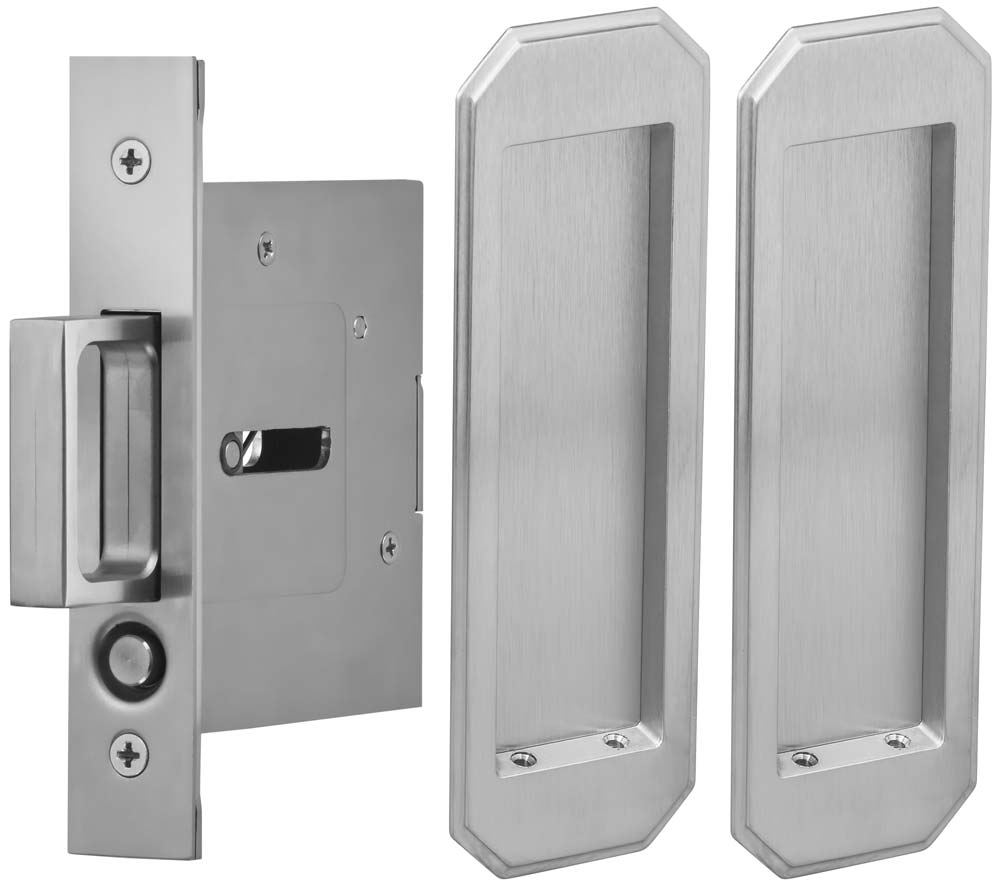

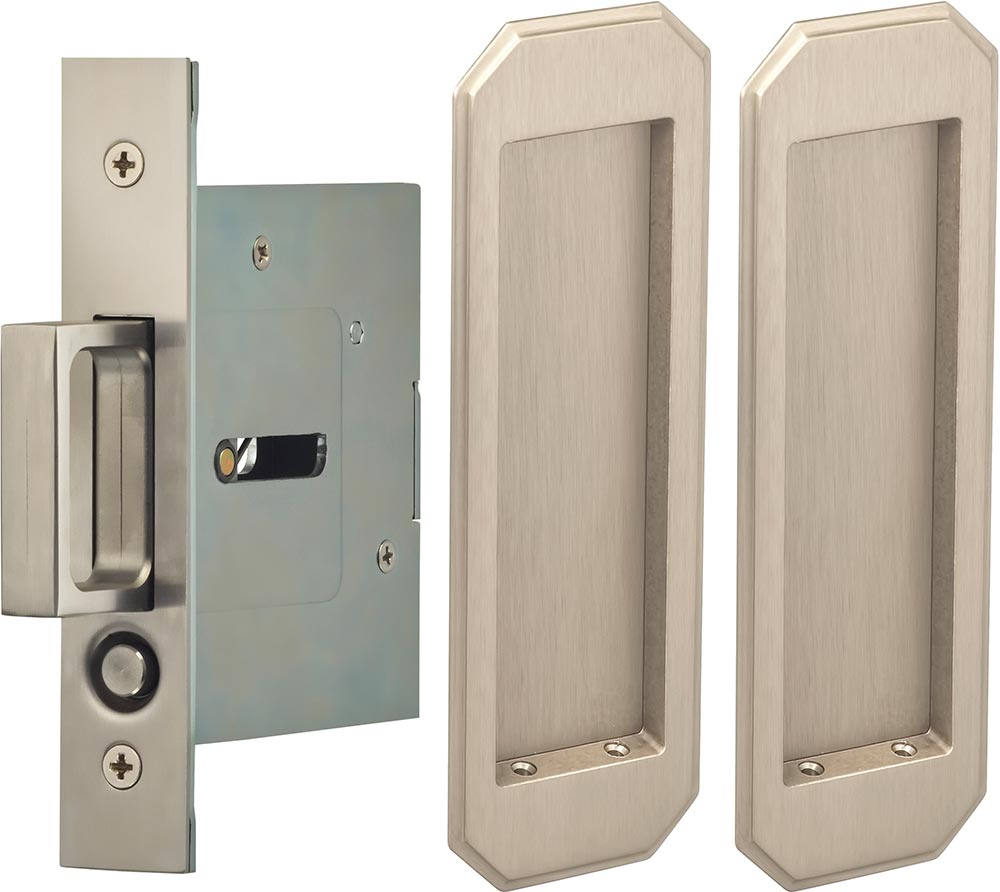

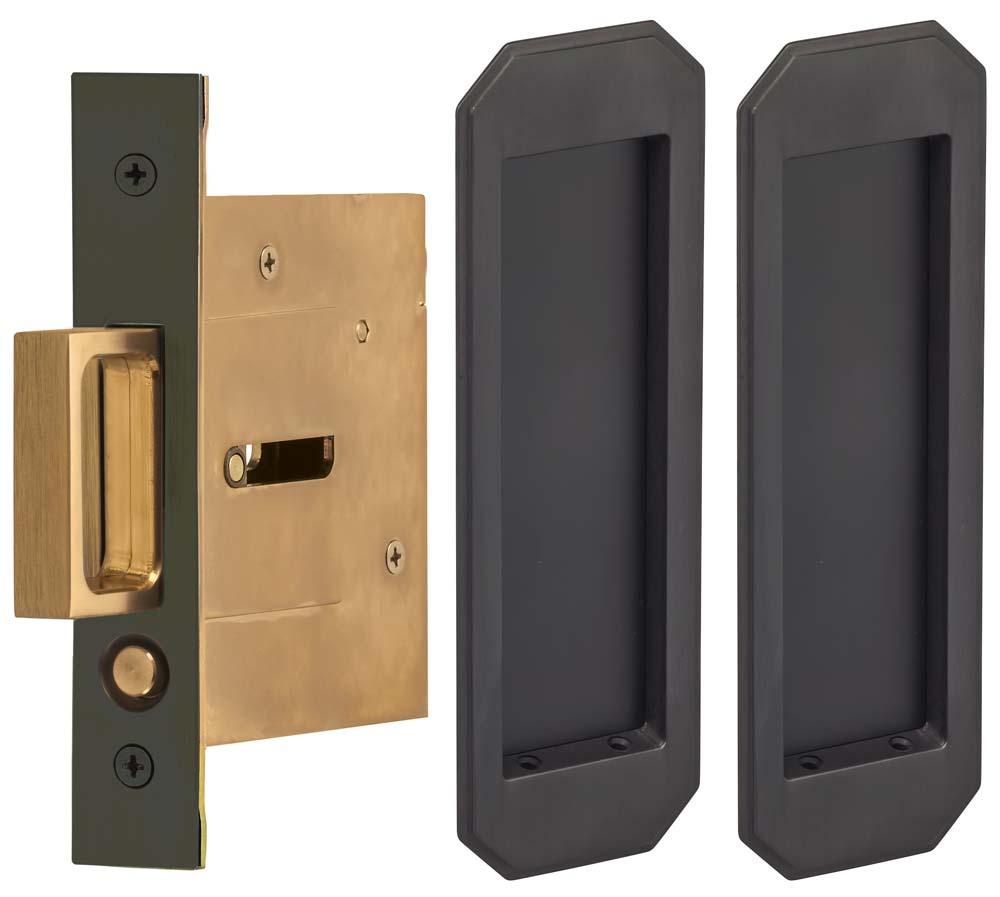

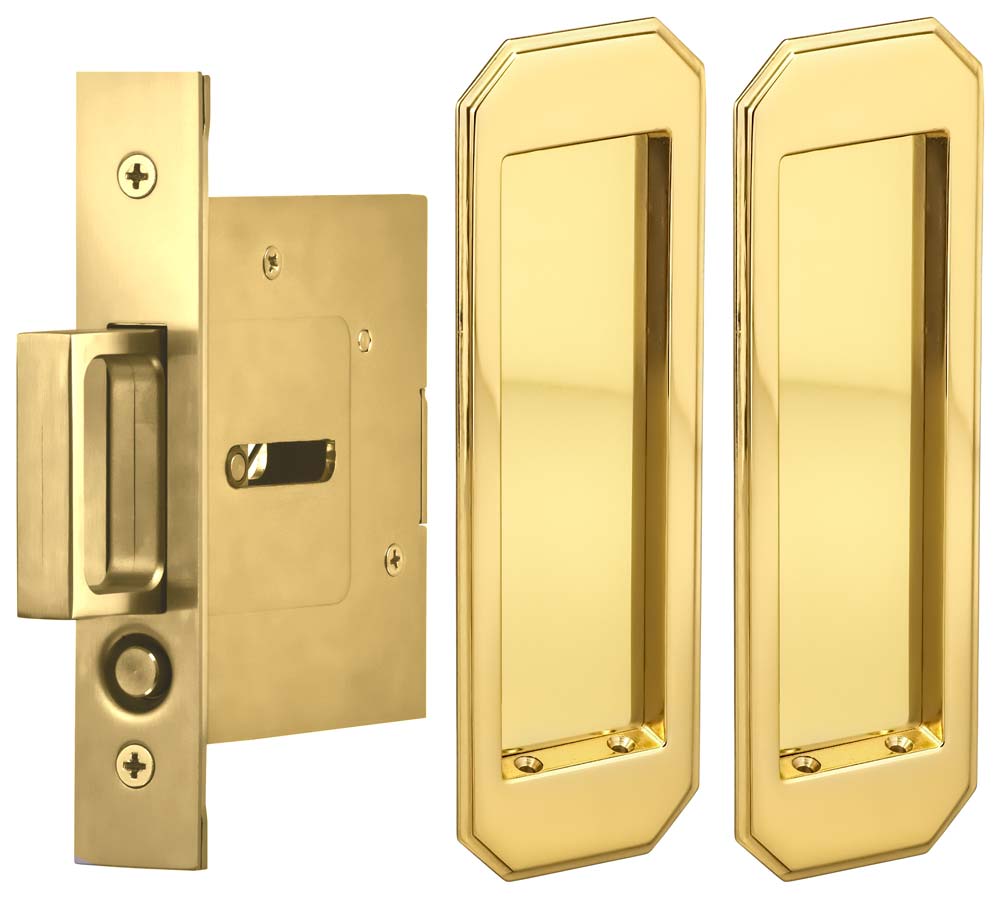

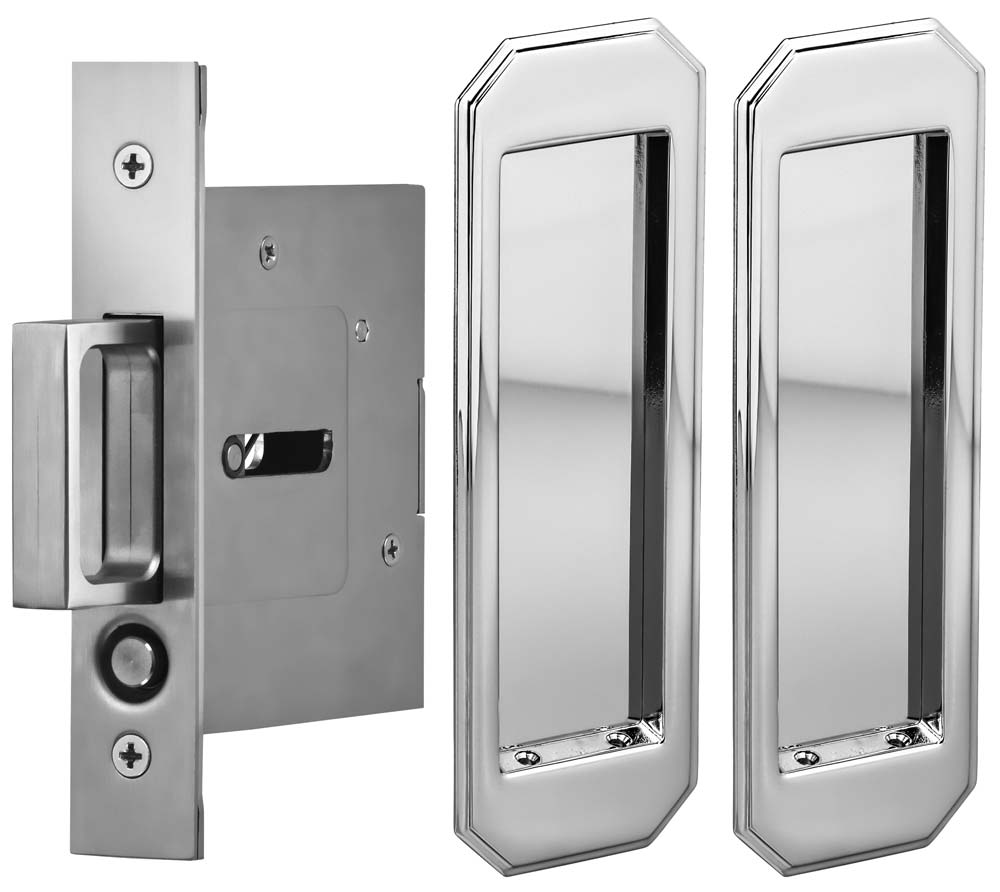

N – Passage: Flushcups (2) blank, and includes lockbody

Item No.7039/N (US15 Satin Nickel Plated, Lacquered)

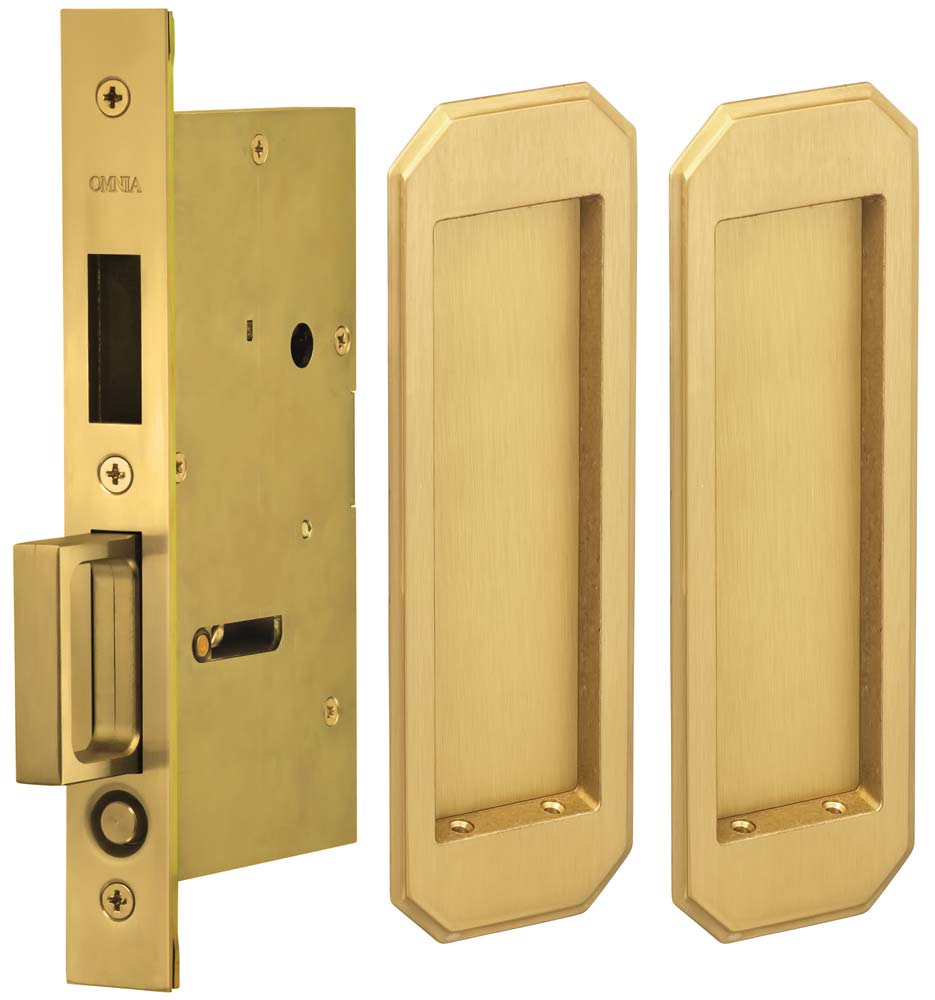

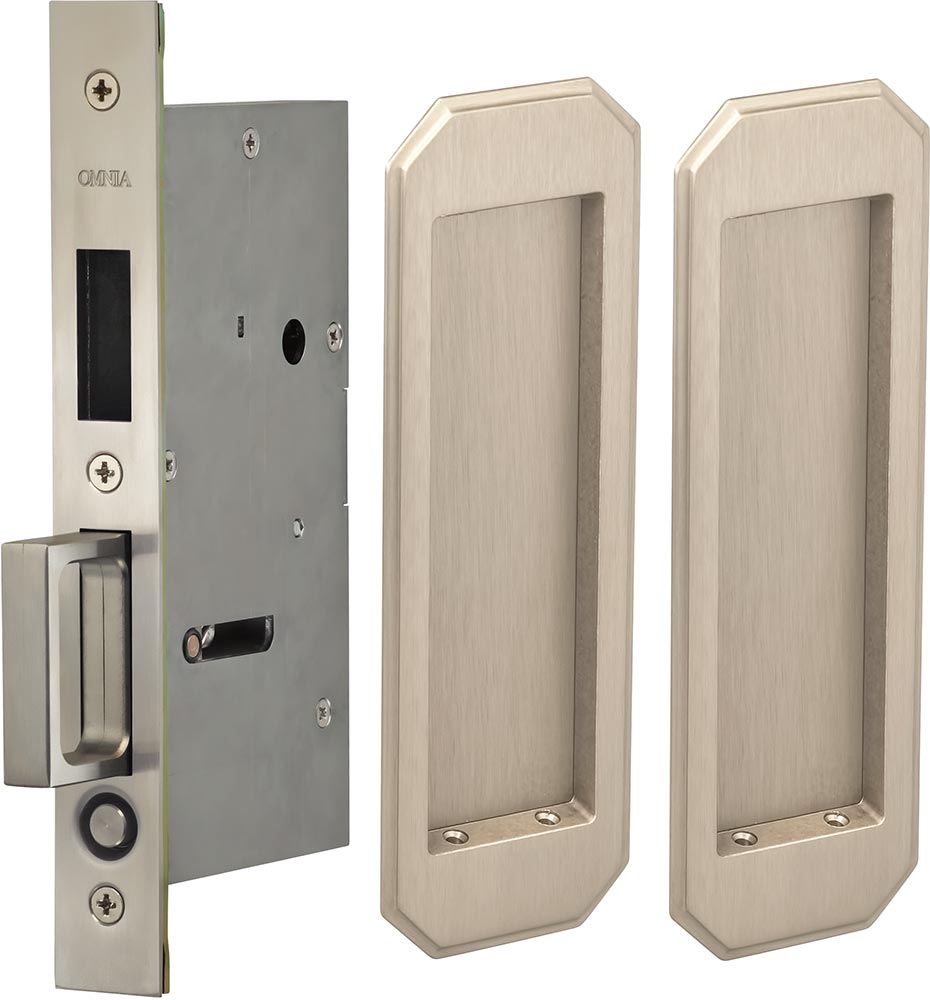

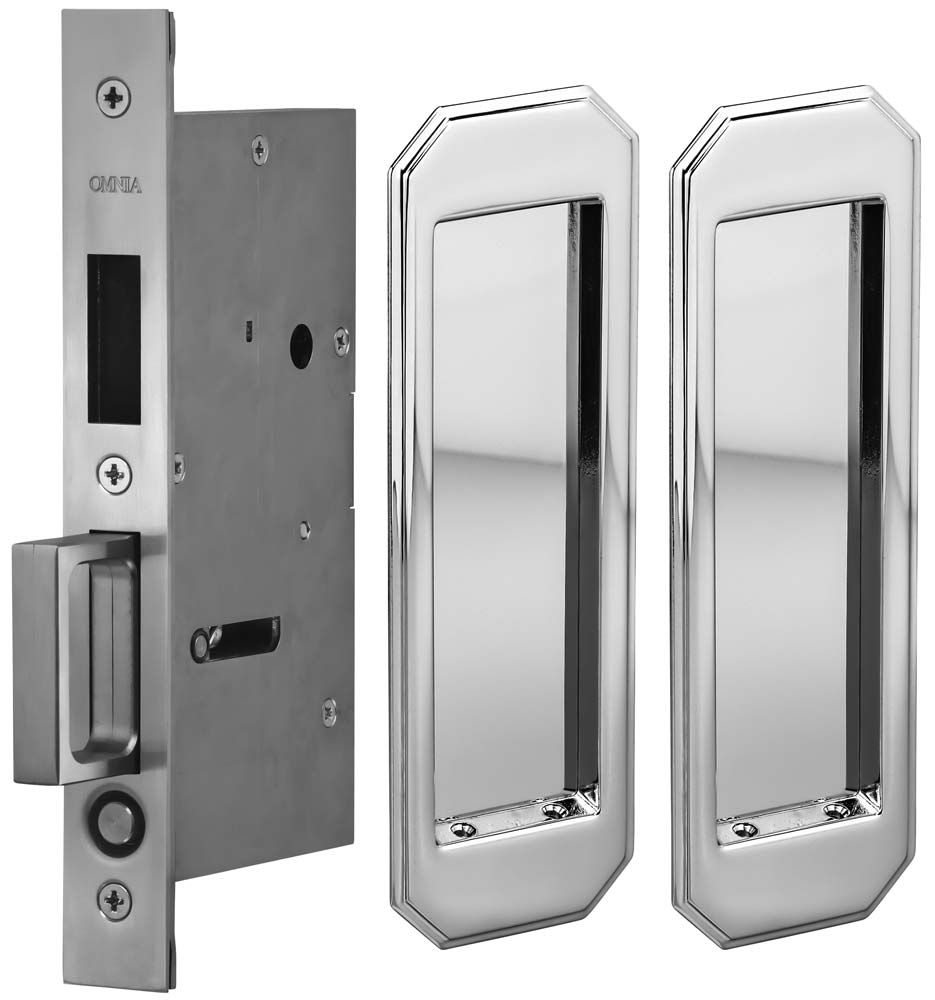

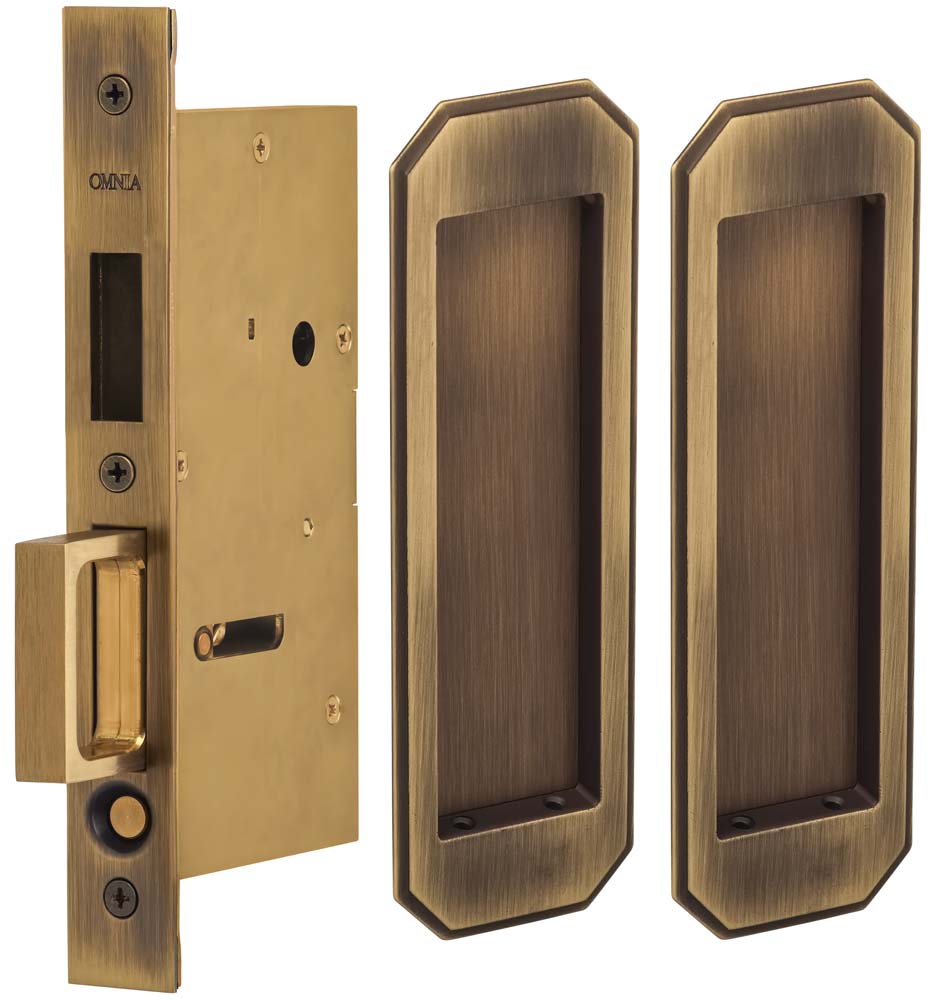

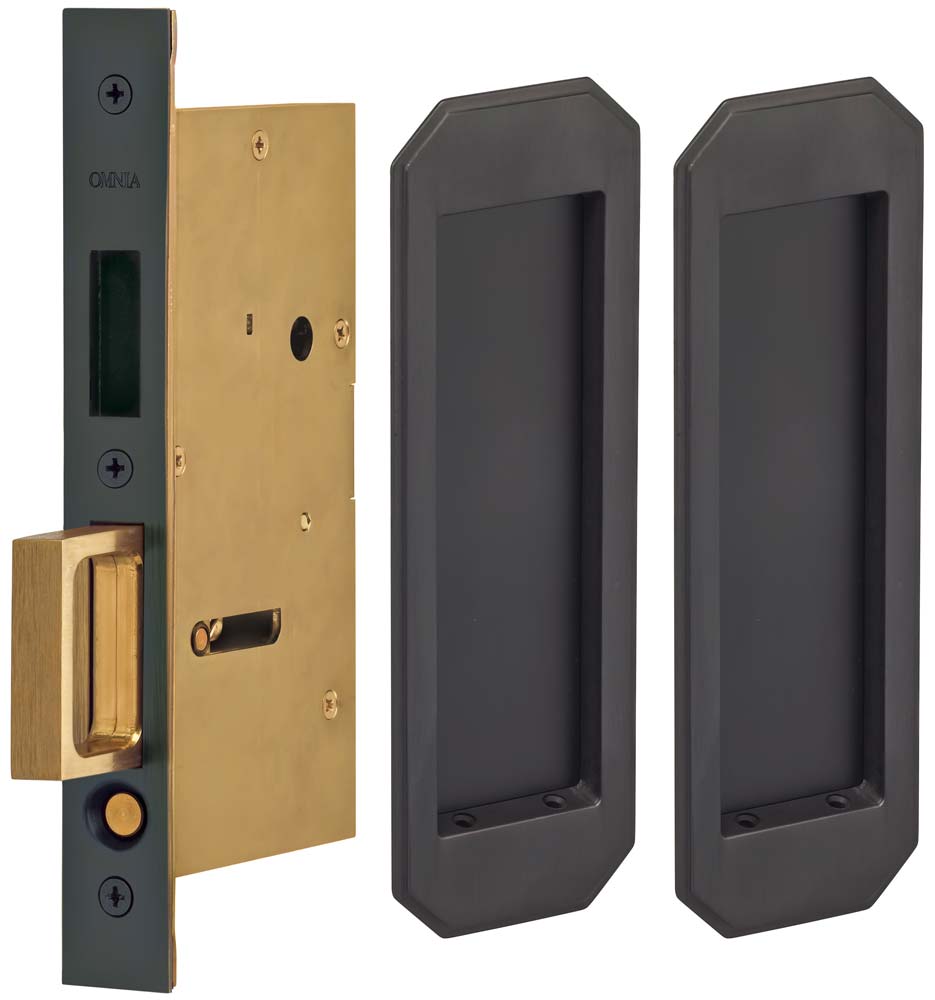

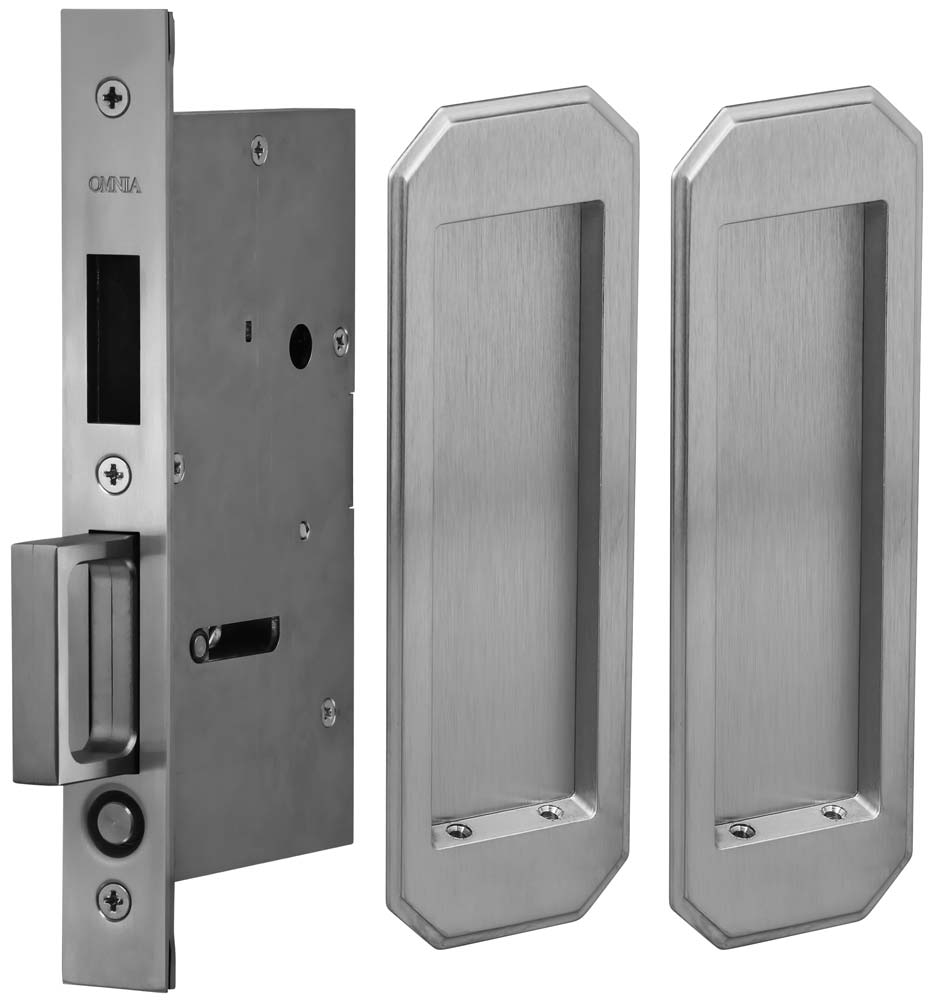

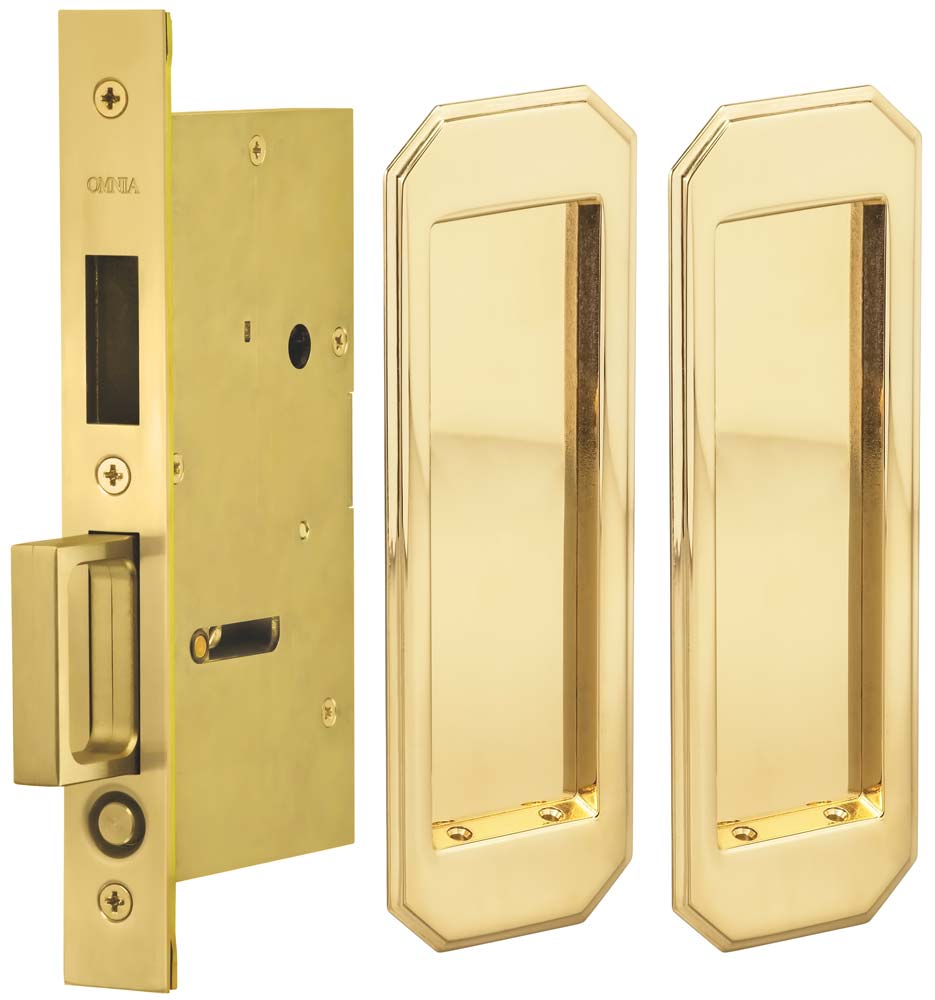

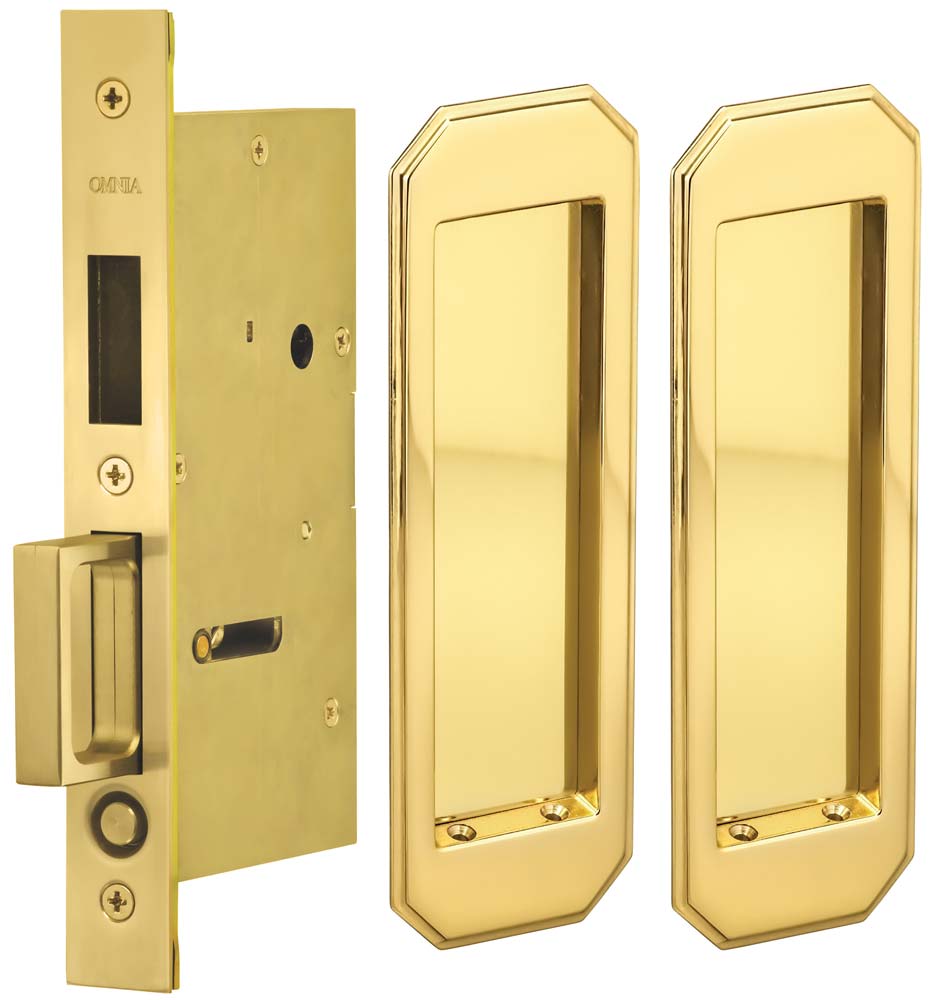

PD – Pair Dummy: Flushcups (2) blank, and includes lockbody

Item No.7039/PD (US15 Satin Nickel Plated, Lacquered)

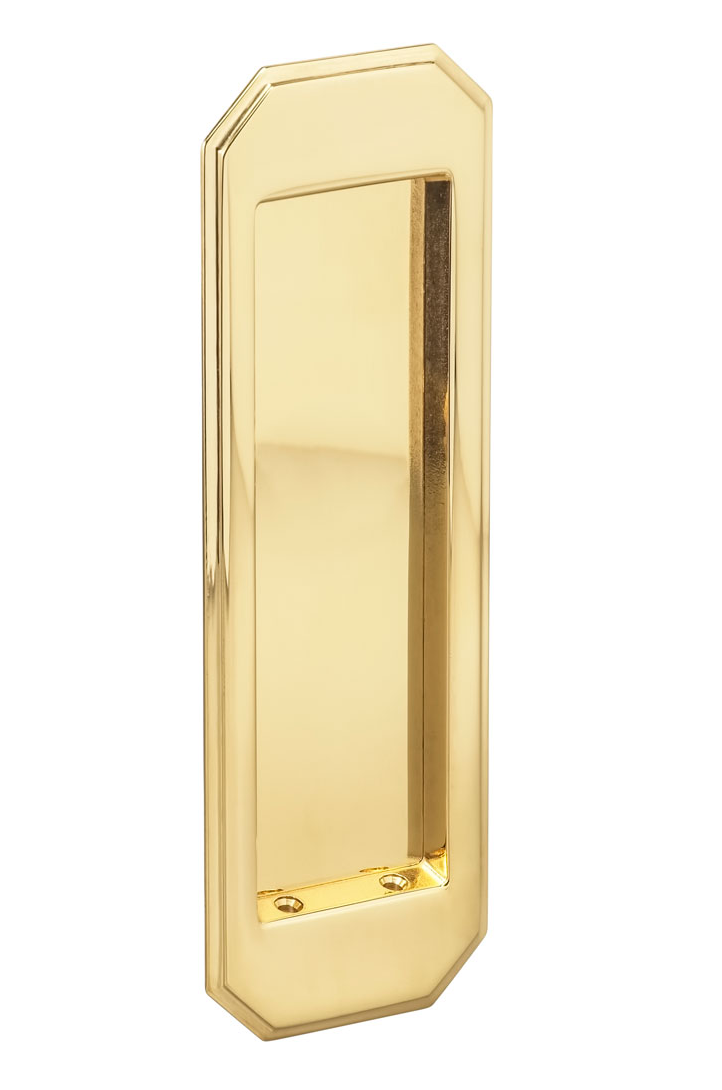

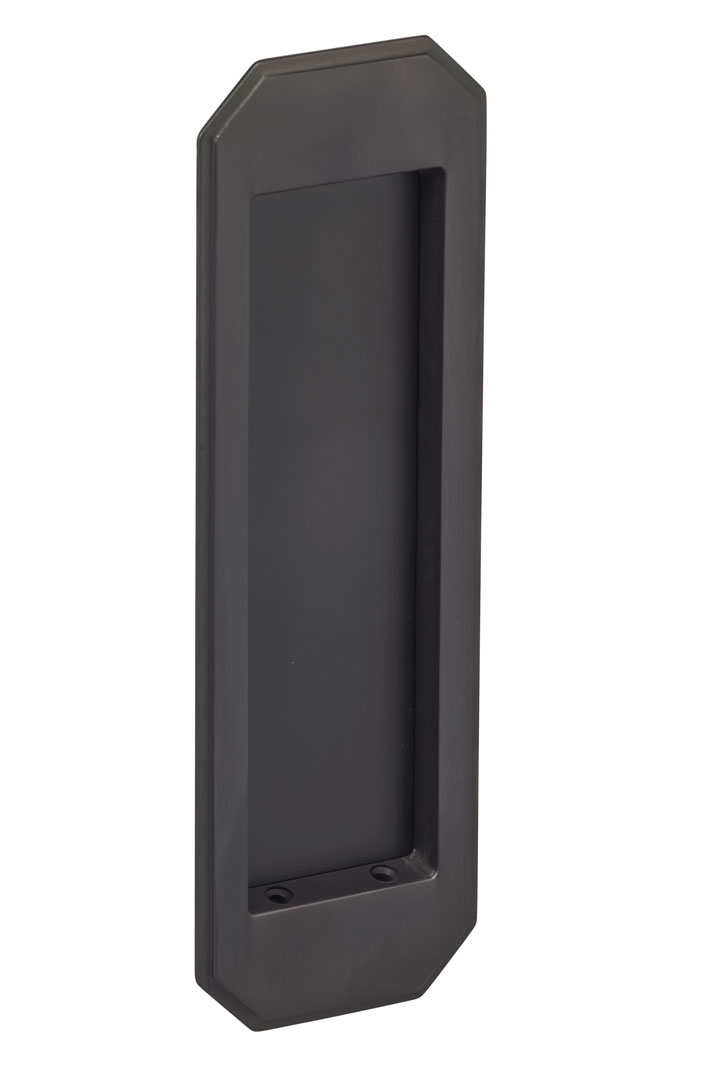

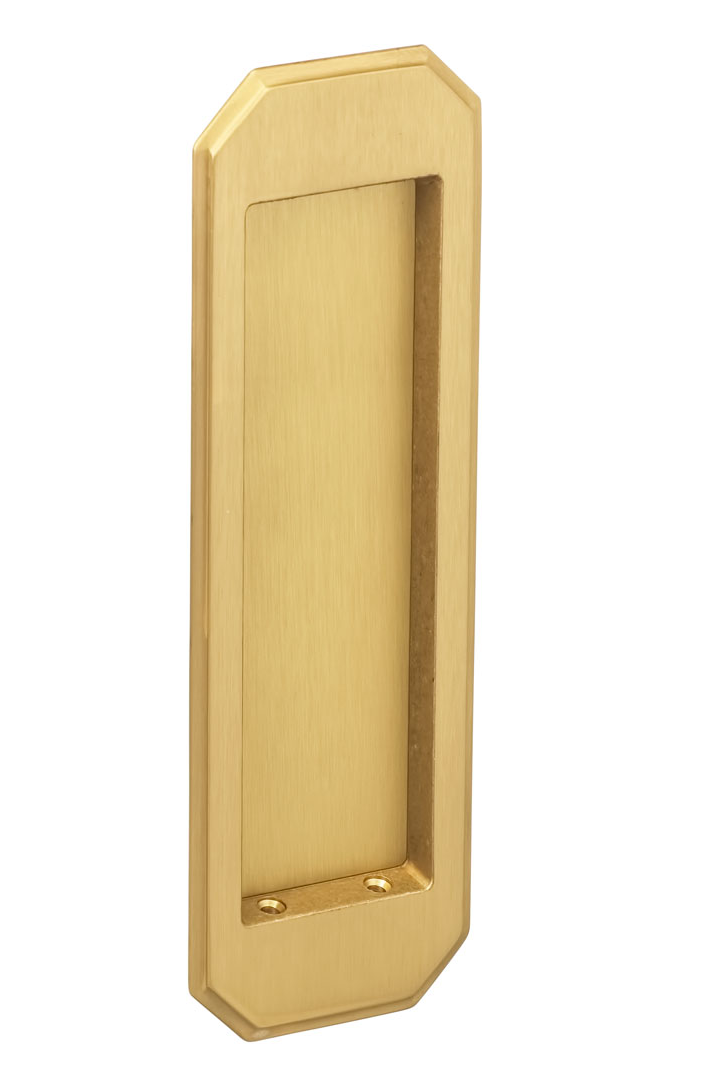

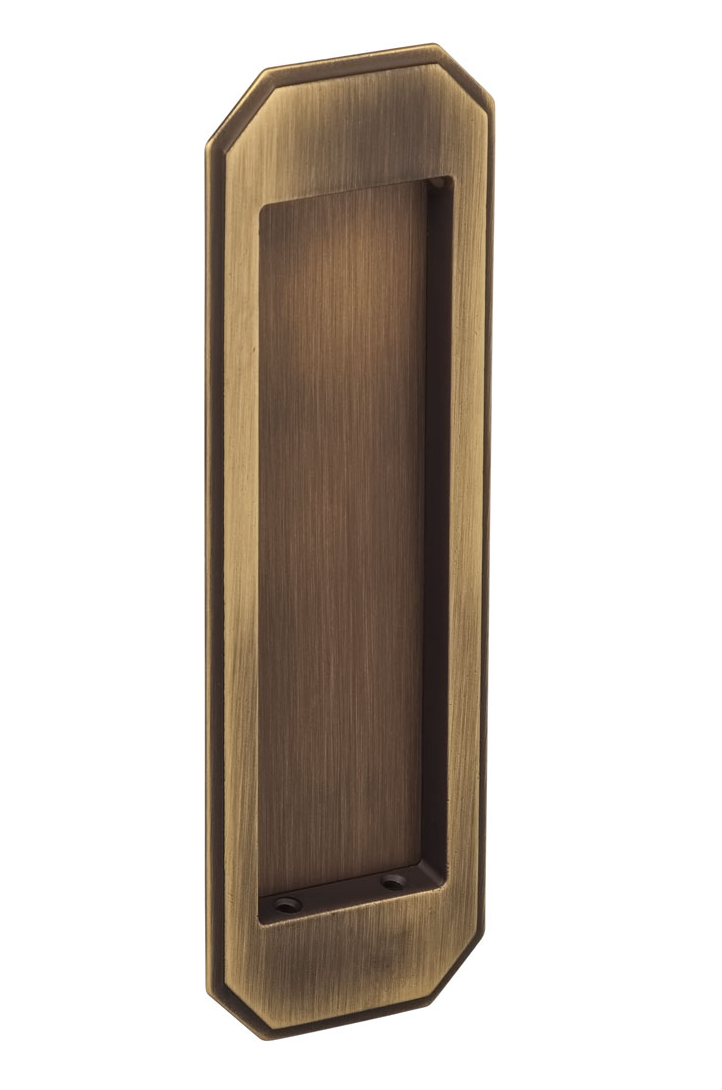

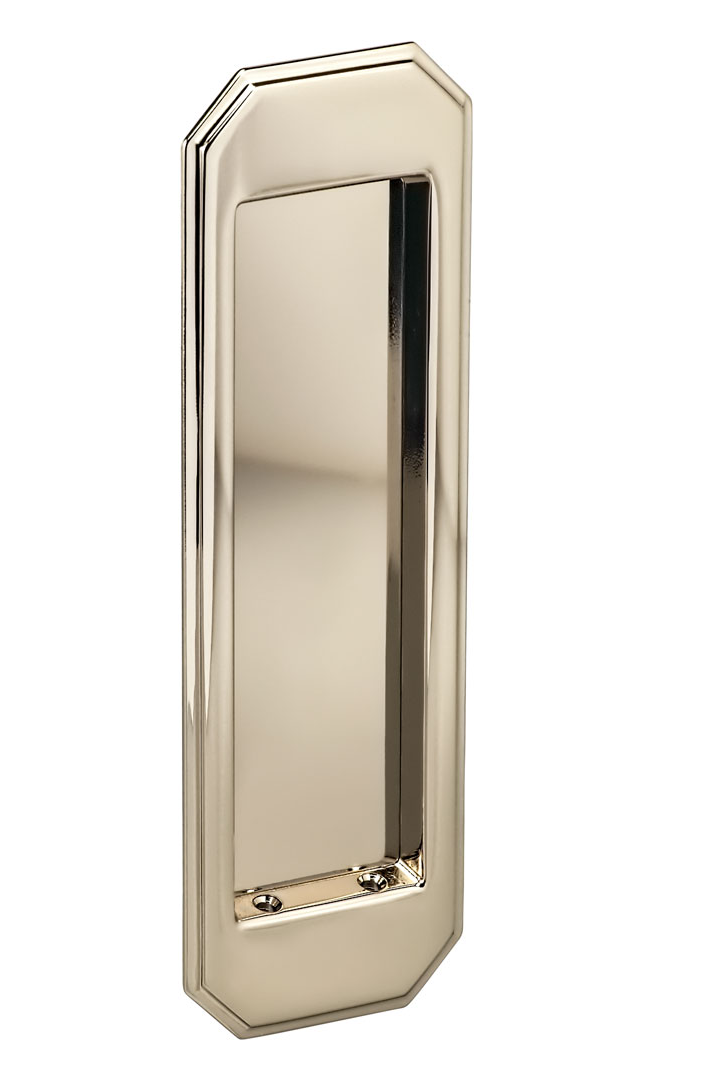

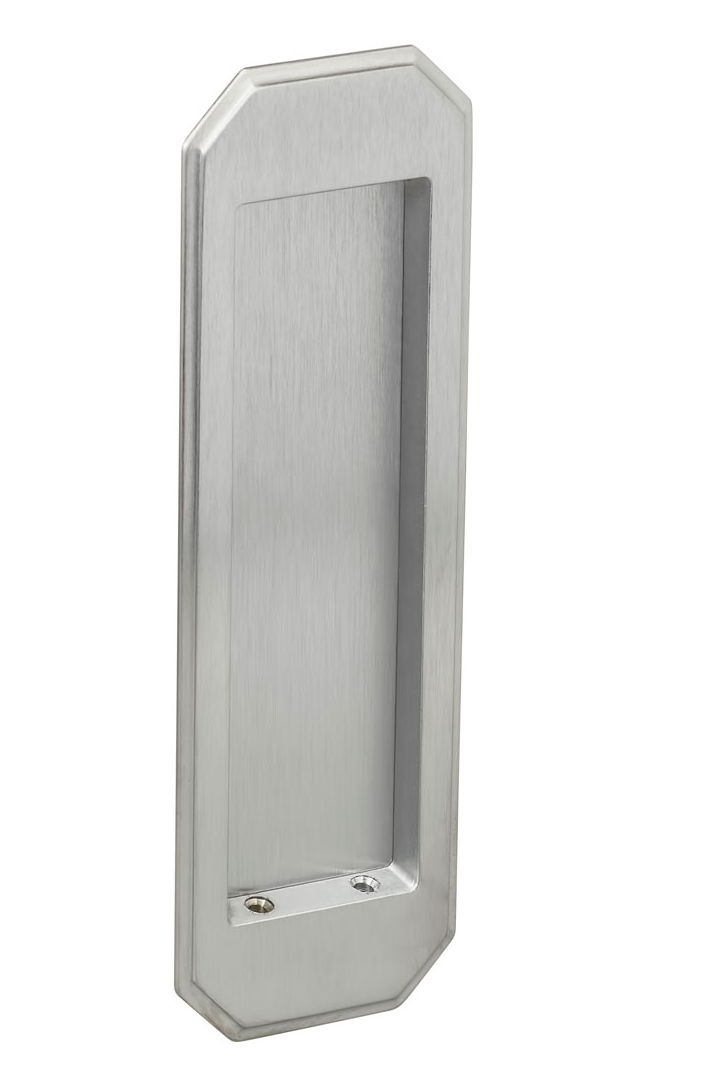

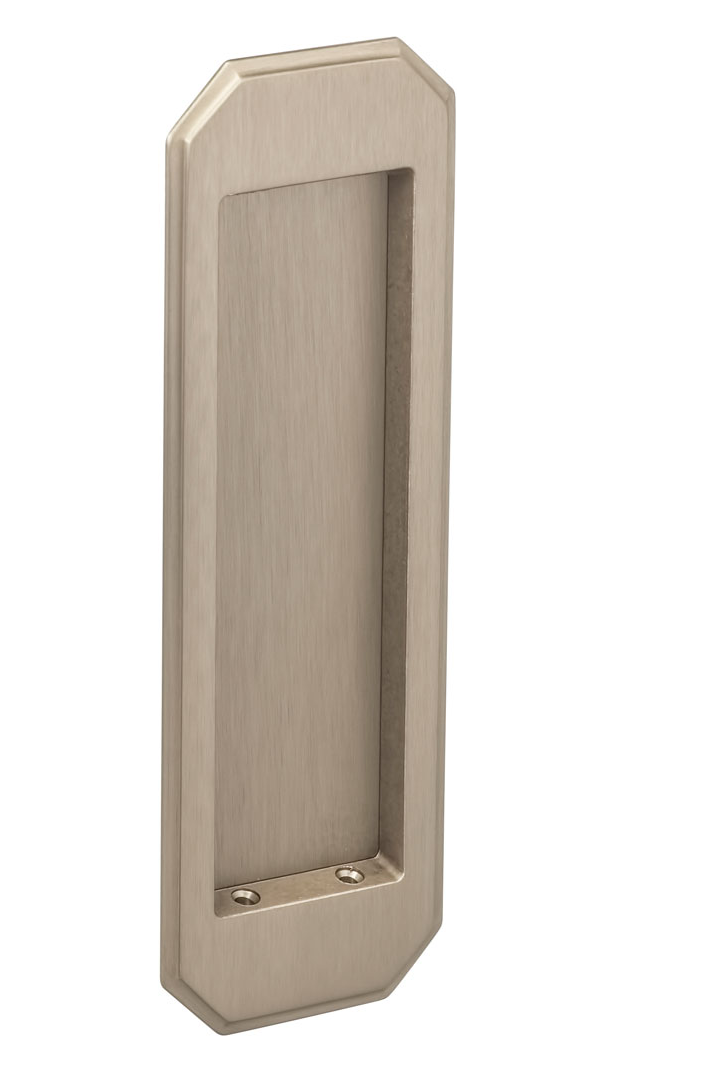

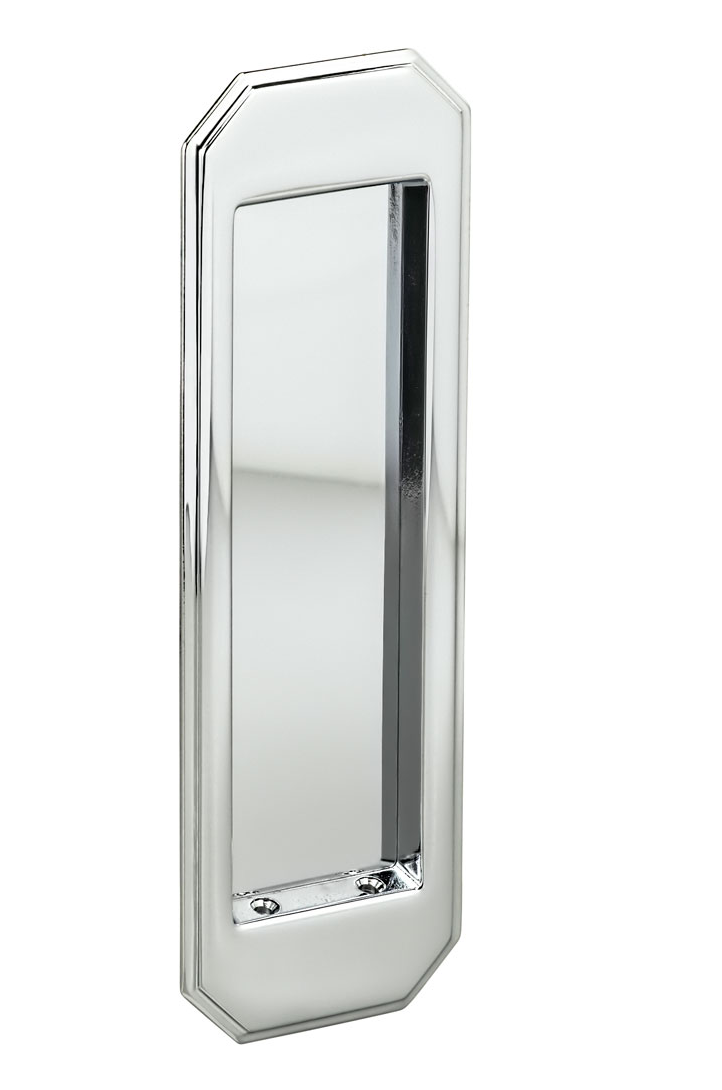

0 – Flushcup Only: Flushcup (1) blank

Item No.7039/0 (US15 Satin Nickel Plated, Lacquered)

(Pair Dummy (PD) Functions exclusively with an additional Entry (A) or Privacy (L) sets for Bi-Parting sliding doors.)

 Resource

Pocket Door Lock Installation Template for Privacy (L) or Entry (A)

Pocket Door Lock Installation Template for Pair Dummy (PD)

Pocket Door Lock Installation Template for Passage (N)

Pocket Door Lock Trim Specifications

Product Data Sheets

Full Catalog Download
