Omnia 12 Series Stainless Steel Mortise & Deadbolt Lockset

Save 20%
Omnia IndustriesSKU: OMN-12SS.PL-A

Price:
Sale price$574.40 Regular price$718.00

Description

About Omnia Industries

OMNIA Industries, Inc. was founded over 55 years ago with the intent of bringing to the market a new concept of upgraded decorative hardware at moderate prices. Since 1964, OMNIA Industries has supplied the industry with architectural hardware that is stylishly designed yet exceptionally functional. Backed by product innovation and a promise to provide personalized customer service, OMNIA has become a name recognized for excellence among architects and project designers. A commitment to “being our best” is what guides and motivates all of the staff. We are proud of the attention given to every detail, from innovation to quality, from service to marketing.

Specification

Omnia 12 Series Stainless Steel Mortise & Deadbolt Lockset

  • Material: Stainless Steel
  • Finishes: Satin Stainless (US32D)
  • Back plate Height: 10-9/16"
  • Back plate Width: 2-1/2"
  • Backset: 2-1/2" or 2-3/4"
    • 2-1⁄2” b.s.: with 3-7⁄8” minimum stile
    • 2-3⁄4” b.s.: with 4-1⁄2” minimum stile
  • Doors Thickness: 1-3/4" - 2-1/4" Thick Doors
  • Tough, non rusting materials used throughout.
  • Mortise case is heavy wrought steel with zinc dichromate finish for corrosion resistance.
  • Deadbolt: Full 1" Throw, Solid Brass with Saw-proof Insert.

Mortise Box Dimensions

Dimensions

10-9/16" Overall Length x 2-1/2" Width

Length

10 9/16"

Width

2 1/2"

Finishes

US32D

Models

12012 , 12023 , 12032

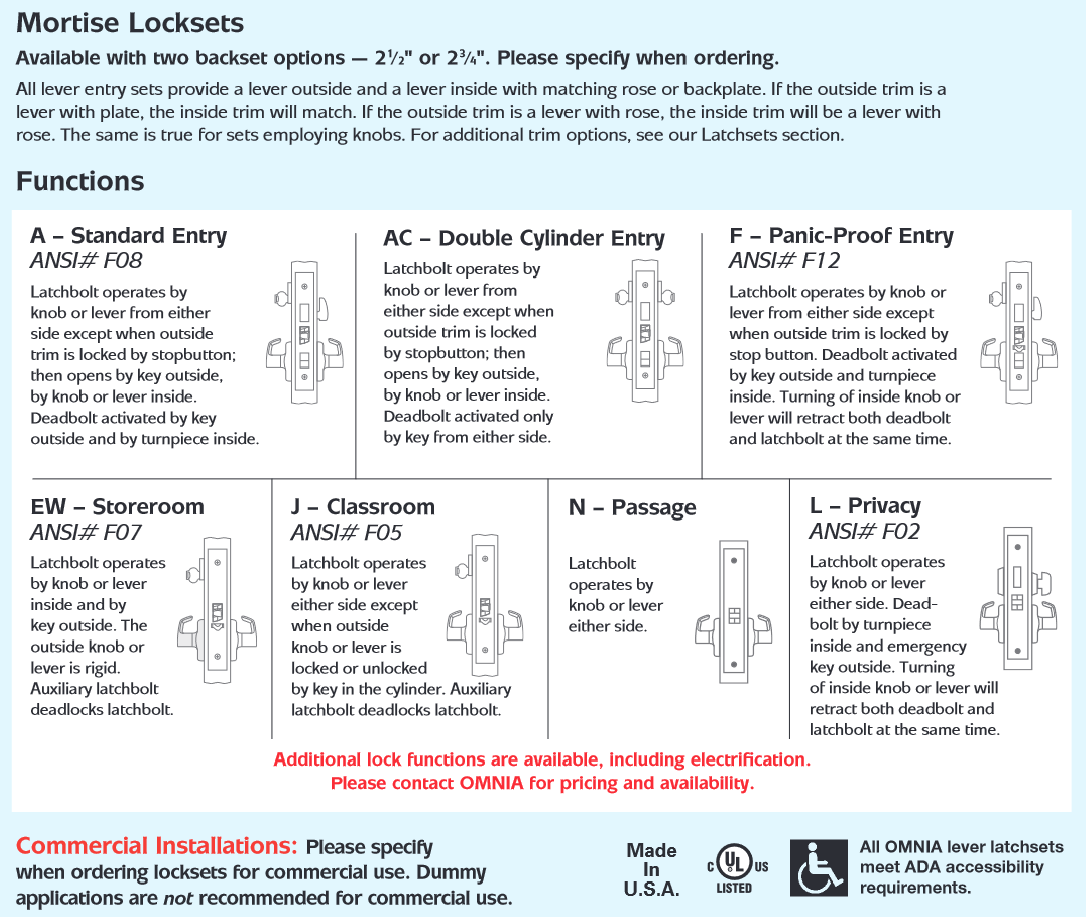

Function Info

A – Standard Entry

Latch bolt operates by knob or lever from either side except when outside trim is locked by stop button; then opens by key outside,by knob or lever inside. Deadbolt activated by key outside and by turn piece inside.

AC – Double Cylinder Entry

Latch bolt operates by knob or lever from either side except when outside trim is locked by stop button; then opens by key outside, by knob or lever inside. Deadbolt activated only by key from either side.

F – Panic-Proof Entry

Latch bolt operates by knob or lever from either side except when outside trim is locked by stop button. Deadbolt activated by key outside and turn piece inside. Turning of inside knob or lever will retract both deadbolt and  latch bolt at the same time.

EW – Storeroom

Latch bolt operates by knob or lever inside and by key outside. The outside knob or lever is rigid. Auxiliary latch bolt deadlocks latch bolt.

J – Classroom

Latch bolt operates by knob or lever either side except when outside knob or lever is locked or unlocked by key in the cylinder. Auxiliary latch bolt deadlocks latch bolt.

N – Passage

Latch bolt operates by knob or lever either side. Does not lock

L – Privacy

Latch bolt operates by knob or lever either side. Dead-bolt by turn piece inside and emergency key outside. Turning of inside knob or lever will retract both deadbolt and latch bolt at the same time.

PD – Pair Dummy

Does not latch or lock. This non-functional handle set is stationary on both sides of the door. For use as a pull or to match trim



Lever Styles

#11

 Item No.11 (US32D Satin Stainless Steel)


#32

Item No.32 (Interior Modern Lever Latchset - Stainless Steel)

#47

 Item No.47 (US32D Satin Stainless Steel)


 Resource

Omnia 2-1/2" Installation Template

Omnia 2-3/4" Installation Template

Product Data Sheets

Full Catalog Download

Warranty
