Dimensions |
10-5/8" Overall Length x 2-3/8" Width |
Length |
10 5/8" |
Width |
2 3/8" |
Finishes |
US3, US3A, US4, US10B, US14, US15, US26 |
Models | 11513 , 11753 |

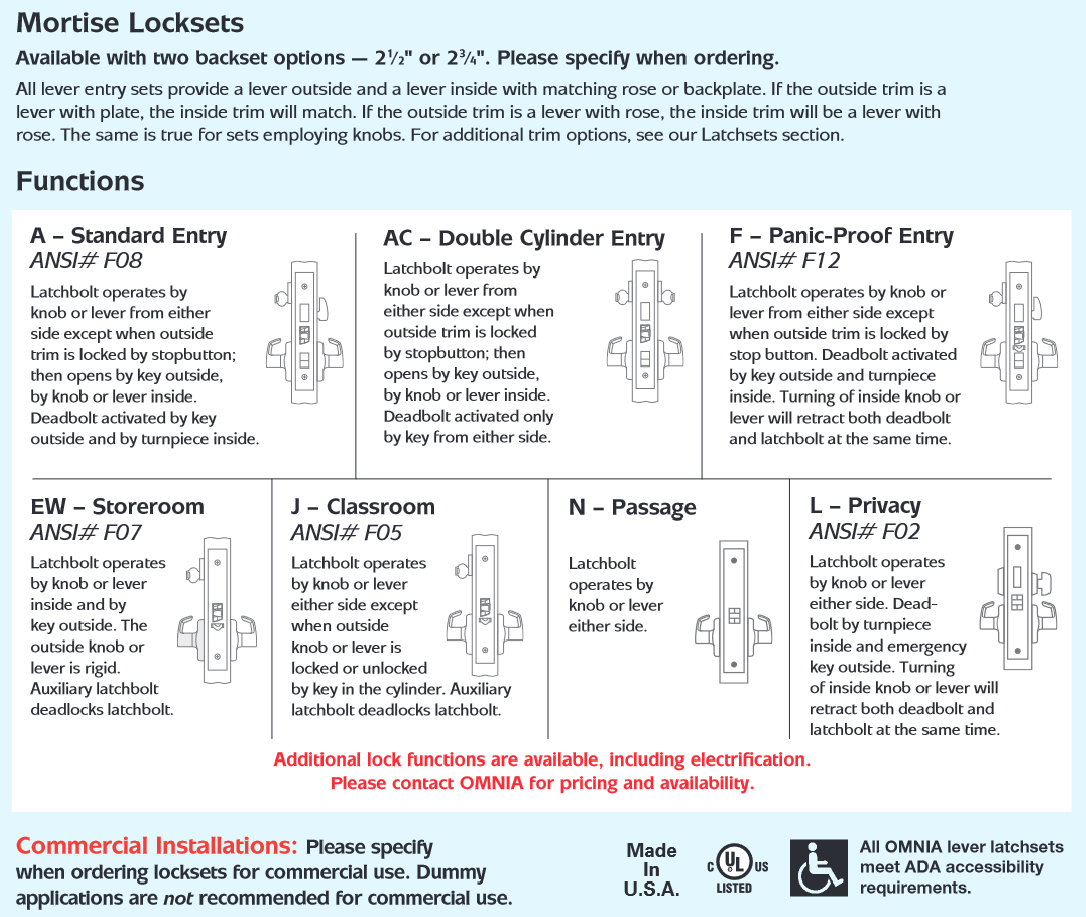

A – Standard Entry Latch bolt operates by knob or lever from either side except when outside trim is locked by stop button; then opens by key outside,by knob or lever inside. Deadbolt activated by key outside and by turn piece inside. |
|
AC – Double Cylinder Entry Latch bolt operates by knob or lever from either side except when outside trim is locked by stop button; then opens by key outside, by knob or lever inside. Deadbolt activated only by key from either side. |
|
F – Panic-Proof Entry Latch bolt operates by knob or lever from either side except when outside trim is locked by stop button. Deadbolt activated by key outside and turn piece inside. Turning of inside knob or lever will retract both deadbolt and latch bolt at the same time. |
|
EW – Storeroom Latch bolt operates by knob or lever inside and by key outside. The outside knob or lever is rigid. Auxiliary latch bolt deadlocks latch bolt. |
|
J – Classroom Latch bolt operates by knob or lever either side except when outside knob or lever is locked or unlocked by key in the cylinder. Auxiliary latch bolt deadlocks latch bolt. |
|
N – Passage Latch bolt operates by knob or lever either side. Does not lock |
|
L – Privacy Latch bolt operates by knob or lever either side. Dead-bolt by turn piece inside and emergency key outside. Turning of inside knob or lever will retract both deadbolt and latch bolt at the same time. |
|
PD – Pair Dummy Does not latch or lock. This non-functional handle set is stationary on both sides of the door. For use as a pull or to match trim |

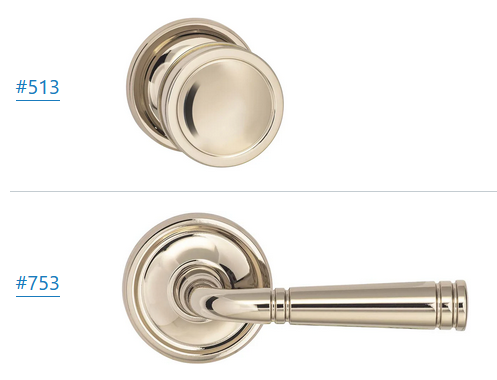

#513 |
|

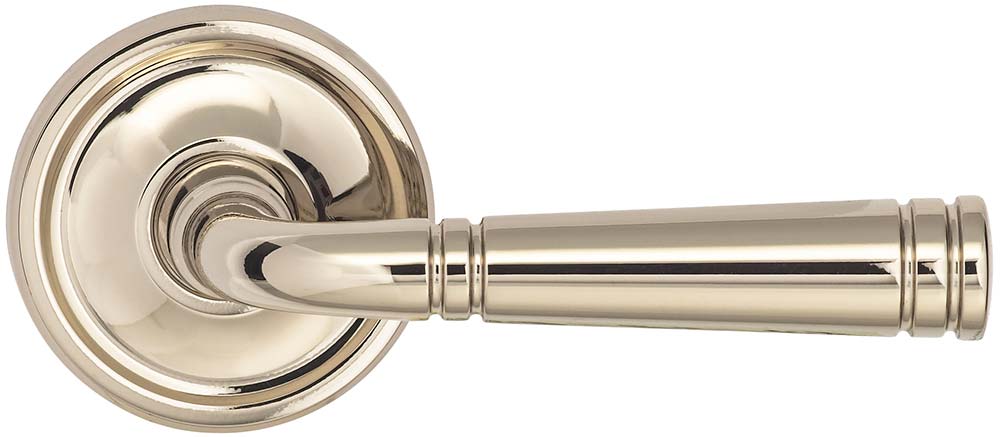

#753 |
Omnia 2-1/2" Installation Template
