Introduction
Our WM-739 chimney style range hood is backed by a single powerful motor, superior suction power, and grease-trapping baffle filters. The onyx black panel and touch screen controls look effortlessly modern. You’ll love how clean and sleek the stainless steel finish looks in your kitchen.

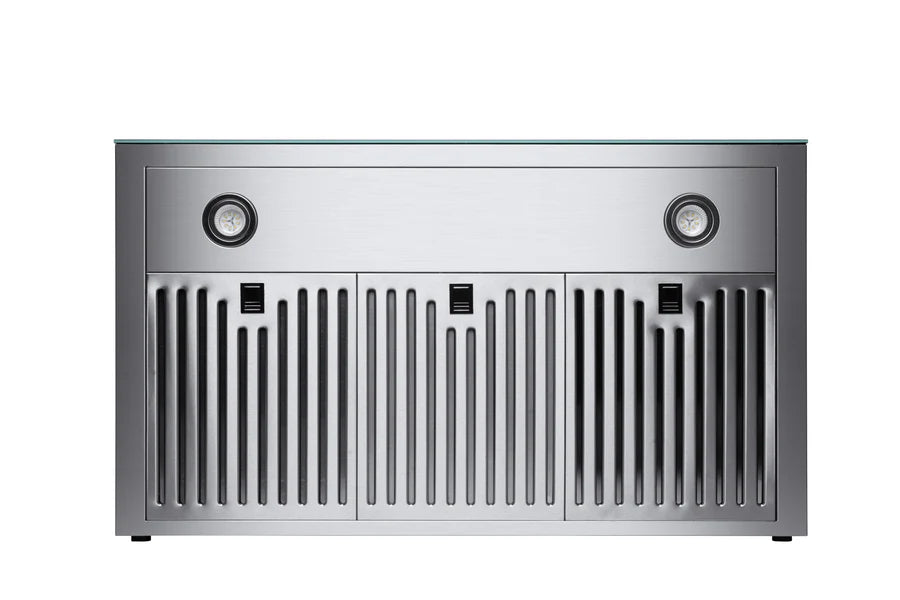

Dishwasher-Safe Baffle Filters Snag Grease
The dishwasher-safe baffle filters make it easy to keep your range hood running in tip-top shape. The deep grooves snag grease before it has a chance to drip down on your food, countertops, cabinets, or floors.
- Dishwasher-safe for easy cleaning and maintenance
- Baffle filters collect grease quickly
- Same design as professional cooking range hoods
Simple-to-Operate Touch Control Panel
There are no confusing buttons or complicated settings to deal with. The sleek touch control panel is easy to operate and clean.
- 3-speed settings
- Wipes clean
Ideal for Ductless Kitchens
This range hood converts to ductless through the use of charcoal filters (sold separately). Ideal for small kitchens, apartment kitchens, or any kitchen without ductwork.
- Convertible venting
- Make ductless with charcoal filters (sold separately)
Description

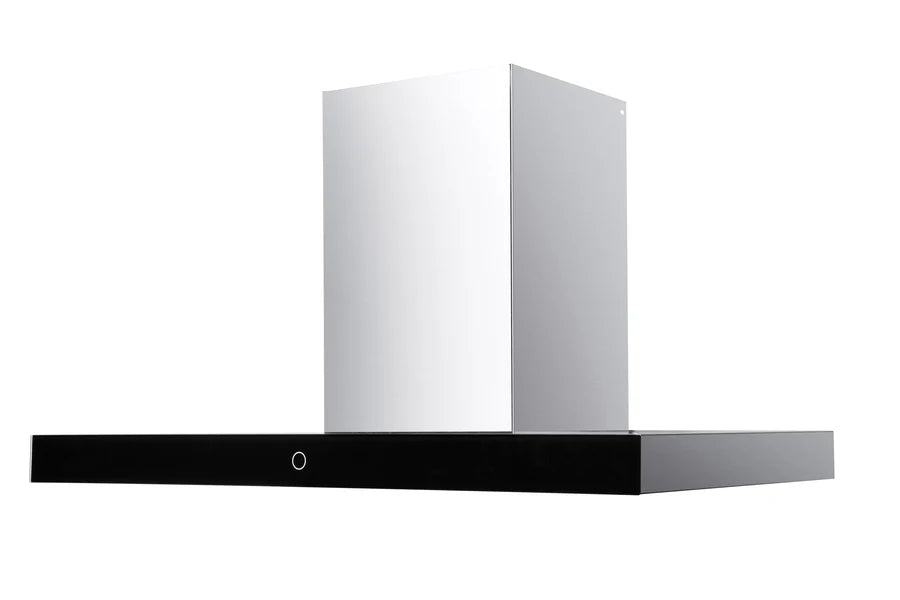

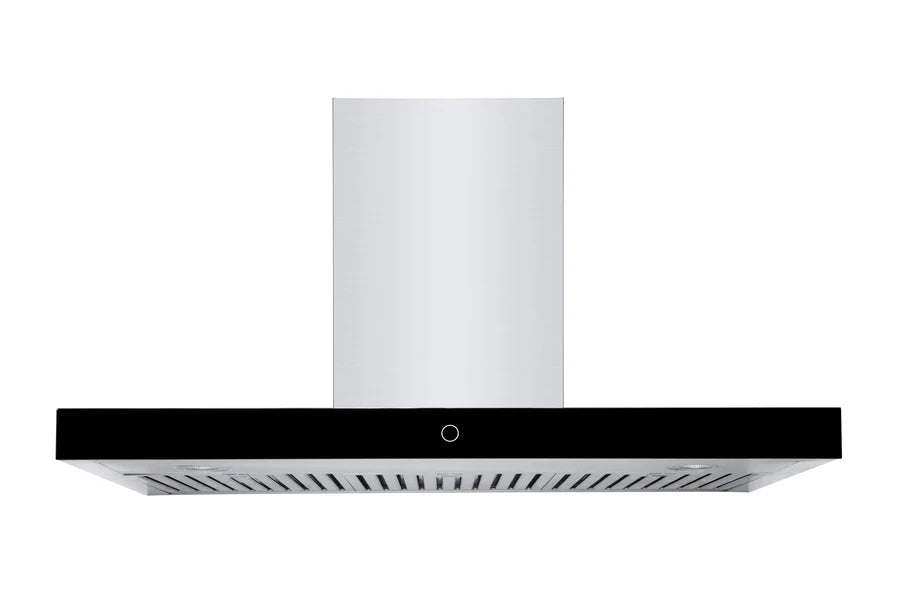

WM-739 Convertible Range Hood
- Ideal for heavy-duty cooking methods including heat, and smoke; boiling, steaming, poaching, braising, frying, searing, and sauteing
- Stainless steel canopy range hood with onyx black panel
- Powerful suction through a single blower with three settings to control speed and noise

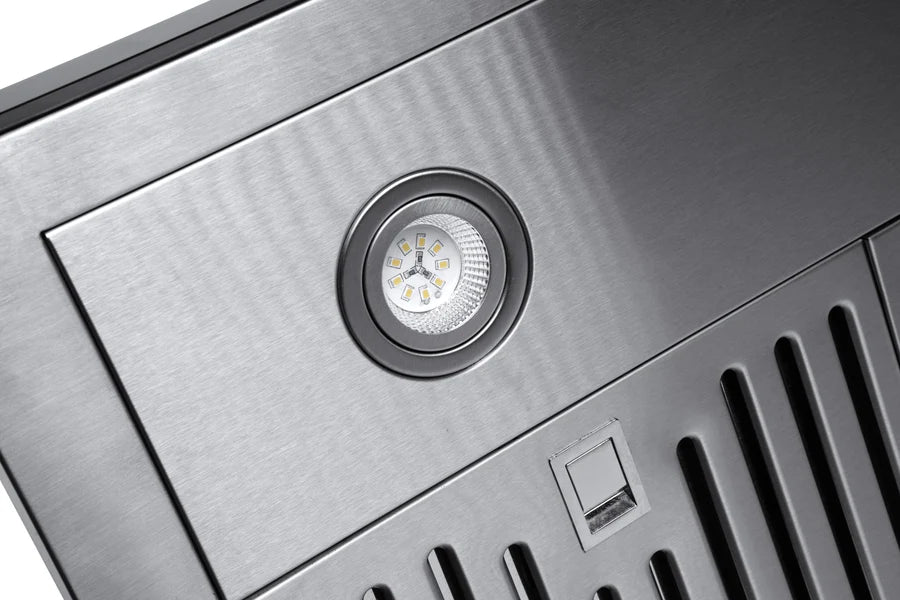

- LED bulbs save energy without compromising on light
- Grooved, dishwasher-safe baffle filters catch grease drips
- Delayed auto-shut-off function
- Convert to ductless wall mount chimney with our functional charcoal filters (sold separately). These filters trap grease particles from fumes and deodorize cooking smells.
- High ceilings? No problem. This chimney vent hood fits kitchens with up to 10 foot-ceiling with our extension kit (sold separately).
- Includes: dishwasher-safe baffle filters (2), lower chimney cover (1), upper chimney cover (1), chimney bracket (1) and 6-inch round exhaust adapter (1)

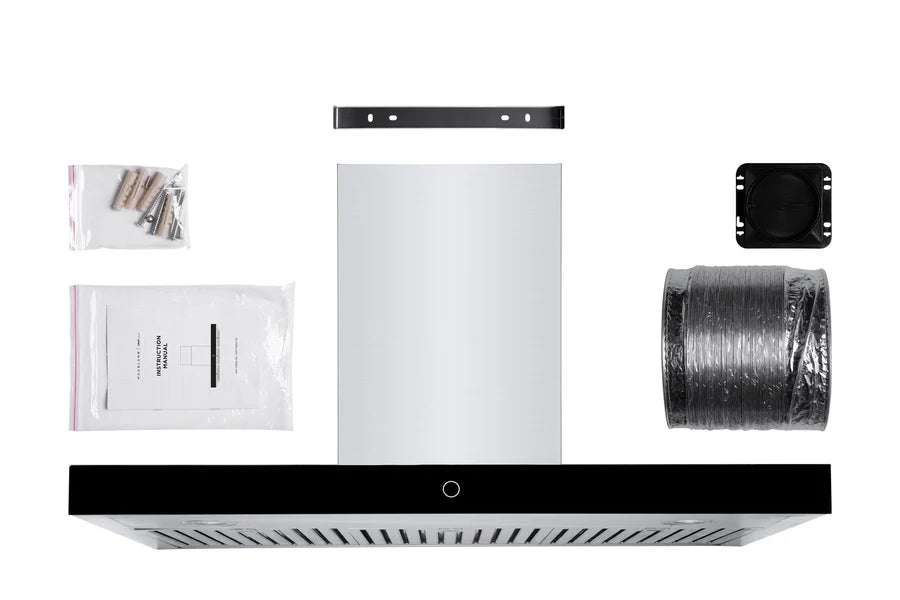

What's Included?
- dishwasher-safe baffle filters (2 for 30″ model, 3 for 36″ model)
- lower chimney cover (1)
- upper chimney cover (1)
- chimney bracket (1) and top 6″ round exhaust adapter (1)
Specification
Size: 30" | 36"
Style: Wall Mount
Ductless: Yes
Cleaning Function: N/A
Noise Level: 1.5 to 7.0 Sones
Light Color Temp.: White / 5000 Kelvin
Light Bulb: 2W LED (Integrated)
Light Intensity: 2 Levels
Control: Touch Panel
Speed Selections: 3
Equivalent Airflow (CFM): 900
Laboratory Airflow (CFM): 450
Top Venting: 6" Round
Rear Venting: N/A
Convertible: Yes. Charcoal filters sold separately.
Motor: Single
Wattage: 224W
Voltage: 120V
Connection: Plug-in
Amperage: 1.87 Amp

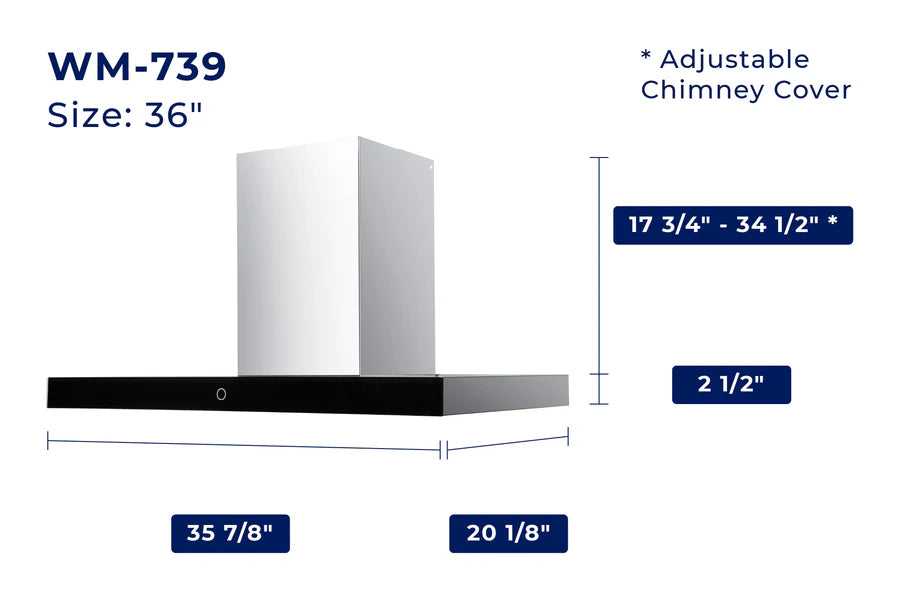

Dimensions (WxDxH):
30": 29-7/8" x 20-1/8" x 17-3/4"
36": 35-1/4" x 20-1/8" x 17-3/4" - 34-1/2"
Features
Everything You Need For Better Cooking Experiences
Cutting Edge Technology
When it comes to range hoods, it is all about suction power. At Hauslane, we craft our powerful motors with cutting edge technology and patents. As a result, our range hoods deliver high CFM suction and they will meet any cooking needs. Never have to think again for your next steak meal!
Perfect for Ductless Kitchen
Our charcoal filters are designed with charcoal particle to clean the cooking fume by separating the grease and reduce odor. Once cooking fume pass through our charcoal filters, recirculating air will come out from the range hood clean, free of grease.
Ideal for Low & High Ceiling
Never compromise your kitchen design for a range hood. This range hood comes with adjustable of chimney cover, perfect for 7.5-ft ceiling or 8.5-ft ceiling. With a chimney cover extension, this range hood can accommodate 10-ft ceiling. Chimney cover extension sold separately.
Dishwasher-Safe Baffle Filters
Make your life easier today with our dishwasher-safe baffle filters! Throw them into your dishwasher and come back later. Different from others, our baffle filters incorporate professional cooking designs with deep grooves to collects cooking grease. No more grease drips!
Carcinogens Free Kitchen
Studies show cooking fumes contain Carcinogens which has been a long suspect for lung cancer. Upgrade your kitchen today with a Hauslane powerful kitchen ventilation system to keep your loves one from cooking fumes.
Trusted & Reliable
At Hauslane, everything we do is inspired by our love of cooking. We believe cooking brings people together. We have years of expertise in offering professional services and crafting high quality products, and we are committed to applying the most innovative technology to all of our designs.
