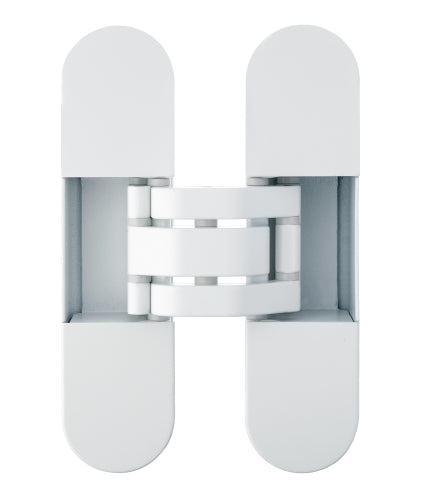

DoorwareCA - Otlav Invisacta - IN300 3D Adjustable Concealed Hinge 60kg (Each)

About DoorwareCA

At Doorware, we understand that true luxury is found in the finer details that enhance your living spaces. Our tagline, "Unlock Luxury: Concealed Hinges for Seamless Elegance," embodies our commitment to delivering products that elevate both form and function. Our concealed hinges are meticulously designed to provide a flawless, uninterrupted aesthetic, ensuring that your doors open with a smoothness and grace that speaks volumes about quality and sophistication. By choosing Doorware, you are opting for a seamless integration that not only enhances the beauty of your home but also offers the durability and reliability synonymous with luxury.

Description

Materials

• Hinge Material: Zamak

Smooth Movement

• Movement on 7 junction fulcrums equipped with bearings in high-resistance plastic HT, ensuring long life and smooth operation.

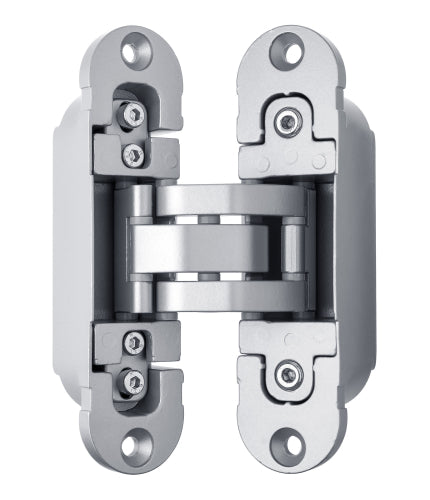

3-Way Adjustments

• Equipped with 3-way adjustments, easily set using a 3 mm hex spanner.
• Once installed, the door exhibits natural sinking.
• The Invisacta hinge system allows the door to return to the start position.

Reversibility & Installation Flexibility

• The hinge is reversible; if mounted in the center of the door thickness, it allows for reversibility of the door, optimizing stock and logistics during installation.
• Suitable for reduced spaces, with a 21 mm depth slot on the frame side, eliminating the need to cut the architrave, which can be flush mounted.
• During installation, it is possible to unlock the height adjustment of the frame part, creating a 4 mm gap, making it easier to insert the hinge in the slots of the jamb, especially when the frame millings are not perfectly aligned with those of the door.

Protection & Stability

• Outer casings protect the inner junction fulcrums from debris during installation.
• The clamping screws placed in the outer casings are fixed and do not affect hinge adjustment, ensuring long-term stability.

Certifications

• CE Certified - According to European Assessment Document 020001-01-0405.
• Fireproof Certified - 30 minutes (UNI-EN 1634-2).

Additional Features

• The hinge can be fitted with door closing devices.
• Aluminum caps available to conceal screws for a clean and finished appearance.

Specification

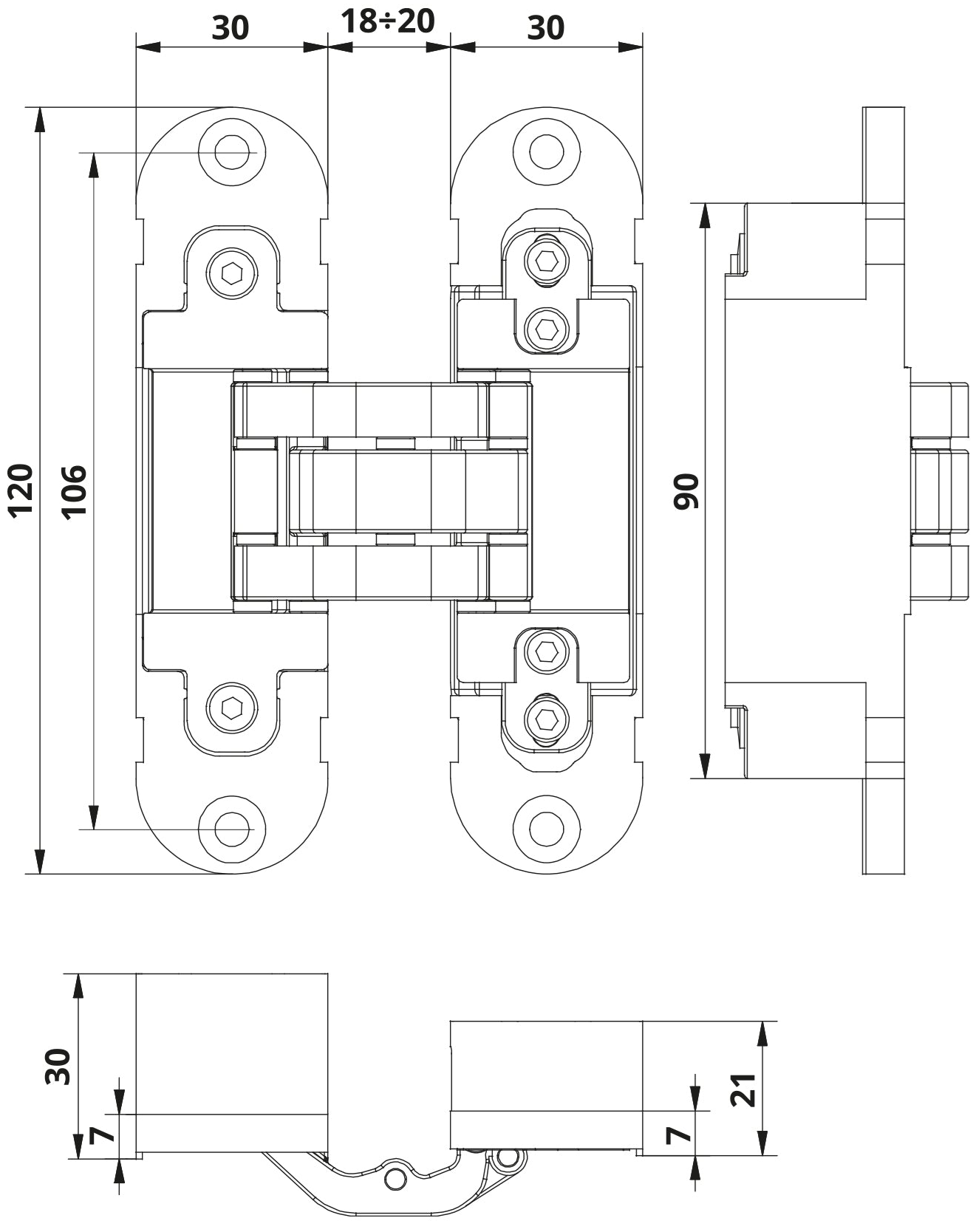

Technical Data:

• Capacity: 60 kg
• Hinge Height: 120 mm
• Width (Shutter Side): 30 mm
• Width (Frame Side): 30 mm
• Depth (Shutter Side): 30 mm
• Depth (Frame Side): 21 mm
• Door Opening Angle: 180°
• Side Adjustment: ± 1 mm
• Height Adjustment: ± 2 mm
• Depth Adjustment: ± 1 mm

Tested with doors measuring 90x210 cm. For more information on the number of hinges to be used according to the weight and dimensions of the door, please refer to the loading charts.

Accessories:

• Aluminum Jig: MU300120G002
• Nylon Jig: MUINV500G002
• Door Alignment Device: A1300120
• Caps: GC300010 (Same finishing as hinges)
• Fixing Plate: NP120040H502

Additional Features:

The IN300 hinge allows for:

• Reversibility of the door with the hinge mounted in the center of the door thickness.
• No need to cut the architrave thanks to only 21 mm of frame slot depth.

Patented EP-B2719851.
