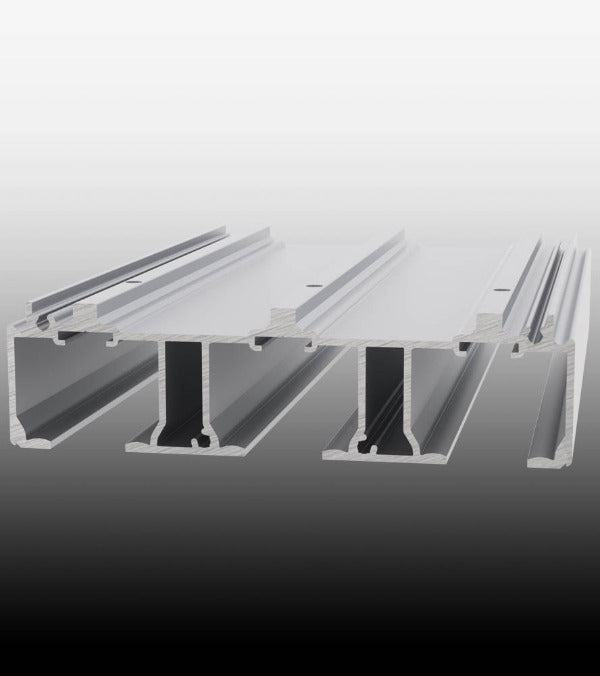

Cavity Sliders - Track System - CS TopMount Double/Triple Track (Track ONLY)

Save 10%
Cavity SlidersSKU: CS-TSTM2-138-6

Price:
Sale price$216.00 Regular price$240.00

Description

About Cavity Sliders

Cavity Sliders USA Inc is the premier manufacturer of sliding door hardware. With strict attention to detail from design through to production, Cavity Sliders offers a product line that is high quality, reliable and operates smoothly. From humble beginnings in New Zealand as a family business, Cavity Sliders has grown to become a world leader in the supply of sliding door hardware. With branches throughout the United States, Australia and New Zealand, Cavity Sliders is committed to upholding the quality level of its existing product line. Emphasis is also placed on developing new products to meet the changing trends of the modern market.

Description

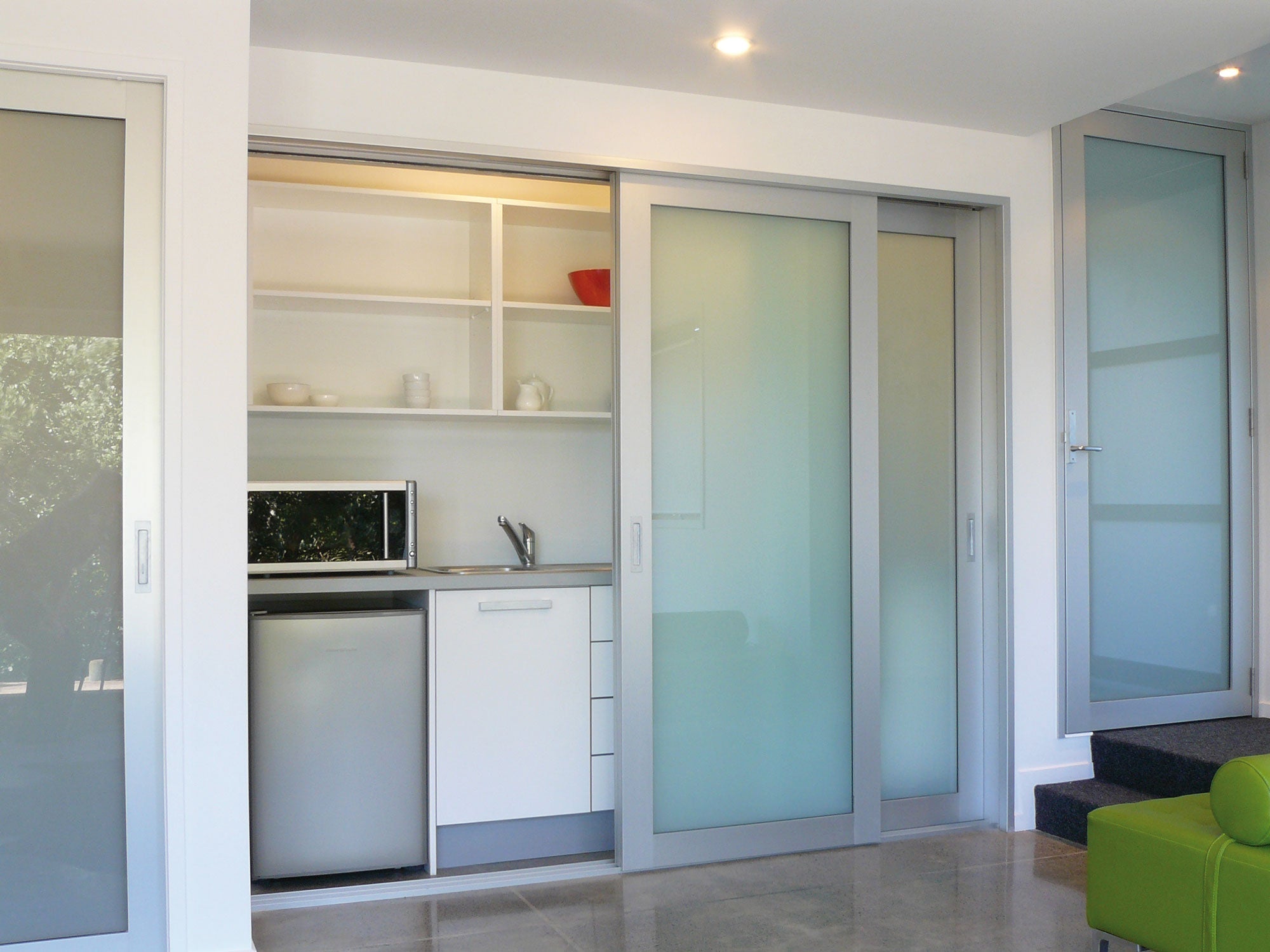

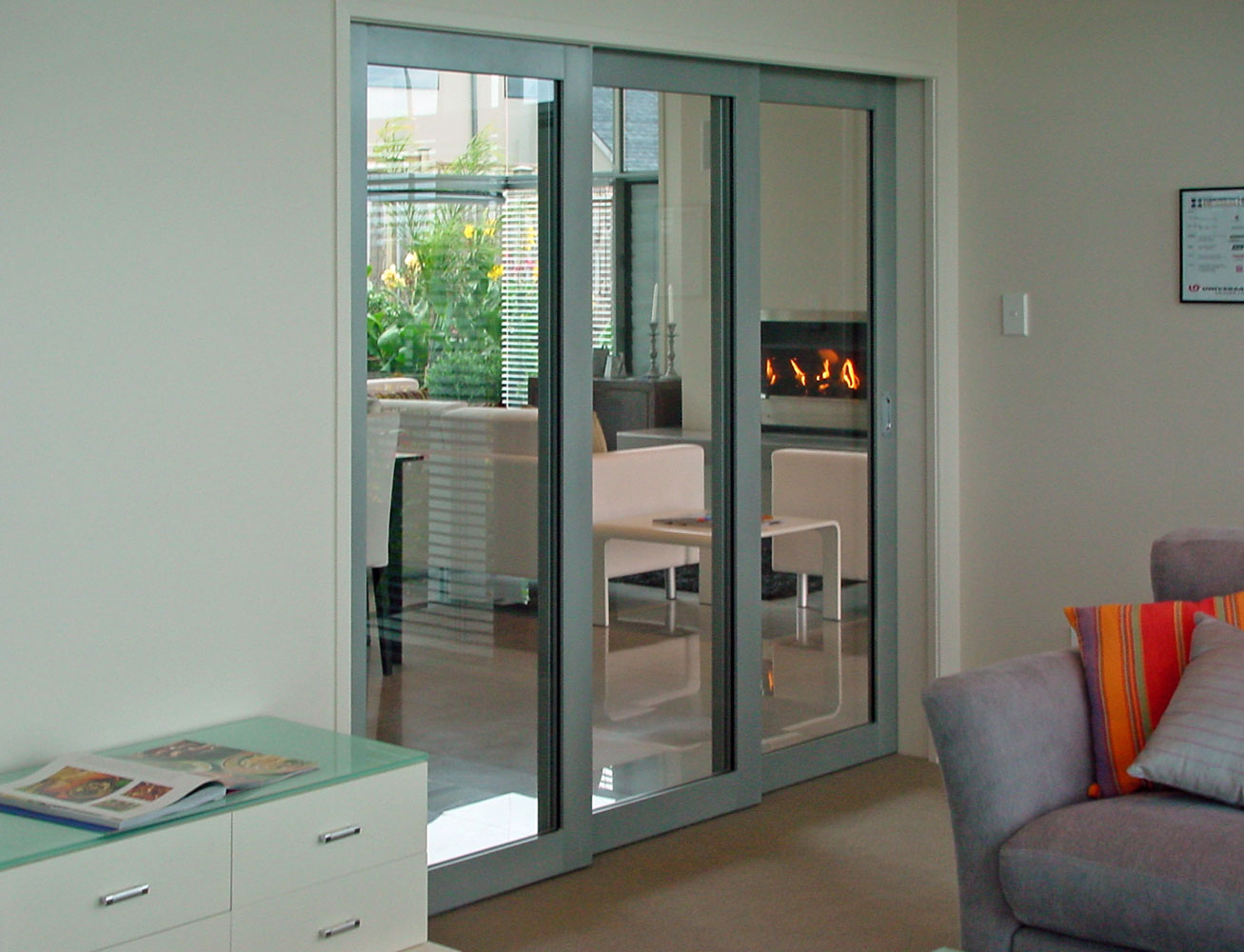

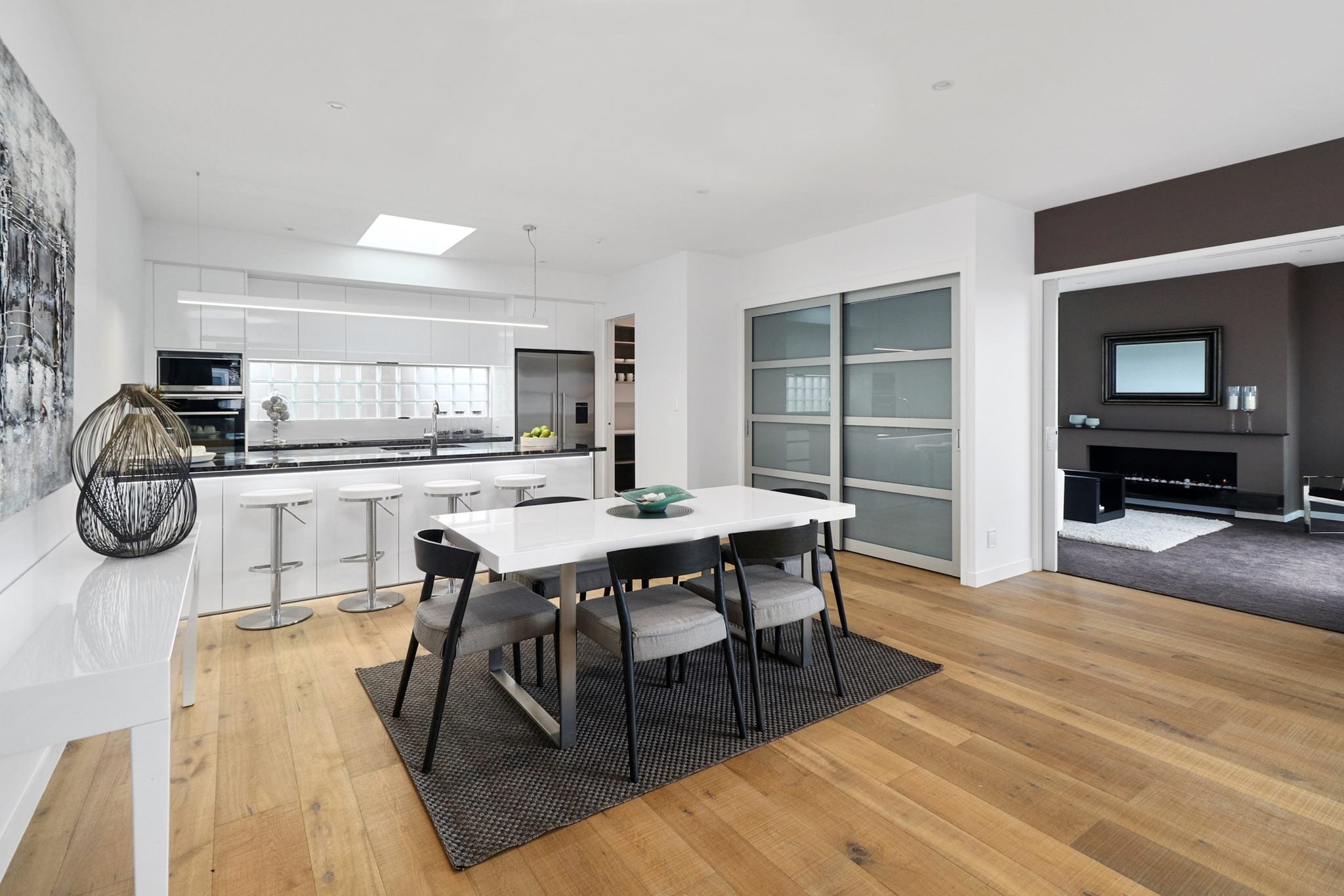

CS TopMount Track is a smooth running low profile sliding door track system suitable for incorporating into pocket door frame and bypass wardrobe assemblies. The addition of the TopMount Track and CS carriage system allows you to transform a standard pocket door into a luxury item. This system is ideal for use in applications where longevity of use and smooth operation are required. TopMount Track is available as standard in a double or triple sliding door track configuration.

Features

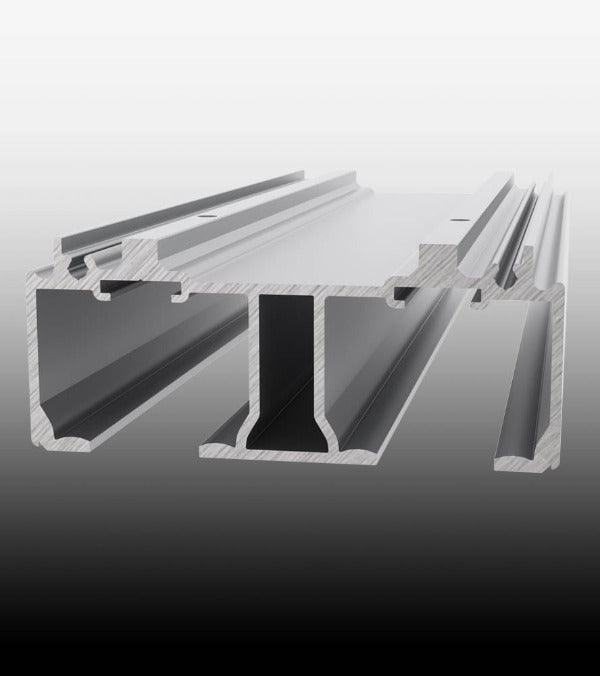

  • Heavy duty one-piece extruded aluminum track.
  • Available in 6’, 8’, 12’ and 24’ pre-cut lengths. Custom lengths can be cut to order.

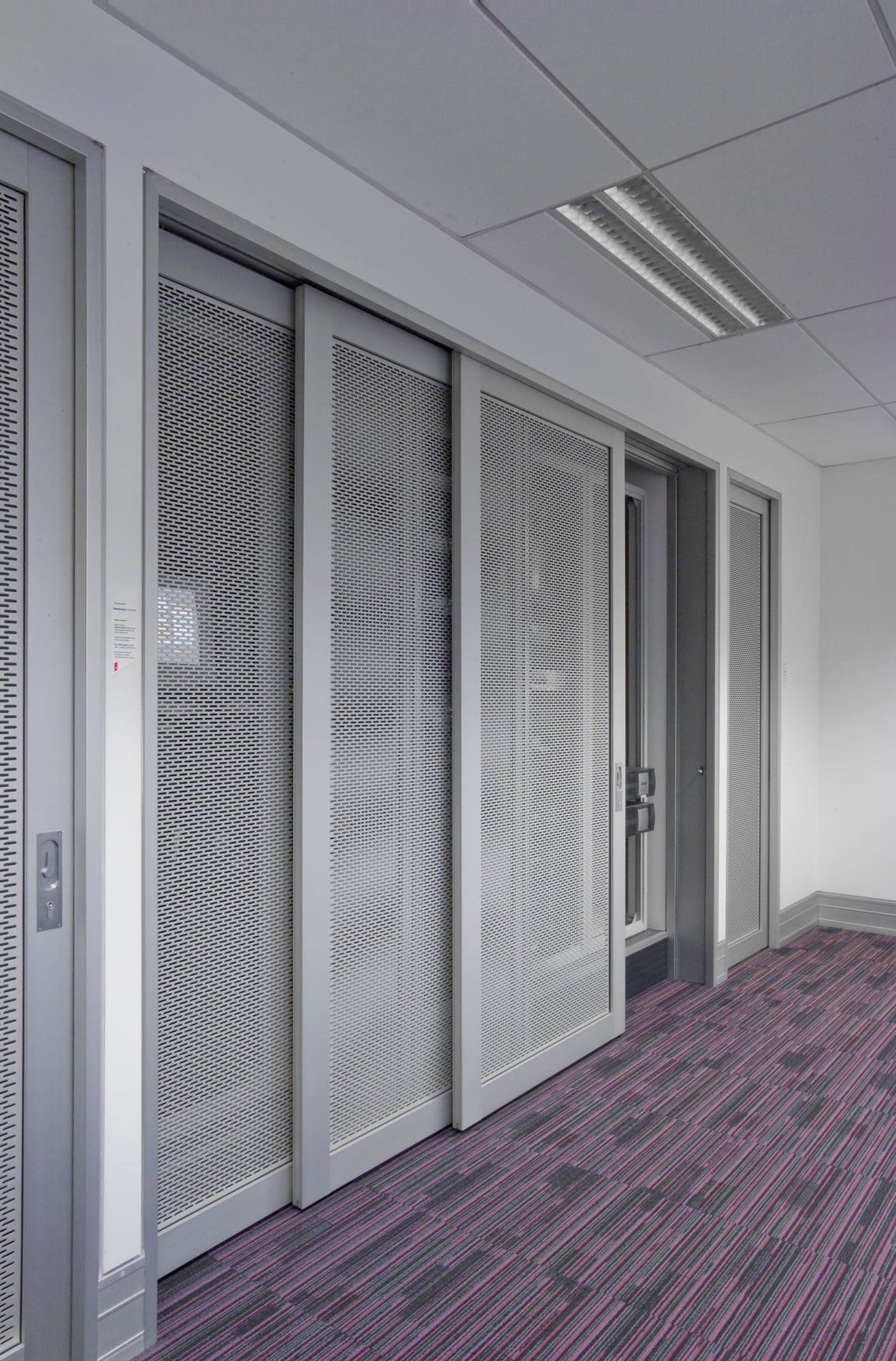

  • Tracks can be used for bypass and collection systems.

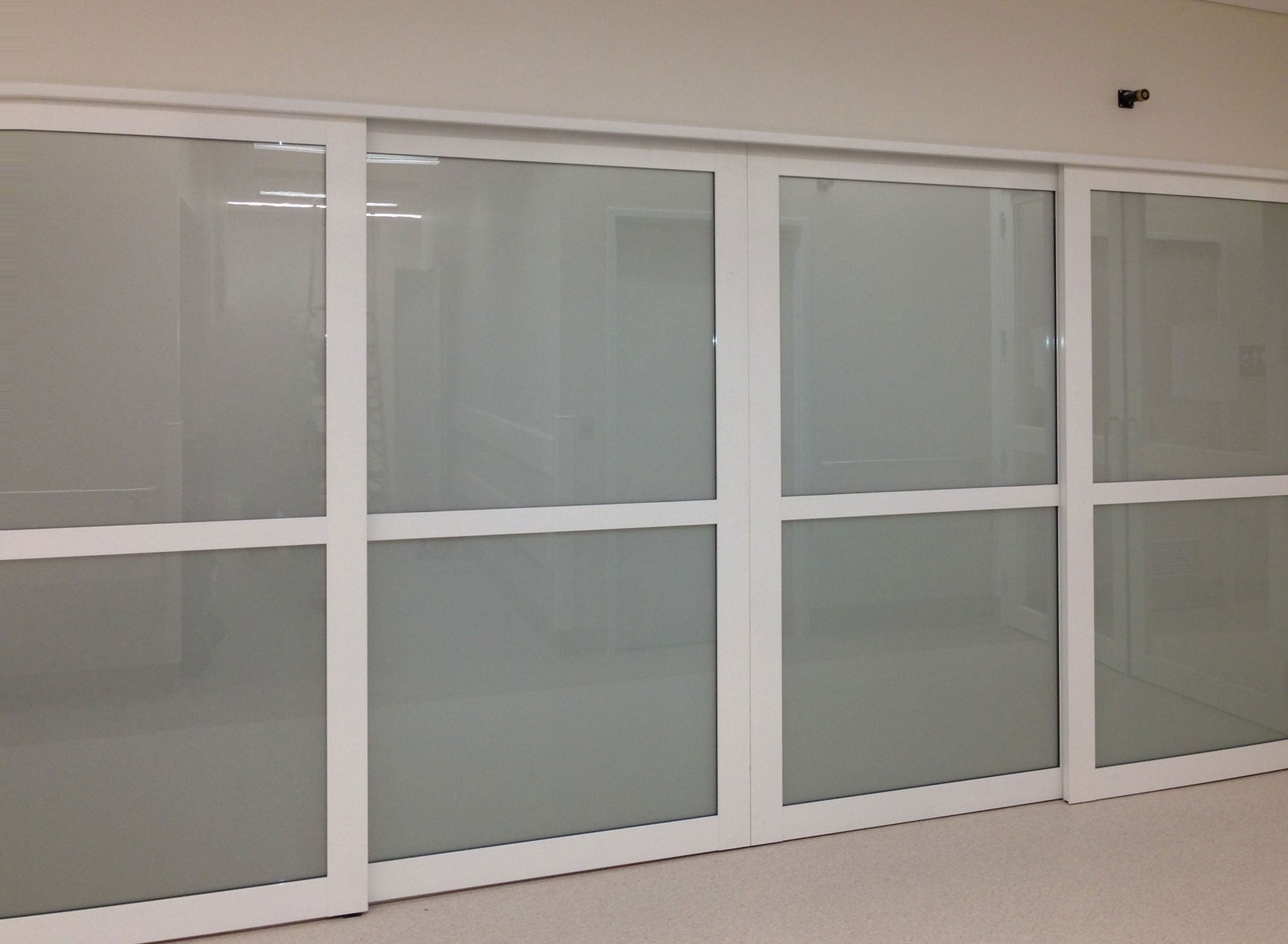

  • Tracks can be configured to suit Bi-Parting door set-ups, including CornerMeeting detail.
  • Pre-machined mounting holes.
  • CarriSnap™ quick release system allows the door to be removed easily from track; no need to unscrew anything and lose door height adjustment.

How to order

  1. Choose track configuration (double or triple)
  2. Specify door thickness
  3. Specify track length (available in 6, 8, 12 and 24’ pre-cut lengths)
  4. Choose a carriage pack (one per door) - refer to Carriage Packs page
    1. M6 (200lb) & M8 (500lb) (includes carriages, mounting plates, T-Guide, fixing screws, adjusting wrench and installation instructions)
    2. CS Door Collection System (includes M6 or M8 carriage pack plus door collection system for 2 door or 3 door setup)

Specification

Track Finish: Mill
Suitable Door Thickness: 1-3/8” or 1-3/4” (35 or 45mm)
Max Door Weight: 500lb (240kg)
Track Height: 1-1/2” (36.5mm)
Carriage Pack: M6 (200lb) or M8 (500lb)
Max track length: 24’ (7.3m)
Configurations: Double, Triple

Resource

Brochure
Product Codes
Installation TopMount Track with collection system
Installation TopMount track Bypass setup
Specification Document
ADA Compliant - CS Sliding Door Tracks
FAQ
Warranty
