Cavity Sliders USA Inc is the premier manufacturer of sliding door hardware. With strict attention to detail from design through to production, Cavity Sliders offers a product line that is high quality, reliable and operates smoothly. From humble beginnings in New Zealand as a family business, Cavity Sliders has grown to become a world leader in the supply of sliding door hardware. With branches throughout the United States, Australia and New Zealand, Cavity Sliders is committed to upholding the quality level of its existing product line. Emphasis is also placed on developing new products to meet the changing trends of the modern market.

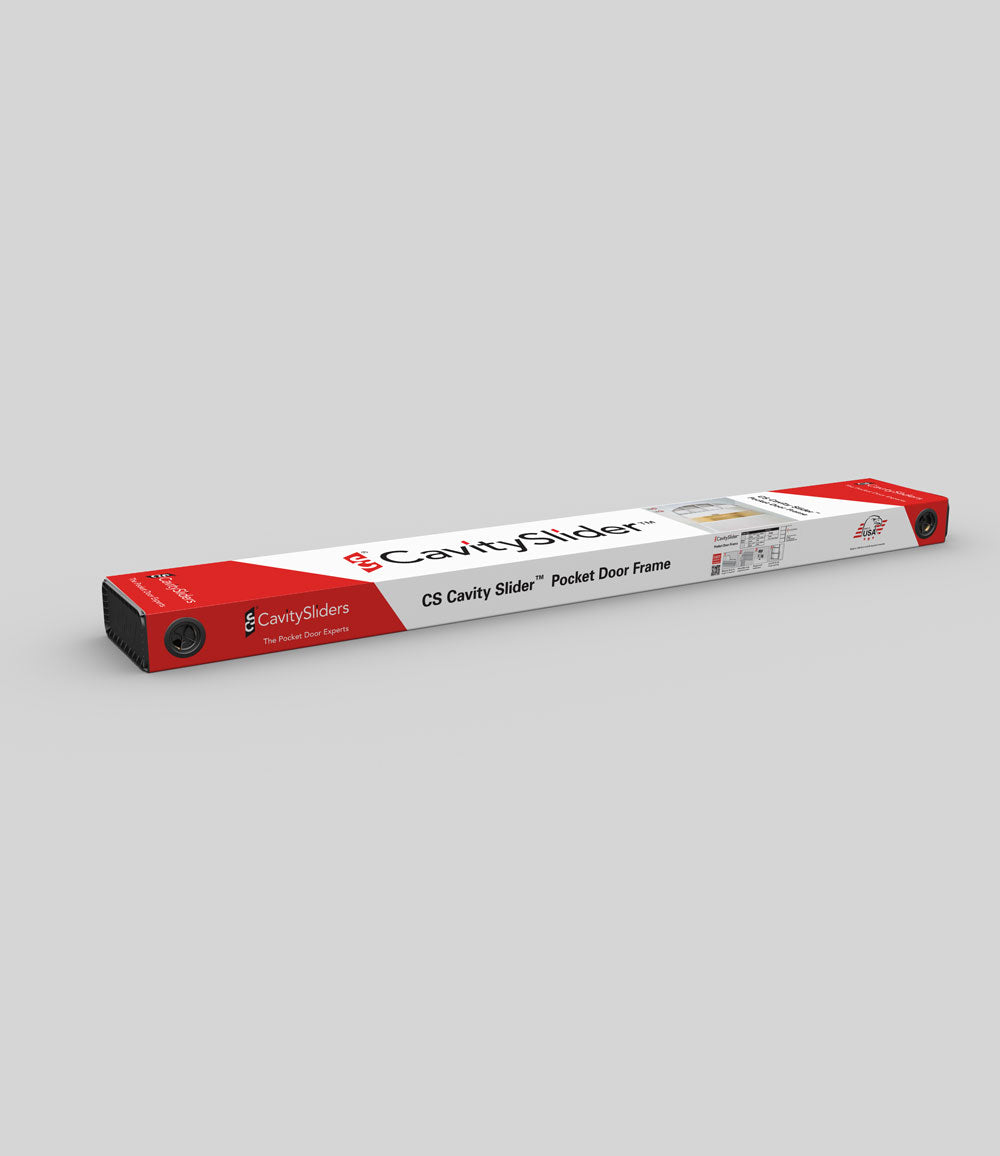

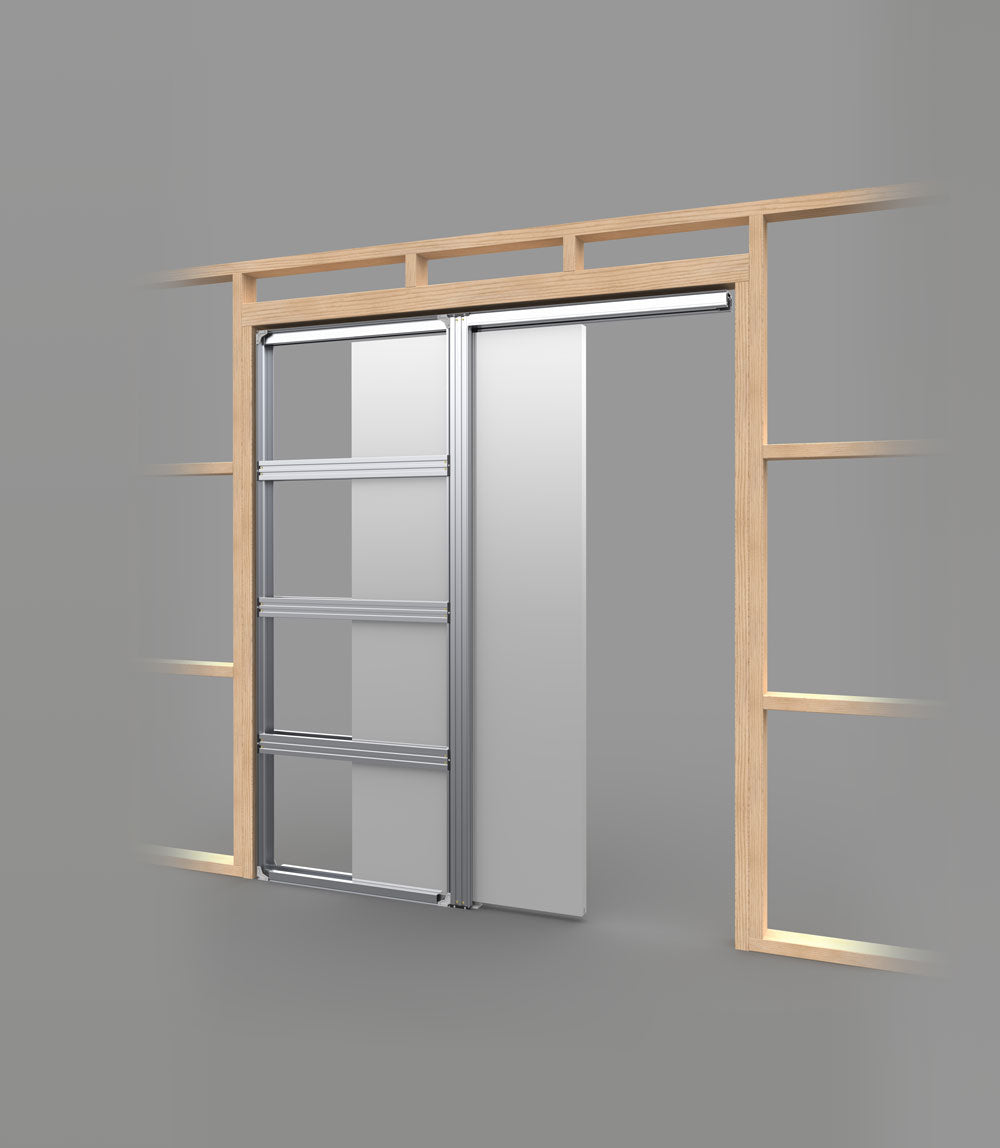

CS Cavity Slider™ is structurally robust due to its construction from aluminum extrusions. This product is supplied as a kitset and is easy to assemble and install. The pocket frame accommodates 1-3/8” and 1-3/4” doors up to 4’0” x 8’0” and can be cut down to size on site. It can be upgraded to SofStop® soft close. This is suitable for areas where quiet is required, such as bedrooms, offices and patient rooms. This product can be specified with a range of extra features to suit your unique requirements. Units are supplied in knock down kitset form for easy shipping and storage.
For Bi-Parting Function Order 2x "CS Cavity Slider Pocket Door Frame (Frame ONLY)"
Features
Specification
| Size: | 3068, 3080 or 4080 |
| Max. Door Weight: | 500lb (240kg) |
| Door Thickness: | 1-3/8” or 1-3/4”(35 or 44.5mm) |
How to order
1. Choose Size: Frames can be cut down on site. Maximum size for each model shown below:
2. Choose a carriage pack (one per door) (includes carriages, mounting plates, T-Guide,fixing screws and adjusting wrench) Packs are available with 0, 1 or 2 track stops.
Extrusion Cut Length
When cutting your frame down to a custom size, please review these drawings for the recommended lengths to cut your extrusions. Click on the size you want below to download the drawing.
Door Height: 6'8"
| 2'0"x6'8" | 2'4"x6'8" | 2'8"x6'8" | 3'0"x6'8" |
| 2'2"x6'8" | 2'6"x6'8" | 2'10"x6'8" |
Door Height: 7'0"
| 2'0"x7'0" | 2'6"x7'0" | 3'0"x7'0" | 3'6"x7'0" | 4'0"x7'0" |
| 2'2"x7'0" | 2'8"x7'0" | 3'2"x7'0" | 3'8"x7'0" | |
| 2'4"x7'0" | 2'10"x7'0" | 3'4"x7'0" | 3'10"x7'0" |
Door Height: 7'6"
| 2'0"x7'6" | 2'6"x7'6" | 3'0"x7'6" | 3'6"x7'6" | 4'0"x7'6" |
| 2'2"x7'6" | 2'8"x7'6" | 3'2"x7'6" | 3'8"x7'6" | |
| 2'4"x7'6" | 2'10"x7'6" | 3'4"x7'6" | 3'10"x7'6" |
Door Height: 8'0"
| 2'0"x8'0" | 2'6"x8'0" | 3'0"x8'0" | 3'6"x8'0" |
| 2'2"x8'0" | 2'8"x8'0" | 3'2"x8'0" | |
| 2'4"x8'0" | 2'10"x8'0" | 3'4"x8'0" | 4'0"x8'0" |
