Cavity Sliders USA Inc is the premier manufacturer of sliding door hardware. With strict attention to detail from design through to production, Cavity Sliders offers a product line that is high quality, reliable and operates smoothly. From humble beginnings in New Zealand as a family business, Cavity Sliders has grown to become a world leader in the supply of sliding door hardware. With branches throughout the United States, Australia and New Zealand, Cavity Sliders is committed to upholding the quality level of its existing product line. Emphasis is also placed on developing new products to meet the changing trends of the modern market.

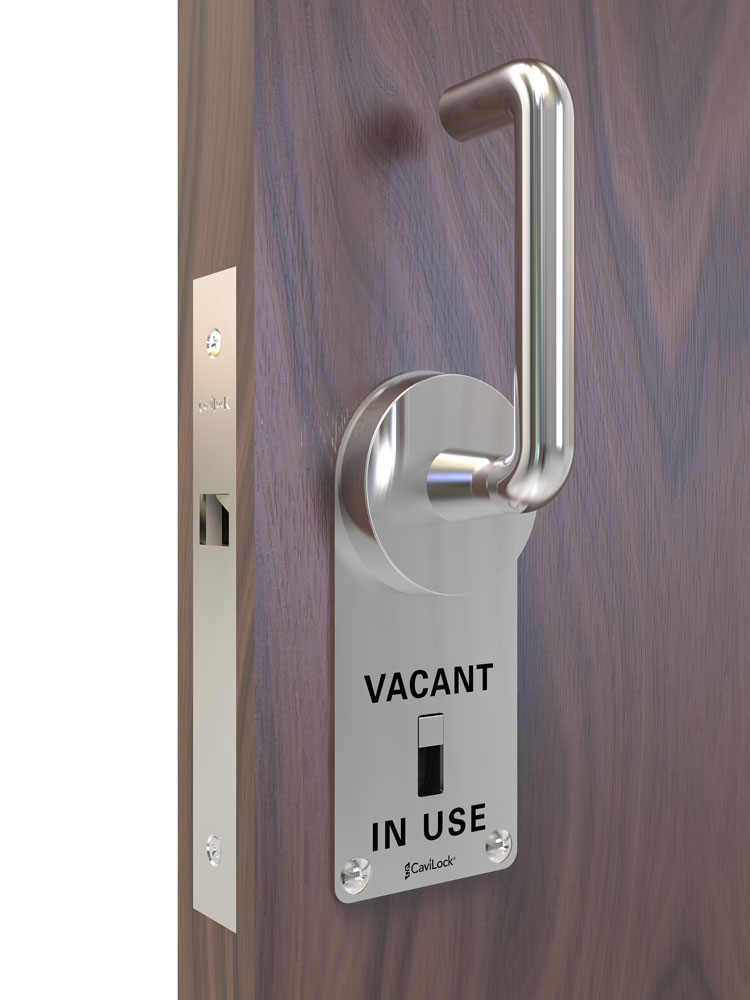

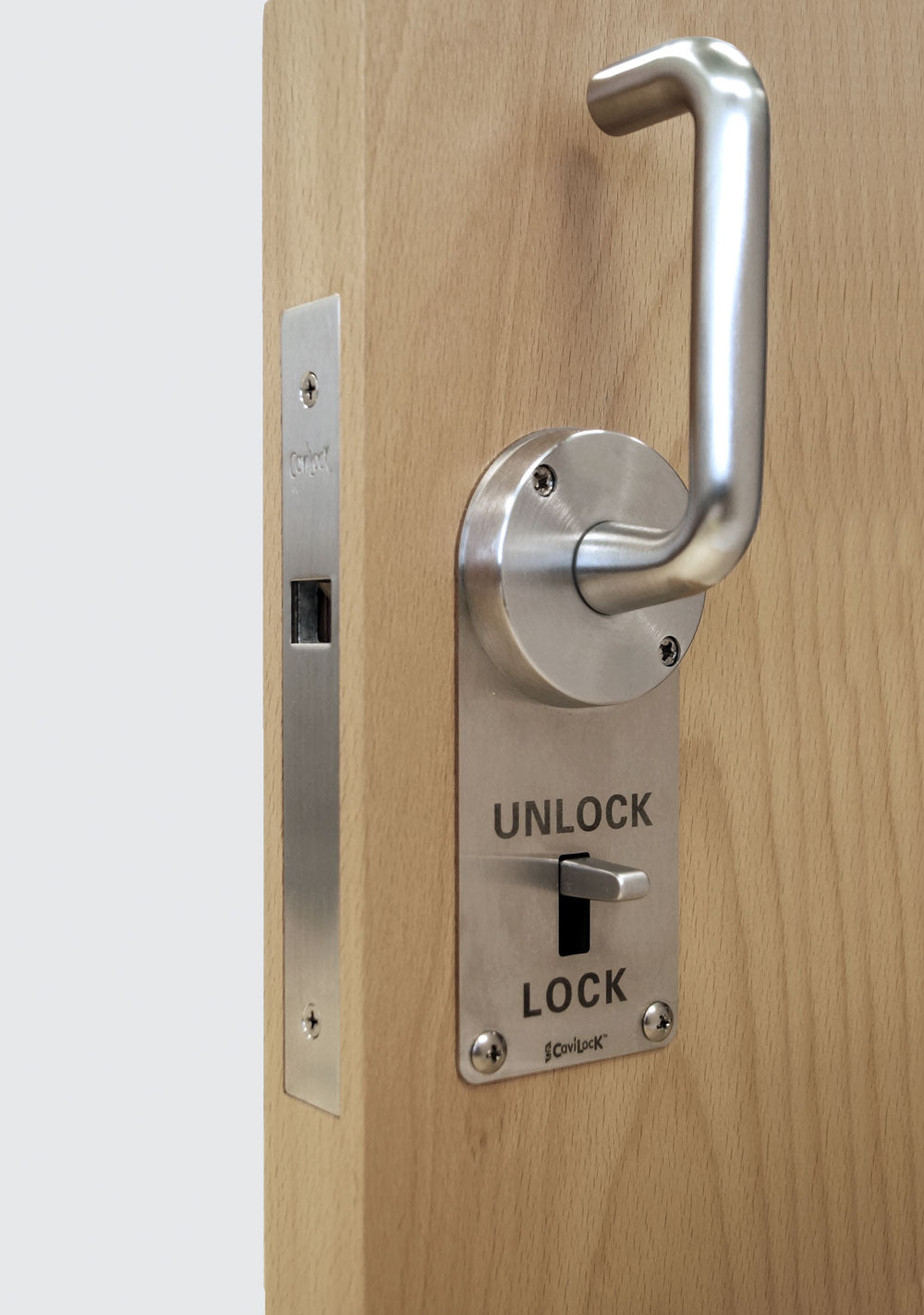

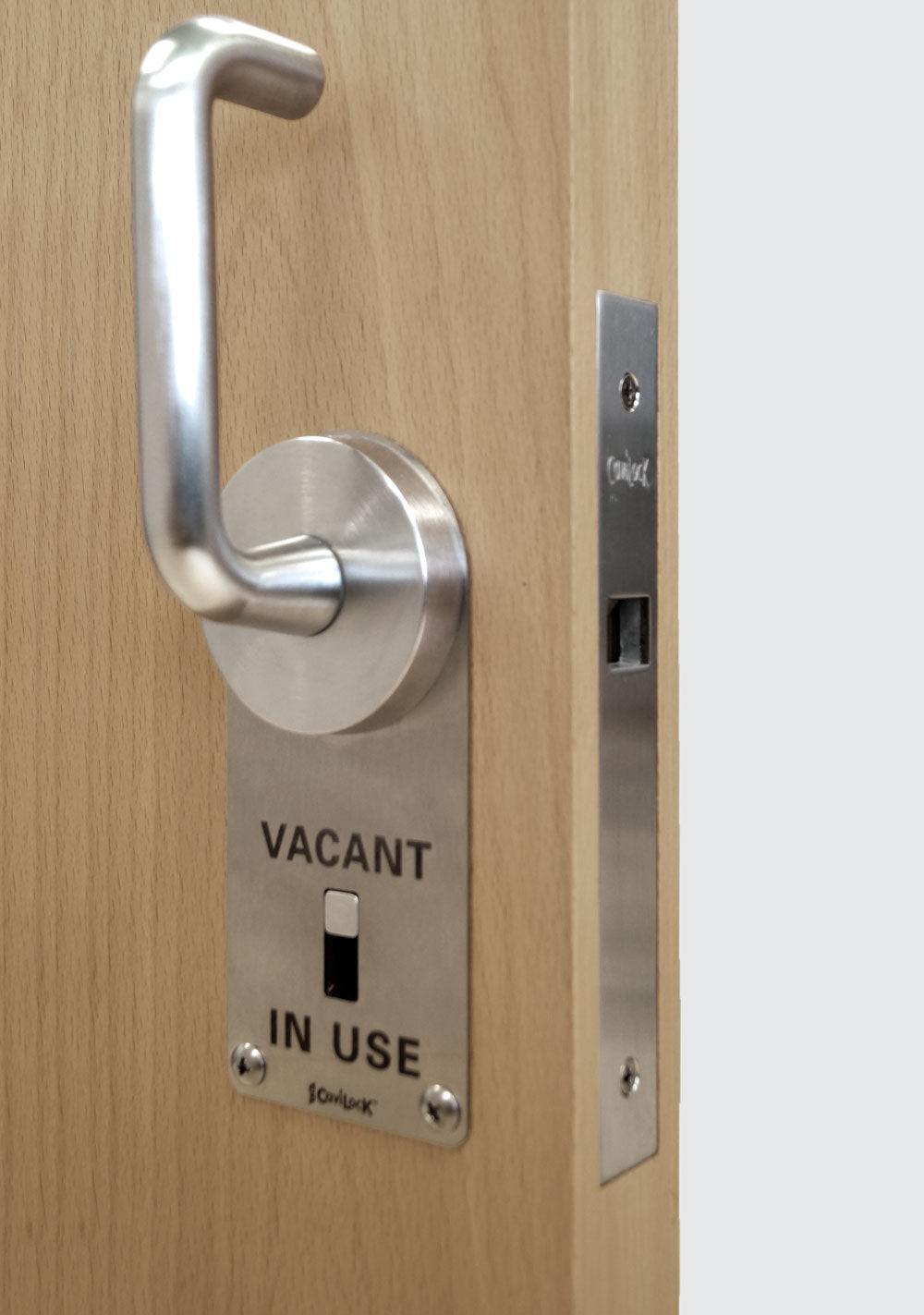

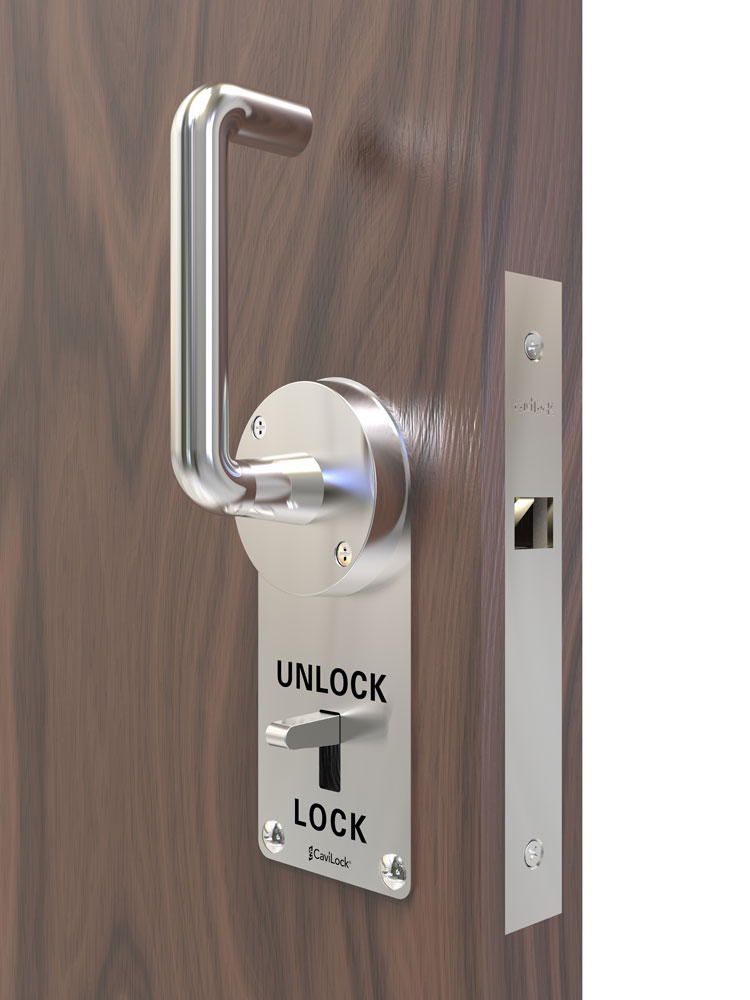

The CL100 ADA Indicator Lock is a disabled access sliding door lockset designed with ease of use and longevity of service in mind. Brass and stainless steel working components ensure reliability. The LaviLock features easy to read “Vacant / In Use” lettering and ‘fail safe’ Exit (Egress) Free functionality. It is driven by a lever operated mechanism that is easy to grasp with one hand, ensuring the lock meets ADA Accessibility Guidelines for Buildings and Facilities.
In line with ADA Standards for Accessible Design, the CL100 Indicator Lock has a lever that is easy to grasp with one hand and does not require tight grasping, tight pinching or twisting of the wrist. The opening force required to operate the unit is less than 5lbf (22.2N), which is under the threshold for ADA compliance.
IMPORTANT: Operable parts of hardware must be mounted 34” (865mm) min. and 48” (1220 mm) max. above finished floor to meet ADA guidelines. The clear width of the door opening must be a minimum of 32”. Always check State and Federal guidelines relating to the specific project.
CL100 Mortise Lock Features
The CL100 Mortise Lock is a versatile mortise that has many different internal and external hardware options. The internal components have been built to resist corrosion, making it suitable for both internal and external use in commercial, architectural and
residential applications.
Options include:
Construction
Case: Die cast Zinc
Internal Parts: Bronze/Brass
Screws, springs etc: Stainless Steel
Faceplate & striker: Brushed Stainless Steel
Handing: Yes
The Indicator Lock is supplied as a complete set including:
| Min. Door Thickness: | 1-3/8” (34mm) |
| Backset: | 2-13/64” (56mm) |
| Suitable Door Types: | Wooden, Aluminum, steel |
| Finishes: | Satin Chrome |
Handing
The CL100 Indicator Lock is handed and handing must be specified at time of order.
Left Handed: When standing looking into the pocket, if the locking snib is on your left hand side then the Indicator Lock is a Left Hand lock.
Right Handed: When standing looking into the pocket, if the locking snib is on your right hand side then the Indicator Lock is a Right Hand lock.
EF = Egress Free - Even when in locked position the handle on the inside remains unlocked.
Brochure
Product Codes
Fitting Template & Instructions
CL100 Indicator Lock Machining Detail
Specification Document
FAQ
Warranty
