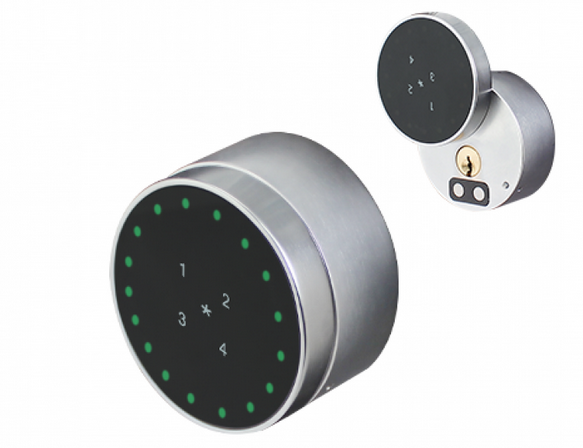

Cal-Royal DB9000 Grade 2 Touchscreen Electronic Deadbolt (Compatible with Apple and Android Phones)

Cal-Royal DB9000 Grade 2 Touchscreen Electronic Deadbolt (Compatible with Apple and Android Phones)

Features:

• APPLE AND ANDROID COMPATIBLE
• BLE (BLUETOOTH LOW ENERGY) MANAGEMENT
• OPTIONAL GATEWAY CONNECTIVITY
(REMOTE MANAGEMENT THROUGH THE INTERNET)
• PROXIMITY RFID CARD (13.56 MHz) STANDARD
• DIGITAL TOUCHSCREEN
• TIMESTAMPED ACCESS LOG (AUDIT TRAIL)
• 1 ADMIN PHONE, 49 CLIENT PHONES PER DEADBOLT
• 50 DIGITAL COMBINATIONS PER DEADBOLT
• 50 RFID CARDS / KEY FOBS PER DEADBOLT
• 10,000 AUDIT TRAIL ENTRIES
• 1 ADMIN PHONE CAN MANAGE UP TO 250 DEADBOLTS
• EMERGENCY KEY OVERRIDE
• RFID KEY FOB (OPTIONAL)
• INDIVIDUAL USER ACCESS MODE
• OPTIONAL AUTO RE-LOCKING
• DOOR JAM PROTECTOR
• SMART L / R HANDING LEARNING
• KEY / THUMB-TURN TURNING DETECTOR
• ONE-TAP LOCKING
• WEATHER RESISTANT
• BUZZER & LED INDICATORS
• ANTI-TAMPER LOCKOUT
• LOW BATTERY WARNING
• EMERGENCY CHARGE INTERFACE
• 1 YEAR ELECTRONIC WARRANTY

More information

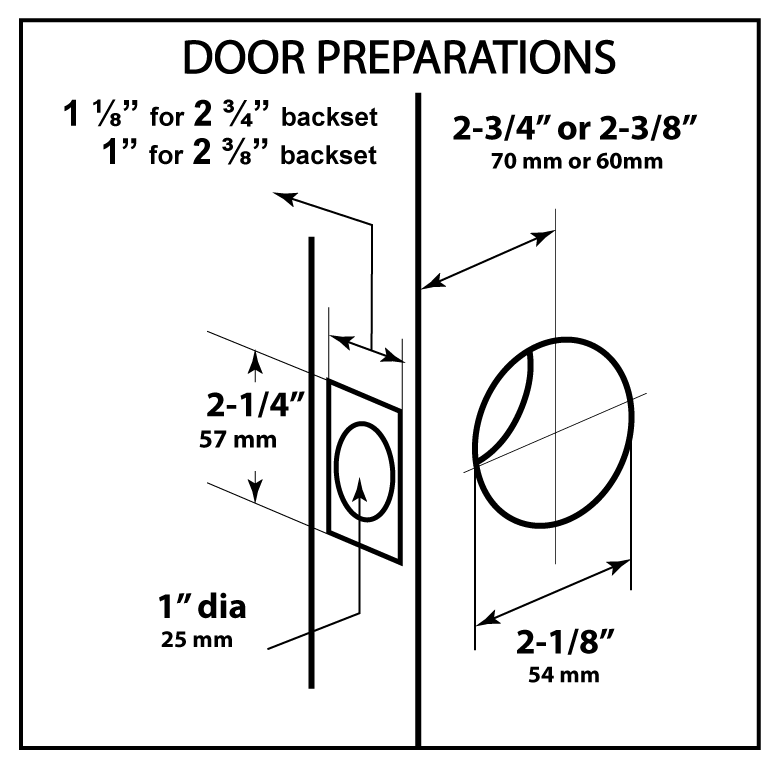

• Door Ranges: 1 ⅜” - 1 ¾” thickness
• Backset: Adjustable 2 ⅜” or 2 ¾”
• Latch Faceplate: 2 ¼” x 1”.
• Proximity Card (Standard): 2 pcs. included. Compatible with existing MIFARE Infrastructure. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.
• RFID Key Fob (Optional): Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16”.
• Power Supply: 4 AA 1.5V Alkaline Batteries (comes standard in packing).
• Radio Frequency: Bluetooth radio frequency: 2.4 GHz
• Cylinder & Keyways: 6 pin solid brass “C” keyway standard. Contact us for more options.
• Weather Resistant: All models are weather resistant for operating temperature ranges of +158○F to -4○F (+70○C to -20○C) and storage temperature ranges of +176○F to -22○F (+80○C to -30○C).
• Bluetooth Connectivity: Lock can be managed / synced using the K3 (Apple) and K3+ (Android) app.
• Access Log (Audit Trail): The K3 app features a 24 / 7 activity log, so you can keep track which client accessed the lock. A timestamped access log can be shared by the Admin phone via email. 10,000 audit trail entries.
• Strike: Deadbolt strike 1 ⅛” x 2 ¾”. Optional strikes available.
• Optional Gateway Connectivity: Optional BLE Gateway connectivity for remote lock management.
