Baldwin - Pocket Door Locks - Mortise Lock Body

Save 20%
BaldwinSKU: BAL-8601.003

Price:
Sale price$321.60 Regular price$402.00

Description

About Baldwin

Baldwin Hardware began its legacy of innovation with the arrival to America in 1946 of Severin Fayerman and his family. Since then, we've been obsessed with creating highly-crafted and distinguished hardware to complement every home. At Baldwin, we believe that quality should never be a compromise. From using the finest materials to crafting a majority of our hardware by hand, we are committed to creating high-quality hardware that not only looks beautiful and flawless but also endures the rigors of time. It's the reason Baldwin has been name Builder's Brand Leader #1 in Quality Award year after year.

Description

Specification

  • Faceplate: Wrought brass, available in standard finishes.
  • Deadbolt: The 8602 and 8632 locks are equipped with a 1” (25 mm) throw deadbolt with steel inserts that engage the strike. Furnished in US4 and 26D finishes, depending on faceplate finish.
  • Pull: All locks are equipped with a 1.25” (32 mm) throw pull. The pull is activated by a push button on the lock front. Furnished in US4 and 26D finishes to match the trim.
  • Turn hub: The 8602 and 8632 locks include a turn hub with a .19” (5 mm) hole broached on the diamond.
  • Spacing: The center-to-center measurement of the turn hub to the cylinder is 1.187” (30 mm).
  • Cylinder: Emhart mortise type with an 03 keyway and two silver nickel keys. The cylinder is NOT supplied with the lock and should be ordered separately.
  • Keying: All levels of keying, including construction keying, are available.
  • Strike: Wrought brass finished to match. Included with the 8602 and 8632 locks only. The 8603 lock has a spring-loaded strike combined with a pull (for double door applications).
  • Template: Provided along with installation instructions with all locks. Face cutouts are subject to variation.

*Always review trim requirements before door preparation.

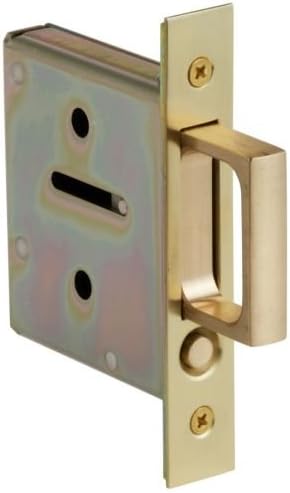

8601.xxx Pocket Door Pull For Passage & Dummy Functions (included on PASS sets)

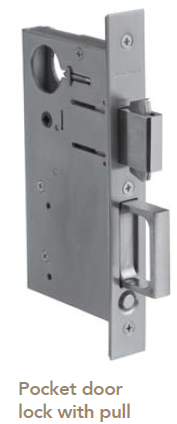

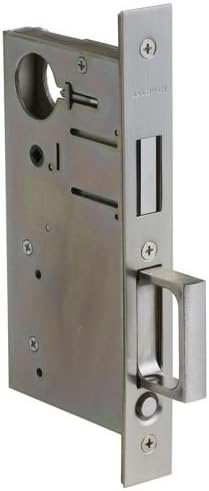

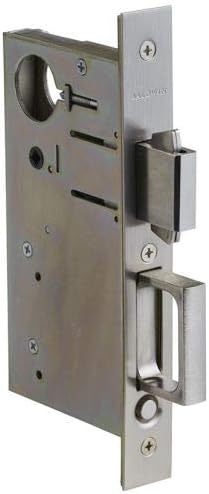

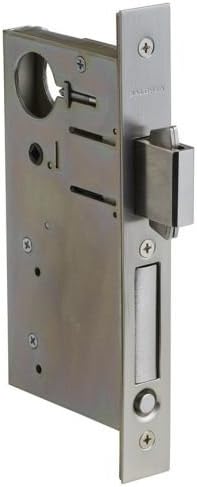

8602.xxx Pocket Door Lock with Pull For Privacy and Entry Functions (2.75” backset)

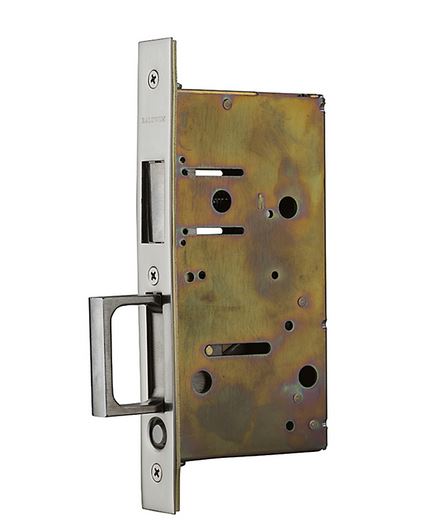

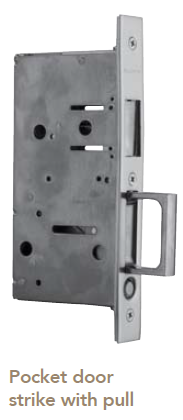

8603.xxx Pocket Door Strike with Pull (for Dummy Side of Double Door; included in dummy for double door application (FD) functions). Requires privacy or entry function lock for active door
8632.xxx

Pocket Door Lock with Pull For Privacy and Entry Functions (2.5” backset)

Notes:

  • Mortise Locks are NOT available in 402 Distressed Finish; non-distressed equivalent is 402=102.
  • Pocket Door Pull locks come with 7/8” fronts; all other pocket door locks come with 1” fronts.
