Description
**All Pre-Configured Sets can be customized to meet your specific needs. Please refer to our catalog or Contact Us for a personalized quote. We're here to guide you through the customization process!**
Specification
Features
- Lock Type: Tubular
- Style: Transitional
- Lock Function: Entry
- Backset Size: 2.375” (60mm), 2.75" (70mm) adjustable
- Door thickness: 1.75" (1-3/4")
-
Conversion kit available for 2.0" and 2.25" thick doors.

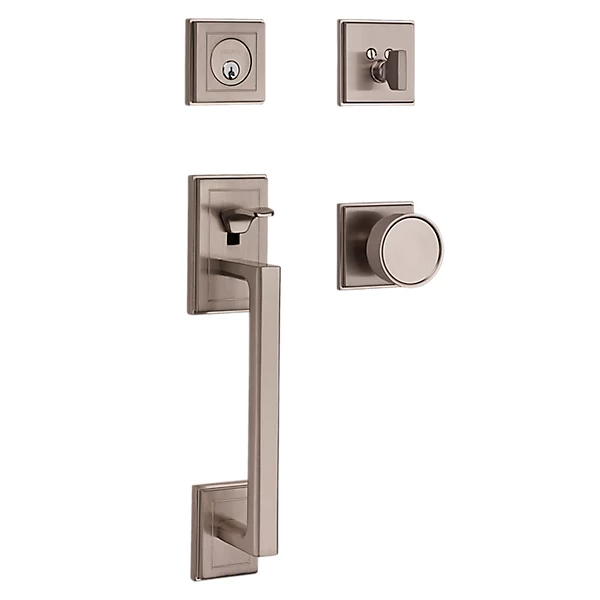

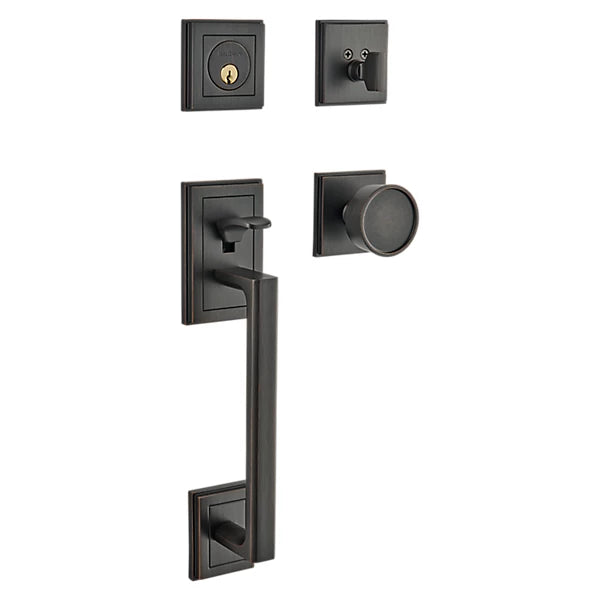

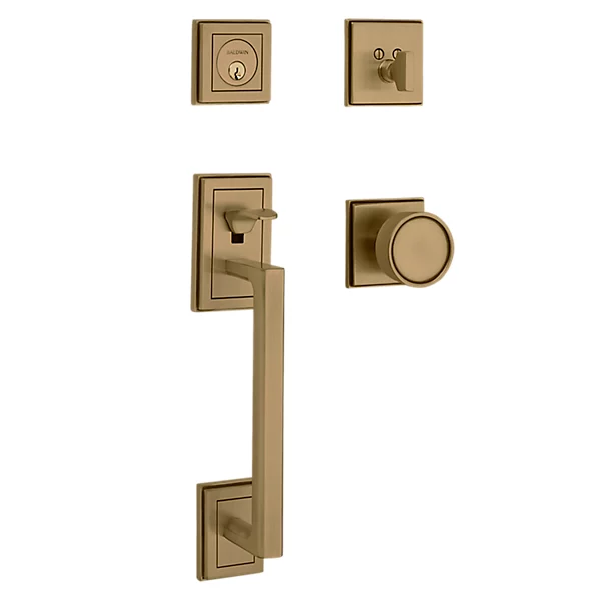

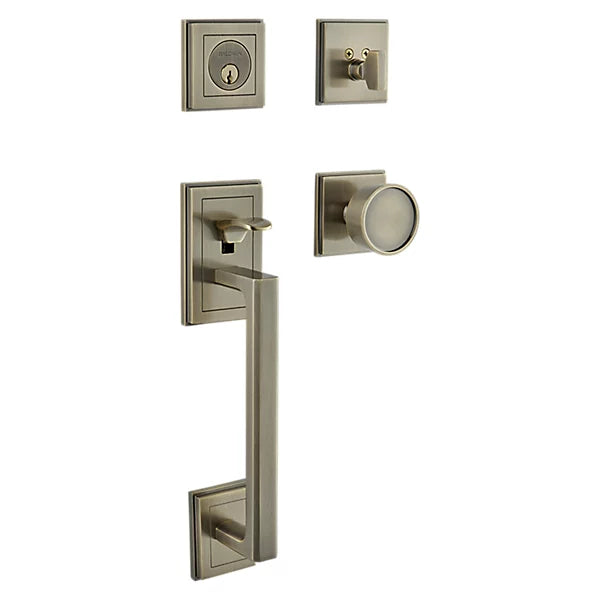

- Solid forged brass handleset; deadbolt is furnished with a high grade steel strike for ultimate strength and durability
- Designed for easy installation in standard pre-bored wood and metal doors.
- Tested to exceed ANSI/BHMA Grade 1 security requirements
General Features
-
Solid Brass: Entrance handle, escutcheon, knob, rose, and turn piece are manufactured of solid brass for maximum strength and durability.
-
Installation: Lock sets are designed for easy installation in standard pre-bored wood or metal doors. The adaptor aligns the latch with the trim. Graphic instructions make installation FAST!
-
Fully Reversible: Accommodates all door conditions and facilitates installation.
-
Door Thickness: Lock sets accommodate a door thickness of 1.75” (44mm). Conversion kit available for 2.0” (51mm) and 2.25” (57mm) thick doors (see price list for details).
-
Case: Deadbolt and latch case are formed of steel for strength. Most interior working parts are made of solid brass or zinc chromate plated steel for maximum strength and smooth operation.
-
Backset: Adjustable backset 2.375” (60mm), 2.75" (70mm) latch and deadbolt supplied standard.
-
Square Corner Face Plate: Deadbolt and latch supplied with a 1” (25mm) face plate.
-
Strike: Deadbolt is furnished with a specially designed reinforcing strike constructed of high-grade steel for ultimate strength and durability. The strike is installed with two (2) 3” (76mm) security jamb screws and a dust box. The security strike is covered with an armored front to conceal the fasteners. Latches are supplied standard with a box strike (other strikes are available at an additional charge).
-
Distance Between Center of Latch and Deadbolt (CTC): Lockset accommodates 5.5” (140mm) center-to-center dimension ONLY.
-
Bolt: Deadbolt and latch bolt constructed of solid brass. Deadbolt has 1” (25mm) throw when extended and a hardened steel insert for maximum protection and security. Latch bolt has a .5” (13mm) throw when extended to fully engage the door jamb.
-
Cylinder: Cylinder supplied with 5-pin C Keyway.
-
Keys: Designed with a 1.25” (32mm) wide bow surface to facilitate ease of use for those with physical challenges.
-
Patents, Copyrights, and Trademarks: Numerous patents, copyrights, and trademarks are held by the Corporation to protect the integrity and reputation of our distinctive line of hardware appointments.
General Specification
Sectional Trim Lock Sets:
-
Fully Reversible: Accommodates most door conditions and facilitates installation.
-
Door Thickness: Lock sets accommodate a door thickness of 1-3/4” (44mm). Conversion kit available for 2” (51mm) and 2-1/4” (57mm) thick doors at an additional charge.
-
Distance Between Center of Latch and Deadbolt (CTC): Lockset accommodates any center-to-center dimension greater than 4-3/8” (111mm).
-
Cylinder: Cylinder supplied with 5-pin C Keyway. Cylinder is protected with a free-turning cylinder guard to resist gripping or twisting.
-
Door Prep: Designed to fit 2-1/8” face bore with no additional hardware.
Escutcheon Trim Lock Sets:
-
Fully Reversible: Accommodates most door conditions and facilitates installation.
-
Door Thickness: Lock sets accommodate a door thickness of 1-3/4” (44mm). Conversion kit available for 2” (51mm) and 2-1/4” (57mm) thick doors at an additional charge (see price list for details).
-
Distance Between Center of Latch and Deadbolt (CTC): Lockset accommodates a 5-1/2” (140mm) center-to-center dimension ONLY.
-
Cylinder: Cylinder supplied with 5-pin C Keyway.
Emergency Egress Tubular Entrance Lock Sets:
-
Emergency Egress: Handleset which retracts the latchbolt and deadbolt simultaneously when the inside knob/lever is turned. Door will remain unlocked unless locked with a key.
-
Cartridge: Case and interior working parts are formed of heavy gauge steel, zinc chromate plated and lubricated for maximum strength and smooth operation.
-
Fully Reversible: Accommodates most door conditions and facilitates installation.
-
Door Thickness: Lock sets accommodate a door thickness of 1-3/4” (44mm). Conversion kit available for 2” (51mm) and 2-1/4” (57mm) thick doors at an additional charge.
-
Distance Between Center of Latch and Deadbolt (CTC): Lockset accommodates 5-1/2” center-to-center dimension ONLY.
-
Cylinder: Cylinder supplied with 5-pin C Keyway.
-
Important: Emergency egress entrance lock sets are designed for use with all Estate knobs or levers.
Two-Point Lock Sets:
-
Door Thickness: Lock sets accommodate a door thickness of 1-3/4” (44mm) to 2” (51mm). Cannot be installed on doors thicker than 2” (51mm).
-
Distance Between Center of Latch and Deadbolt (CTC): Lockset accommodates any center-to-center dimension greater than 4-3/4” (121mm).
-
Cylinder: Cylinder supplied with 5-pin C Keyway. Cylinder is protected with a free-turning cylinder guard to resist gripping or twisting.
-
Door Prep: Designed to fit 2-1/8” face bore with a 3-hole prep.
-
Note: When installing a two-point handleset on a door prepped for a standard single point handleset with a 5-1/2” CTC boring, the location of the thumb piece will be approximately 2-1/2” lower.
Functions
|
|
Single Cylinder Keyed Entry: A single cylinder handleset features a keyed lock on the exterior and a thumbturn on the interior to unlock the door. The exterior typically includes a thumb plate, while the interior is equipped with either a lever or knob. Single cylinder locks are most commonly used for securing residential or commercial entry doors.
|
|
|
Double Cylinder Keyed Entry: A double cylinder lock is keyed on both sides, requiring a key to lock or unlock the door from inside and outside. It offers enhanced security, making it more resistant to unauthorized entry, and is often used on doors near glass to prevent tampering if the glass is broken. Double cylinder locks are ideal for high-risk areas, providing added protection and key consistency.
|
