General Touch Screen Deadbolt Info

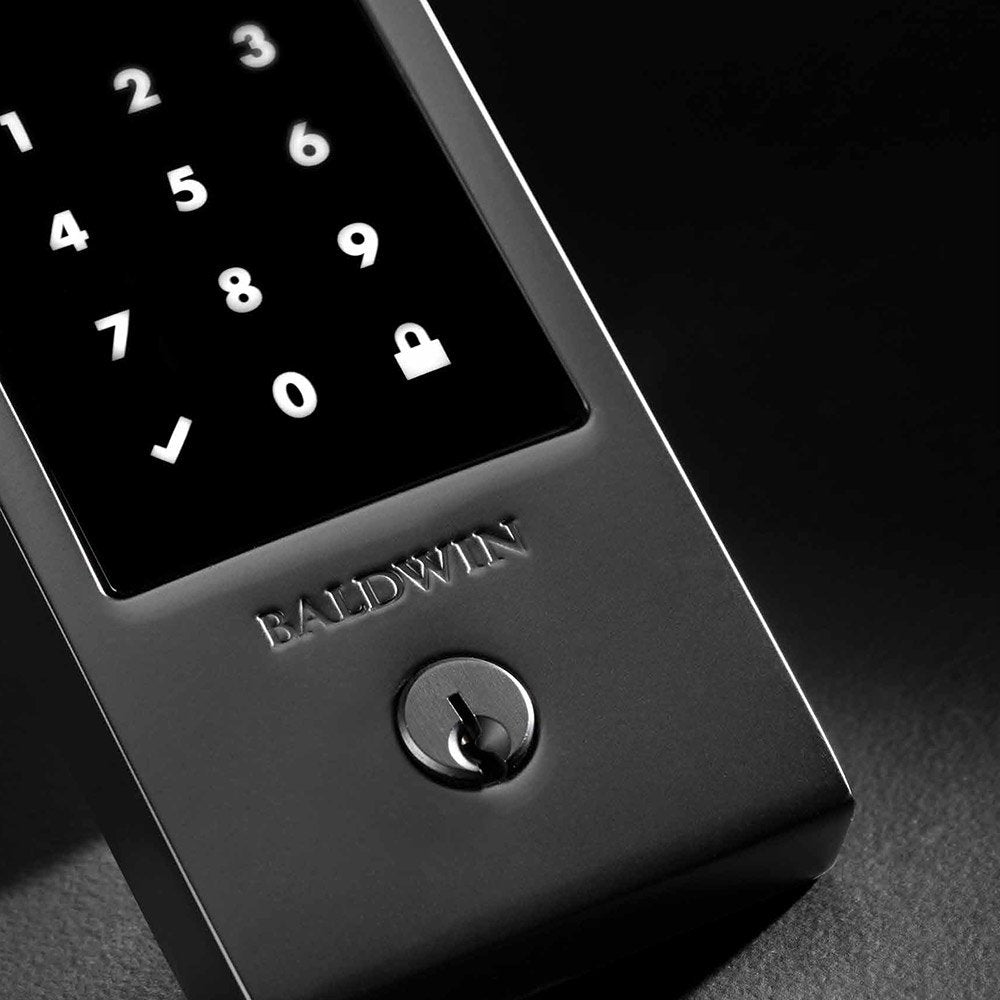

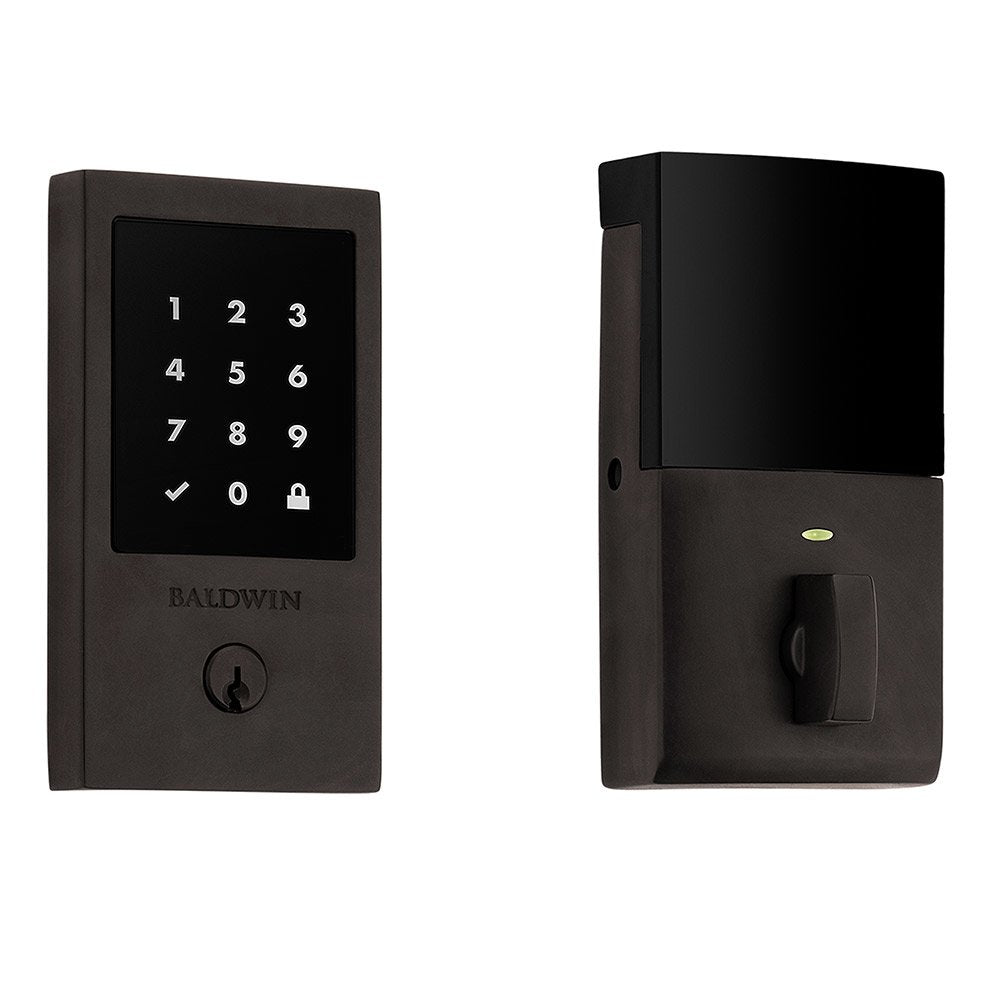

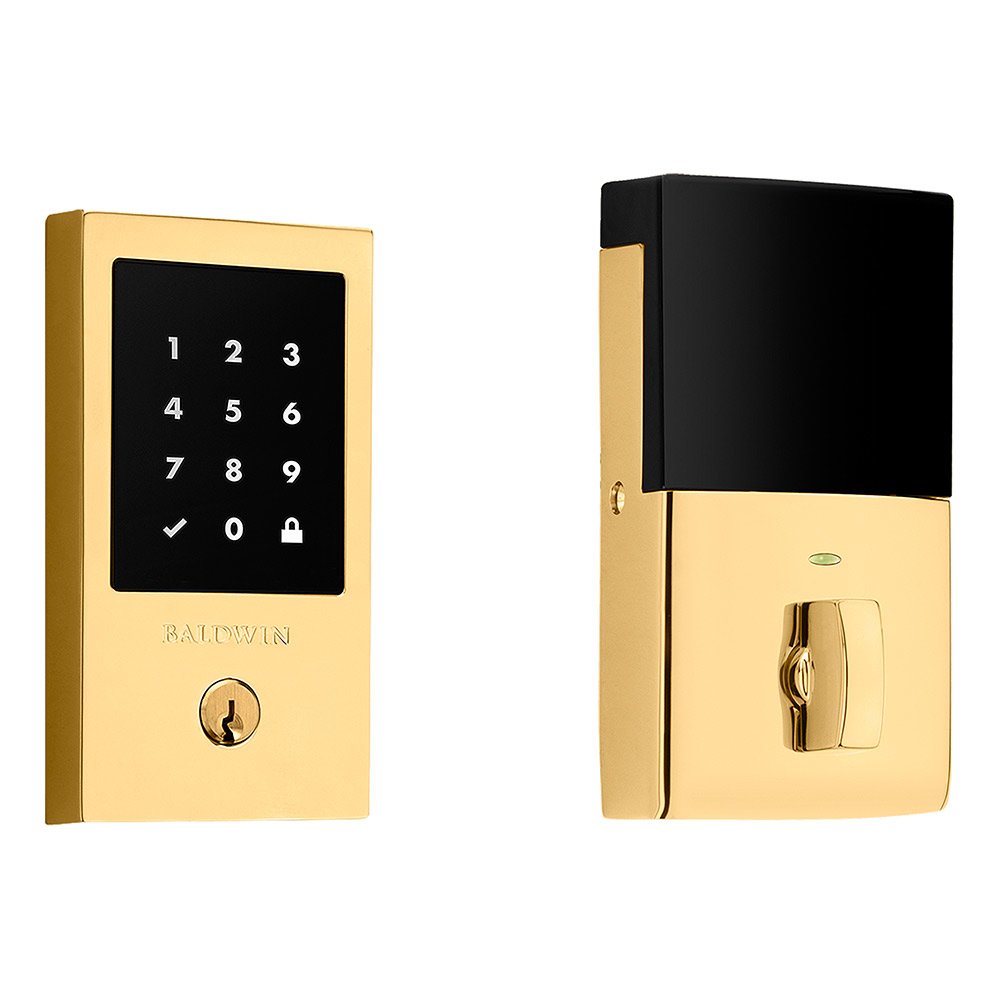

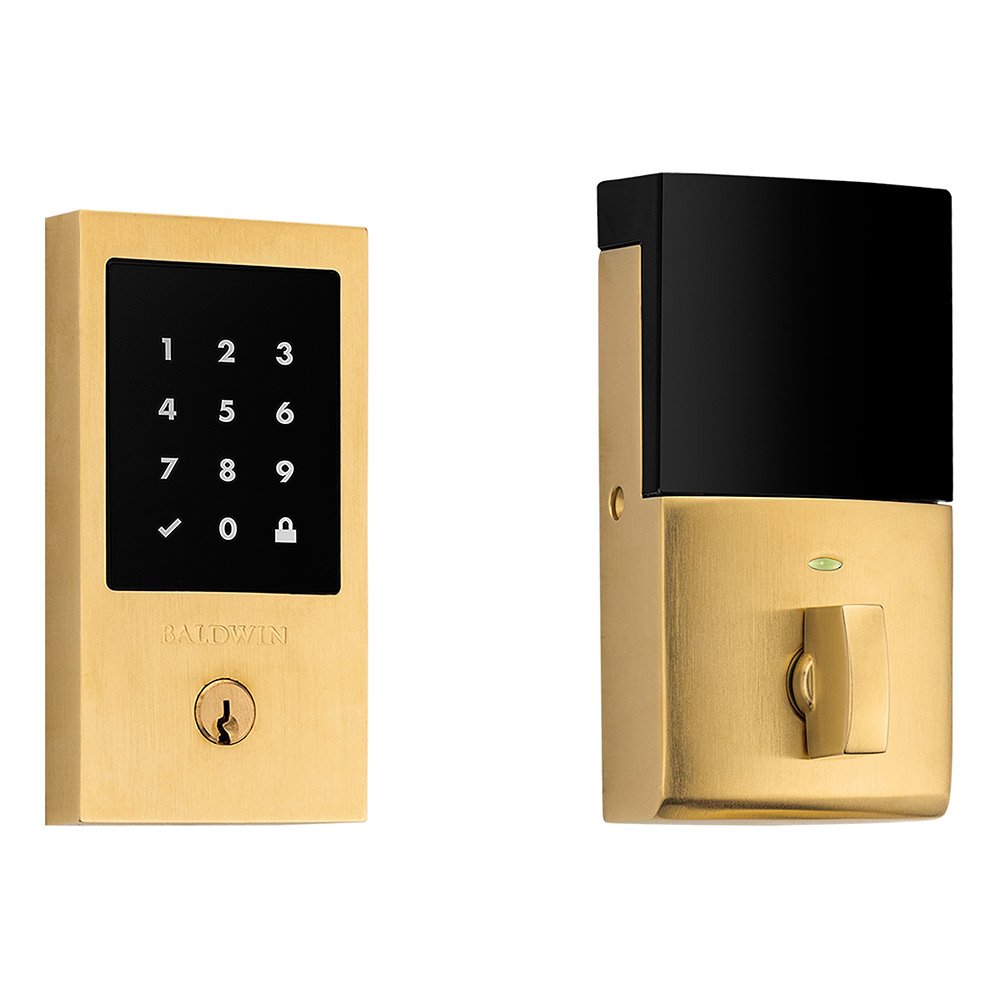

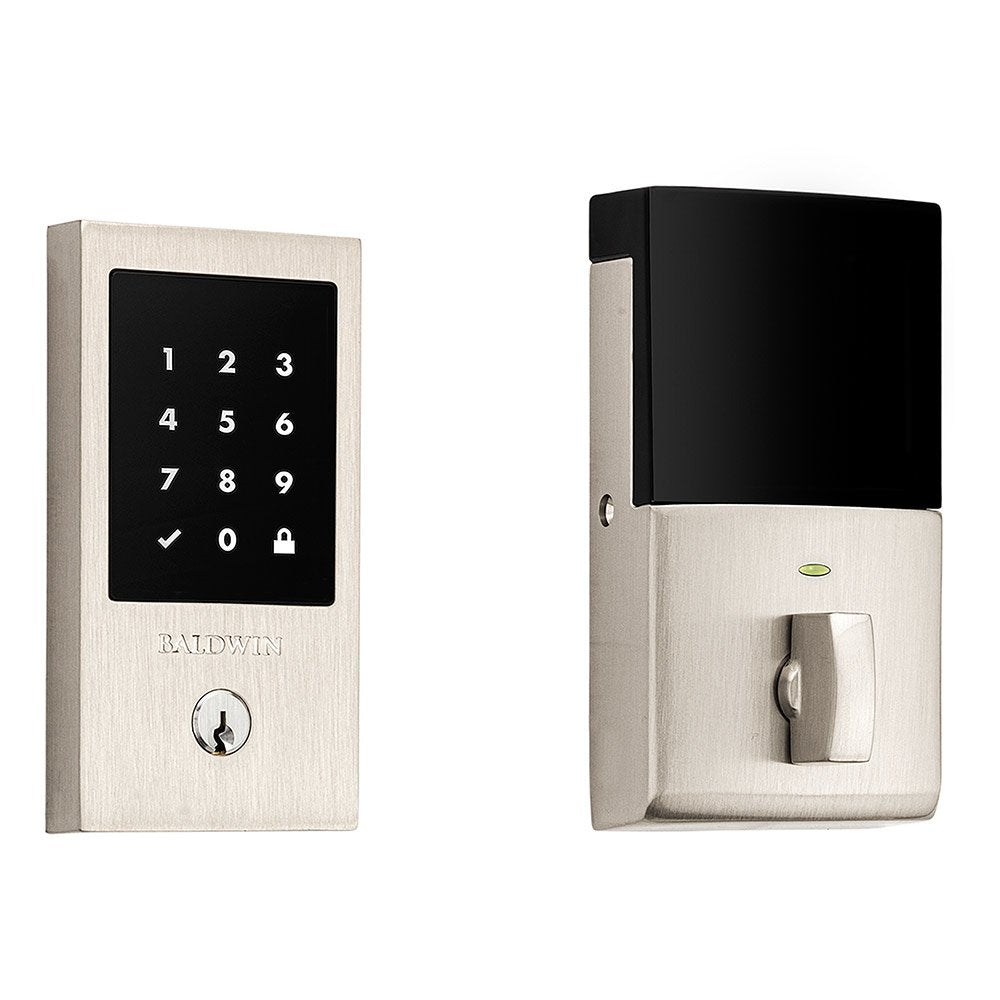

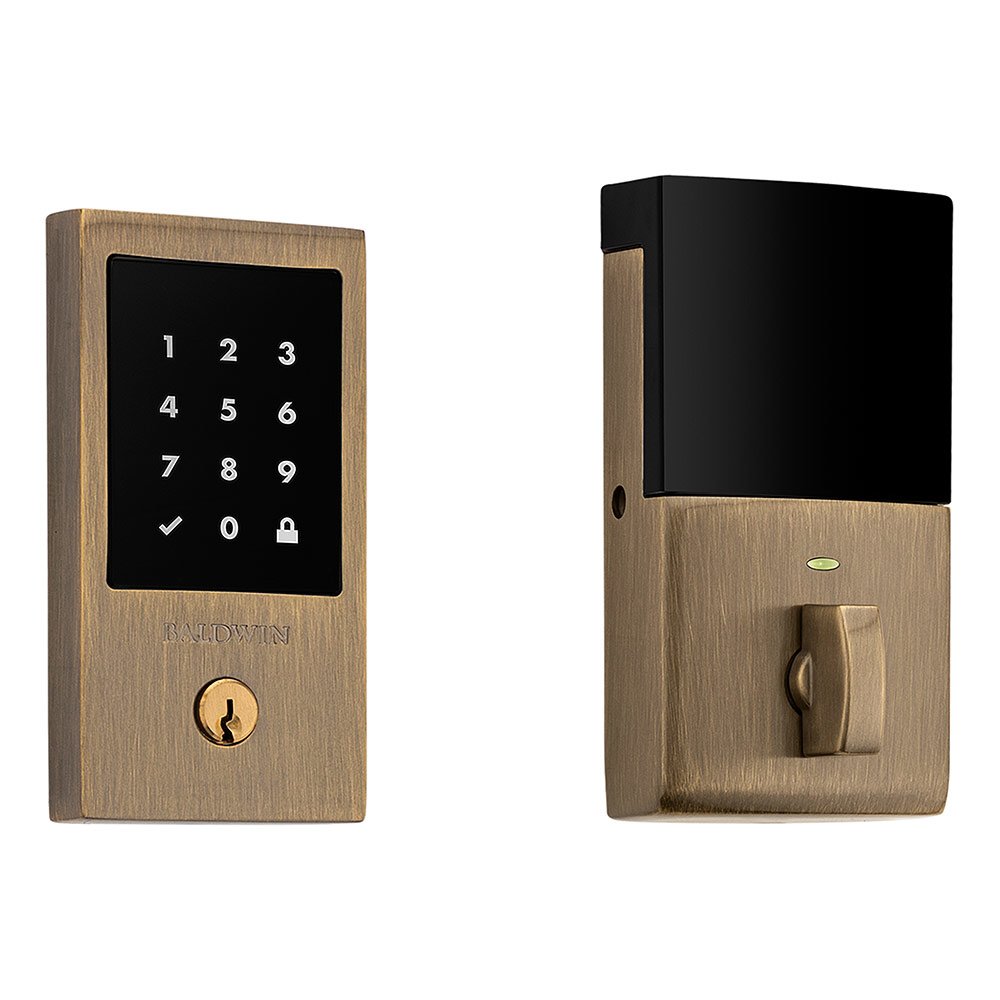

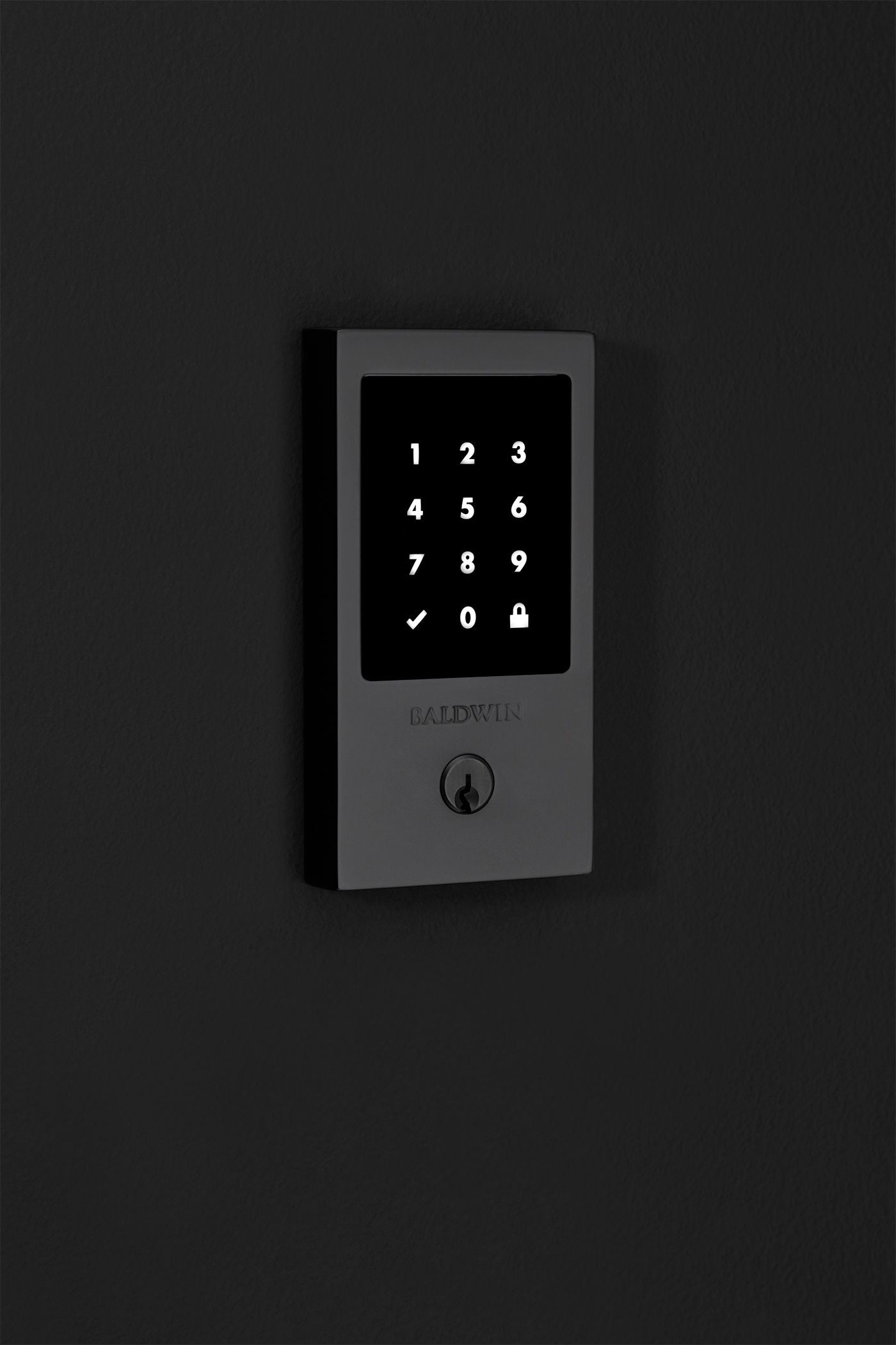

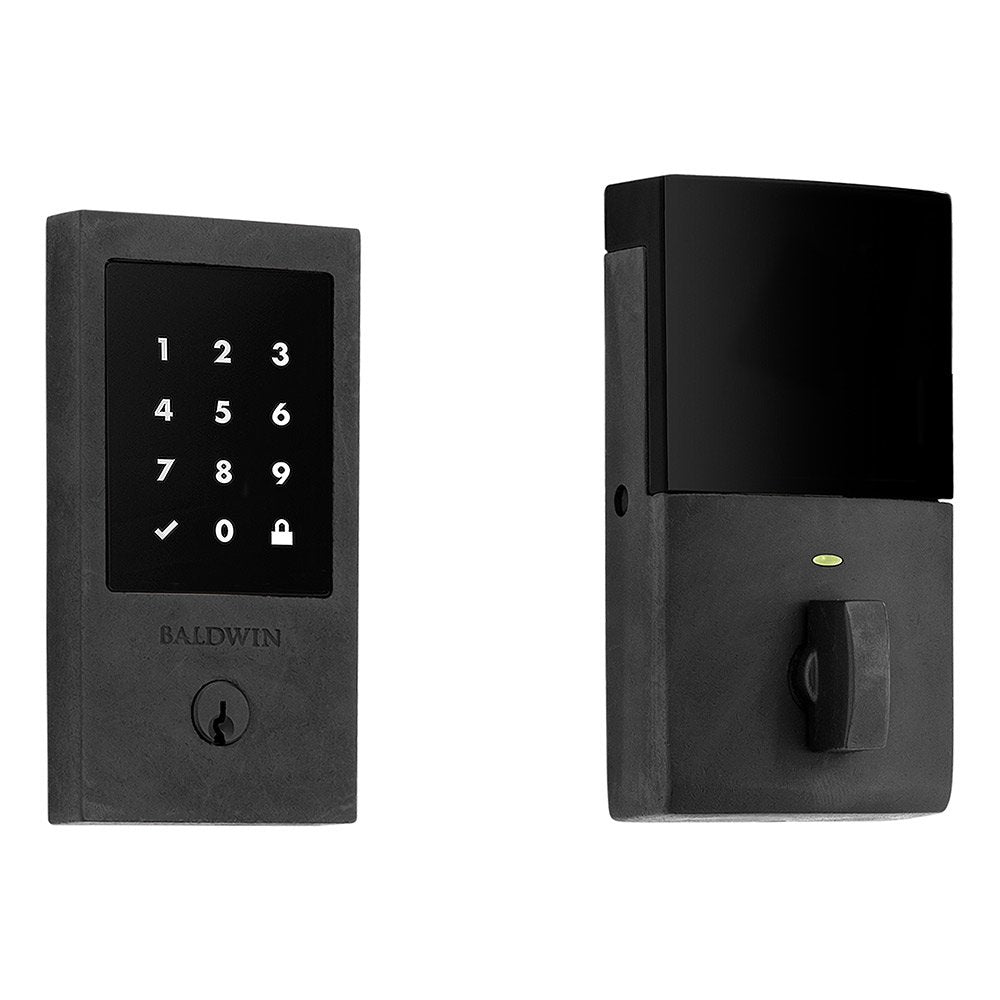

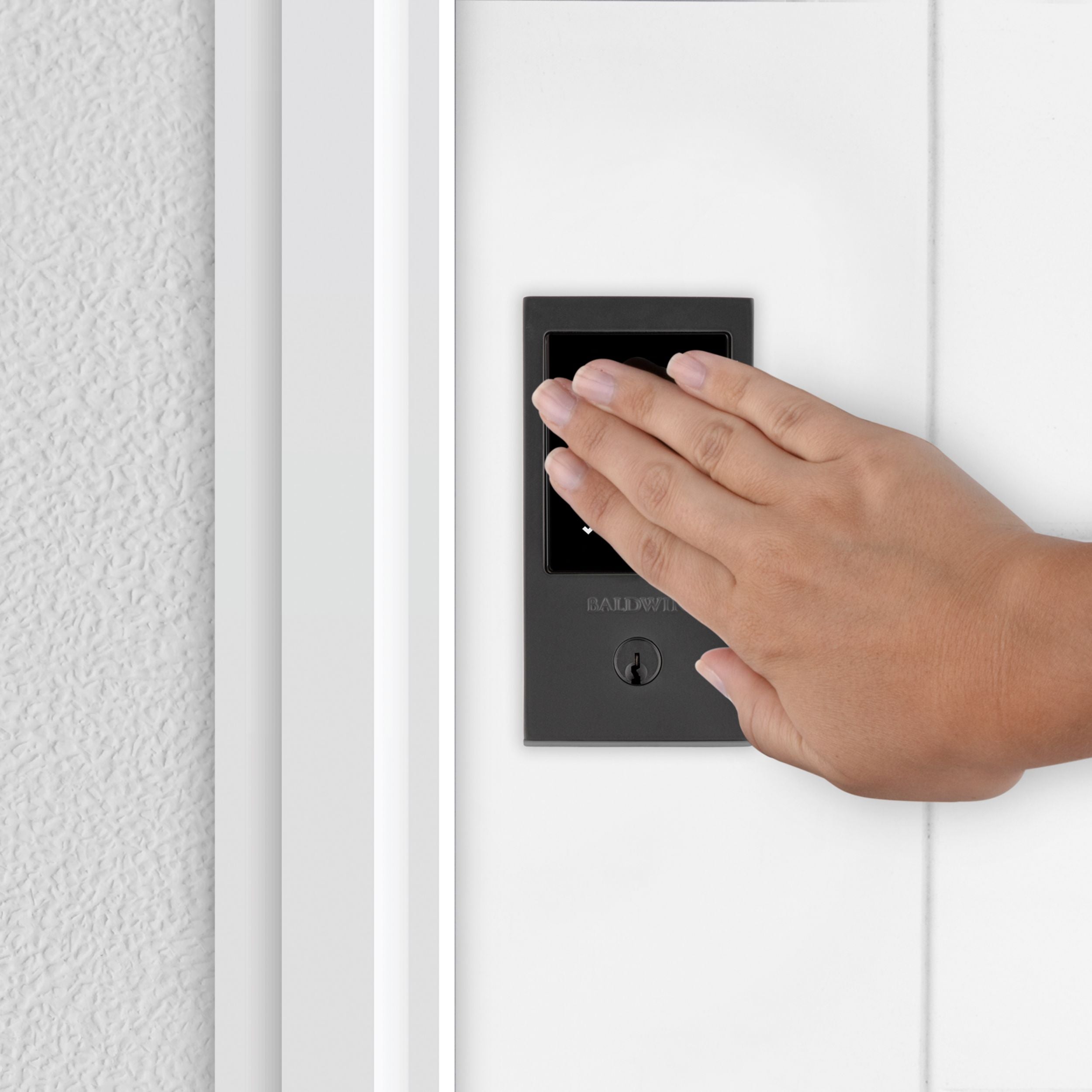

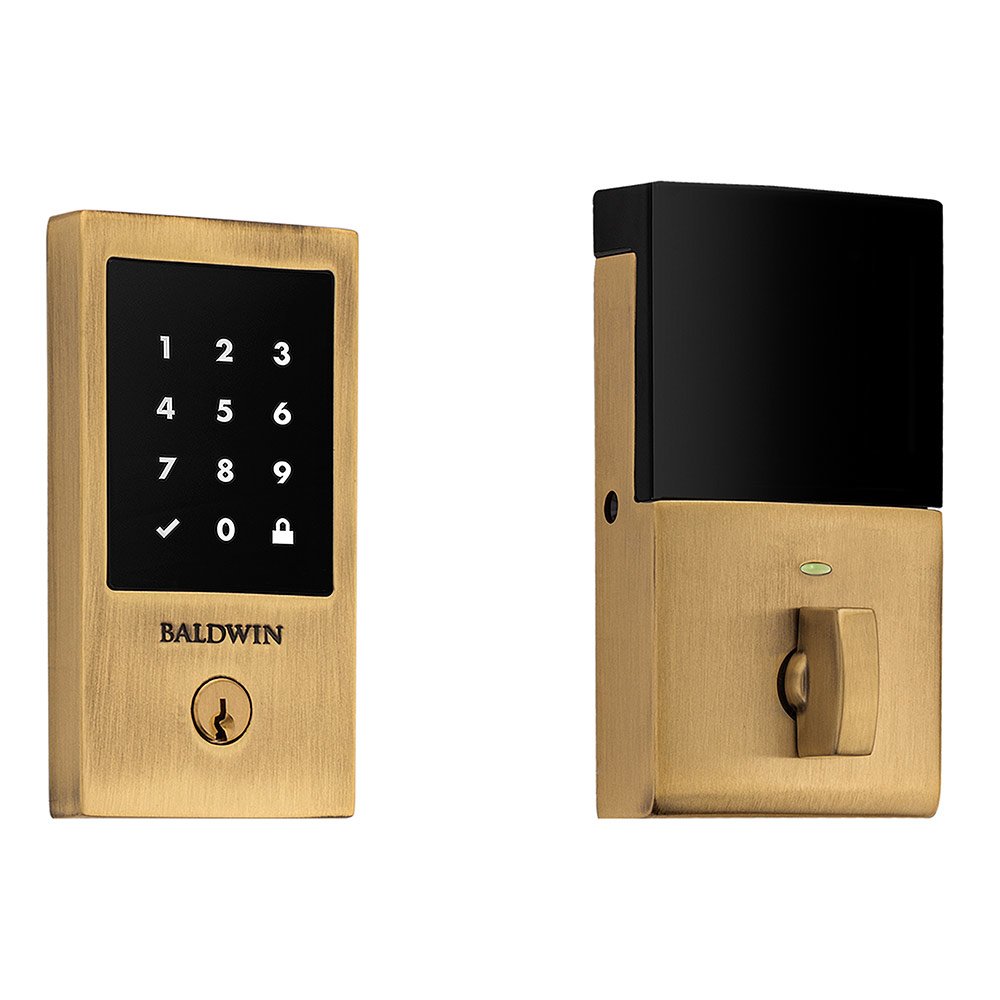

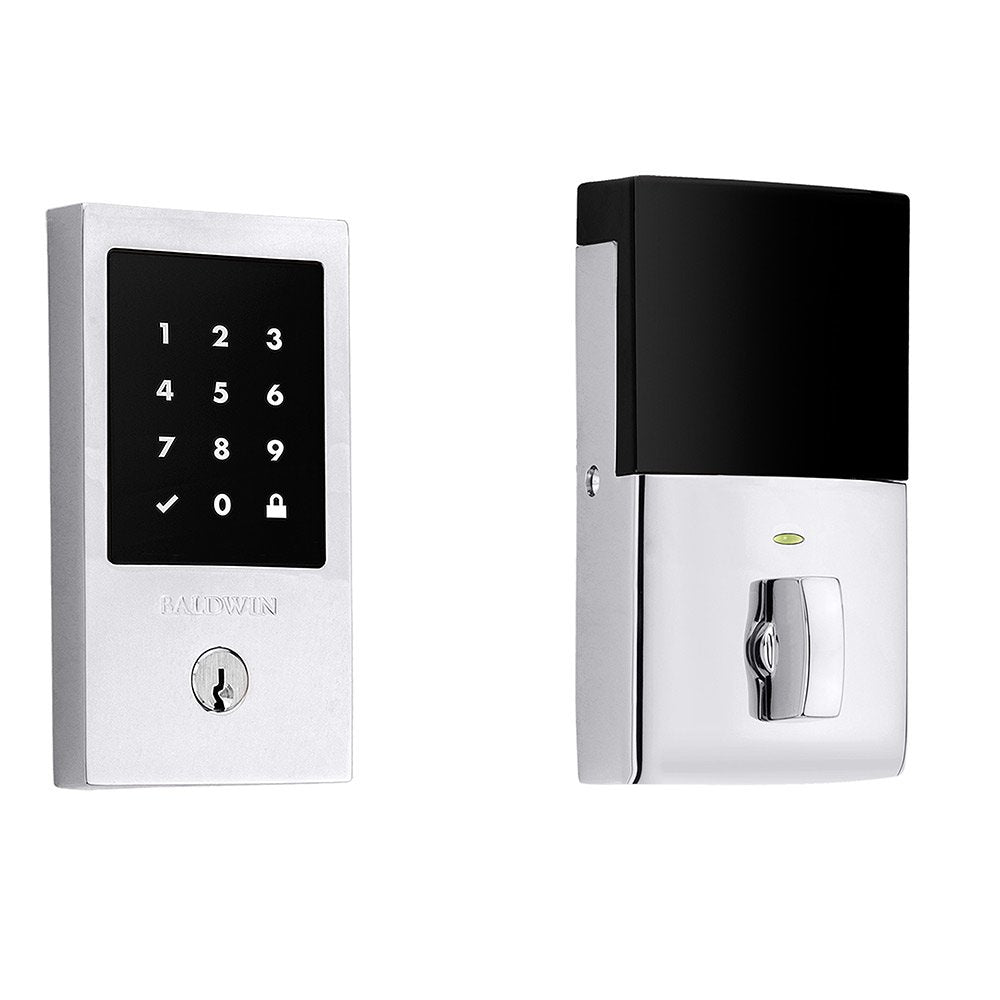

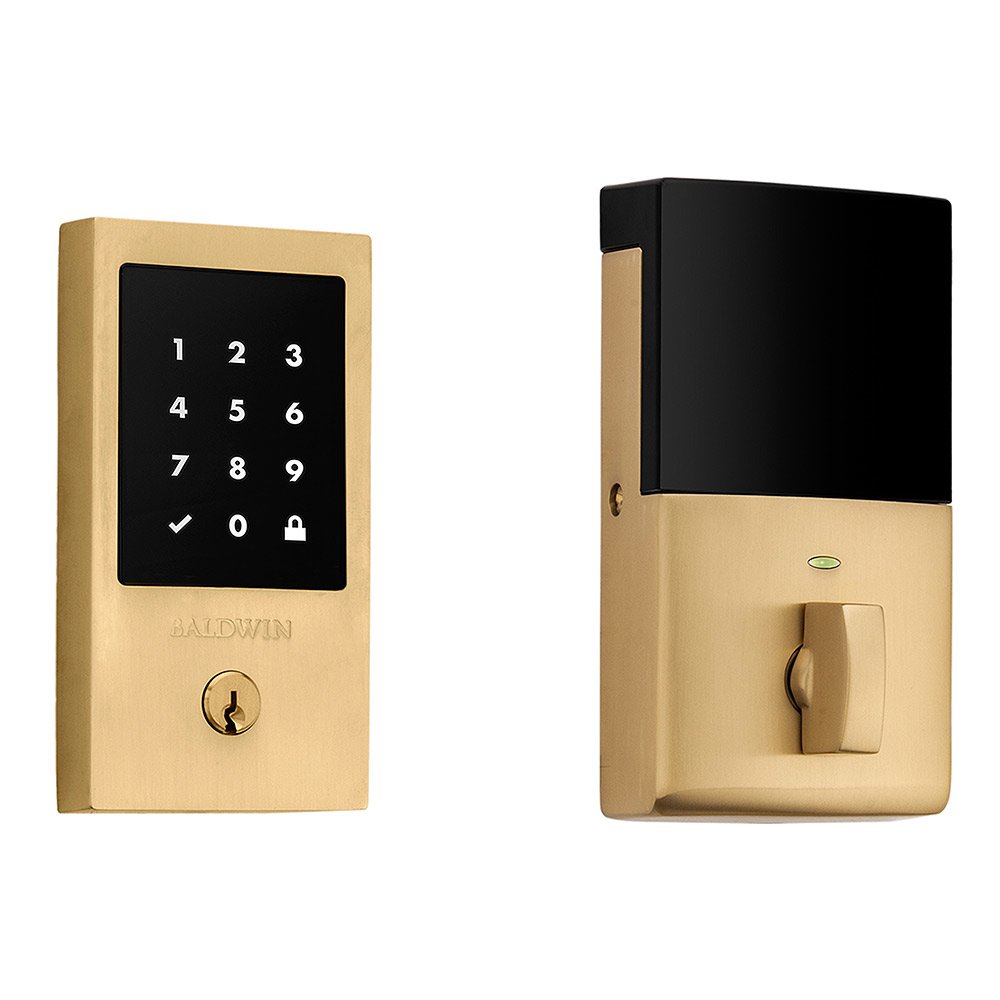

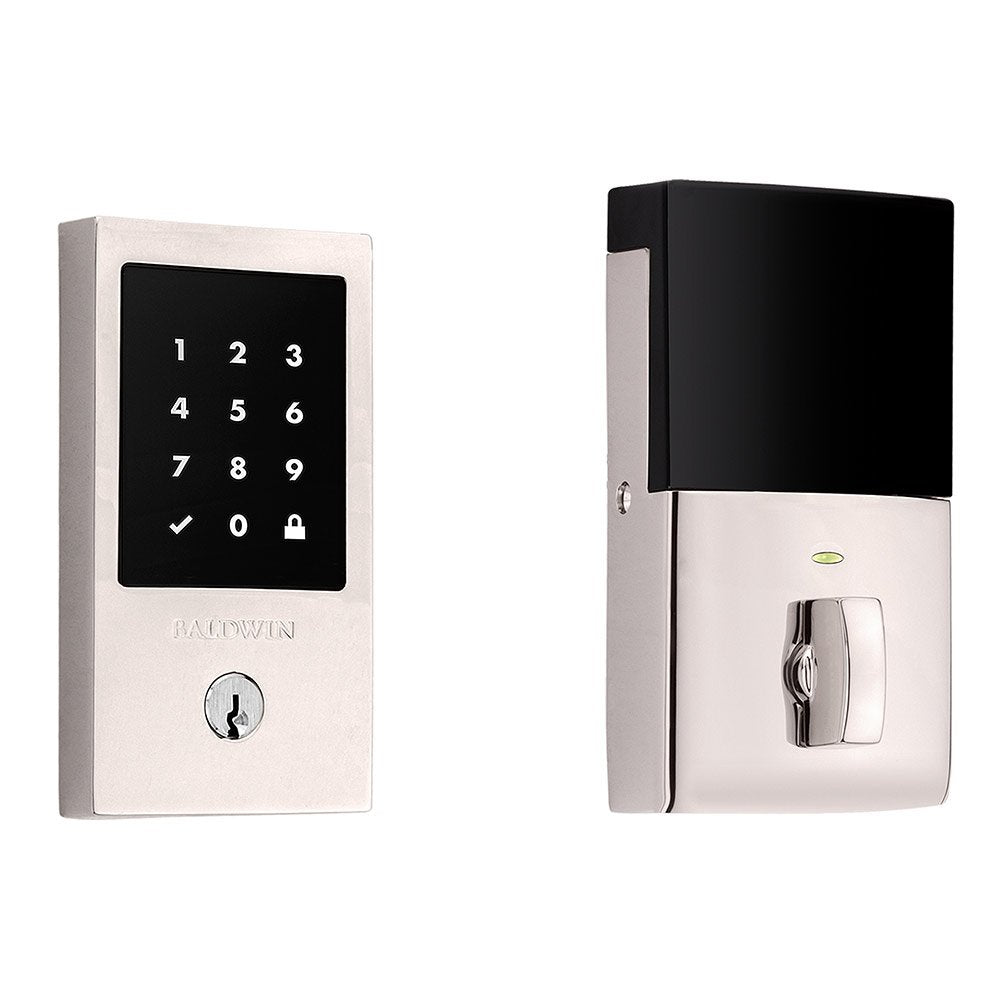

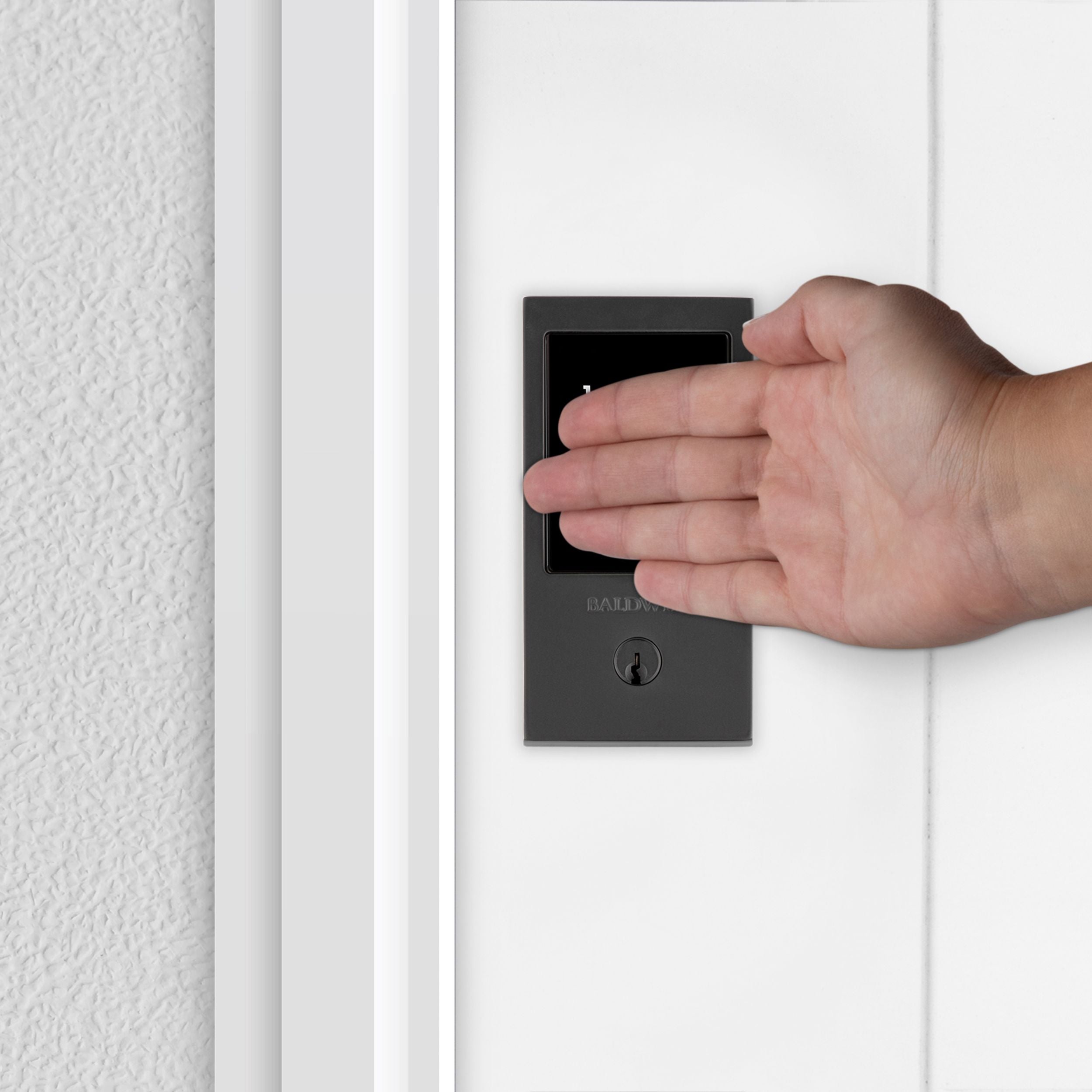

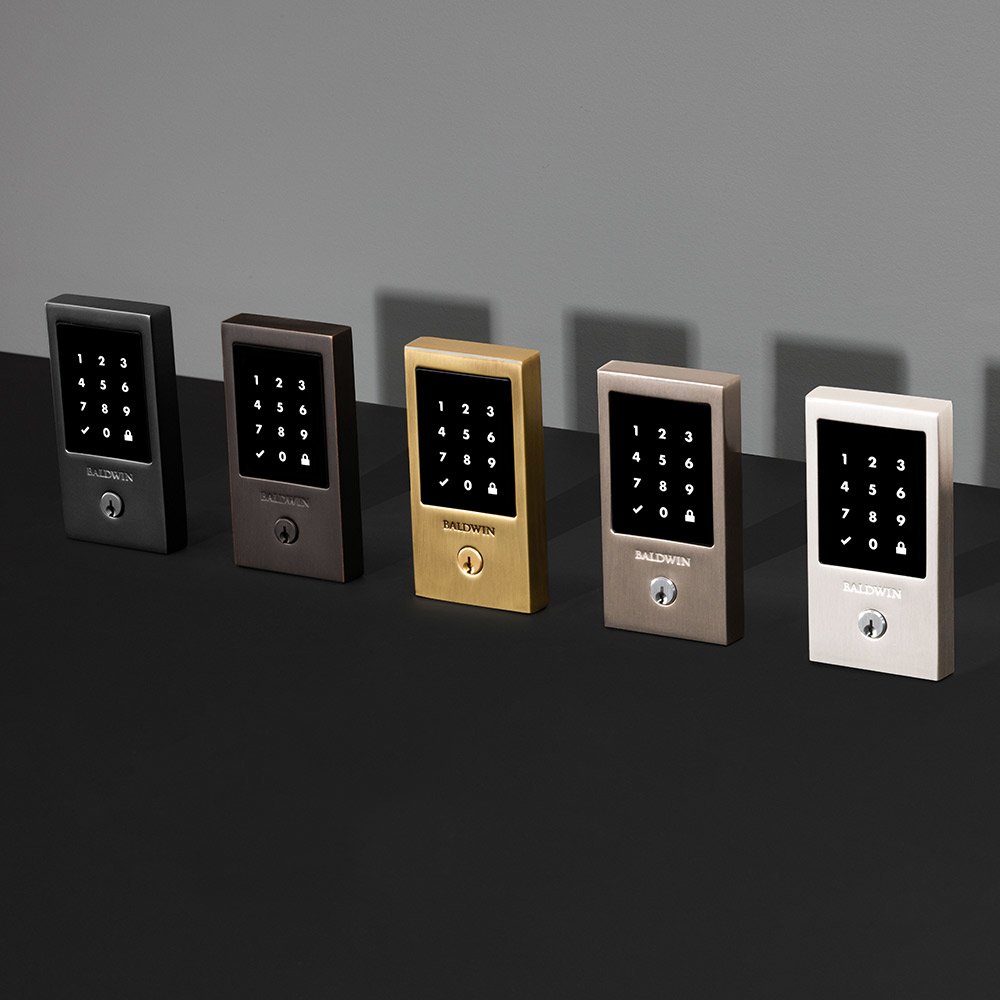

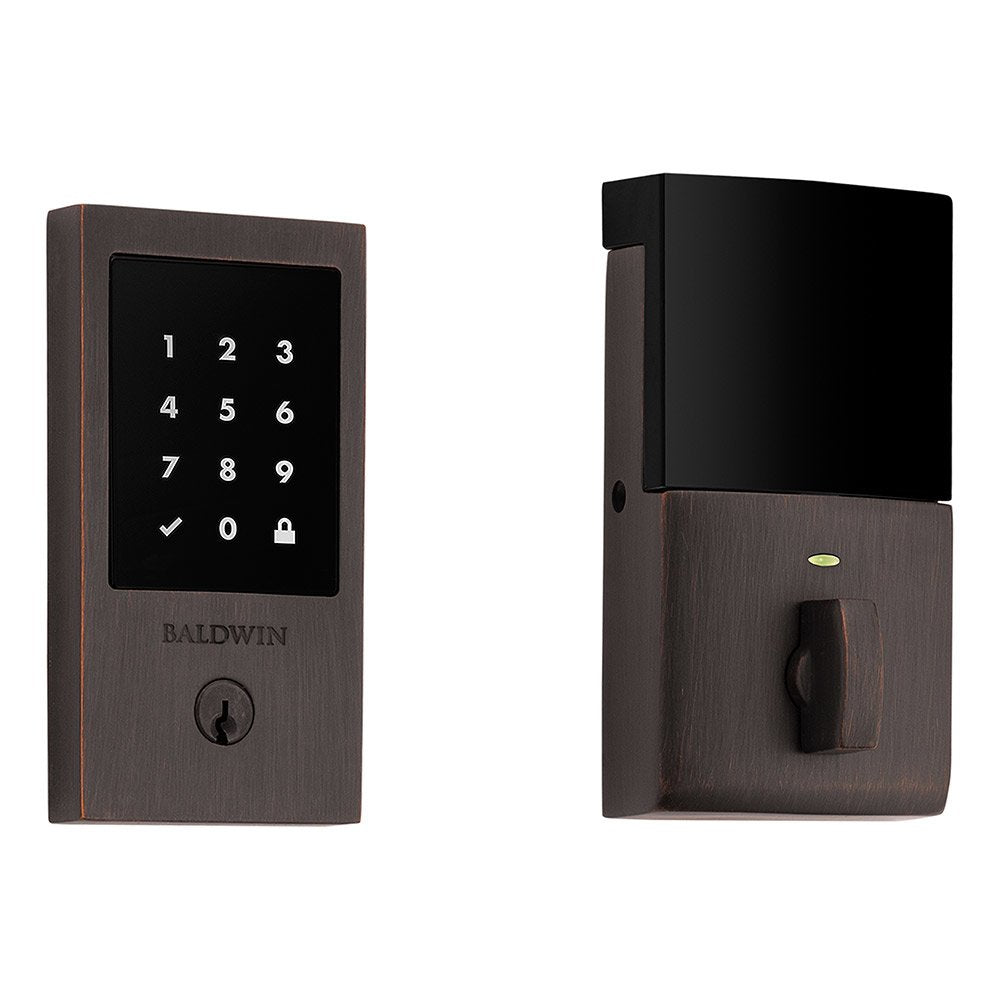

Beautifully Baldwin, this offering combines a Touchscreen and SecureScreen technology with bold Baldwin design to create a simple electronic connected solution.
General Specification
Solid Brass: Deadbolt trim manufactured of solid brass for maximum strength and durability.
Door Thickness: 1 3/4" to 2" standard. For 2 ¼" to 2 ½" door thickness, order the 8421.000.TP01 conversion kit.
Bolt: Deadbolt has 1" solid brass tapered bolt and a hardened steel insert for maximum security.
Backset: Adjustable backset 2 3/8" or 2 3/4".
Face Plate: 1" square corner face plate.
Strike: Reinforced steel strike with two (2) 3" security jamb screws, dust box and armored front to conceal the fasteners.
Door Prep: 2 1/8" cross bore and 1" edge bore for latch.
Cylinder: Cylinder supplied with 5-pin keying.
ANSI/BHMA: Exceeds Grade 2 requirements in ANSI/BHMA A156.36 test standard.
UL Rated: 20-minute fire rated certified UL deadbolt.
Security: 128-bit Advanced Encryption Standard (AES) communication with Z-Wave 500 chipset.
Power: Deadbolt requires four AA batteries (supplied).
Smart Home Devices: Wirelessly communicate with Security and Smart Home systems via Z-Wave Technology (Z-Wave hub to be purchased separately).
Warranty: TOUCHSCREEN products come with a lifetime Mechanical and Limited Finish Warranty (varies by finish), along with a 1-year electronic warranty to the original residential user of the product against defects in material and workmanship as long as the original user occupies the residential premises upon which the product was originally installed. This warranty does not cover scratches, abrasions, deterioration due to the use of paints, solvents, or other chemicals, abuse, misuse, or product used in commercial applications.
Specification

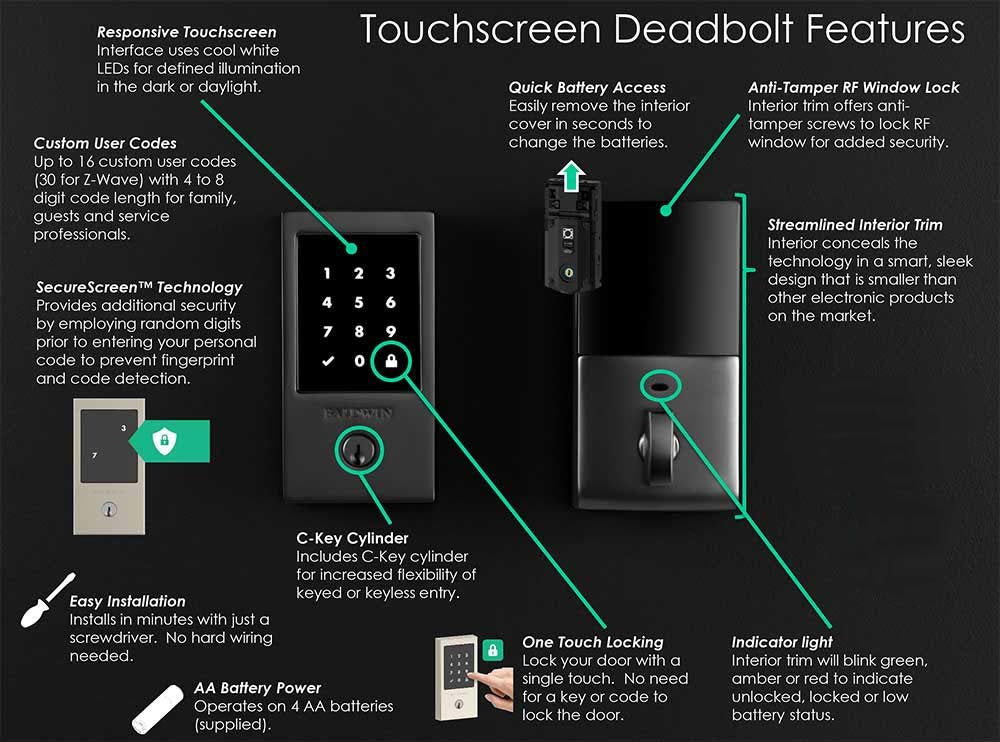

Features
Touch Screen Standalone Trouble Shooting Guide
Touch Screen Standalone Installation Guide
Touch Screen Z-Wave Connect Trouble Shooting Guide
Touch Screen Z-Wave Connect Installation Guide
