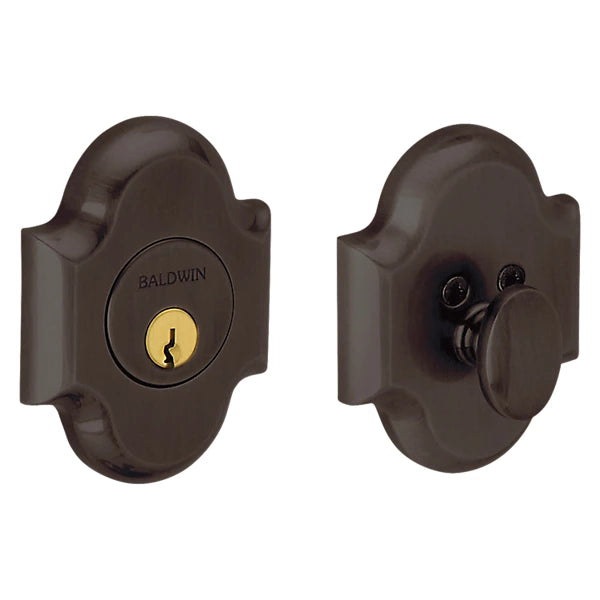

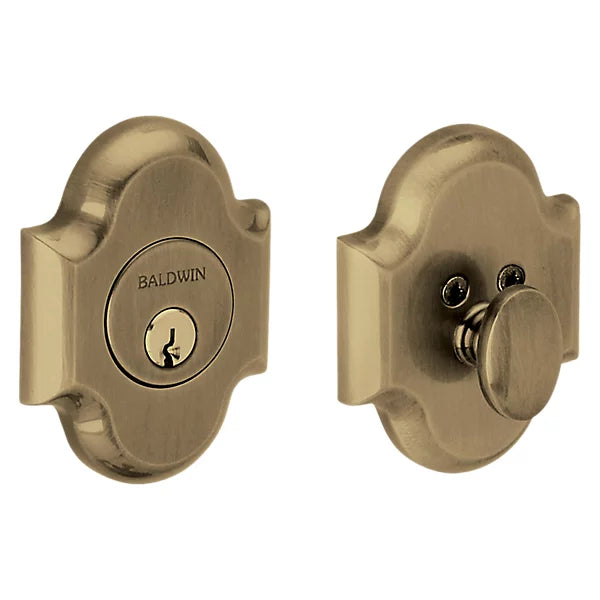

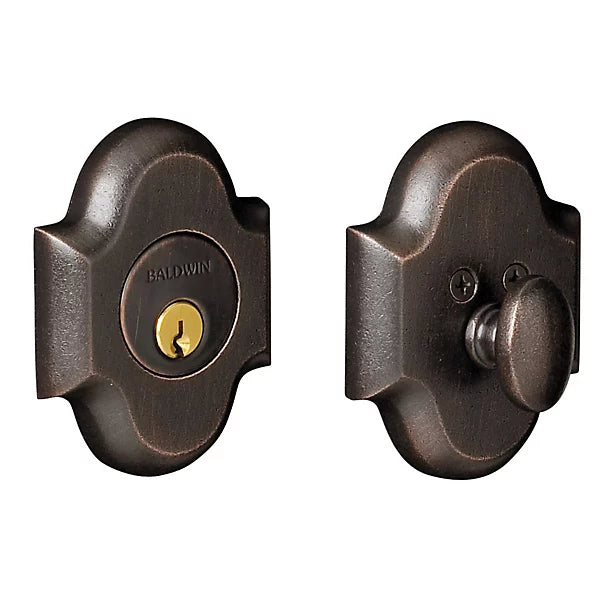

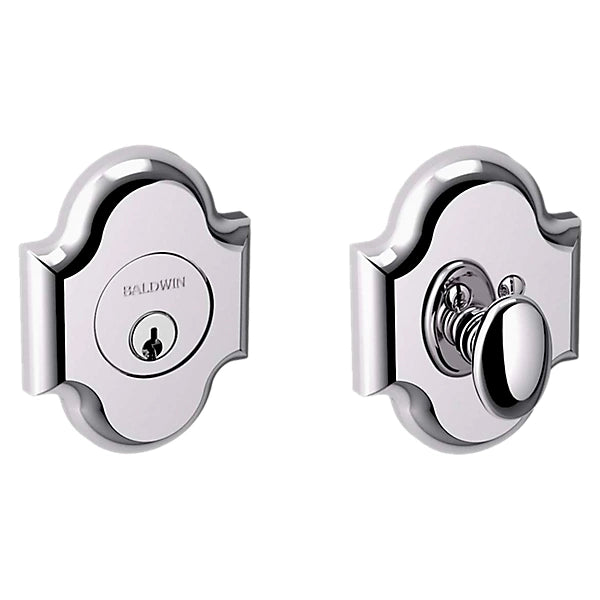

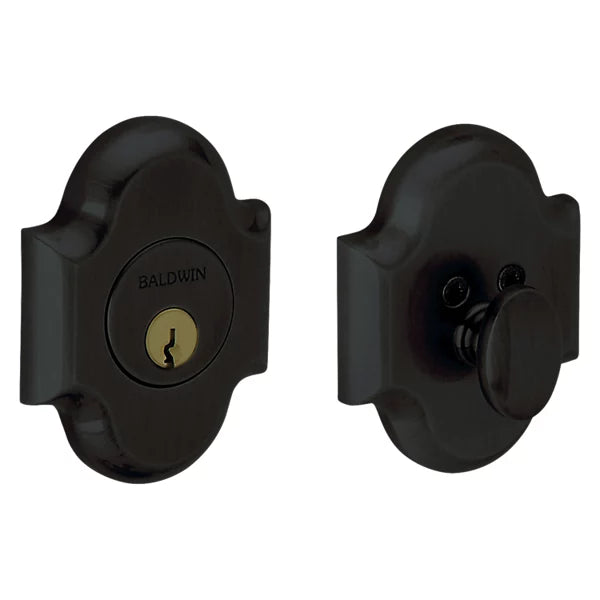

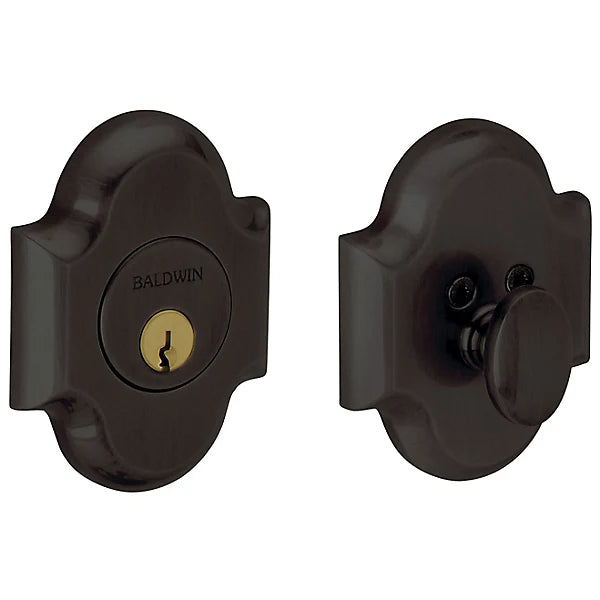

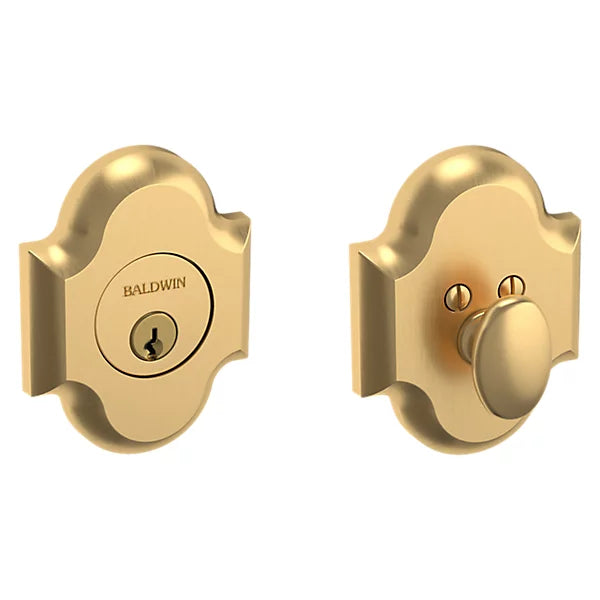

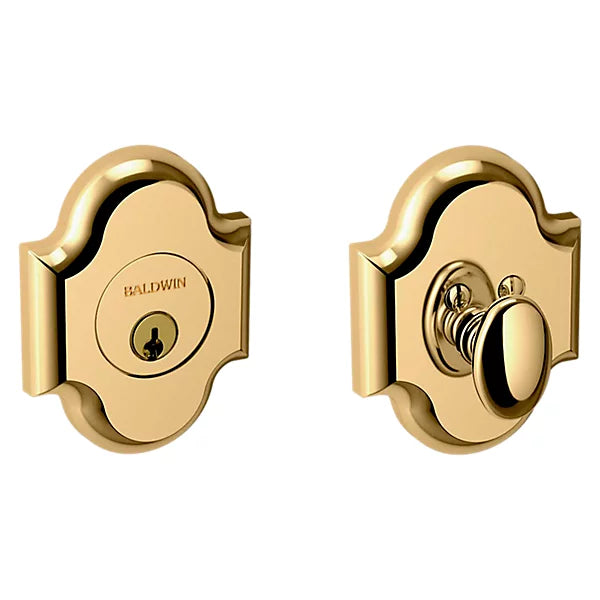

Baldwin - Estate Collection - Deadbolts - 8252 Arched Deadbolt (Single Cylinder - 2-1/8" Door Prep)

Save 20%
BaldwinSKU: BAL-8252.003

Price:
Sale price$156.80 Regular price$196.00

Description

About Baldwin

Baldwin Hardware began its legacy of innovation with the arrival to America in 1946 of Severin Fayerman and his family. Since then, we've been obsessed with creating highly-crafted and distinguished hardware to complement every home. At Baldwin, we believe that quality should never be a compromise. From using the finest materials to crafting a majority of our hardware by hand, we are committed to creating high-quality hardware that not only looks beautiful and flawless but also endures the rigors of time. It's the reason Baldwin has been name Builder's Brand Leader #1 in Quality Award year after year.

Description

General Deadbolt Info (8000/8200 Series)

8000 Series
Low Profile Cylinder Deadbolt for 1 5/8" (41mm) Door Prep

Cylinder Projection
All deadbolts feature a ½" low-profile cylinder projection.

Case
The deadbolt case is formed of heavy gauge steel for strength and ensures a solid fit in door preparations. Most interior working parts are made of solid brass for maximum strength and smooth operation.

Deadbolt

  • Construction: Solid brass
  • Throw: .600" x .770" x 1" (15 x 20 x 25mm) when extended
  • Security: Features a hardened steel insert for maximum protection and security
  • Finishes: Available in 040 and 264 to match trim.

Grade 1
Select deadbolts meet Grade 1 requirements as set forth in ANSI A156.5 Test Sections 9.1–9.11 & 10.1–10.9.

Backset
Adjustable backset deadbolt for 2 3/8" (60mm) or 2 ¾" (70mm).

Non-Handed Design
Facilitates specification and installation.

Strike
Each deadbolt includes a specially designed reinforcing strike constructed of high-grade steel for ultimate strength and durability. The installation is secured with four (4) security jamb screws (including two (2) 3" screws) and a dust box, covered with an armored front to conceal fasteners. The 3" screws resist tampering and guard against theft.

Cylinders
The cylinder housing is protected with a free-turning exterior cylinder guard made from solid brass to resist gripping or twisting. Standard: Supplied with 03 keyway and two nickel silver keys. All deadbolts are furnished with 5-pin keying.

Keying
Each cylinder comes with 2 keys. Additional keys can be ordered as service parts. Keys feature a 1 ¼" (32mm) wide bow surface.

Packaging
Packaged one deadbolt per box with a security strike, dust box, and keys. All products are packaged in contractor packaging.

Weight

  • Individual: 1.8 lbs (0.81kg)
  • Per Case: 10.8 lbs (4.86kg)

Door Conditions
Fits 1 5/8" (41mm) diameter cutouts. Trim rings No. 8090 are available for doors drilled with 2 1/8" (54mm) diameter holes.

Door Thickness
Fits 1 ¾" (44mm) thick doors. Kits are available for 2" (51mm) and 2 ¼" (57mm) thick doors at an additional charge. Door spacers No. 8097 are required for 1 3/8" (35mm) thick doors (available for 8041, 8011, 8031 & 8021 deadbolts only).

8200 Series
Low Profile Cylinder Deadbolt for 2 1/8" (54mm) Door Prep

All information is identical to the 8000 Series except where noted here.

Weight

  • Individual: 2.2 lbs (0.99kg)
  • Per Case: 13.2 lbs (5.94kg)

Door Conditions
Fits 2 1/8" (54mm) diameter cutouts.

Door Thickness
Fits 1 ¾" (44mm) thick doors. Kits are available for 2" (51mm) and 2 ¼" (57mm) thick doors at an additional charge. Door spacers No. 8297 are required for 1 3/8" (35mm) thick doors (8241, 8242, 8231, 8232 only).

Thick Door Kits Available

  • Single Cylinder Thick Door Kit: 8098.000.TP03
  • Double Cylinder Thick Door Kit: 8098.000.DC03
  • Patio Thick Door Kit: 8031.028.TP31

Specifications

Specification

  • NOT AVAILABLE FOR 1 3⁄8" THICK DOORS.
  • STEEL CASE: .960" d. x 3.312"or 3.750"extended (24 x 84 or 95mm)
  • FRONT: .156"x 1"x 2.25"(4 x 25 x 57mm)
  • COLLAR DIMENSION: 2.75"W X 3.62"H X 0.5"D (70 X 92 X 13mm)

Features

  • 2 Keys Included with deadbolt

Resource

Installation Guide 2-1/8"

Exploded Views

Quick Ship Estate Catalog

Estate Catalog

Warranty
