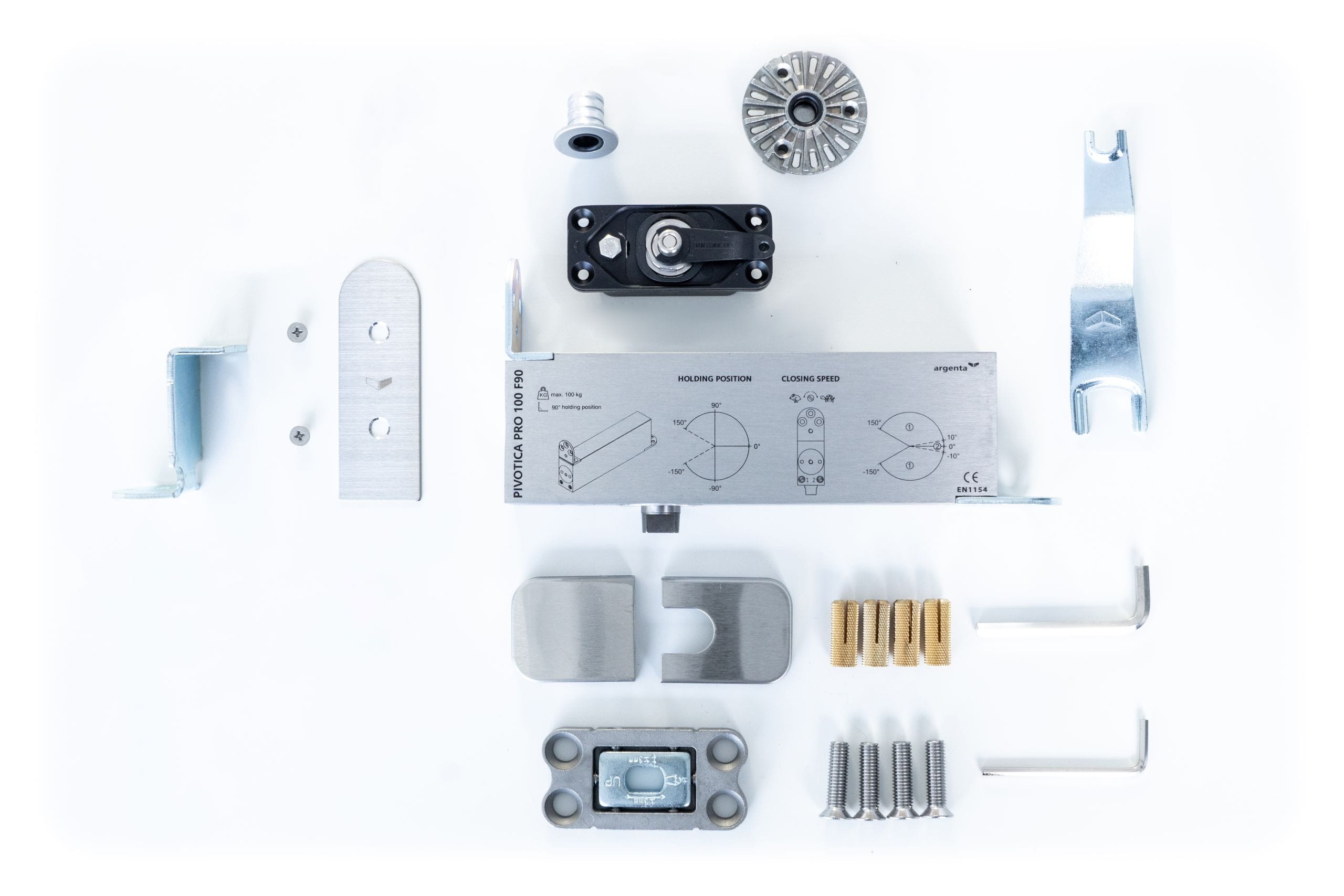

Arlu - Argenta Pivotica Pro - E 100 FM Pivot Hinge (Floor Mount)

Save 20%
ArluSKU: ARL-Pivotica PRO E 100 FM F90 - Matte Chrome

Price:
Sale price$368.66 Regular price$460.83

Description

About Arlu

ARLU® is the manufacturer behind the brand names argenta® and rob®. Argenta has been a leading brand in door hardware for over 100 years, but today it is mainly synonymous with invisible door systems. Minimalist architecture swears by clean lines and a “back to the essence” mentality. In terms of interior doors, this results in integrated door fittings, invisible integrated techniques, door frames and skirting boards for revolving, sliding and pivoting doors. Argenta stands for a full range of sleek interior solutions.

Feature

Ease of Use

  • Installation:
    • Easy to install with free choice of pivot point
    • Two installation methods: surface-mounted or built-in
    • Small size of the upper pivot makes milling easier
    • Smoother installation of the upper spindle thanks to the magnetic axis
  • Adjustable:
    • Both floor plate and upper pivot can be adjusted (width and depth) to ensure a flush-to-wall door
    • Specially developed mounting key ensures smooth adjustment, even with minimal upper clearance
  • Opening Angle: Pivotica Pro E 100 has a maximum opening angle of 150° in both directions; available with a mechanical hold-open position at 90° or 0°; closing speed is adjustable

Aesthetics

  • Design:
    • No visible adjustment or fastening screws as the hinge is almost fully integrated in the door
    • Thanks to the lintel plate with low flange height, screws are no longer necessary
  • Architectural:
    • Minimalist look as the door closer is invisible

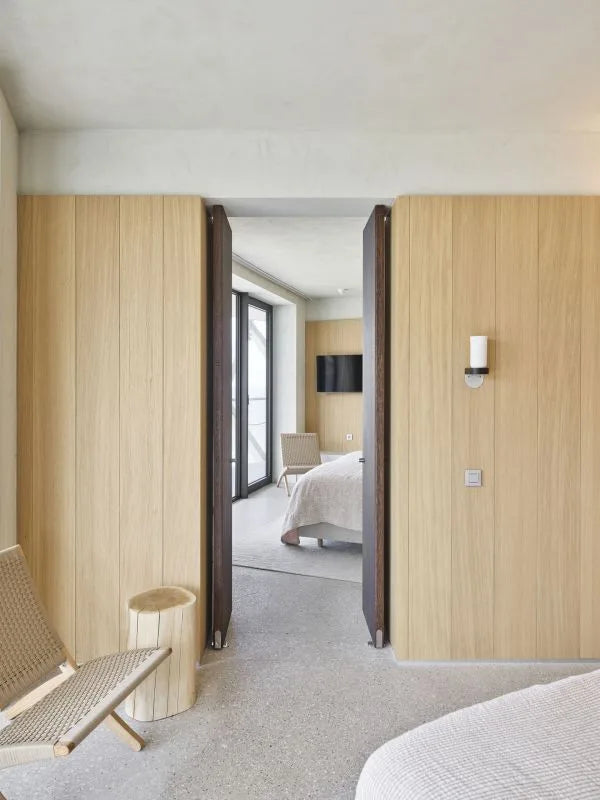

    • Suitable for floor-to-ceiling doors
    • Both cover and ceiling plates available in the same color
  • Finish:

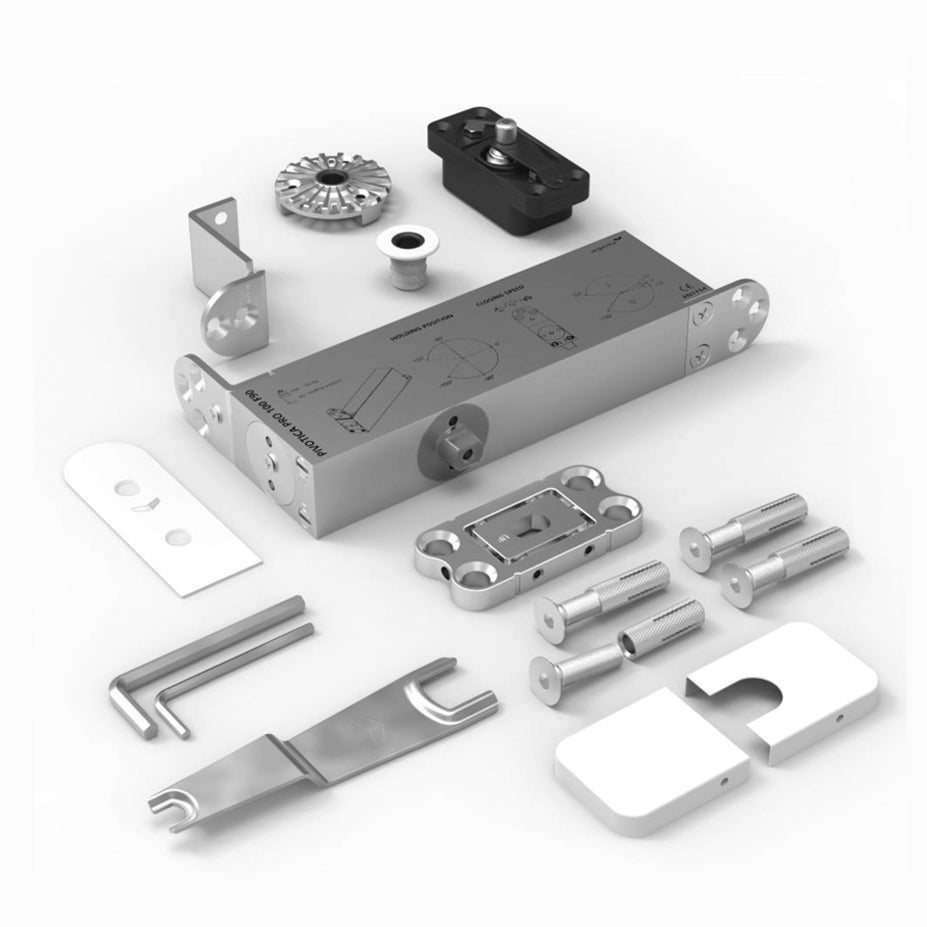

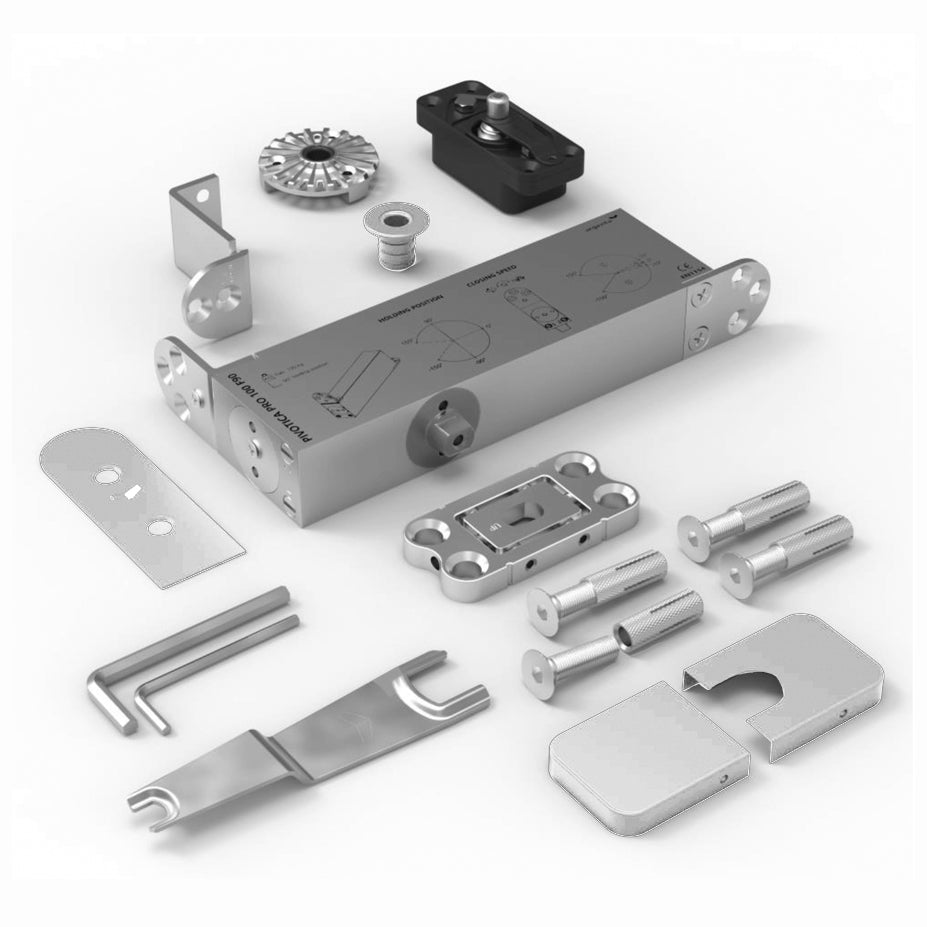

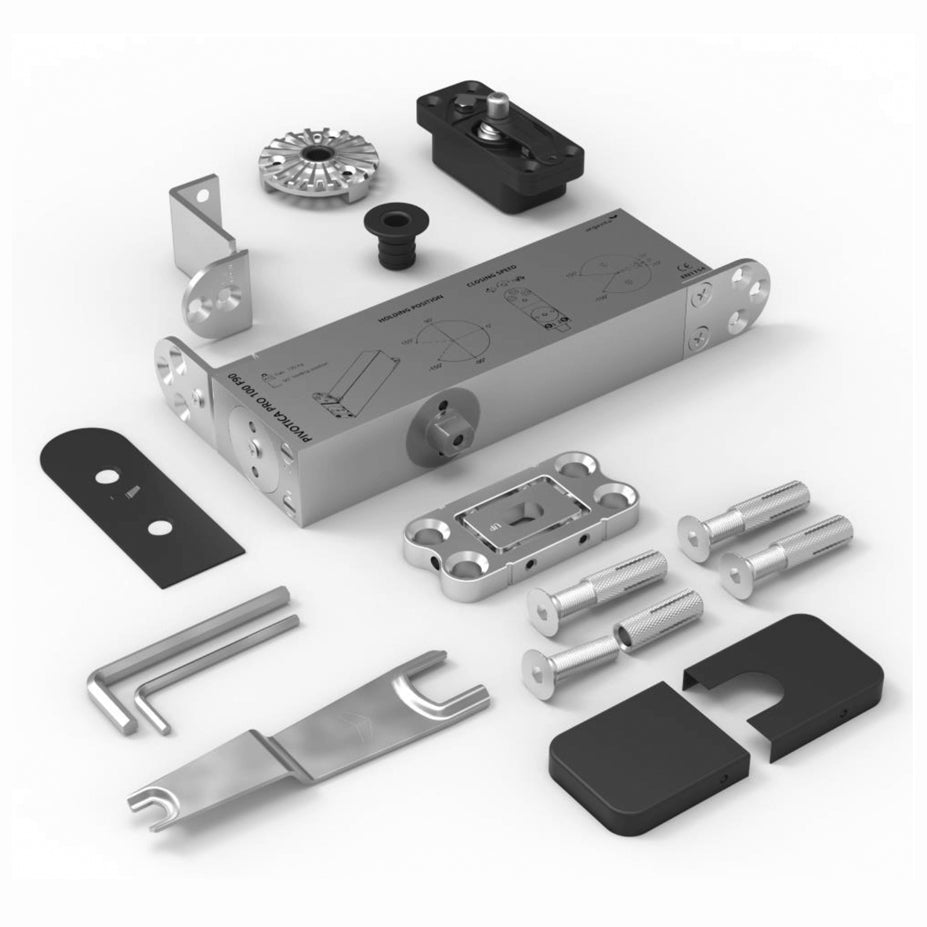

    • Cover plates for floor plate, pivot hinge, and ceiling plate available in matte chrome, black, and white
    • Seamless finishing possible with the ceiling plate

Technical

  • Application: Suitable for both newbuild and renovation projects. Can be combined with underfloor heating — installation of the floor plate at a minimum depth ensures no contact with the heating system

Specification

Technical Features – Pivotica Pro E (Floor Mounted)


pivotica® pro e 100 FM
Max.–Min. Door Weight 40 – 100 kg
Door Height Max. 3000 mm
Door Width (1) Max. 2000 mm
Door Thickness Min. 40 mm
Opening Angle Max. 150°
Width Adjustment -3 / +3 mm
Depth Adjustment -3 / +3 mm
Alignment -4 / +4 mm
Notes
  • (1) In the corner position, max. door width is 1000 mm. Doors wider than 1000 mm must use the pivot in a de-centralised position with the included bracket.
  • The minimum pivot point is 58.5 mm (max. door width 1000 mm).
  • By using the supplied bracket, the pivot point can be increased accordingly.
