ARLU® is the manufacturer behind the brand names argenta® and rob®. Argenta has been a leading brand in door hardware for over 100 years, but today it is mainly synonymous with invisible door systems. Minimalist architecture swears by clean lines and a “back to the essence” mentality. In terms of interior doors, this results in integrated door fittings, invisible integrated techniques, door frames and skirting boards for revolving, sliding and pivoting doors. Argenta stands for a full range of sleek interior solutions.

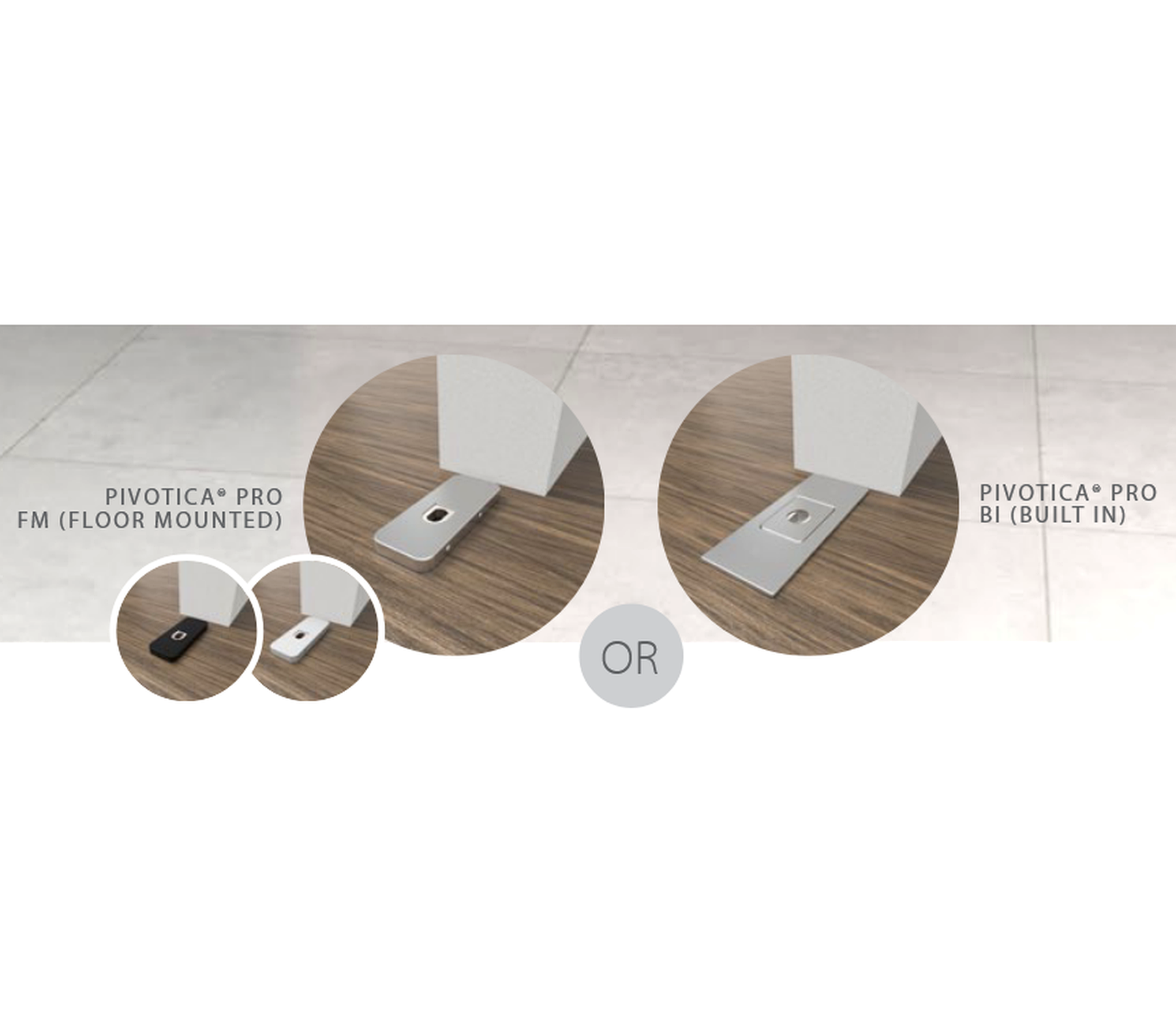

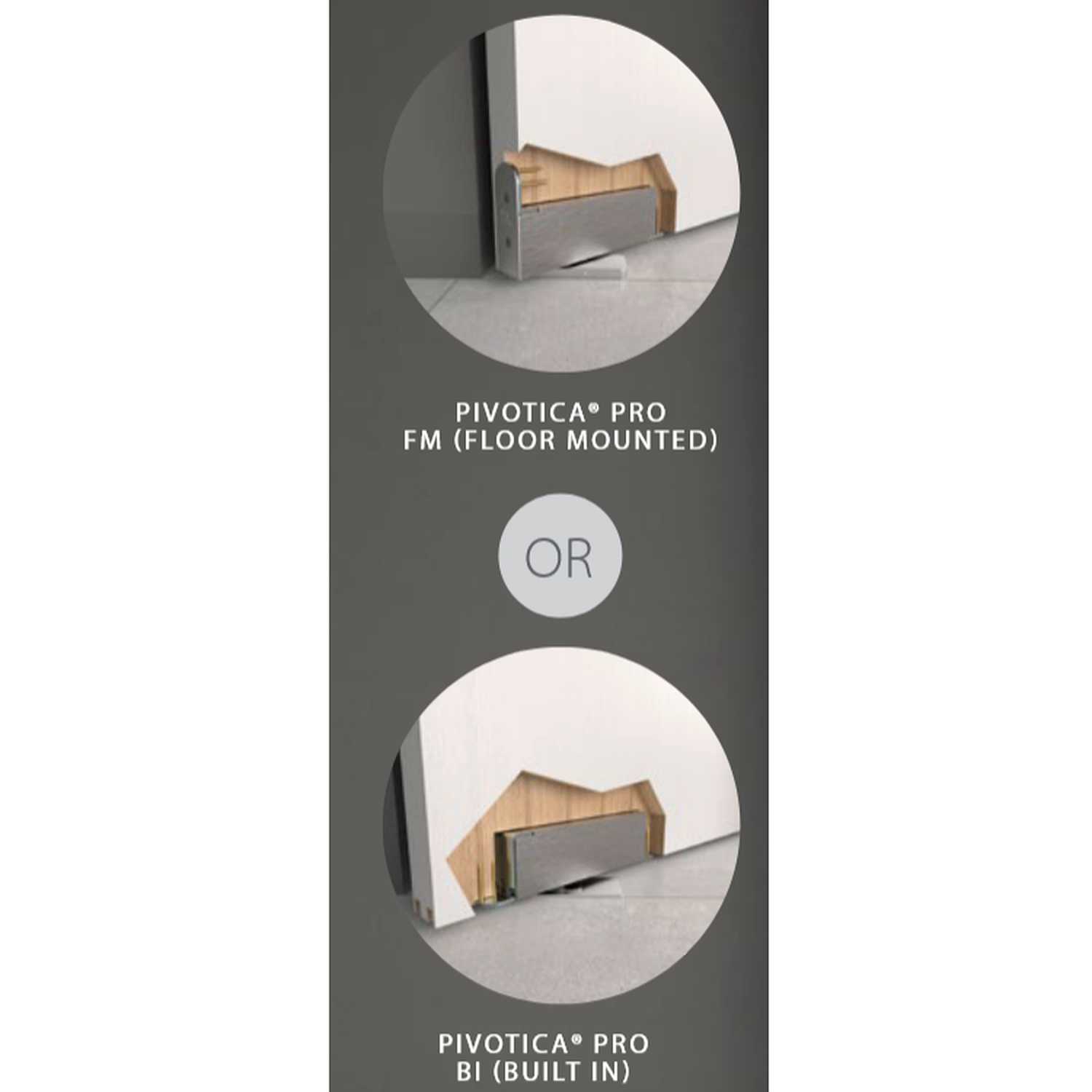

Pivotica Pro E for Ease of use and installation and enhanced install features
Ease of Use
Aesthetics
Technical
Technical Features – Pivotica Pro E (Built In)
| BI (BUILT IN) | pivotica® pro E 100 BI | pivotica® pro E 150 BI |
|---|---|---|
| Door weight | Max. 100 kg (220lb) | Max. 150 kg (330lb) |
| Door thickness | Min. 40 mm - Max. 100 mm Min. 1-9/16” - Max. 3-15/16” |
Min. 50 mm - Max. 100 mm Min. 1 15/16” - Max. 3 15/16” |
| Door width* | 2000 mm (78-3/4”) | <100 kg = 2500 mm >100 kg = 2000 mm < 220 lb = 98-3/8” > 220 lb = 78-3/4”) |
| Door height | 3000 mm (118-1/8”) | 3000 mm (118-1/8”) |
| Width adjustment | -3 / +3 mm (-1/8” / + 1/8”) | -3 / +3 mm (-1/8” / + 1/8”) |
| Depth adjustment | -3 / +3 mm (-1/8” / + 1/8”) | -3 / +3 mm (-1/8” / + 1/8”) |
| Height adjustment | +6 mm (+ 1/4”) | +6 mm (+ 1/4”) |
| Alignment | -4 / +4° | -4 / +4° |
| Holding position | 0° (= F0) or -90° / 0° / 90° (= F90) | 0° (= F0) or -90° / 0° / 90° (= F90) |
| Bottom clearance | Min. 5 mm – Max. 11 mm Min. 3/16” - Max. 7/16” |
Min. 5 mm – Max. 11 mm Min. 3/16” - Max. 7/16” |
*Please cross reference specifications/installations as there is limited info on some models, feel free to Contact Us for verification.
Pivotica Pro 100 Center Hung Spec Drawing
Pivotica Pro 100 Side Mount Spec Drawing
Pivotica Pro 100/100E Spec Drawing
Pivotica Pro 100 Floor Mount Install
Pivotica Pro 100 Floor Mount Install (2)
Pivotica Pro 100 Built In Install
