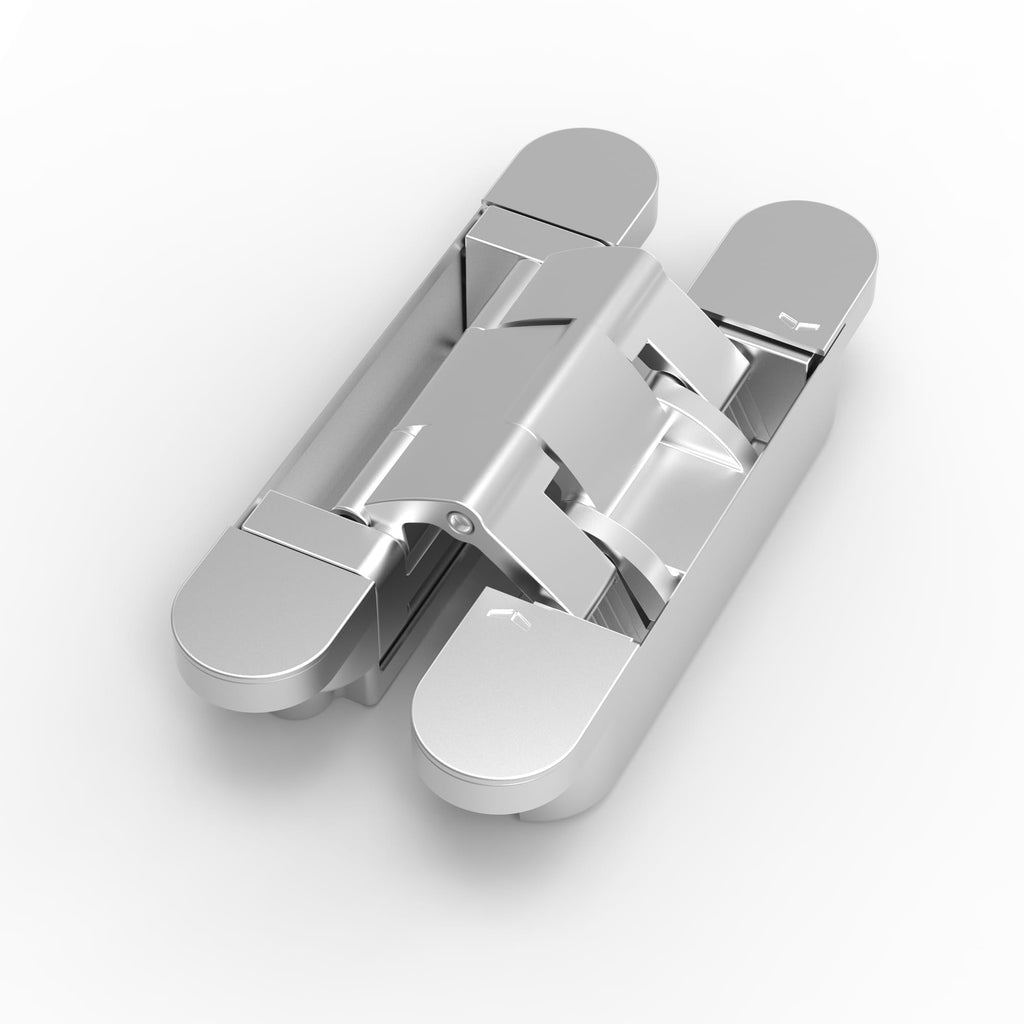

ARLU® is the manufacturer behind the brand names argenta® and rob®. Argenta has been a leading brand in door hardware for over 100 years, but today it is mainly synonymous with invisible door systems. Minimalist architecture swears by clean lines and a “back to the essence” mentality. In terms of interior doors, this results in integrated door fittings, invisible integrated techniques, door frames and skirting boards for revolving, sliding and pivoting doors. Argenta stands for a full range of sleek interior solutions.
Ease of Use
Universal: Suitable for both left and right-opening doors
Easy-Hook: Installation and 3D adjustment can be performed by just one person
3D-Adjustable: Height, width, and depth adjustments without removing the door
Extra Simplified Height Adjustment: No wedge required
Opening Angle: Hinges allow 180° opening
Durability and Safety
Cycle Tested: Open and shut movement tested to a minimum of 200,000 cycles
Finger Protection: Minimal space between the door and frame reduces pinch risk
Fire-Resistant:
S5: 30 minutes (with intumescent kit)
M6 & L7: 60 minutes (with intumescent kit)
Mounting: Fully mounted on plastic washers
Aesthetics
Design: Pure and qualitative with no visible screws
Sizes: Available in three sizes: S5, M6, L7

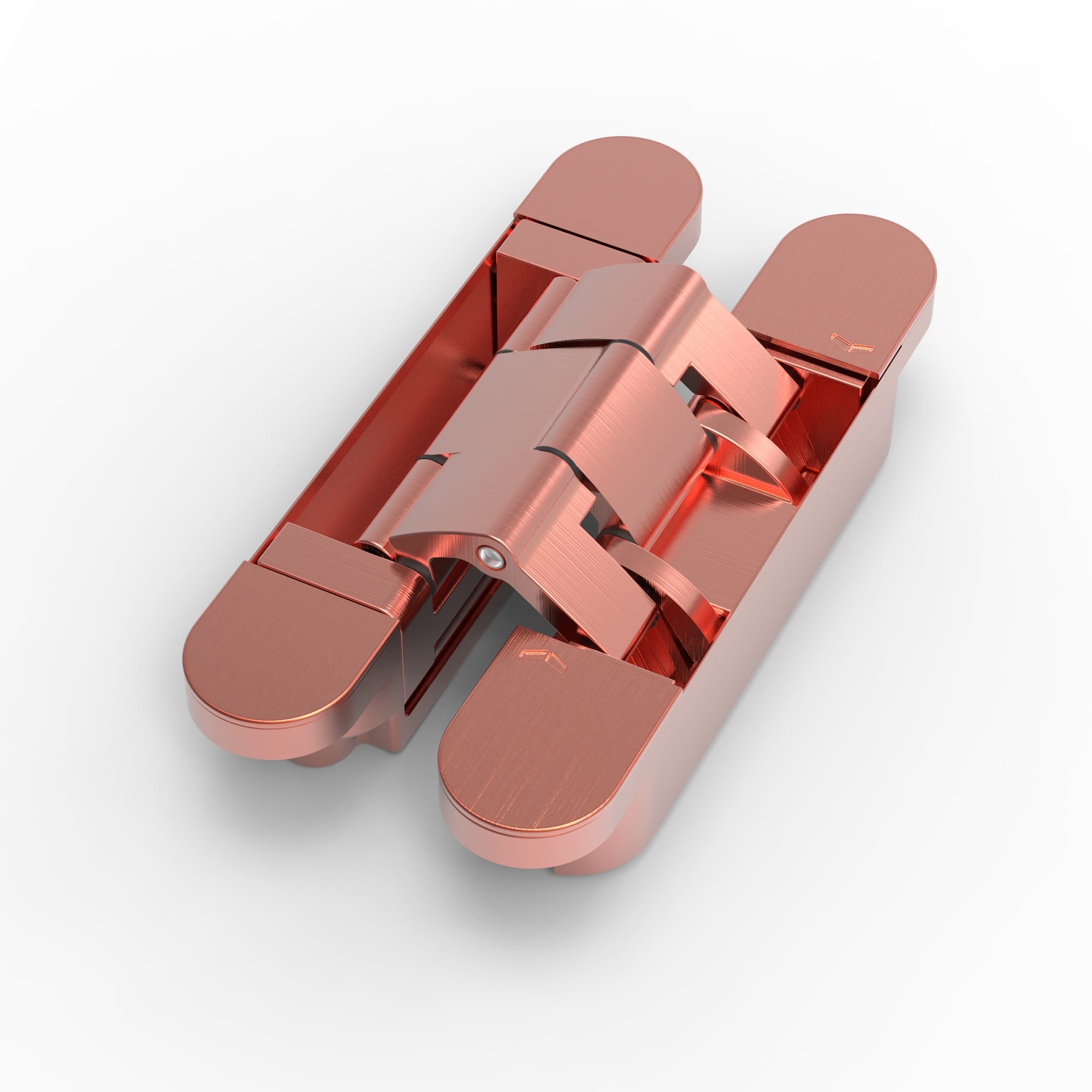

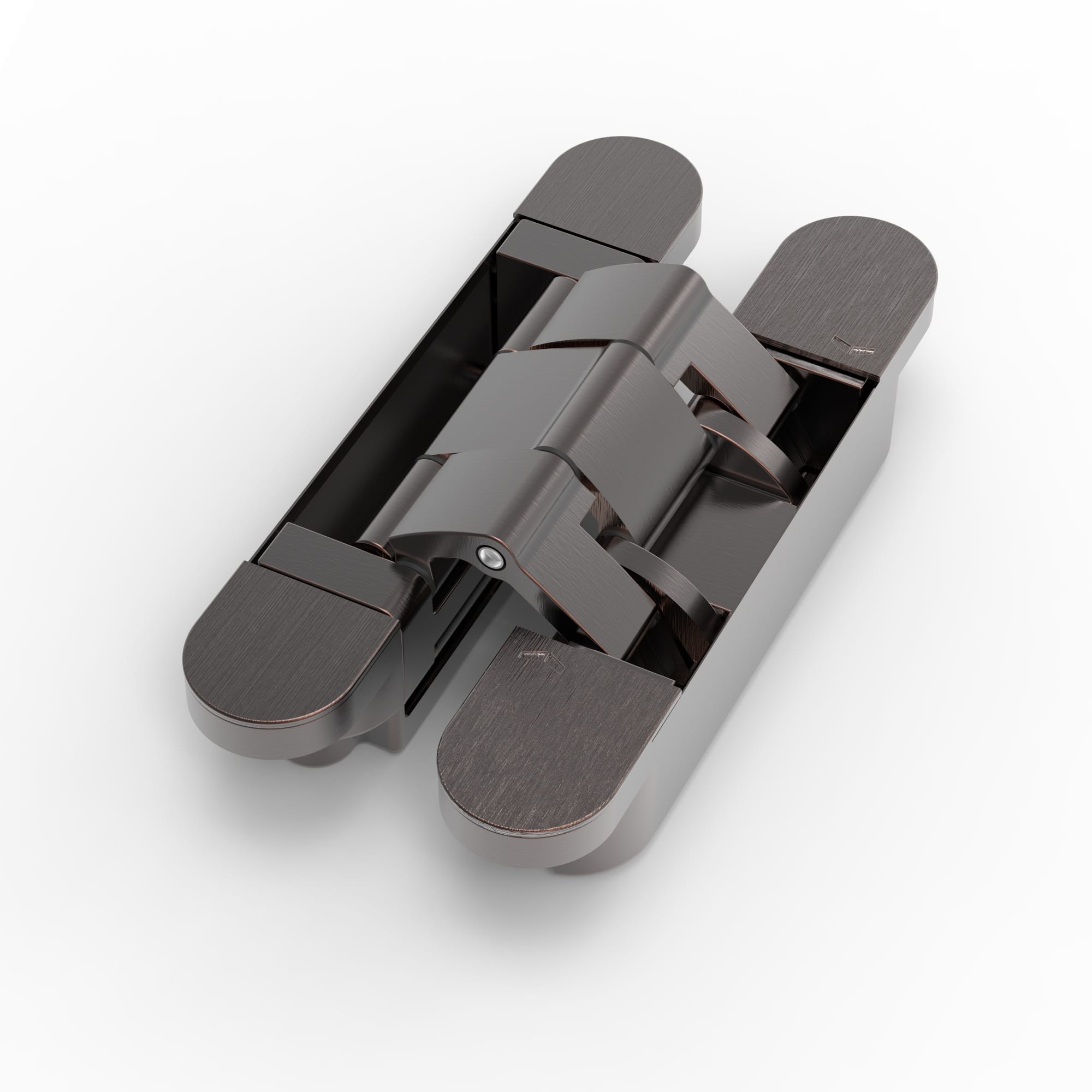

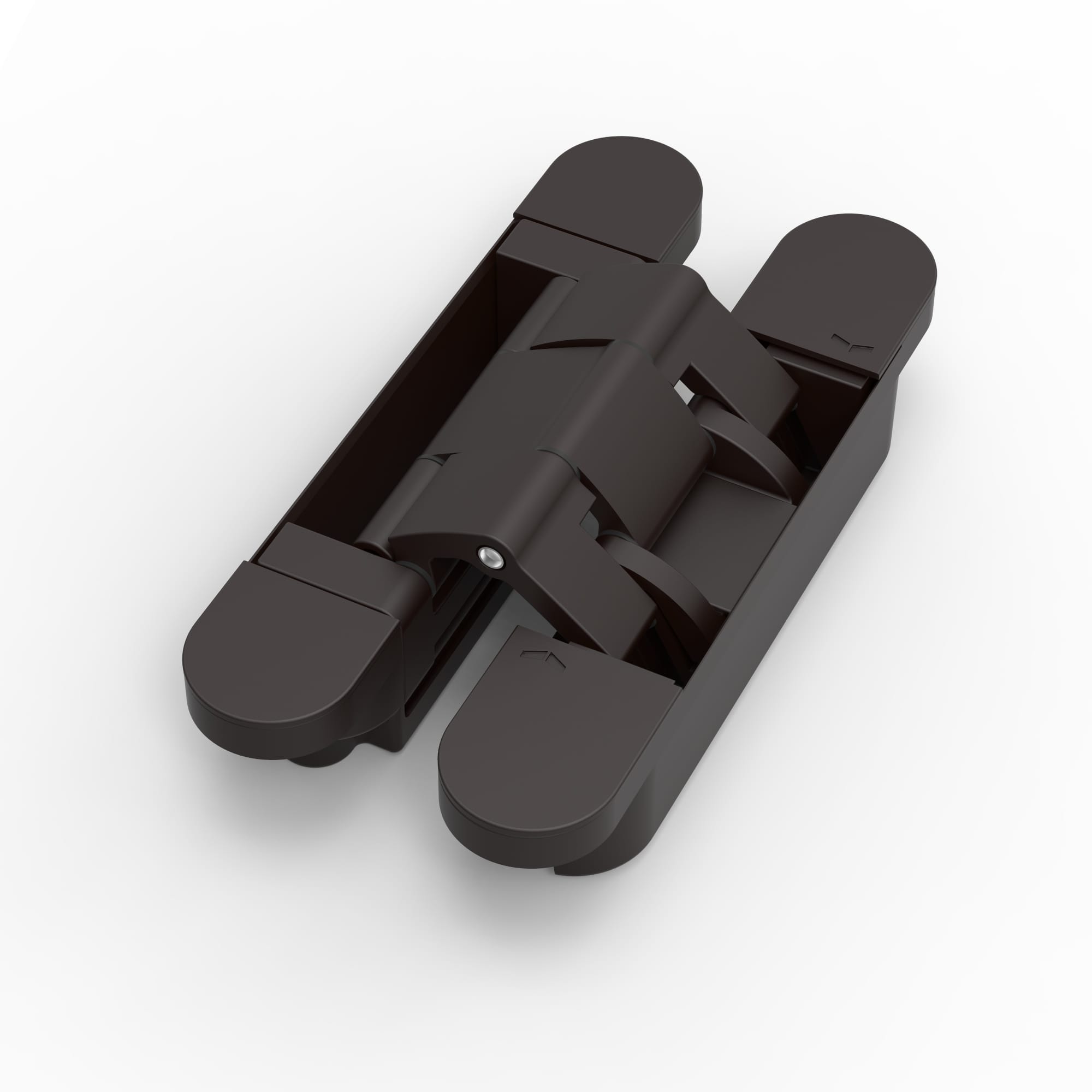

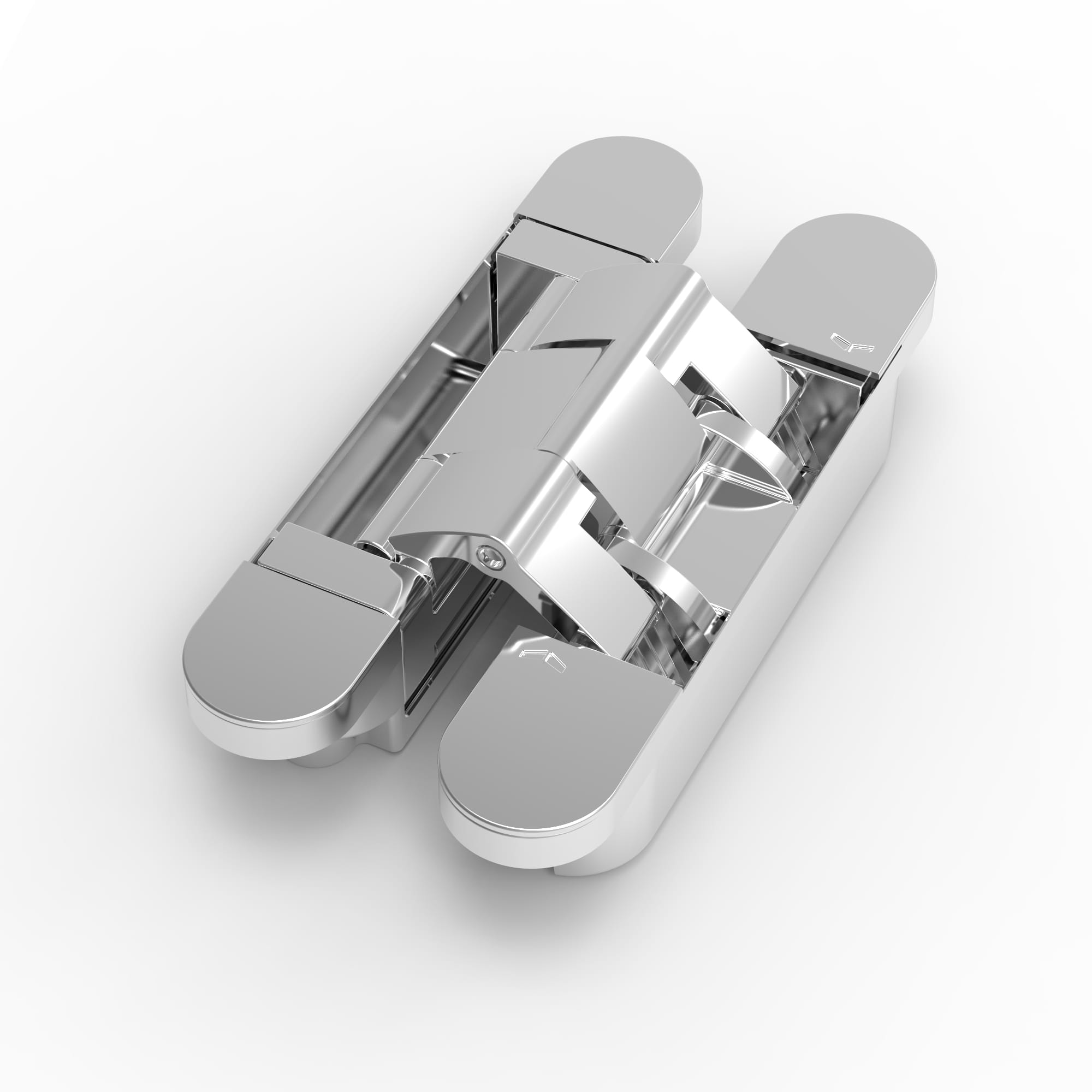

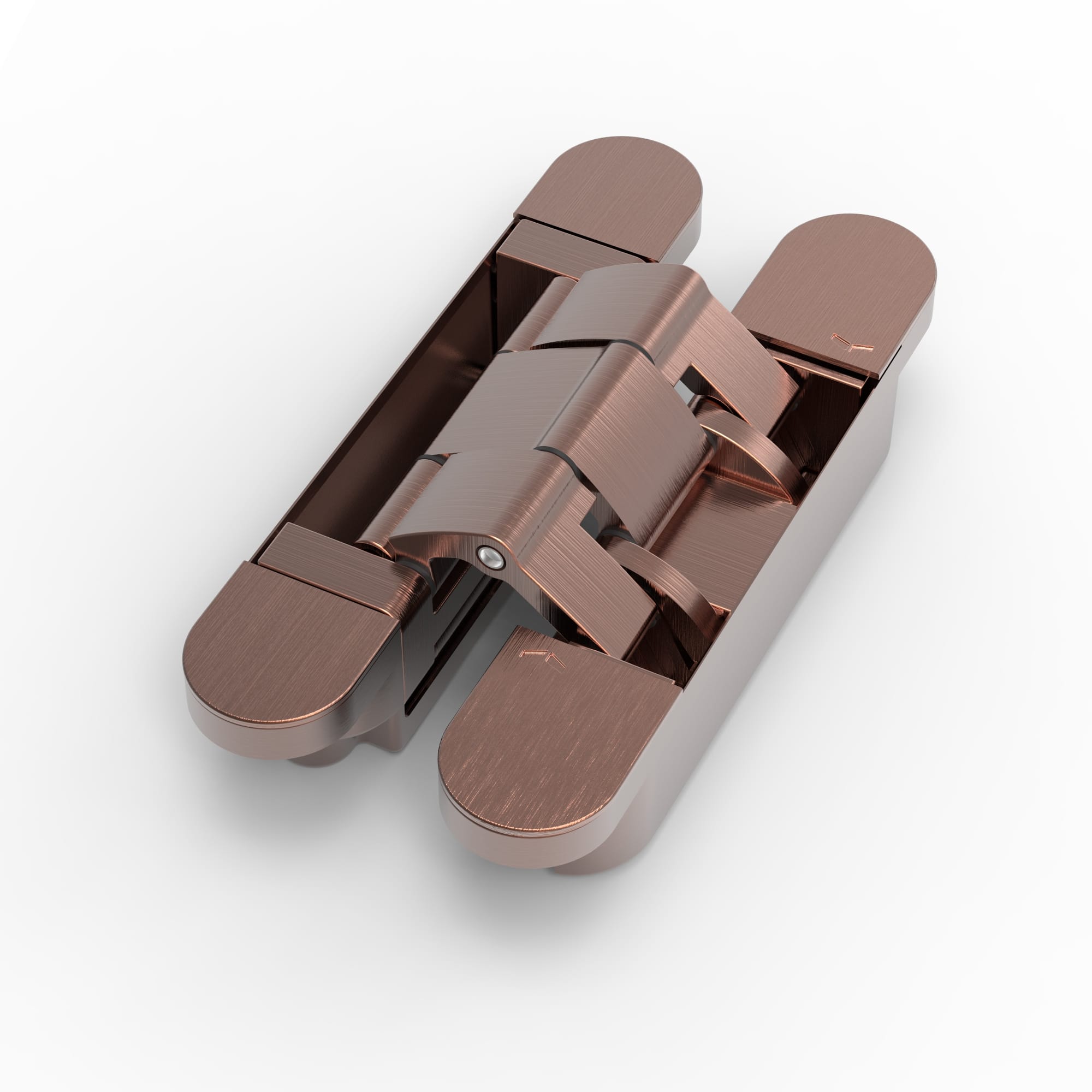

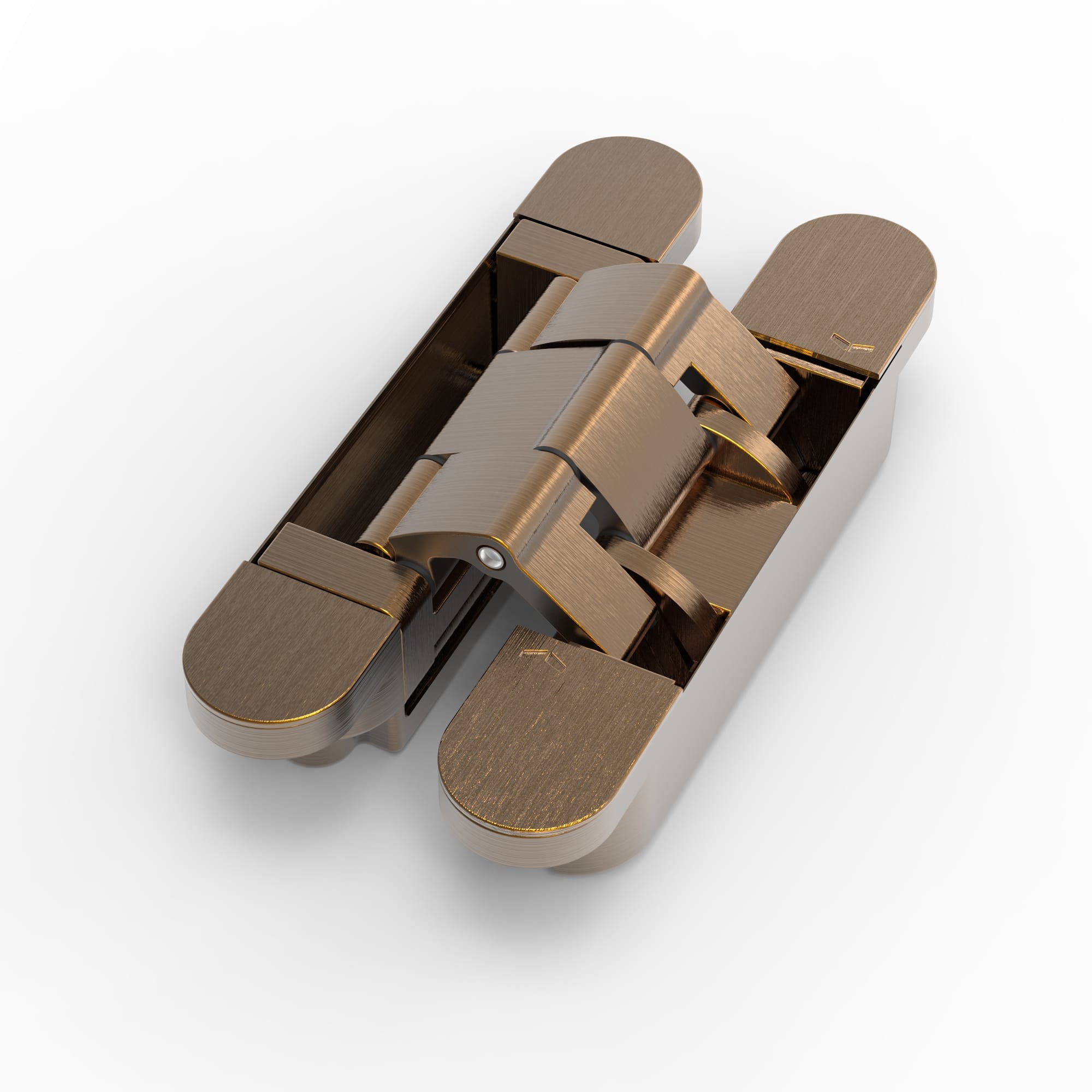

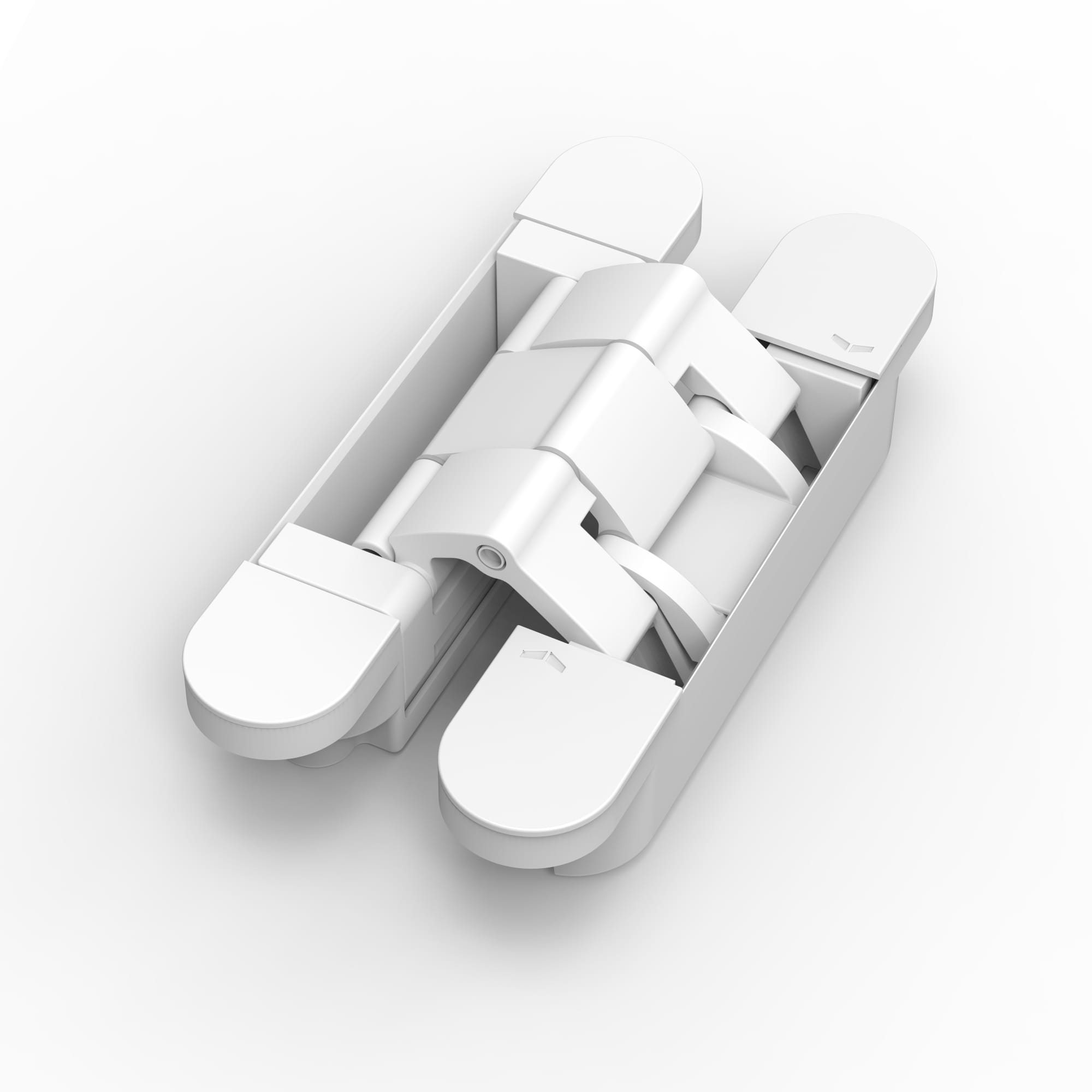

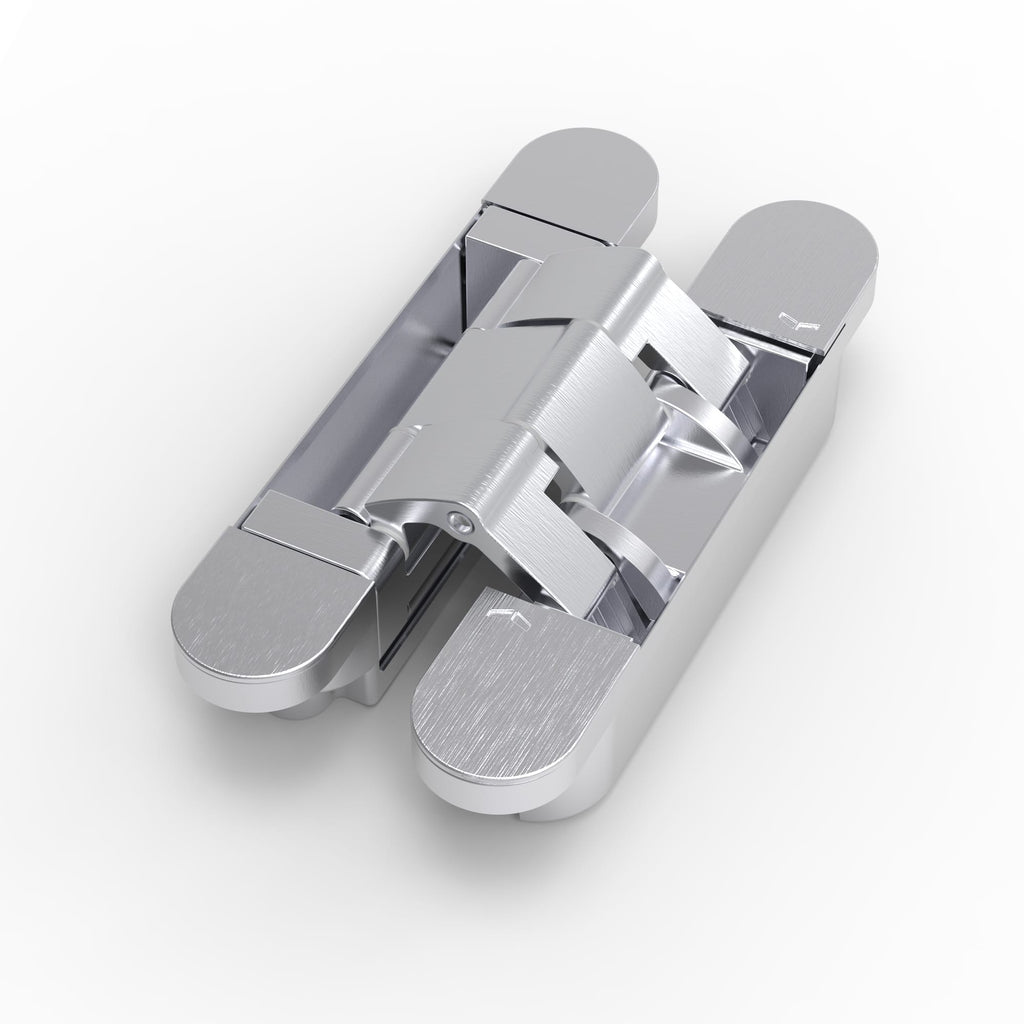

Colors & Finishes: Invisible Neo is available in 11 colors and multiple finishes
Detail: No visible adjustment or fastening screws due to cover plates
| S-5 | M-6 | L-7 | |
|---|---|---|---|
| Material | Zamak | Zamak | Zamak |
| Door thickness (min.) | 33 mm | 36 mm | 40 mm |
| Door thickness with max. front panel | 35 mm | 40 mm | 46 mm |
| Overall depth (Frame / Door) | 26.5 mm / 30 mm | 30 mm / 32 mm | 33 mm / 36 mm |
| Dimensions (L × W) | 120 × 25 mm | 140 × 28 mm | 170 × 32 mm |
| Installation / Adjustment | Easy-Hook | Easy-Hook | Easy-Hook |
| Height adjustment1 | -2.5 / +2.5 mm | -3.0 / +3.0 mm | -3.0 / +3.0 mm |
| Width adjustment1 | -3.0 / +4.0 mm | -3.0 / +4.0 mm | -3.0 / +4.0 mm |
| Pressure1 (depth adjustment) | -1.0 / +1.0 mm | -1.5 / +1.5 mm | -1.5 / +1.5 mm |
| Max. front panel (Cladding) size | 5 mm | 6 mm | 7 mm |
| Fire resistant 2 | E30, EI230, EI130, EW30 | E60, EI260, EI160, EW60* | E60, EI260, EI160, EW60 |
| CE marking | 2 7 3 1 1 4 0 10 | 3 7 4 1 1 4 0 11a | 4 7 5 1 1 4 1 12a |
| Screw diameter (SPAX - Z2) | max. 4.5 mm | max. 5 mm | max. 5 mm |
| Door Width / Max. Door Weight | S-5 (2 hinges) | S-5 (3 hinges) | M-6 (2 hinges) | M-6 (3 hinges) | L-7 (2 hinges) | L-7 (3 hinges) |
|---|---|---|---|---|---|---|
| 730 mm | 75 kg | 95 kg | 95 kg | 115 kg | 110 kg | 160 kg |
| 830 mm | 70 kg | 90 kg | 90 kg | 110 kg | 105 kg | 155 kg |
| 930 mm | 65 kg | 85 kg | 85 kg | 105 kg | 100 kg | 150 kg |
| 1030 mm | 60 kg | 80 kg | 80 kg | 100 kg | 95 kg | 145 kg |
