Accurate - Sliding Door Sets - SL9100ADA Self-Latching (Hotel/Motel)

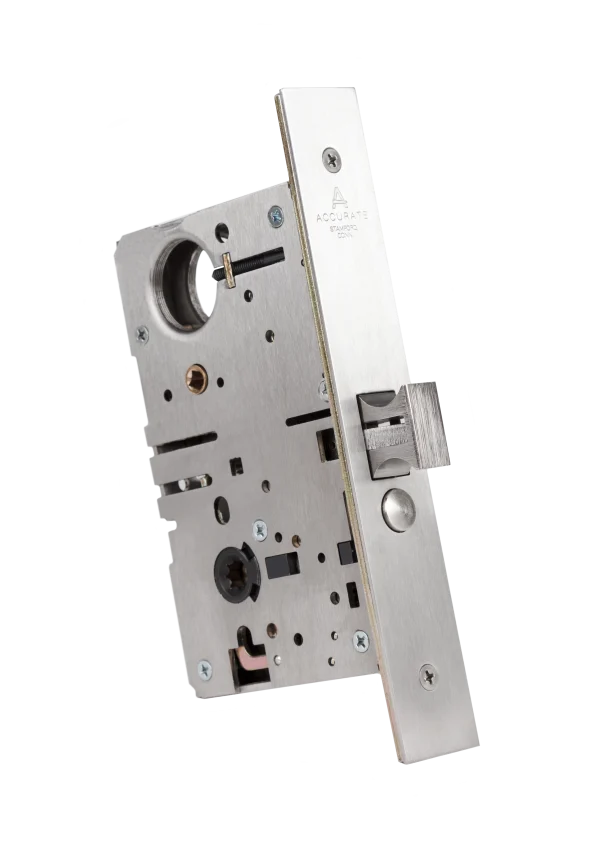

SL9134ADA

• Latch bolt by handle inside and Guest/Master key outside.

• Outside handle always RIGID.

• Deadbolt by turn piece inside.

• Turn of inside handle retracts latch and deadbolt simultaneously.


Hotel/Motel Set Includes:

• SL9134

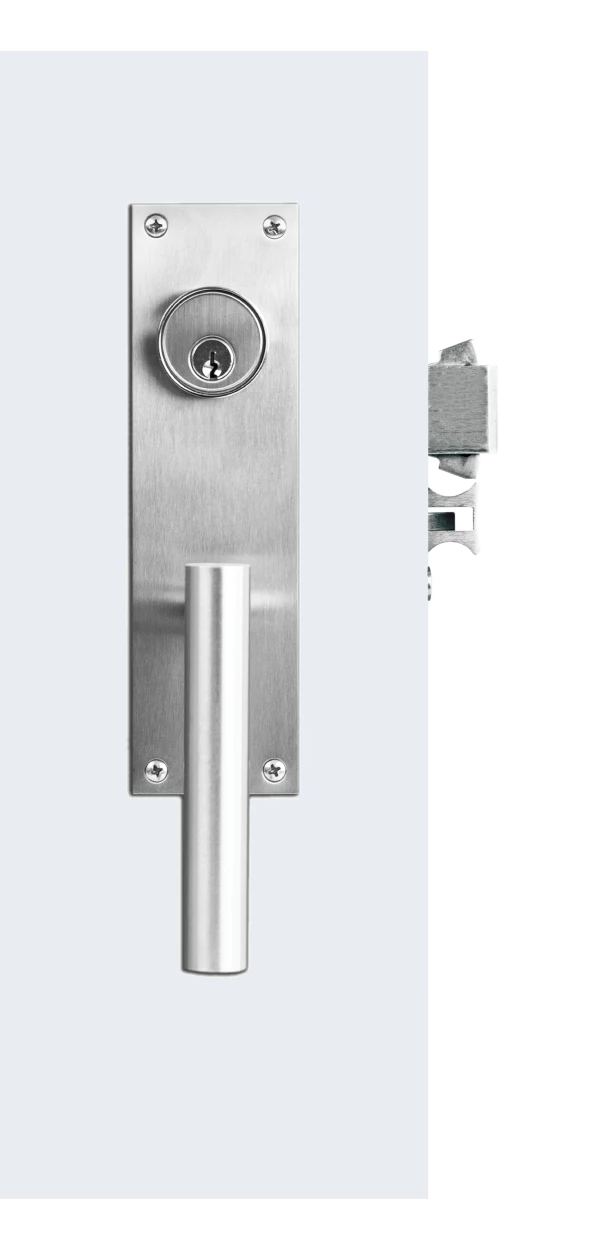

• 72L/1E-C Escutcheon with Lever and Cylinder Cutout
• 72L/1E-ADA Escutcheon with Lever and Integrated 7200ADA T-turn

General Specification

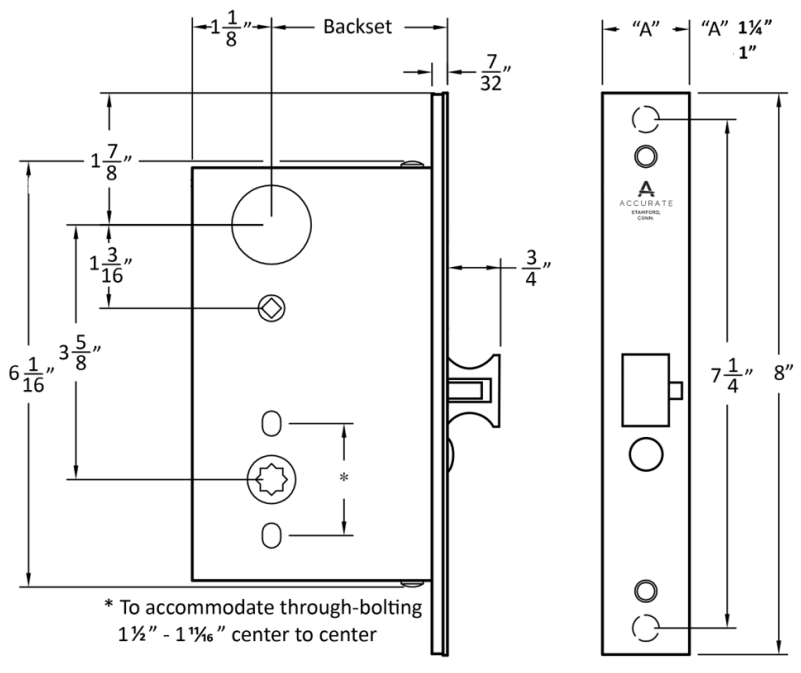

• BACKSETS: 2-1/2", or 2-3/4". Other backsets available as a special order.

• DOOR THICKNESS: Available with 1" front for 1-3/8" thick doors or 1-3/4" thick doors. Sliding door applications only (not for pocket doors).

• APPLICATION: Latch bolt functions like an edge pull when projected. Deadbolt available for locking/extra security (see function list). Single egress allowing unlocking and sliding the door open in one operation.
• TRIM: Furnished standard with 72L/1E, other lever trim available
• Can be paired with Accurate ADA or Pocket Door Trim. Also compatible with other manufacturers' trim. Please contact for assistance
• DETAILS + OPTIONS: Latch bolt held back and released by pressing of a button or by sliding door closed against jamb: Door self latches whether latch is projected or retracted. When door hits the frame, latch projects and latches.
• Latch bolt functions like an edge pull when projected.

• Deadbolt available for locking/extra security (see function list).

• Single action egress allowing unlocking and sliding the door open in one operation.

• For use with Accurate’s SLFT flush pulls (for true pocket door applications) or Accurate’s levers. Lock can be used with other manufacturers’ sectional levers that can be installed vertically.
