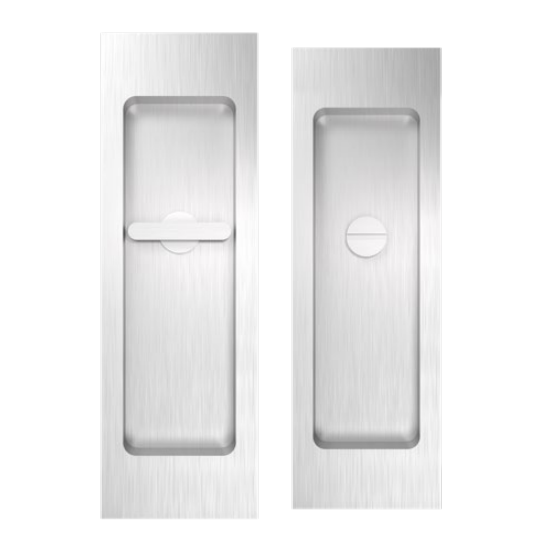

Accurate - Pocket Door Sets - Invisi-Mount Fastener (Privacy)

Accurate Lock & HardwareSKU: ALH.I.2002CPDL-5.2.US4

Price:
Sale price$1,372.50

Description

About Accurate Lock & Hardware

Accurate Lock and Hardware fuses old-world craftsmanship with modern technology to create architectural hardware products of uncompromising quality. Our team of experts have created an extensive range of products for the entire door including custom solutions for high end residences, commercial buildings, institutional facilities, and important landmarks such as the White House, Ellis Island, and state capitols. Since 1972, we have operated under one guiding principle: if you can dream it, we can make it. From concept to manufacturing, all Accurate products are proudly made entirely in the USA

Specification

    2002CPDL-5 | 2002Q-5
    PRIVACY
    By T-turn inside, ER outside.
    Includes:

    • 2002CPDL or 2002Q Quiet Pocket Door Lock with Integrated Edge Pull.
    • Flush Pull Trim: Emergency Coin Release x T-turn.
    • Specify handing.

    General Specification

    • Backsets: 2”, 2-1/2”, 2-3/4” (other backsets available custom order).
    • CASE: Heavy gauge, wrought ( 11/16'' thick)
    • ARMOR FRONT: 1” wide, 8” standard made from brass, bronze or stainless steel and finished as required
    • DEADBOLT: 1/2’’ thick, 1 7/32 ” high, 1” throw
    • DOOR THICKNESS: For use on 1-3/4" thick doors
    • PULL: 1/2’’ thick, 2” high, 1-1/4” throw
    • STRIKE: 3-1/2” x 1” deadlock type strike for single doors included (specify SD). 8” tall strike available at an upcharge (Specify SD-8).
    • THUMB TURN HUB: 3/16’’ (5mm) on the diamond standard
      (specialty 6mm square hub available as special order)
    • DUST BOX: For single doors, available in brass, stainless steel or US10B
    • Available in a variety of functions for passage, privacy or entry doors.
    • Specify Q for SilentPac™ Quiet Pocket Door Pull.
    • IS, IN, IA, IO Flush Pulls | Concealed Fasteners

    SilentPac Quiet Pocket Door Pull
    Designed for a smoother, quieter experience, the SilentPac features a slow-release mechanism that gently returns the edge pull—ideal for space-saving pocket doors.

    Note: Additional cost may apply depending on the set/model.

    Ordering Guide

    Pocket Door Set Only - Cylinder Sold Separately

    1. Choose your flush pull style: IS, IN, IA, or IO

    2. Select a backset: Standard options include 2", 2-1/2", or 2-3/4". For custom backsets, please contact us.

    3. Select a finish: Note: Cylinder sold separately. Standard finishes are limited. Custom finishes may incur additional cost and extended lead times.

    4. Determine handing (if applicable): Refer to the handing chart for guidance.

    5. Specify door thickness: Standard configuration is designed for 1-3/4" thick doors.

    6. Choose SilentPac option: Indicate whether you would like to include the SilentPac quiet-close feature.

    You may refer to the product specifications or visit Accurate’s website for more info. For additional assistance, feel free to Contact Us.

    Handing

    Resource

    Pocket Door Sets Invisi-Mount Fasteners Specification

    Handing Guide

    Maintenance & Cleaning

    Warranty

    Specification Sheets

    Spec.IS2002
    Spec.IA2002

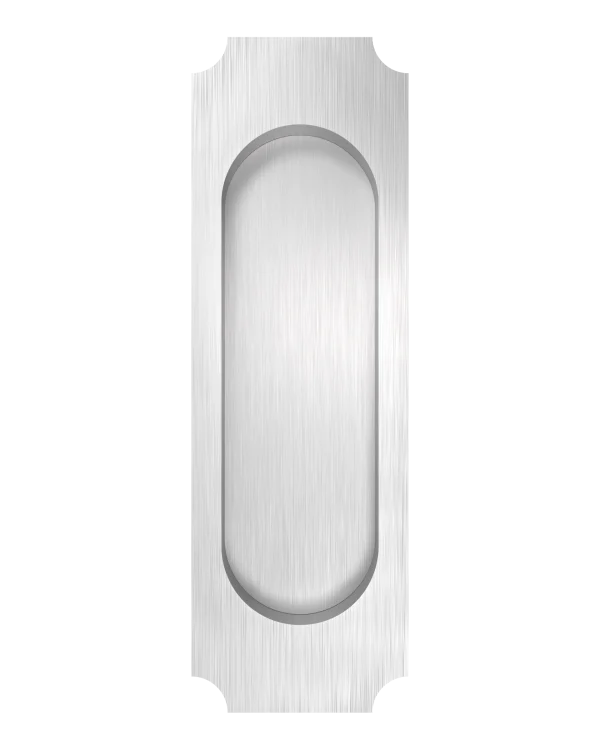

    Spec.IN2002
    Spec.IO2002
    Spec.2002Q
    Spec.2002CPDS-Q
    Spec.2002CPDP-Q

    Installation Templates

    T-ALH.2002CPDL.2002Q.IA.IN.IO
    T-ALH.2002CPDL.2002Q.IS
    T-ALH.2002CPDS.CPDS-Q.IA.IN.IO
    T-ALH.2002CPDS.CPDS-Q.IS
    T-ALH.2002CPDP.CPDP-Q.IA.IN.IO
    T-ALH.2002CPDP.CPDP-Q.IS
