TECTUS TE340 3D Concealed Hinge Each

Save 15%
Tectus by SimonswerkSKU: TE340-3D-124

Price:
Sale price$107.10 Regular price$126.00

Description

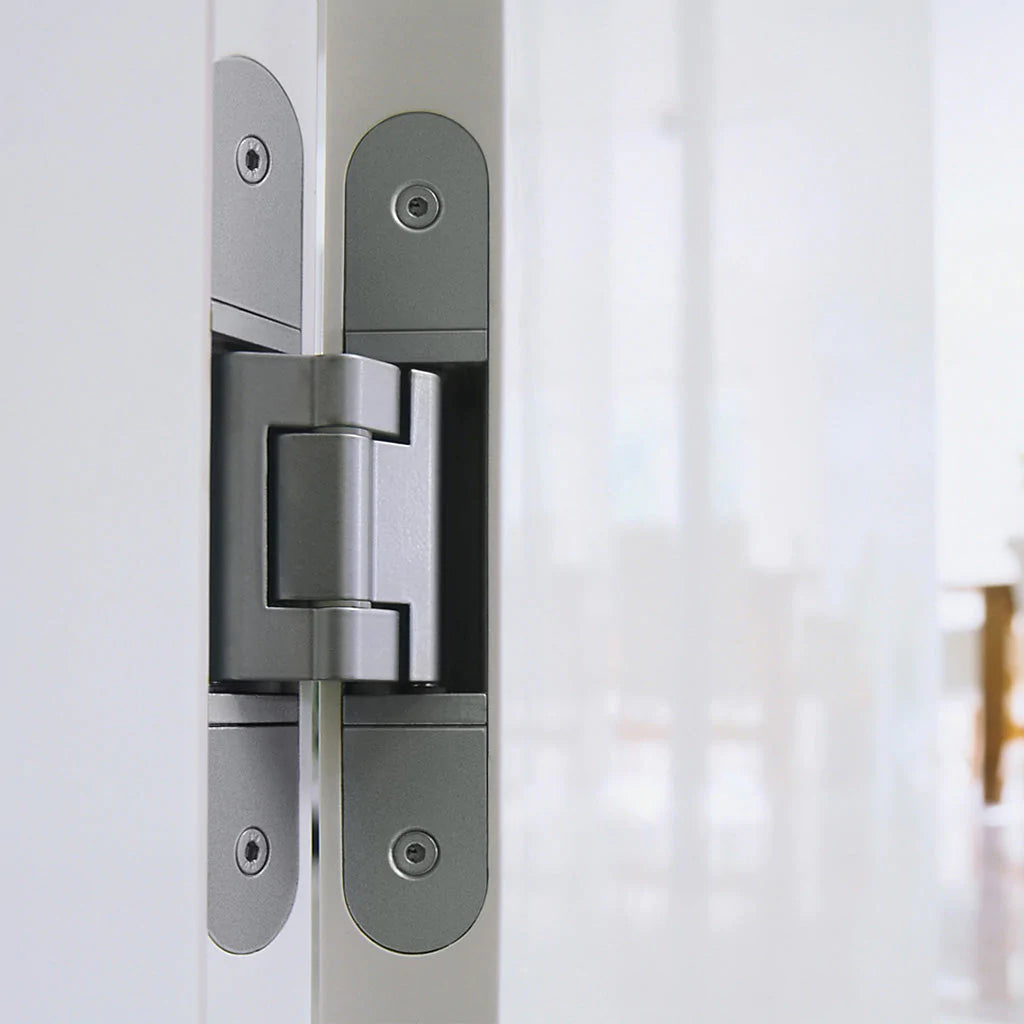

TECTUS TE 340 3D Concealed Hinge

Residential & Commercial Interior Door Concealed Hinge
Priced by the EACH, standard application requires two (2) hinges per door.

Application
Single Acting
Interior Doors
1-1/2" (38mm) Minimum Door Thickness
Weight up to 176 lbs. with 2 Hinges* (see Install Sheet for additional guidelines)

Handing
Non-handed

Features

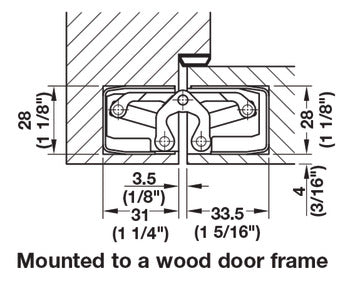

SIMONSWERK TECTUS TE 340 3D Hinge. Completely concealed for unrebated and rebated flush doors with wood, steel and aluminium frames.

  • Load capacity 176 lbs. (80 kg)/ 2 hinges
  • Opening angle up to 180°
  • Overall length 6.299" (160mm)
  • Maintenance-free slide bearings
  • Three-dimensionally adjustable: side +/- 3mm, height, +/- 3mm, compression +/- 1.5mm.

Router templates for installation are sold separately.

Available finishes

    Rustic Umber (156)
    Traffic White RAL 9016 (070)
    Matte Deep Black RAL 9005 (10)
    Satin Chrome Look (F1)
    Satin Nickel Look (F2)
    Satin Stainless Steel Look (126)
    Satin Nickel (144)
    Polished Nickel (038)
    Satin Brass (047)
    Polished Brass (030)
    Satin Chrome (146)
    Bronze Finish Light (175)
    Bronze Finish Dark (176)



    Resource

    Specification

    Installation

    Template

    Finish Chart
